3 in 1 CNC Copper Busbar Bending Cutting Punching machine for control Panel

This series 3 in 1 Hydraulic Copper Bus bar processor for Substation has three units:punching, shearing and bending.It is easily to adjust each unit to shorten the processing time and improve the production efficiency. It is used to process copper and aluminum busbars in different specification.By relative operation unit It can easily and quickly do all kinds of processing to copper and aluminum busbar,such as shearing, punching (circular hole and oblong hole), flat/honrizental bending, vertical bending and knurling.Change differentmold to do special processing to copper bar,such as flat press,embossing,cable connector process,and can do cutting,flat crushing,pushing,and bending.

Work Unite:

Bending cutting punching independently .

Metal Processed on :

Brass/Copper and Alumimum Busbar.

Functions:

       1.  bending at vertical and horizontal direction.

       2.  punching for round and oblong hole.

       3.  cutting busbar.

       4.  special for embossing, knurling, twisting, cable joints pressing.

Main Features:

        1.  The cut surface is smooth and neat, no droop, no burrs, no waste

        2.  Rotary turret punch unit installed 6 dies, less replacing, high efficiency

        3.  More work space added by double work table, three work positions can be used at the same time.

        4.  Controlled by PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree

        5.  Easily to be moved with four castors

        6.  Manual button and foot switch are optional

        7.  Adjustable working stroke

        8.  on users requirement, special mold for special shape

Parameters Of  Busbar bending cuting / Shearing Punching Machine

How does Busbar machine finish Bending Cutting Punching :

1.3 in 1 Hydraulic Copper Bus bar processor for Substation has three units:punching unit, shearing unit and bending unit.It is easy to adjust each unit to shorten the processing time and improve the production efficiency.

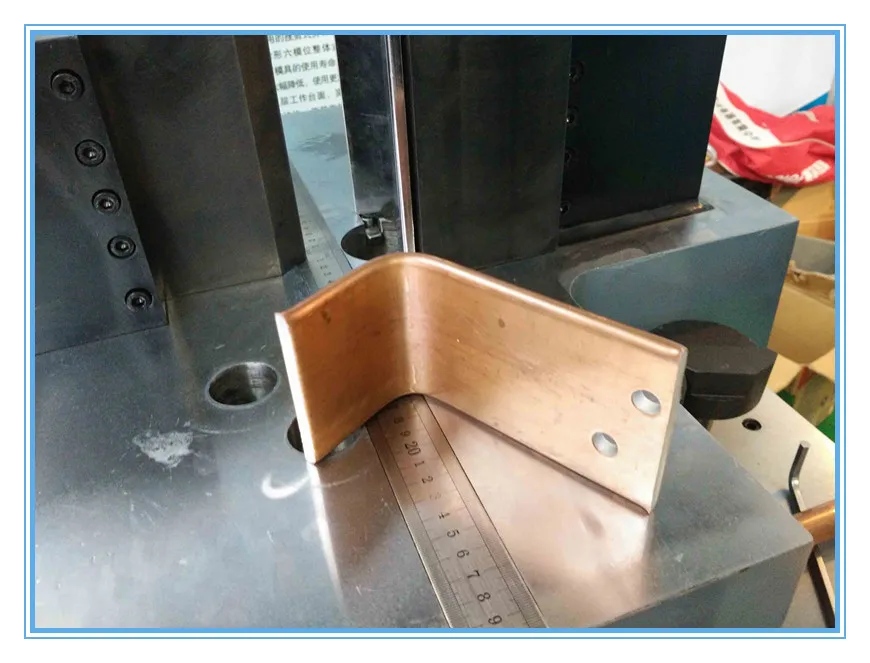

 2.The bending unit uses an importedPLC control system,which have stable system and high accuracy. It is used to process copper and aluminum busbars indifferent specification.

By relative unit It can easily and quickly do all kinds of processing to copper and aluminum busbar

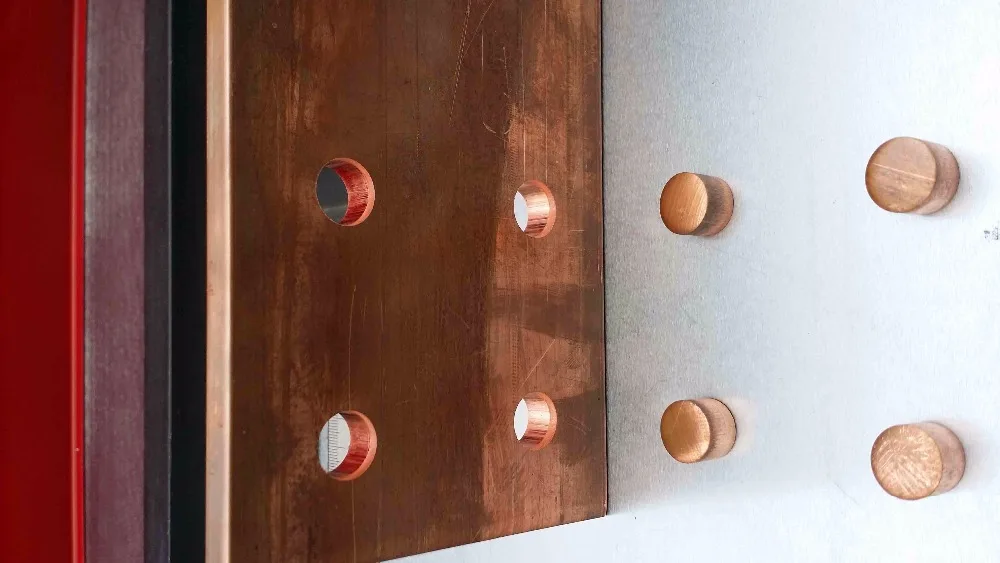

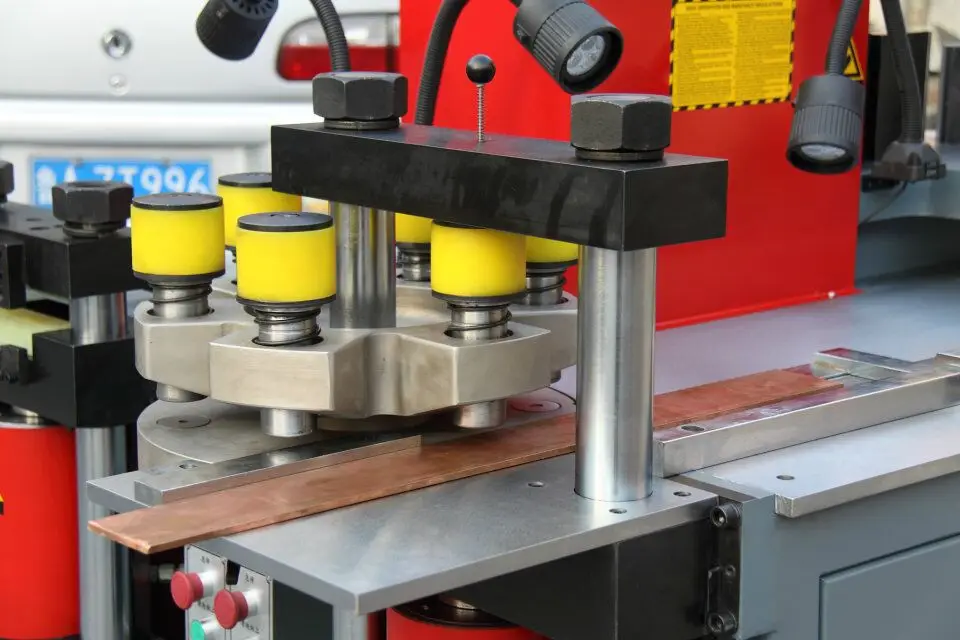

 3.punching (circular hole and oblong hole), use a six mold turn plate,no need to change mold frequently.

 4.Change different molds/dies to do flat press,embossing to a copper bar,cable connector press,and can do cutting,flat crushing,pushing,and bending to a copper/aluminium bar/clad.

 5.The machine has four casters so it is easily to be moved everywhere

 6.Two operating modes,manul button and foot switch

 7.Double table,which makes three unit can work together.

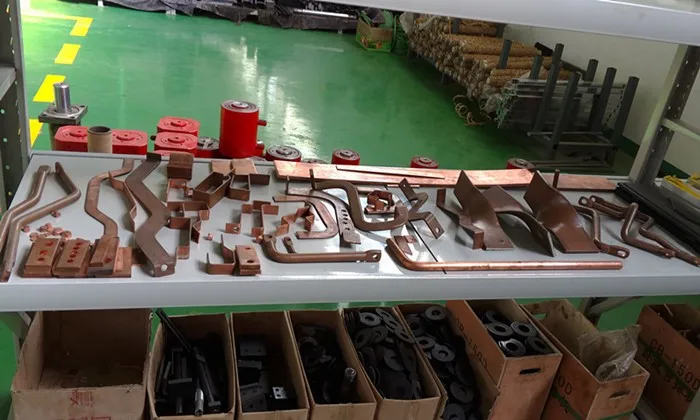

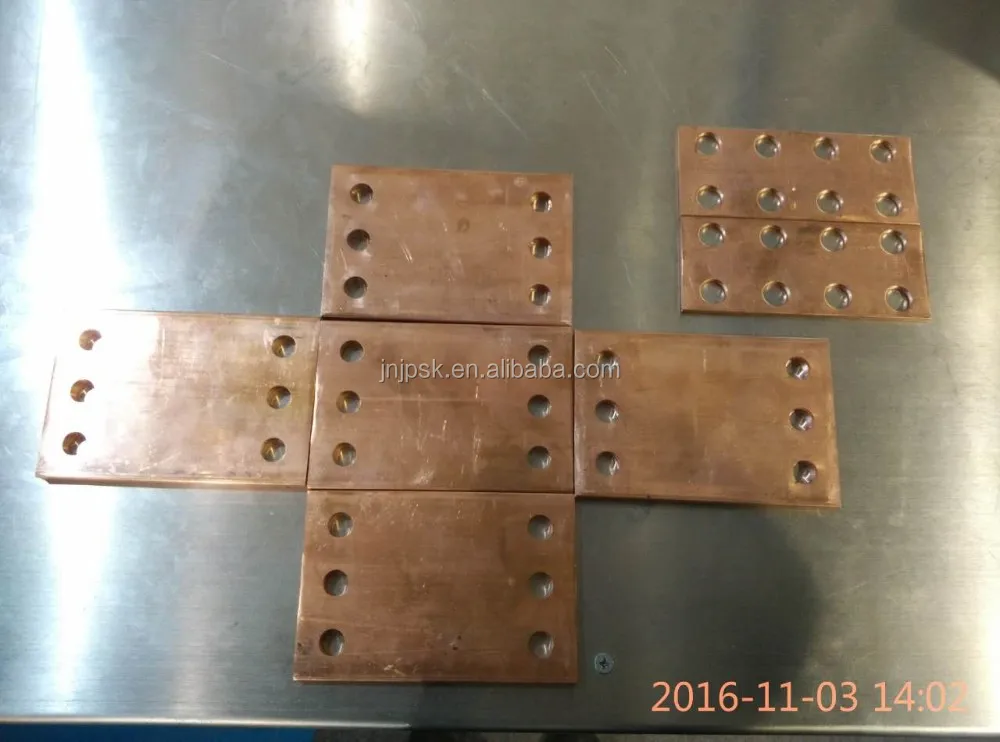

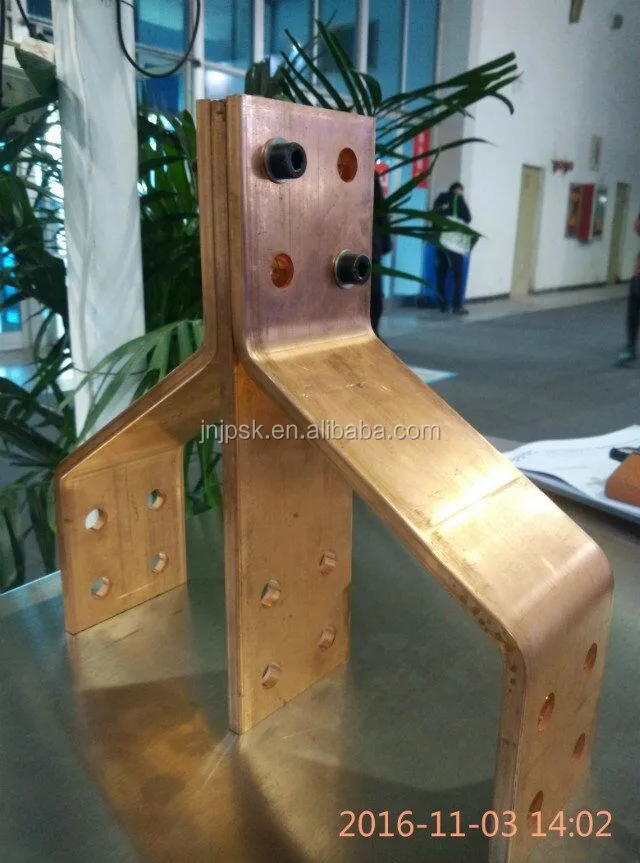

Samples:

Applicaton Area:

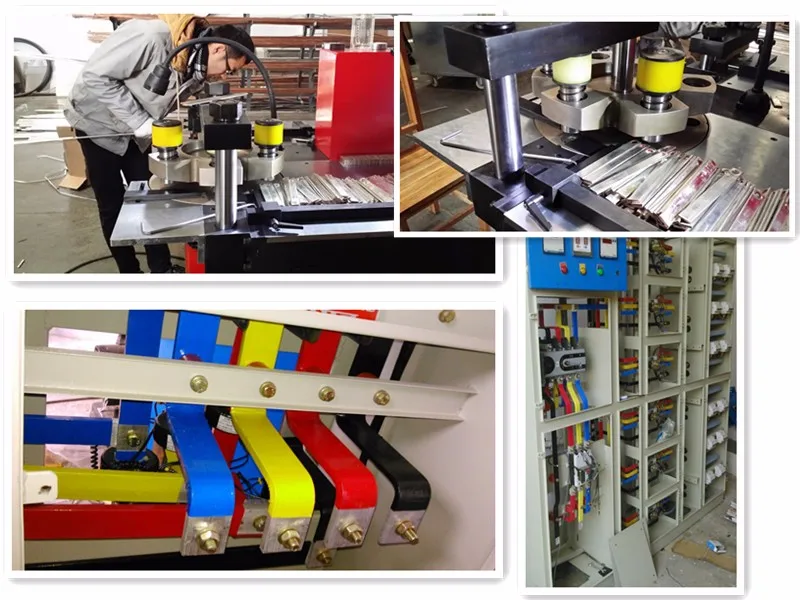

3 in 1 Hydraulic Copper Bus bar processor for Substation widely used in Switch cabinet, electric control panel manufacturing , high low voltage switchgear, eletric transformer station,Electric panel ,voltage transformer,appliance swich,ship manufacturing,electric elevator manufacturing,electric cabinet manufacturing , Power distribution system product maufacturing.

The Packing of Busbar bending machine is plywood case .

 Customer Reference:

advantage of the busbar machine:

1.  Warranty : one year guarantee for whole machine ( not including spare part)

3.  Our PLC are from Siemens.

     Our thermal relays, AC contactors, circuit breakers are from Schneider.

4.  We are factory. we can do OEM as per clients request.

5.  We have strong after-sales services team and professional technicians who can gurantee

     professional guidance after sales.

6. With Certification of CE&ISO 9001 .

 Usually within 15-20 days after the deposit.

 3.  What is your power supply?

We will adjust according to your countries power supply. No problem.

4.  What is the language of the manual and instructions on machine ?

All in English language .
