2017 durable costomized drill bit YT29A air leg jack hammer for sale

Introduction:

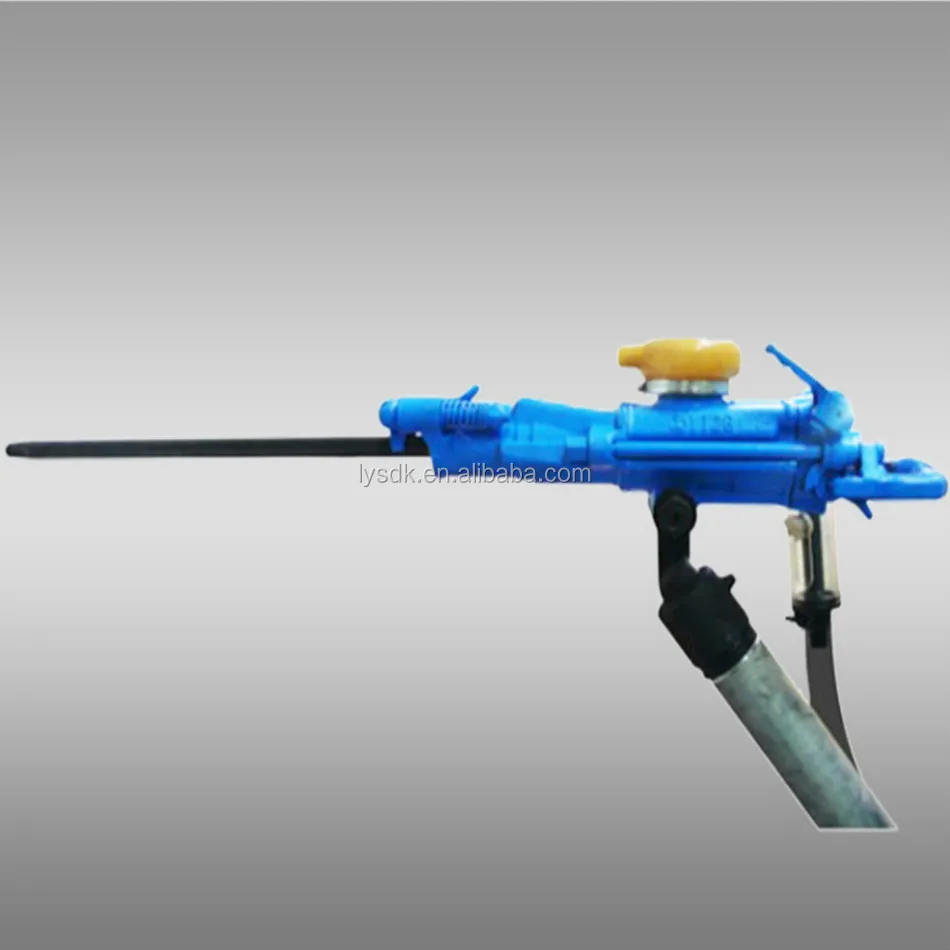

     YT29A Air-leg pneumatic rock drill used in construction sites, various types of mines, railways, water conservancy construction and national defense construction areas for drilling operations. It has a wide range of pusher leg and stoper rock drills to cover all construction, tunneling and mining applications in different rock formations. It is robust but simply designed, with high impact and low air consumption.

     The rock drills all have water flushing, rifle bar rotation and the pusher leg control is placed at the back head of the rock drill. An in-line lubricator is included in the delivery of each rock drill. Together with the appropriate pusher leg, the rock drill forms an attractive and cost effective drilling unit.

\t
Details
\t
Unit
\t
Arguments
\t
Weight
\t
kg
\t
27
\t
size
\t
mm
\t
659×248×205
\t
Piston diameter
\t
mm
\t
82
\t
Piston stroke
\t
mm
\t
60
\t
Working pressure
\t
Mpa
\t
0.40~0.63
\t
Impact frequency
\t
Hz
\t
≥39
\t
Impact energy
\t
J
\t
≥78
\t
Air consumption
\t
L/s
\t
≤88
\t
torsion
\t
N·m
\t
≥20
\t
Water pressure
\t
Mpa
\t
0.1~0.15lower than working pressure
\t
Air pipe inner diameter
\t
mm
\t
25
\t
Water pipe inner diameter
\t
mm
\t
13
\t
Drilling diameter
\t
mm
\t
34~45
\t
Max drilling depth
\t
m
\t
5
\t
Working temperature
\t
\t
﹣30~45
\t
drill steel shank
\t
mm
\t
H22×108±1
\t
Oiler/oil lubricator model FY250
\t
Weight
\t
kg
\t
1.2
\t
Oil feeding rate
\t
L
\t
0.25
\t
Air-leg model
\t
Min.Length (mm)
\t
Max.length(mm)
\t
Advance Length (mm)
\t
Cylinder diameter (mm)
\t
Weight  (kg)
\t
FT160A
\t
1668
\t
3006
\t
1338
\t
65
\t
17
\t
FT160B
\t
1428
\t
2526
\t
1098
\t
65
\t
16
\t
FT160C
\t
1820
\t
3310
\t
1490
\t
65
\t
18
\t
FT170
\t
1668
\t
3006
\t
1338
\t
67
\t
18
Detailed Usage
\t
Scope of Operation:
\t

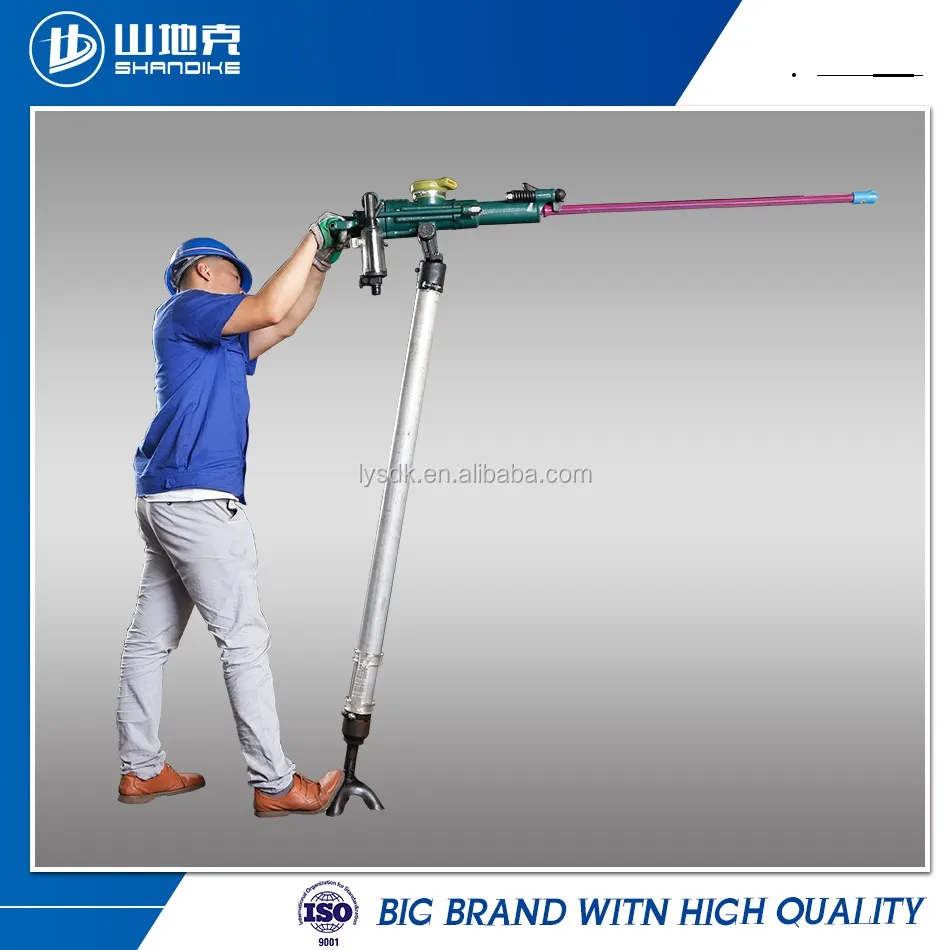

1. YT29A is suitable for drilling horizontal or tiptilted blasthole in solid hard rocks as well as vertical bolt holes on the roof. The diameter of blast holes is usually 35-45mm, and the effective depth of the hole can reach to 5 meters.

2. YT29A can be used with the FT160A or FT160C long air leg, or the FT160B short air leg according to the tunnel space. The metal mines can adopt FT170 air leg.

3. YT29A also can be installed on drill rig or drill frame to drill rocks with or without water.
Packing & Delivery

Packing: Normally we pack the prodcuts with two cartons or using wood box as customers' requirements to guarantee the safety during the transpotation.

Delivery: We accept FOB,CFR,CIF export terms by sea, the main port is Shanghai and Qingdao, but we can also deliver goods in the port your designated. About sample and customer clearence documents sending, we have built long term relationship with DHL,UPS,TNT and FedEx so that we will choose best express logistics for you.

Our Factory

         Our factory was established in 1995 in china. We were aiming to design, produce the pneumatic rock drill tools professionally, products including hand-held pneumatic rock drill and air leg pneumatic rock drill. We were granted the ISO9001:2000 certificate and MA certificate in 1999 and after more than 14 years’ effort, we set up 25 sales branches in China and have established long term business relationship with global companies, such as south Africa,India, Saudi Arabia, Mexico,Chile,Colombia,Peru and other south America areas.

           Now, our annual production reaches 53,00 sets rock drill machines and 800,000 pieces of spare parts for it. And we have occupied 32% of the rock drill tools market in china and exported 5000 sets rock drill in global market.

        We believe that with advanced technology, high quality guarantee, honest business relationship and sincere services, we can become first-class machinery company.
