plastic drinking straw bending machine for making bendy straw

Share on (60632637266):


Price:$8,800.00 - $9,000.00

Quantity:


Product Overview

Description


Product Description

  plastic drinking straw bending machine is automatic used to bending the straight drinking straws into flexible ones. The machine is fully automatic from straight straws to flexible products, only need workers to add the straight straws.

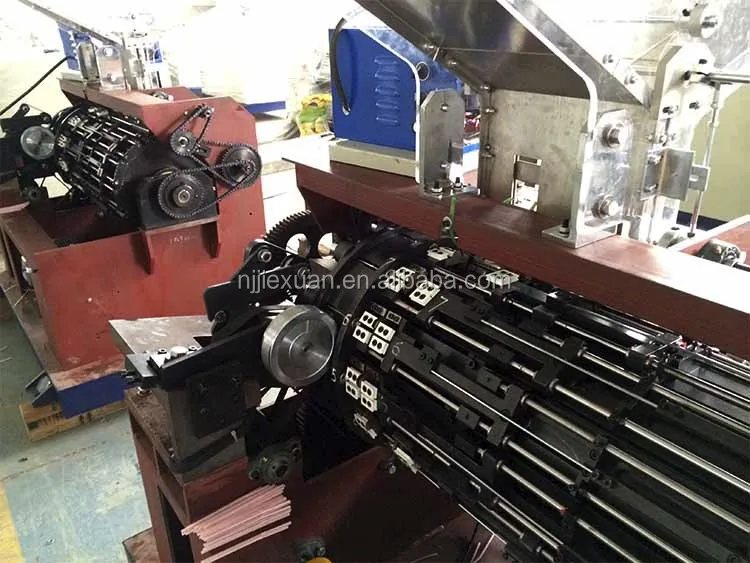

  The straight straws are supplied from the hopper at the top of the machine, then clamped by 2 mechanical hands and feed one by one into the main drum of the machine. As the main drum rotates, the straw passes through 2 rotary dies to form indentation. After compressed by 2 mechanical hand, contraction-like folding indentation was formed. At last, the finished products output automatically. The main drum can run continuously with 12 straws. Machine are manufactured according to CE standard.

Parameters

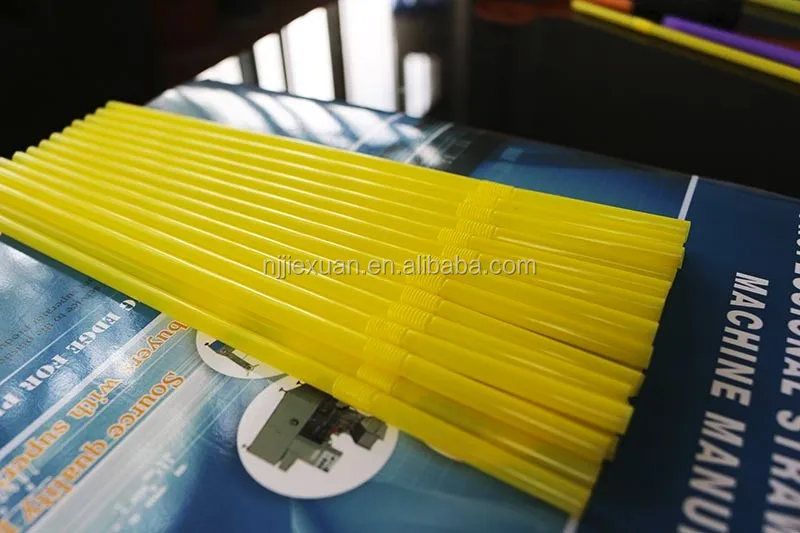

    plastic drinking straw bending machine for making bendy straw



Driving motor

                   1.5kw  control by frequency converter

Production Capacity

                             280-300 pcs/min



specifications

 Inside diameter

      3.8mm

4.8mm

  5.8mm

 Thickness of straw

 0.2±0.02mm

0.2±0.02mm

0.2±0.02mm

 Length of straight straw

 165-245mm

 200-260mm

 200-260mm

 Length of flexible straw

 150-230mm

 185-245mm

 185-245mm

                                                          Other specifications are customizable

 Machine size

                  1500 *1500* 1700mm

 Machine weight

                   1000kg

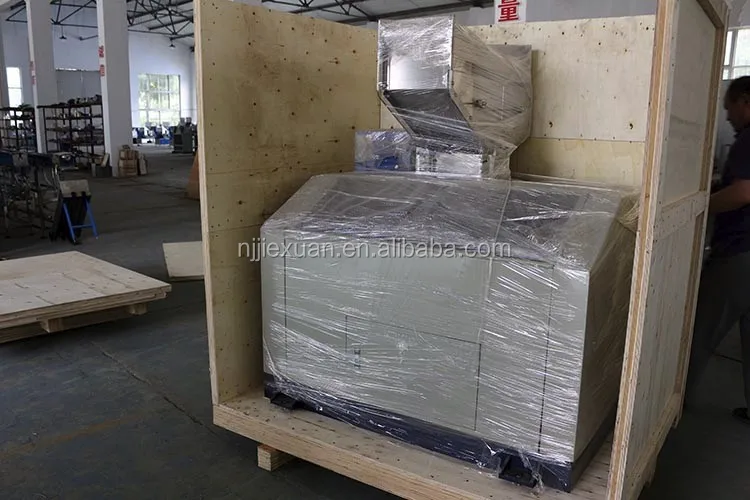

Packaging & Shipping

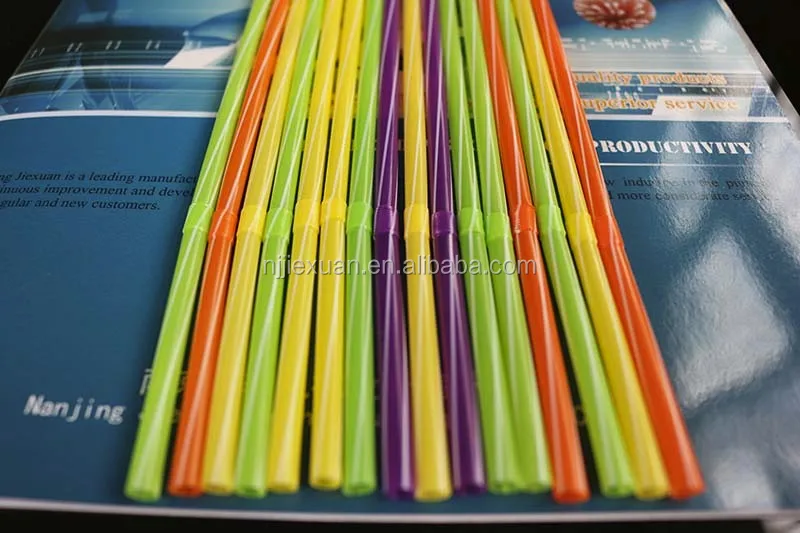

bend straw



flex straw

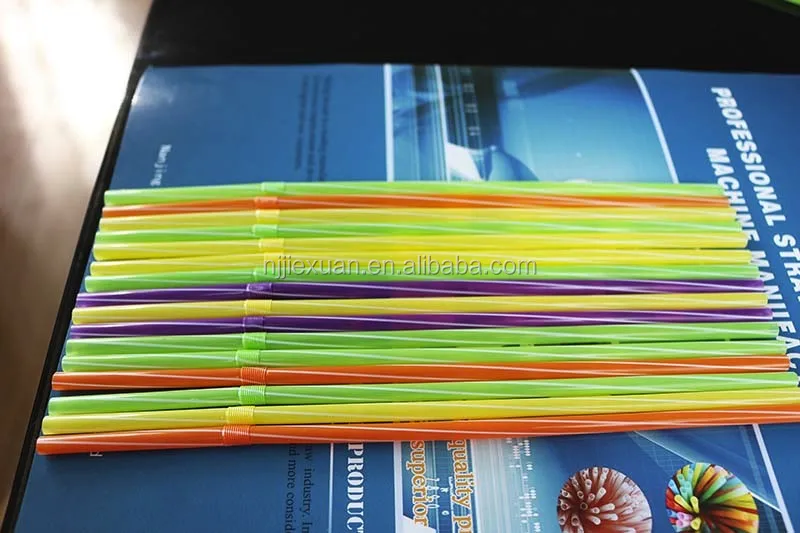

bendy straws



flexible straw



IMG_0304

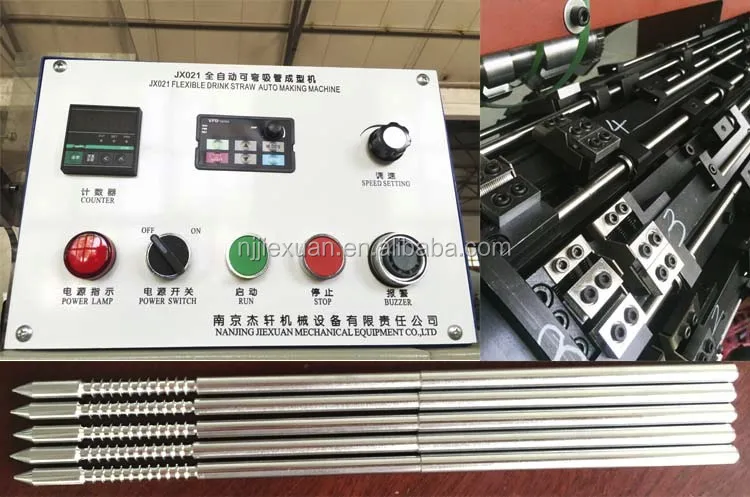

flexible straw bending machine

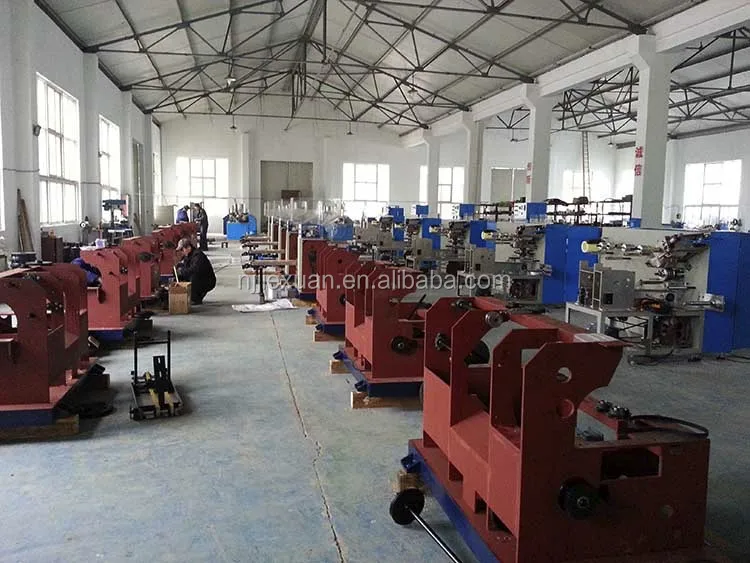

20131215_133704

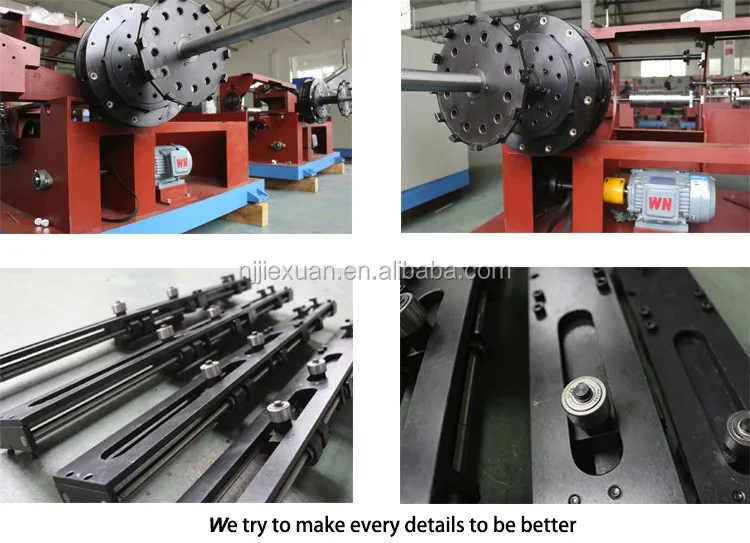

flexible straw bending machine details



straw mnaking machine electric parts



straw machine exhibition

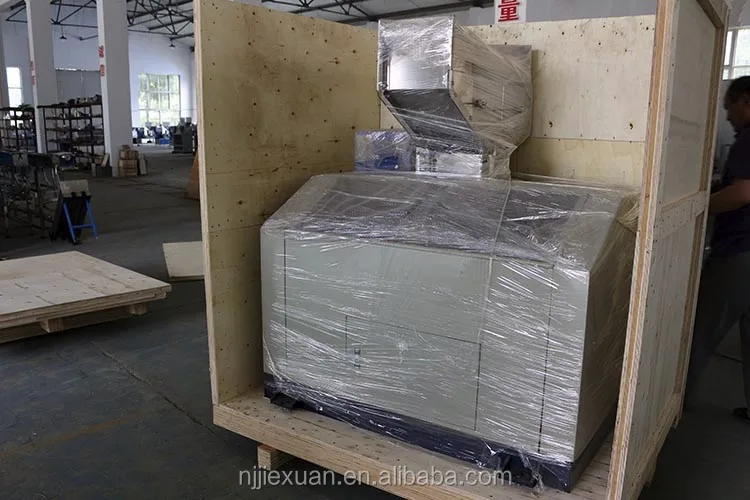

straw bending machine

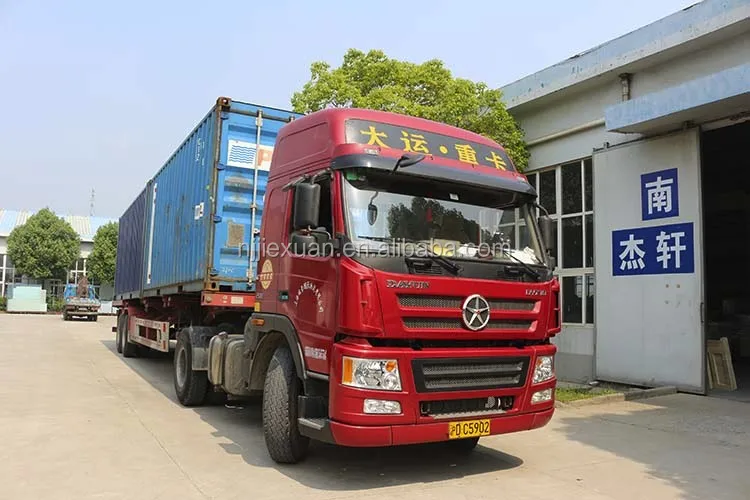

IMG_0264



Others products you may interested in:
Bending and packing machine link:

1. single straw packing machine

2. drinking straw extrusion line

3. u shape drinking straw packing machine

4. multiple straws packing machine

5. i shape straws packing machine



Contact me now>>>

Our Services



 1. Quick and professional pre-sales and after-sales services;

 2. Factory quality controlled services;

 3. Products fast delivery guarantee.

FAQ



1. Q: Are you a factory or trading company?

    We are factory and also many trading companies cooperated with us.

2. Q: What makes you different from others?

    (1)We are lifeful company and aims to build long terms business with you.

    (2)We promise to reply to you within 8 hours - sometimes even immediately.

    (3)As a manufacturer, we can ensure the delivery time and after-sales services.

3. Q: How can I know the status of my order?

    We will send you infoand photos at different production stage of your order.

    You will get the latest information in time.

4. Q: Where is your factory located at? How can I visit there?

    Our factory is located in Nanjing, Jiangsu Province, China,
    (1)You can fly to Nanjing Lukou Airport directly. We can pick you up at the airport;
    (2)You can fly to Shanghai Pudong International Airport then come to Nanjing by

         High-speed railway, then we will pick you up in the railway station.
