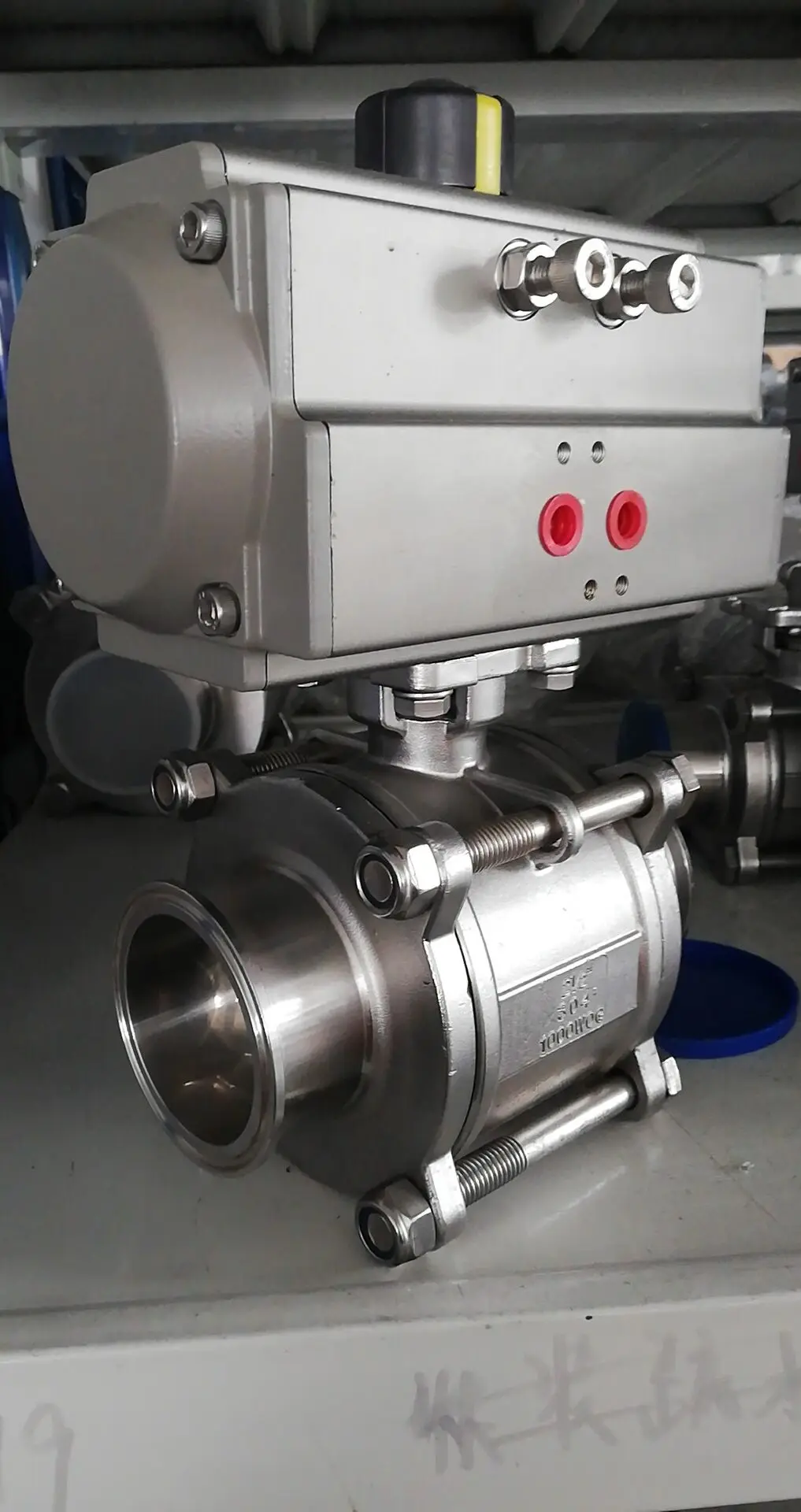

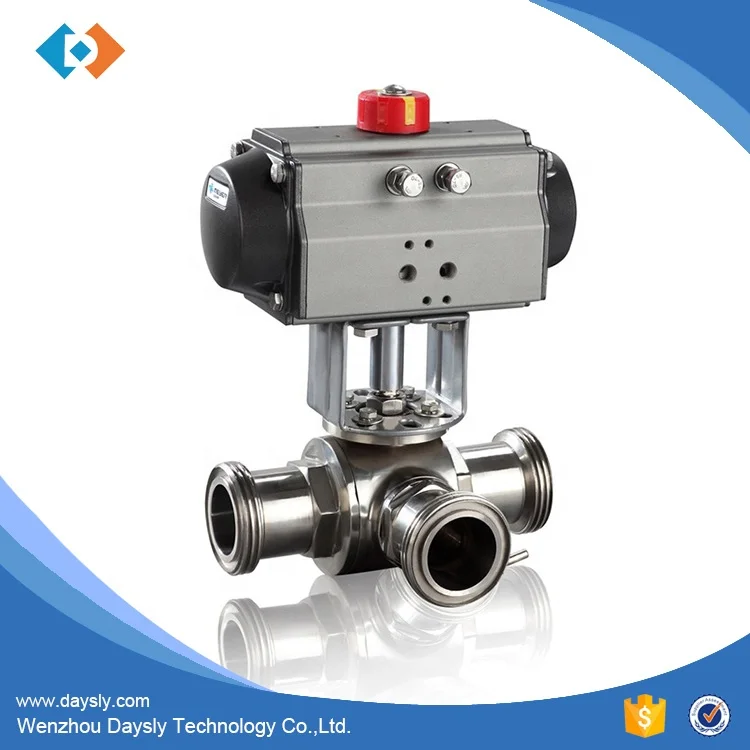

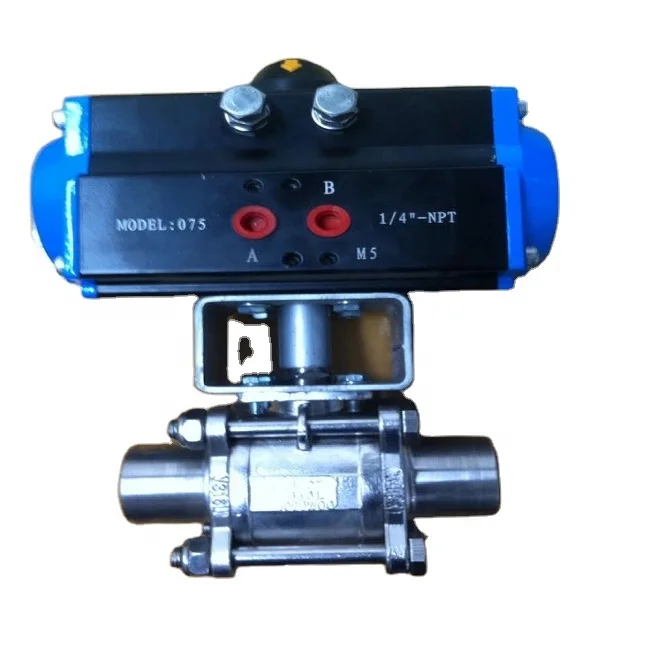

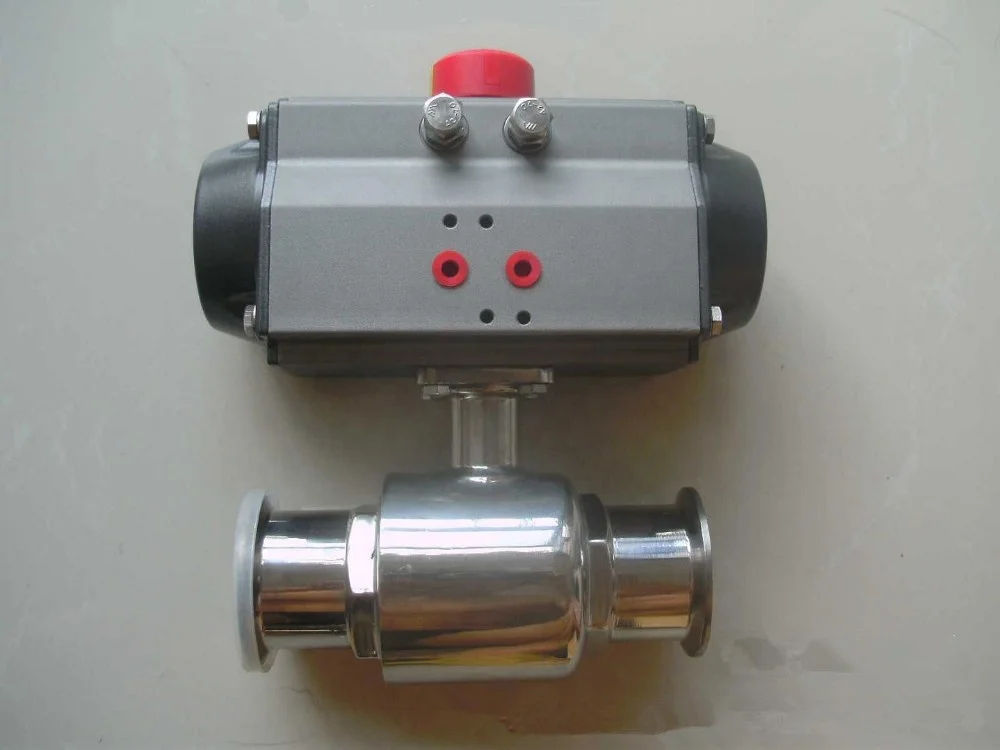

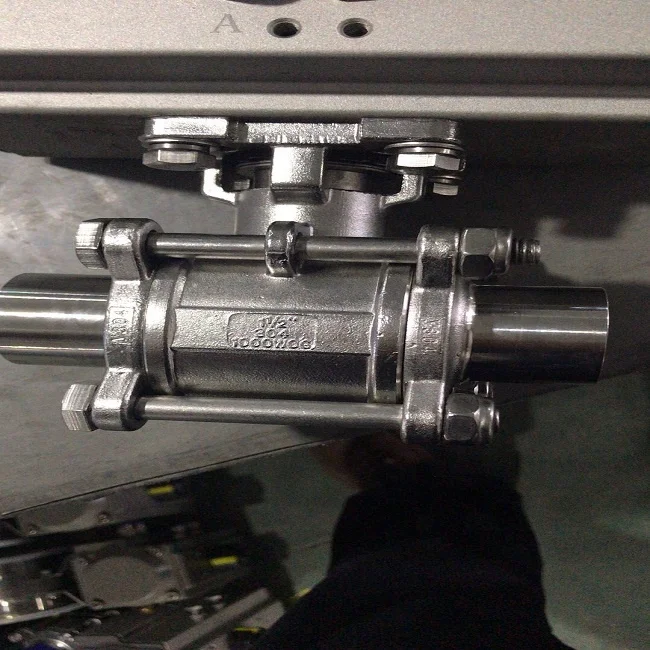

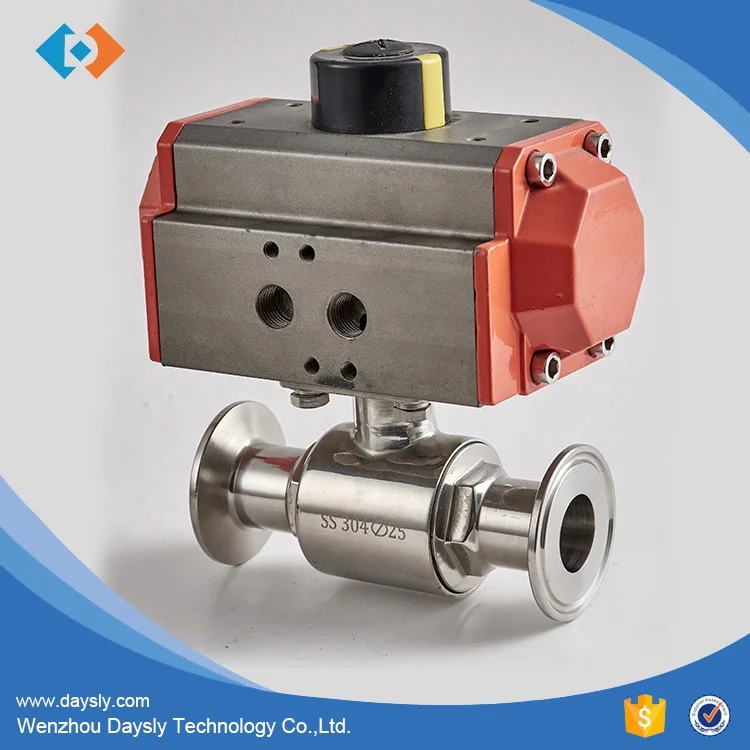

DN40 304 Stainless Steel Pneumatic Three Pieces Ball Valve
- Category: >>>
- Supplier: Wenzhou Daysly Technology Co. Ltd.
Share on (60632671686):
Product Overview
Description
Product Description
Product Description :
1. Options
Size: 1"-12", DN25-DN300
Standard: DIN, SMS, 3A, ISO, IDF, RJT
Gasket material: Silicon, EPDM, NBR, FPM
Connection: Weld, clamp, thread, single weld single thread, flange
Handle: 2-position handle, 3-position handle, 4-position handle pull rod handle, multi-position plastic handle and multi-position stainless steel handle.
Actuator: Pneumatic stainless steel actuator, pneumatic aluminium actuator, electric actuator.
2. Applications:
Sanitary ball valve is automatically or manually operated valve. It is well suited for various applications in stainless steel pipe systems. Which use for food, beverage, brewage, dairy, pharmacy and chemical industry area.
3. Operating Principle:
It can be either remote-controlled by an actuator or manually operate a handle.
The actuator has three standard types, namely normally closed (NC), normally open (NO) and air/air activated (A/A).
The actuator push piston of axial movement into 90 degree so that it controls ball valve.
4. Performance:
Diversiform operation (manual and pneumatic) and adjustable operation as different points.
All ball valves can be installed sighed-position indicator and switch.
5. Technical Data
| Metal material | Product wetted | 304/316L (forged) |
| Non-product wetted | 304 | |
| Disc& body | AISI 304/316L(precise forged), producing by the import CNC machine | |
| Seal material | Standard | Silicone |
| Options | EPDM, FPM, NBR | |
| Color | Blue, red, black, green, translucent (milk white) | |
| Handle | 2-position handle, 3-position handle, 4-position handle pull rod handle, multi-position plastic handle and multi-position stainless steel handle. | |
| Temperature | Continuous working temperature | -10°C ~ +135°C(EPDM) |
| Sterilization temperature | 150°C (Max 20min) | |
| Pressure | Working pressure | 0~10bar |
| Control air pressure | 5~8bar | |
| Surface treatment | Internal surface | R≤0.8µm |
| External surface | R≤1.6µm | |
| Connection | Connection standards | Welding end: DIN 11850 series 2 |
| standards | Welding end: Inch pipe diameter standard | |
| Connection methods: welding, thread, clamp, flange | ||
| Options | Smart controller | 24V DC |
| Solenoid valve (1 or 2) | ||
| Position sensor | 24V DC | |
| NPN/PNP position sensor (2) | ||

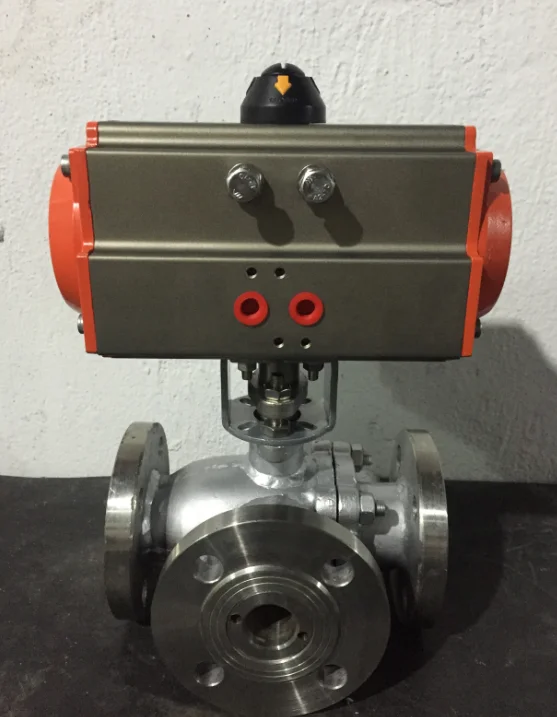

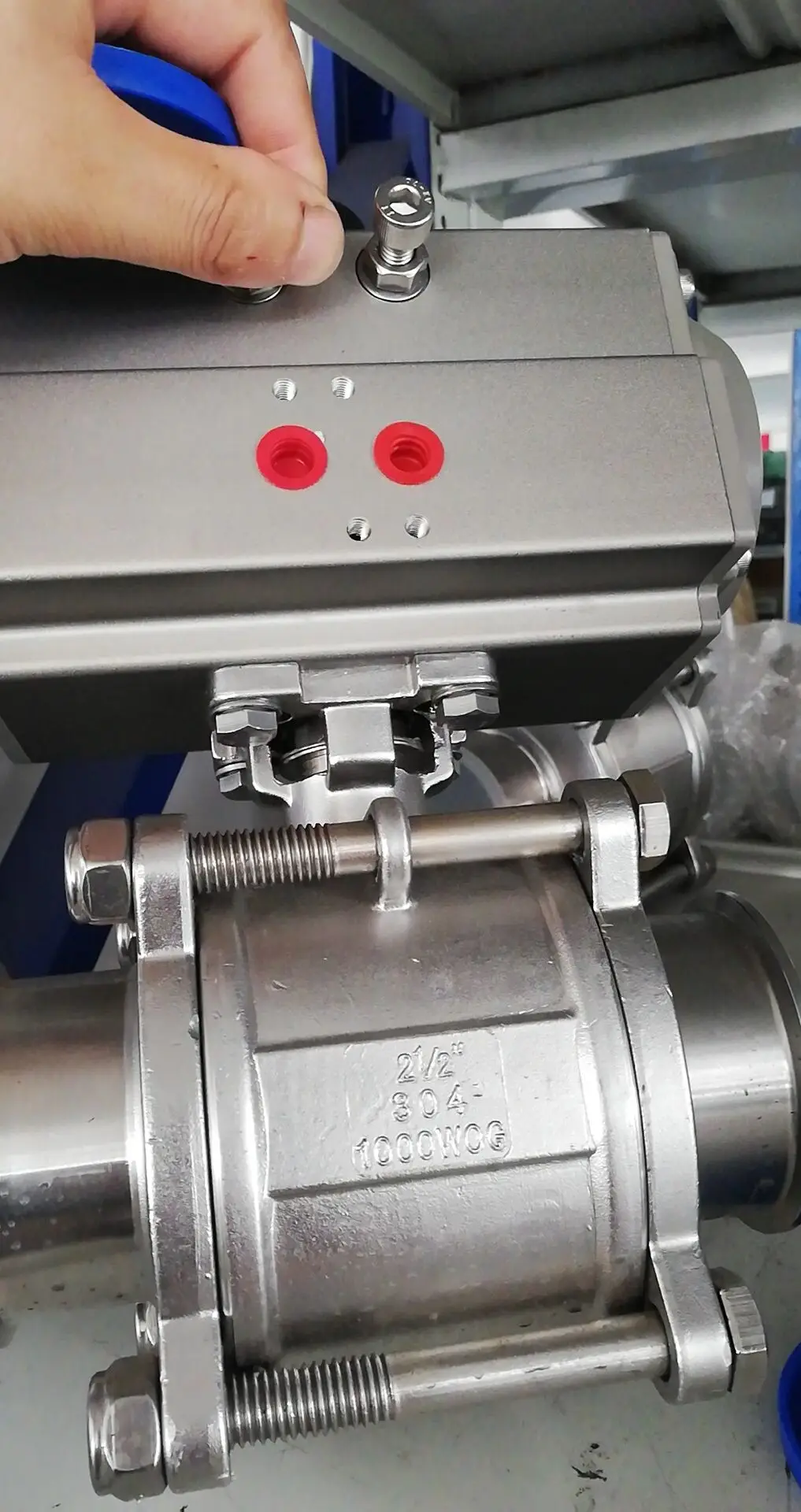

Detailed Images
Packaging & Shipping
Packaging :Generally packed in standard wooden case,mass order can be packed in 20/40 ' container.
Shipping mode:By sea,by air or other ways according to your requirements.
Delivery time: Depends on quantities you need
FAQ
1.Reasons for choosing DAYLSY:
Wenzhou DAYSLY Technology Co.,Ltd is a high-tech science and technology enterprise which specializes in the manufacture and sale of various sorts of pressure vessels and non-standard equipment ,such as stainless steel tanks, concentration, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on.
2. About Price:
The price is negotiable. It can be changed according to your quantity or package.
When you are making an inquiry, please let us know the quantity you want.
3. About MOQ:
We accept 1 piece as the minimum order quantity.
4. About OEM:
Yes, OEM service is available and very welcome to place the order with your drawings.
5. About warranty:
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But any quality issue, we will deal with it immediately.
6.About minimizing damages during delivery:
1.Standard: mass orders will be shipped by container.
2.Available requirement:bubble packing for each part of product,total packed in strong wooden case.
