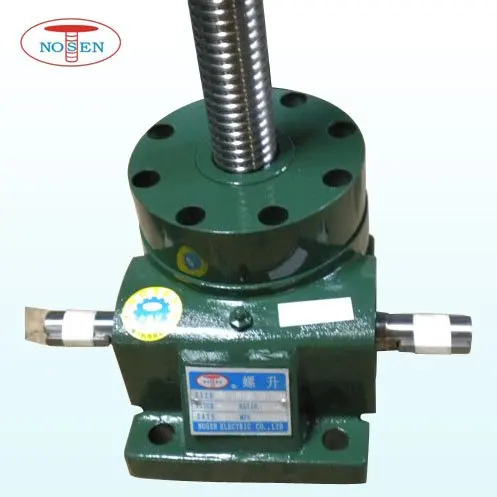

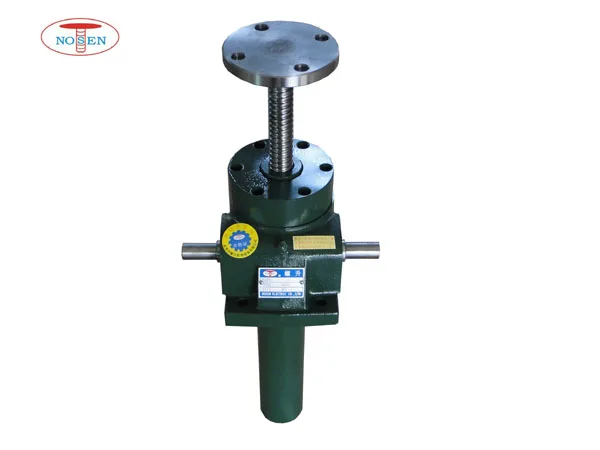

Long Lasting Big Load Nut Container Ball Screw Jack
- Category: >>>
- Supplier: Dongguan Nosen M&e Technology Co. Ltd.
Share on (60632694906):
Product Overview
Description
Long Lasting Big Load Nut Container Ball Screw Jack
Product Description
Nosen Screw Jack RNK Series
Features: |
|
Model | RNK-0.5T,1T,2T,3T,5T,10T,15T,20T |
Load Capacity | 0.5T ~20T. |
Travel Stroke | 10-6000MM |
Screw Type | Translating Screw,Keyed Screw ,Rotating Screw |
Configurations | worm shaft,worm gear,ball bearing,oil seal,housing and ball screw |
Top End | Top Plate ,Clevis End ,Threaded End ,Plain End and U head |
Functions | Lifting,Lowering,Pushing,Pulling and Rolling Linear Motions |
Arrangements | Single Unit ,In Pairs or Multi-Units Arrangement Available |
>Product Info
>Applications
Selection Guide
>Data Sheet
| Model | Diam & Pitch (mm) | Speed Ratio | 1500RPM | 1200RPM | 900RPM | 600RPM | 300RPM | ||||||||||
Input Power (HP) | Lift Load (kG) | Lift Speed (mm /min) | Input Power (HP) | Lift Load (kG) | Lift Speed (mm /min) | Input Power (HP) | Lift Load (kG) | Lift Speed (mm /min) | Input Power (HP) | Lift Load (kG) | Lift Speed (mm /min) | Input Power (HP) | Lift Load (kG) | Lift Speed (mm /min) | |||
RNK - 05T | 16 & 5 | 1/5 | 0.2 | 60 | 1500 | 0.2 | 80 | 1200 | 0.18 | 90 | 900 | 0.13 | 100 | 600 | 0.08 | 125 | 300 |
| 1/10 | 0.19 | 80 | 750 | 0.13 | 95 | 600 | 0.1 | 100 | 450 | 0.08 | 115 | 300 | 0.05 | 140 | 150 | ||
| 1/20 | 0.09 | 90 | 375 | 0.09 | 105 | 300 | 0.08 | 125 | 225 | 0.05 | 125 | 150 | 0.03 | 150 | 75 | ||
RNK - 2T | 20 & 5 | 1/5 | 0.86 | 275 | 1500 | 0.87 | 350 | 1200 | 0.84 | 450 | 900 | 0.62 | 500 | 600 | 0.5 | 500 | 300 |
| 1/10 | 0.5 | 275 | 750 | 0.5 | 350 | 600 | 0.5 | 500 | 450 | 0.5 | 500 | 300 | 0.25 | 675 | 150 | ||
| 1/20 | 0.5 | 350 | 375 | 0.5 | 450 | 300 | 0.5 | 600 | 225 | 0.25 | 675 | 150 | 0.25 | 675 | 75 | ||
RNK - 3T | 25 & 5 | 1/6 | 1.25 | 400 | 1250 | 1.18 | 475 | 1000 | 1.22 | 650 | 750 | 1.12 | 900 | 500 | 0.56 | 900 | 250 |
| 1/12 | 0.86 | 550 | 625 | 0.81 | 650 | 500 | 0.77 | 825 | 375 | 0.62 | 1000 | 250 | 0.5 | 1000 | 125 | ||
| 1/24 | 0.5 | 550 | 312.5 | 0.5 | 650 | 250 | 0.5 | 825 | 187 | 0.5 | 1000 | 125 | 0.25 | 1000 | 62 | ||
RNK - 5T | 32 & 5 | 1/6 | 1.72 | 500 | 1250 | 1.66 | 600 | 1000 | 1.55 | 750 | 750 | 1.17 | 850 | 500 | 0.72 | 1050 | 250 |
| 1/12 | 1.36 | 750 | 625 | 1.31 | 900 | 500 | 1.17 | 1075 | 375 | 0.78 | 1075 | 250 | 0.5 | 1250 | 125 | ||
| 1/24 | 0.96 | 1000 | 312 | 0.92 | 1200 | 250 | 0.73 | 1275 | 187 | 0.56 | 1450 | 125 | 0.5 | 1425 | 62 | ||
RNK - 10T | 40 & 5 | 1/8 | 2.64 | 725 | 937 | 2.48 | 850 | 750 | 2.3 | 1050 | 562 | 2.22 | 1525 | 375 | 1.75 | 2400 | 187 |
| 1/16 | 1.4 | 725 | 468 | 1.31 | 850 | 375 | 1.27 | 1100 | 281 | 1.17 | 1525 | 287 | 0.92 | 2400 | 93 | ||
| 1/32 | 1 | 975 | 234 | 0.92 | 1125 | 187 | 0.86 | 1400 | 140 | 0.84 | 2050 | 94 | 0.65 | 3200 | 46 | ||
RNK - 20T | 50 & 10 | 1/8 | 3.24 | 925 | 1875 | 3.01 | 975 | 1500 | 2.84 | 1225 | 1125 | 2.59 | 1675 | 750 | 1.89 | 2450 | 375 |
| 1/16 | 1.97 | 925 | 937 | 1.84 | 1125 | 750 | 1.72 | 1400 | 562 | 1.58 | 1925 | 375 | 1.15 | 2800 | 187 | ||
| 1/32 | 1.97 | 1400 | 468 | 1.46 | 1675 | 375 | 1.44 | 2200 | 281 | 1.25 | 2875 | 187 | 0.92 | 4200 | 93 | ||
Packaging & Shipping
Trade info
Trade terms:CIF FOB EXW
Payment Terms: L/C,T/T Western Union
Delivery Time:5-7working days after deposit.
Packaging Detail:Standard exporting package
Shipping: By sea,by air and by express delivery
Shipping
Our Services
Pre-sale services:
NOSEN engineers help clients consider all safety factors, select correct models step by step ,
Auto Cad & PDF drawing and layout for clients' engineers reference.
(With High quality ,reasonable price and excellent services )
After-sale service:
Expert sales teams, familiar with I&E regulation, ensure goods shipment smoothly.
Follow up the exported goods from time to time, and make a report for monthly meeting.
During warranty period, any problem of "NOSEN" products, after we confirmed, we will ship a new one to replace.
Company Information
Nosen company has 10 years experience in this line ,
Have accumulated our special experieneand methods to control the quality through the whole process.
The customized service we provide has helped our worldwide customers solve lots of problems.
You can find more information of us website :www.nosenjack.com
>Company profile
NOSEN M&E Technology Co.,Ltd was established in 2003 ,Our products have been widely used in the Middle East,Europe , Southeast Asia ,USA and so on.
High quality and reasonable price is our way to show respect to our customers.We have passed “ISO9001:2008 Quality Management System”and we got SGS ,Utility Model Patent Certificate .
FAQ
Q: Why choose NOSEN ?
A:1.Professional Mechanical manufacture for years with full experience .
2.Own factory, you could share direct factory price,
3. Quality guaranteed by our QC.
Q:What paying methods do you accept?
A: LC, T/T ,Western Union and MoneyGram
Q:What ‘s the time of delivery?
A:It’s subject to your order quantity and our production schedule,
Usually,3-15 working days for production after receipt of payments
Q: What is your guarantee period?
A: NOSEN provides 1 (one) year quality guarantee for the products from your purchase date,
except the human damage and force manure factor.
Contact
NOSEN M&E TECHNOLOGY CO.,LTD
Xinhaoyuan Industrial Park,Xitou,Houjie,Dongguan,Guangdong,China
T: 86 769 88771988/88773988
F: 86 769 85644652
M:86 13827261279
Skype: nosenjack02
PS: Any questions or special requirements, please feel free to contact us !
Your success is our business!
