230 мм 6 шпинделей концепция Dl 3006 Линарес пластический строгальный станок и фрезерный станок
- Category: >>>
- Supplier: Weihai Hanvy Plywood Machinery Manufacturing Co. Ltd.
Share on (60632755548):
Product Overview
Description
Product Description

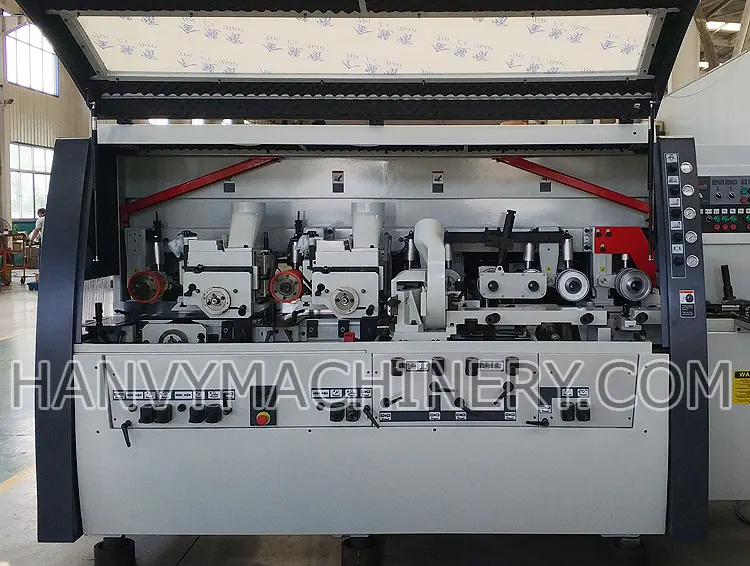

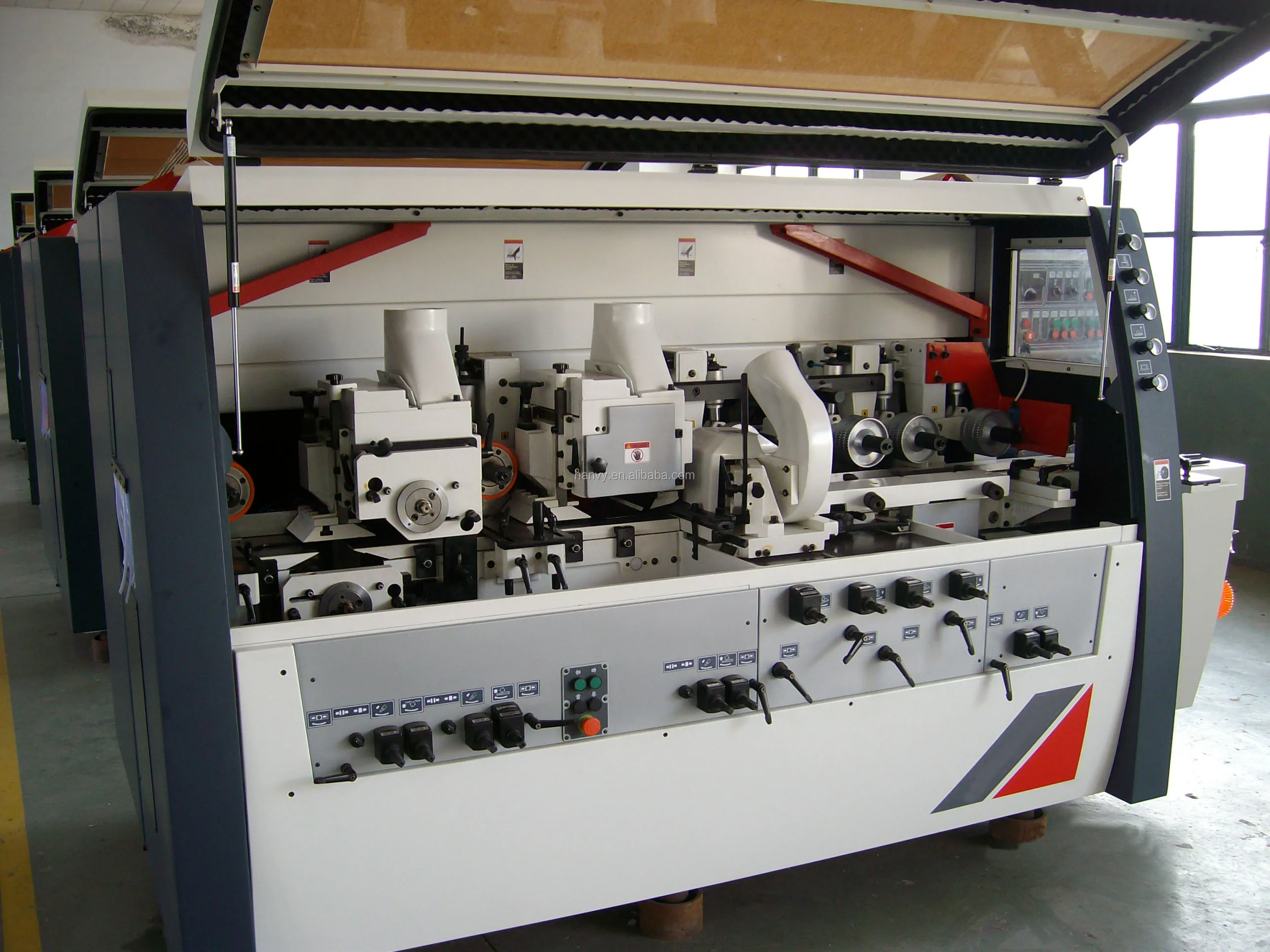

Product Application-Dl3006 6 spindles Linares 4 side planer and moulder

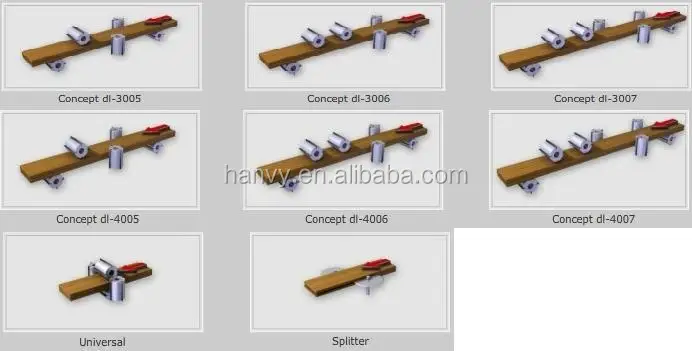

Concept Dl-3006
* Four-sided moulder (speed 35 meters per minute)
* Working width 230 mm
* Hydraulic counter-supported axis
* Chrome tables
* Straight and shaped jointer in the last two horizontal axes
Four Side Spindle Planer Moulder Machine adopts advanced technology, it has strong power, fast transfer system with many couple of carrier rollers. precision planing can match with saw blade. According to production conditions it can be four, five, six, seven, eight, nine, ten spindles.
Max.working width | 230mm | Feeding Table length | 2000mm |
Max.working height | 150mm | Weight | 4.2tons |
Max.planing speed | 5-35m/min | ||
Numbers of spindle | 6pcs |

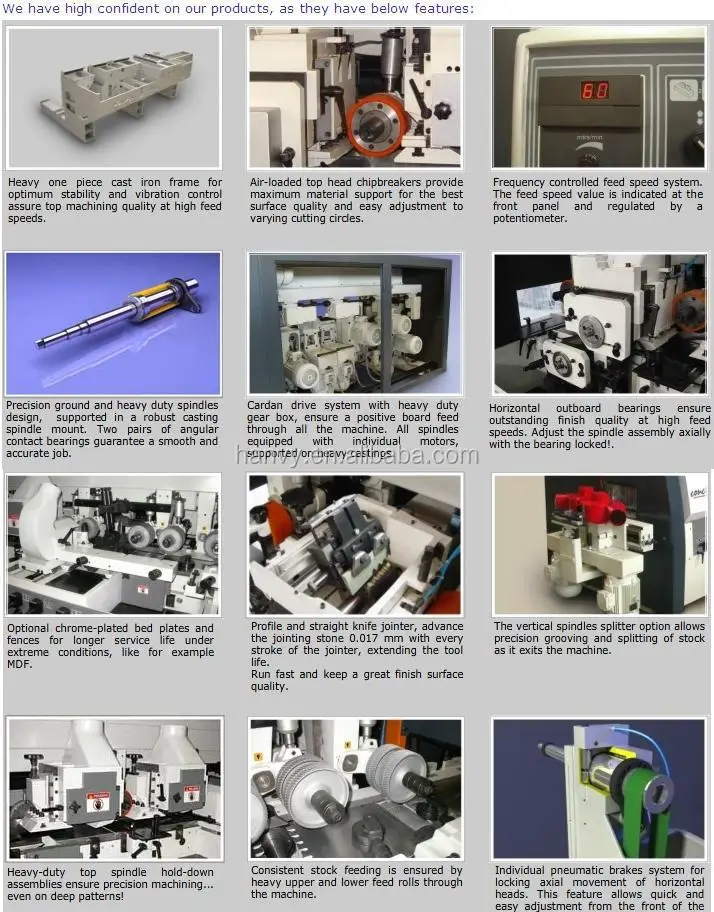

Main Features-Dl3006 6 spindles Linares 4 side planer and moulder
1) Heavy duty frame
2) Max.planing speed is 60m/min.80 m/min is option
3) Seven spindles makes sure perfect planing effect
4) Electric magnetic switch makes sure operating safety,the worker can not open the machine cover till machine stops working completely
5) Pressing roller could lift automatically
6) Planing cutter rack could tilt 20 degree max.
7) IF80 feeding machine and OF28 collecting machine could improve working efficiency.
Detailed Images

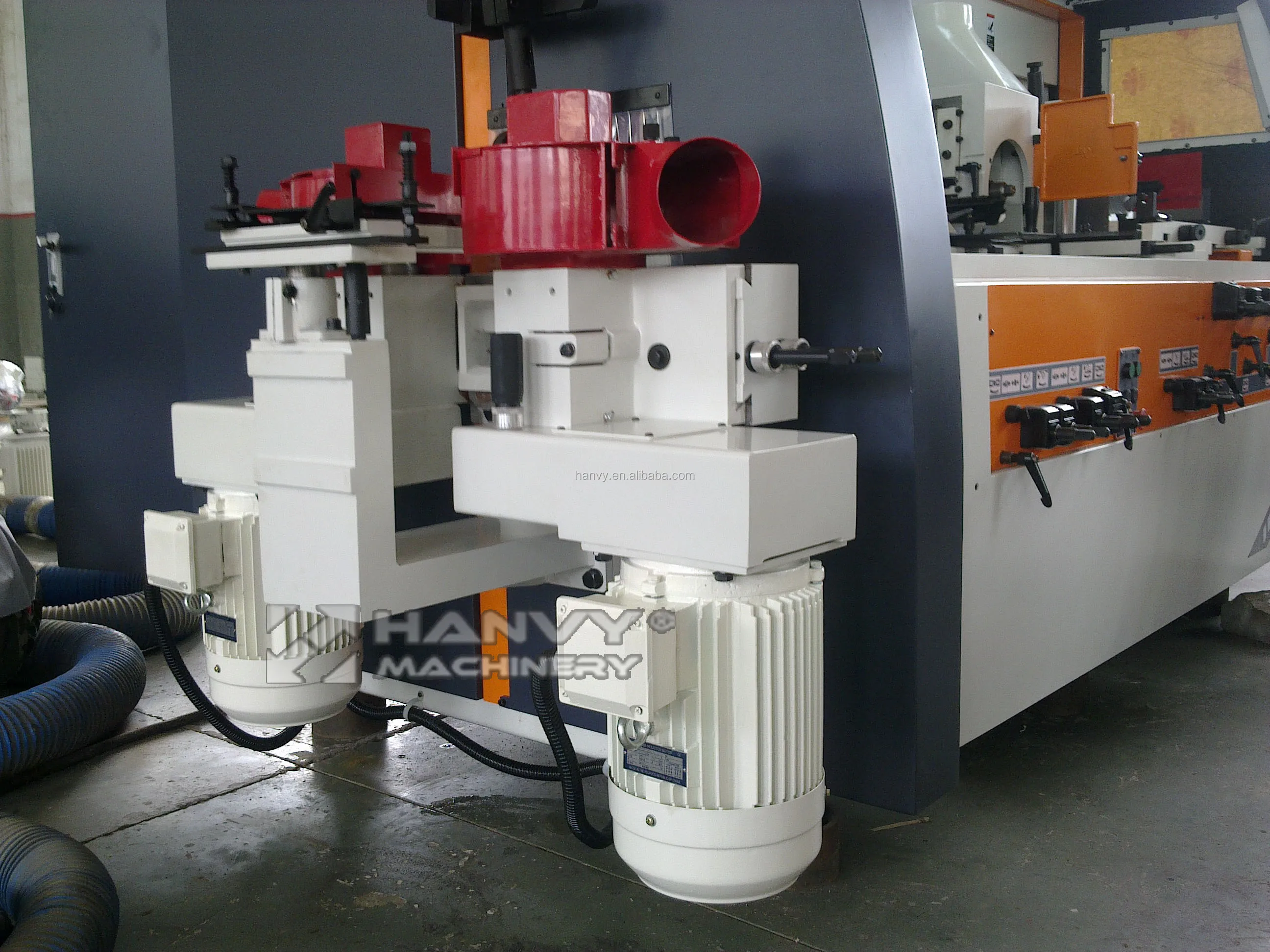

2T Spliter-DI3006 planer and moulder
Install one the last step of four side moulder, to split the wood.
Splitter saw module at the exit very useful for opening wood, ex. Double machimbre and raw material optimization.
SP-150H Multiple blade saw-DI3006 planer and moulder
Cut the wood into small pcs

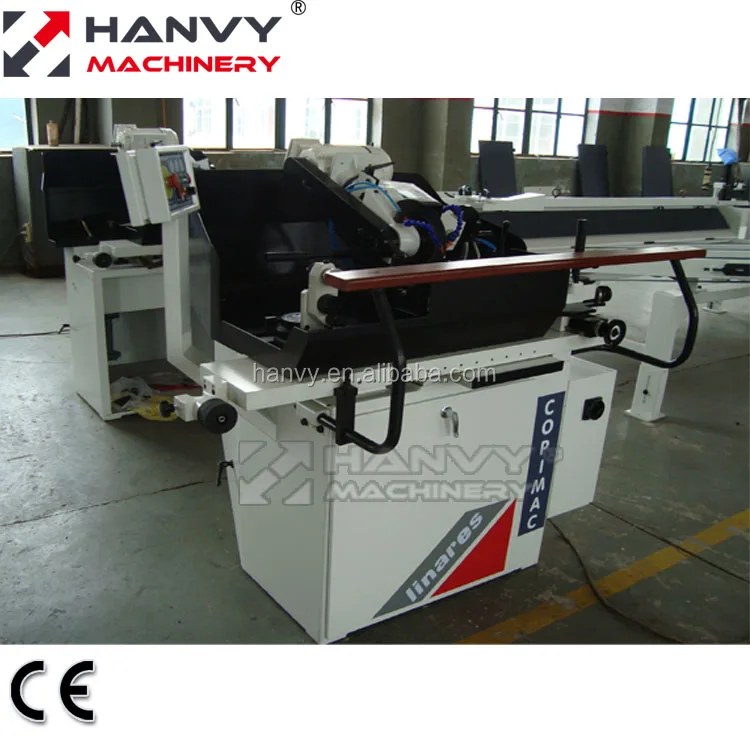

DI-300 Profile Grinder- DI3006 planer and moulder
Grinding diameter is 100-300 mm
Nominal knife bevel angle adjustment is 35-65 degree
Relief grinding angle adjustment +-20 degree
Certifications
Packing & Delivery
Packaging | ||
Size | 1*20ft container | |
Weight | 6ton | |
Packaging Details | Shrimk film,with better fixed block to make sure no damage during transportation. | |
Packaging | ||
Size | 1*20ft container | |
Weight | 6ton | |
Packaging Details | Shrimk film,with better fixed block to make sure no damage during transportation. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
