Customized 5 Digits Segment LCD Display For Electronic Baby Scale

Product Overview

Description

1. Professional Mechanical Drawing:









2. Precisely Technical&Mechanical Parameters FYI:



Application	Electronic Scales
Display Type	TN/Positive
Polarizer Type	Transflective
Outline Dimension	73.00*32.00/37.00*1.10mm
Viewing Angle	12 O'clock
Connector Type	Metal Pin
Driver Method	1/2Duty, 1/2Bias
Pitch	2.54mm
Operate Temp.	-30~80degree
Storage Temp.	-40~90degree
Operative Vol.	3.3V

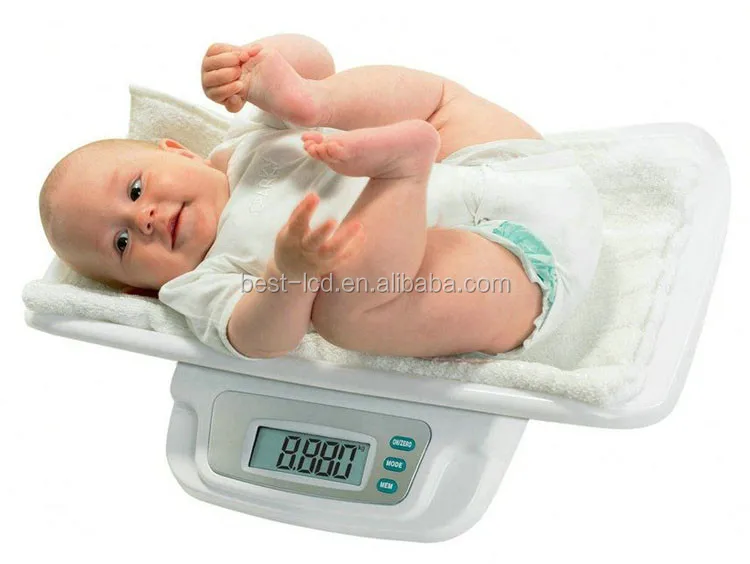

3. Appropriate Application: Segment LCD Display For Baby Scale







4. Qualified Packaging:













5. Trusted Shipping:











6. Outstanding Capabilities&Services:

Customizing & designing segment, character, graphic LCD Display and LCD Module(Including LED Backlight, IC) with different sizes, shapes, display icons for clients.



Product Type:

1. LCD Type:  TN, HTN, STN, FSTN, VA, COB, COG etc.....

2.  Any digitals, Icons, graphic can be customized and designed according to customers' requirements.

3. Polarizer type: Transmissive, Transflective, Reflective

4. Connector Type: Metal Pins, Zebra, Heat-seal, FPC...

5. ITO Glass thickness: 1.1mm, 0.7mm, 0.55mm

6. The range of operating Temperature: -40~90°C





Our products are widely and well accepted in North America such as USA,Canada; European countries such as UK, Germany, France, Netherlands, Greece, Russia, Sweden, Ireland, Swiss, Austria, Luxembourg, Belgium, Italy, Spain, etc. ; Asia countries such India, Singapore, Malaysia etc..
