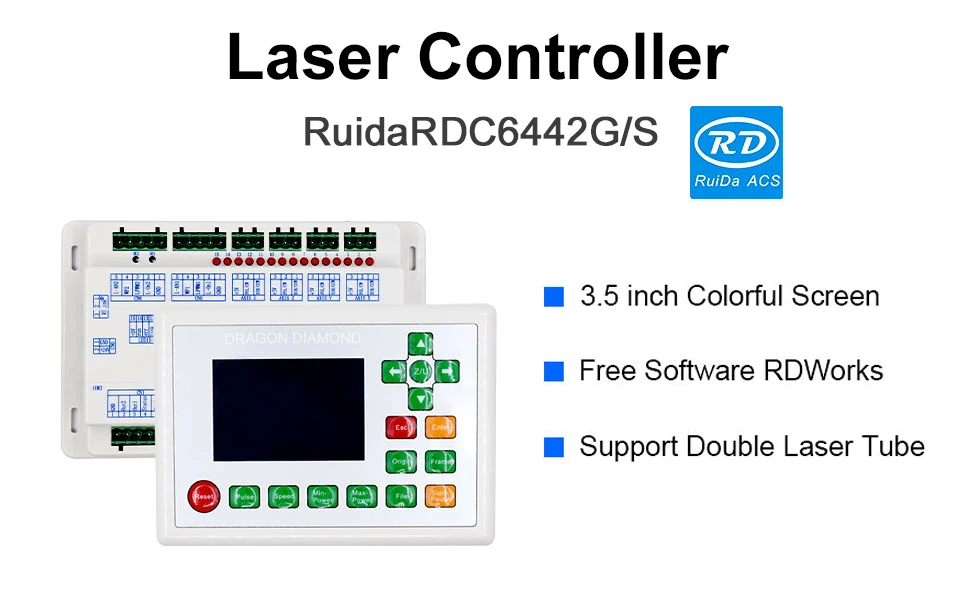

Wholesale Ruida RDC6442G DSP Co2 Laser Controller for Laser Engraving and Cutting Machine

 Production Information

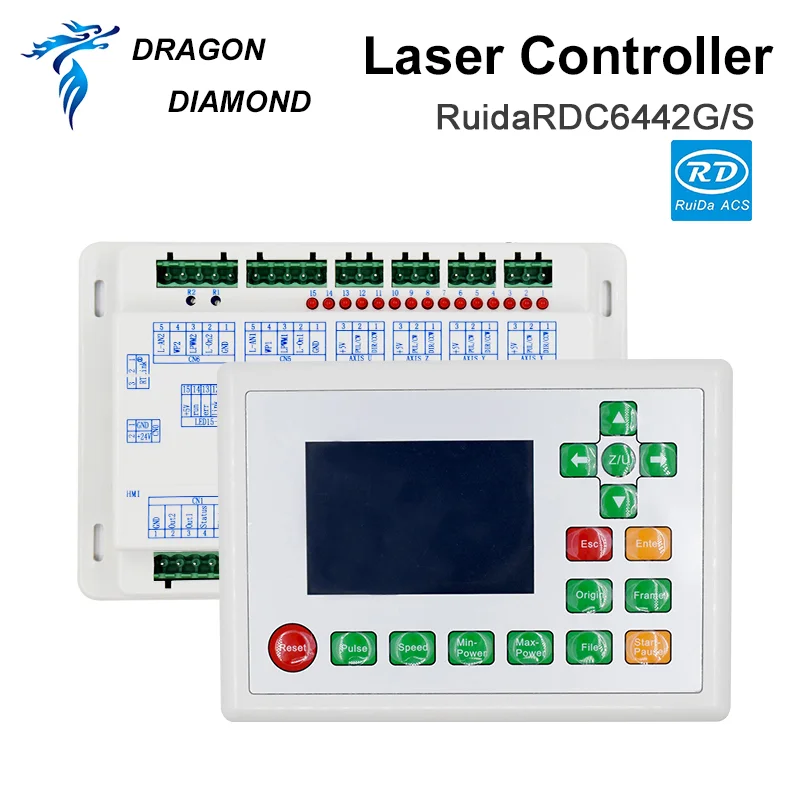

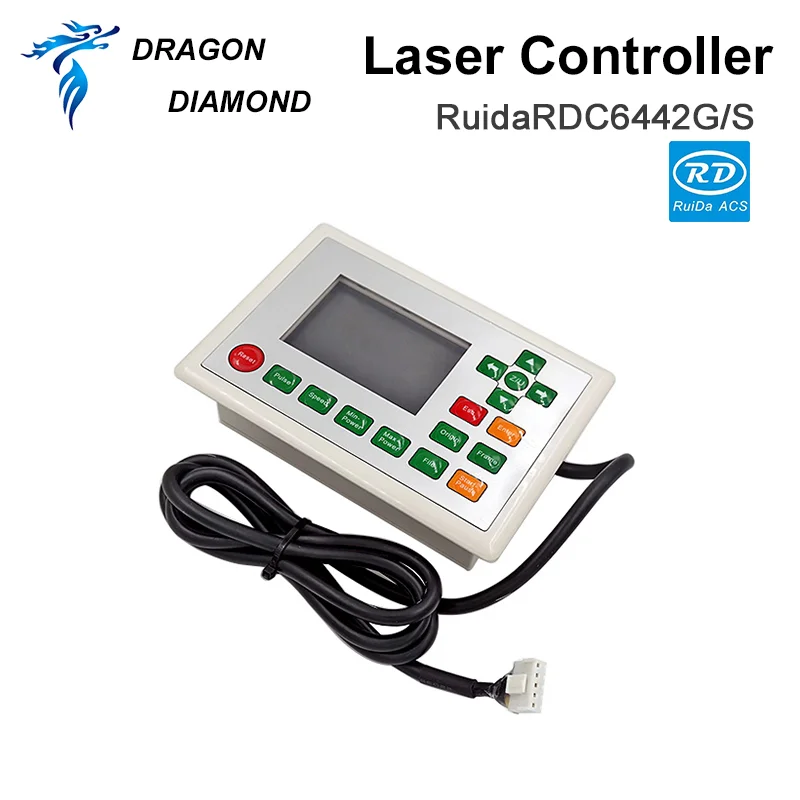

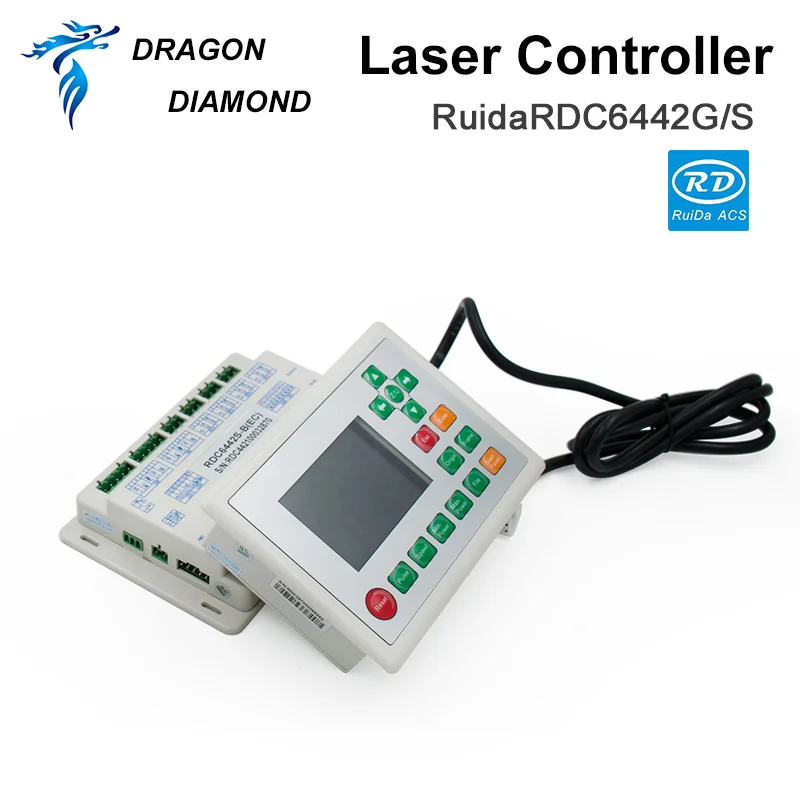

 1. RDC6442G /S system is a new generation system for control of laser engraving and cutting,

 which is developed by RD technology, Ltd.High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display.

 2. This system is provided with stronger software function including perfect 4- axis motion control  function, large-capacity file storage, two-channel adjustable digits laser power control interface,  USB driver of stronger compatibility, multi-channel general/special IO control, and, this system can
 communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically     checked by the system.

Production Specification

  Product Model : RDC6442G/S
  6: the sixth generation controller
  4: controller version
  4: 4-axis
  X: displayer type (1: TTF; 2:3.5 inch colorful screen;
  3: 5.7 inch colorful screen; 4:7 inch touch screen)
  G: standard

  If you need 6442S, please leave us message when placing the order.
  Application area: laser cutting, laser engraving, laser welding etc.
  Power:+24V, >2A
  Temperature: 0~50 °, humidity is not greater than 70%.

Main Fearures

  Digital laser control signals: (1) TTL level output, 50 mA,drive capability (can set enable signal     polarity in software) (2) PWM frequency 2K-50K for adjustable (3) PWM duty ratio is 1% ~ 99%,  adjustable (4) PWM value is up to 5.0 V ·Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ ·USB: Max. transmission rate 12M bps; The longest distance is 5 meters. ·Network:Max. transmission rate is100M; Max.transmission distance is 200M. ·Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse ·Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability
(with follow-current protection). ·Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level.
