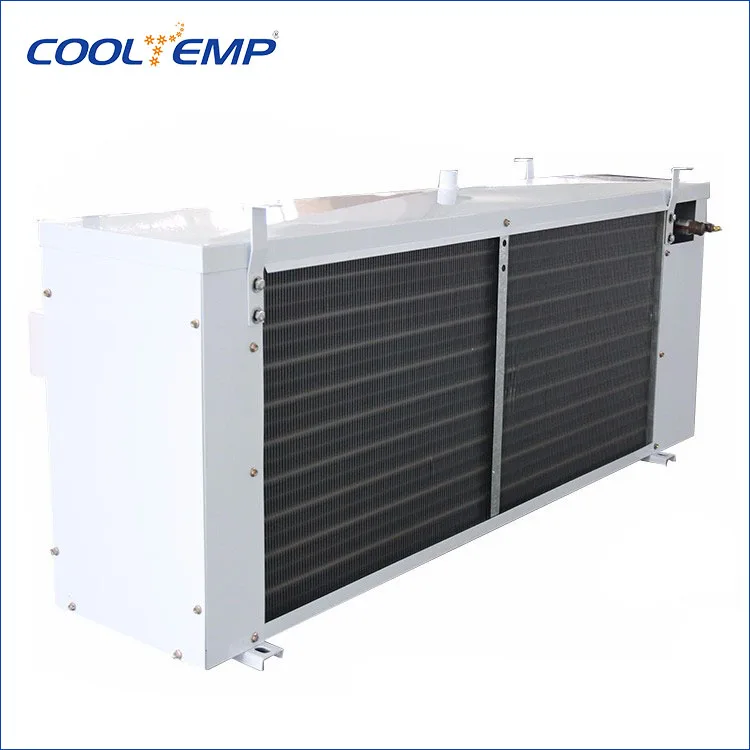

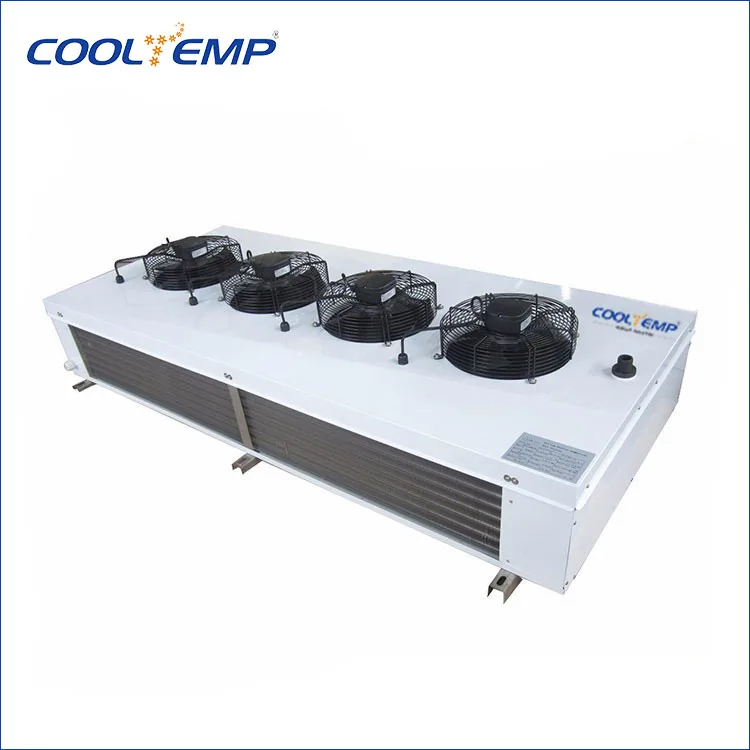

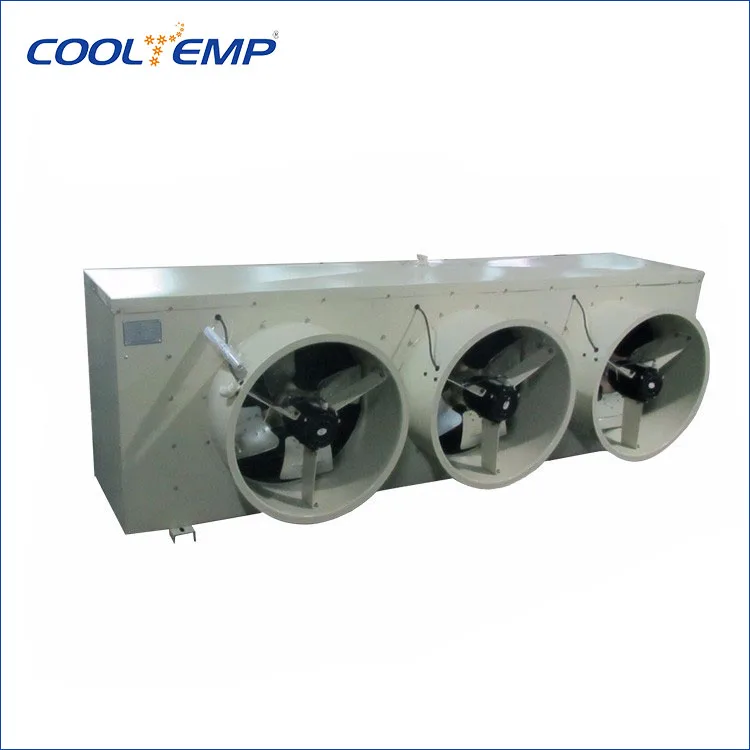

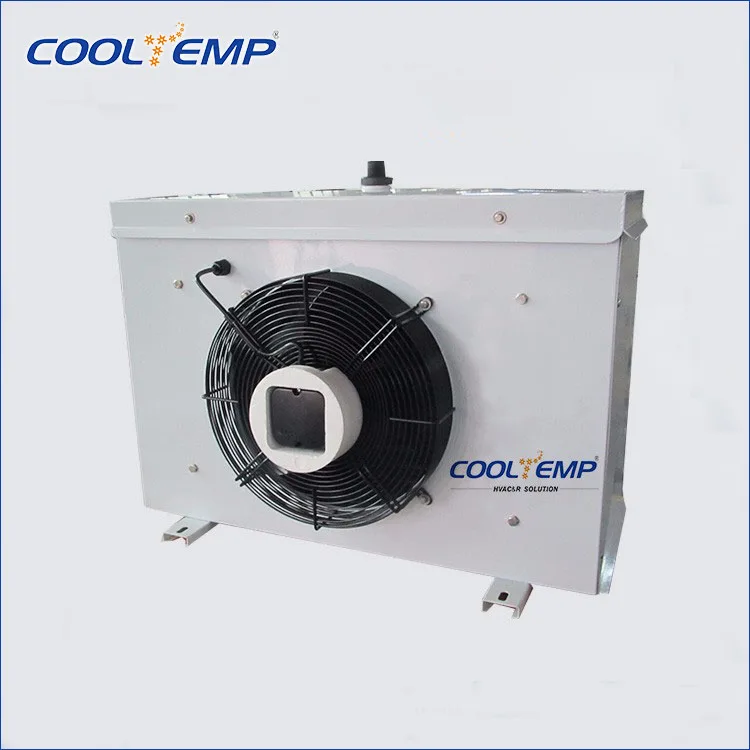

Medium & High temperature Refrigeration Thin Film Evaporator For Sale
- Category: >>>
- Supplier: Shengzhou Lanco Refrigeration Equipment Co. Ltd.
Share on (60632786249):
Product Overview
Description
Product Description
All of our products can accept customization, accessories are UL certified and our products in the course of processing and are subject to stringent quality inspection before delivery,if there is a need, we photographed in the process every step of the process can be sent to customers.

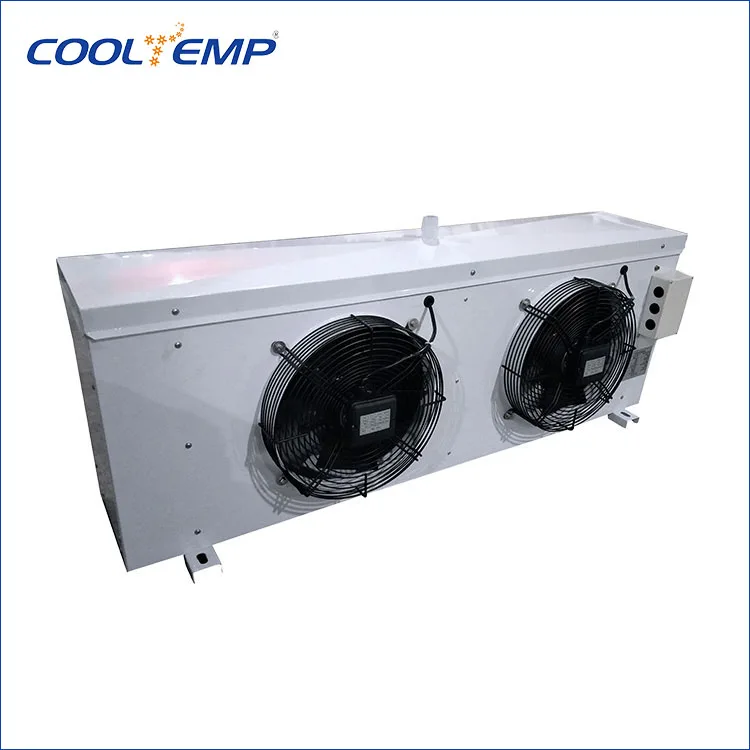

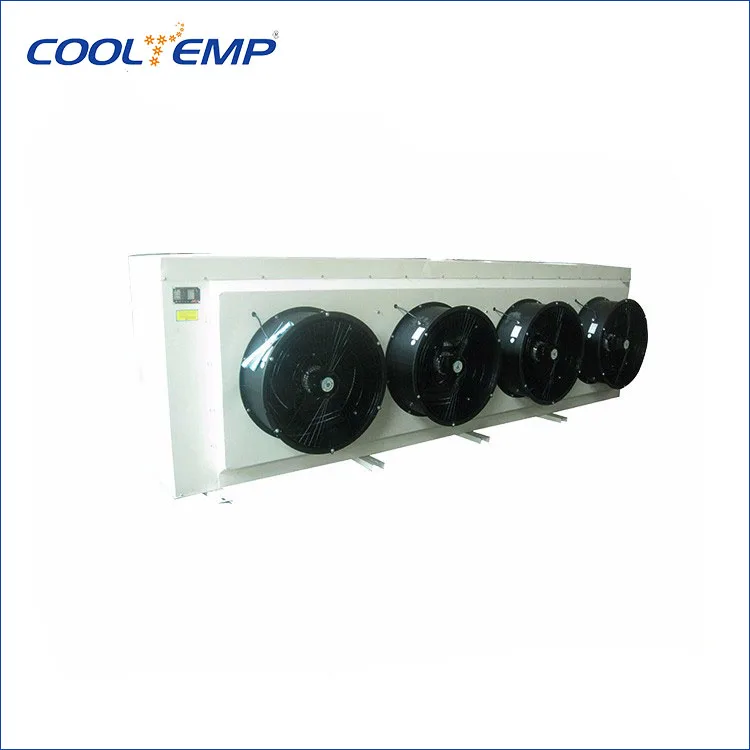

Main Technical Parameter of LK-DDM Series Unit Cooler:
| Model | Norminal Cooling Capacity kw,troom=-18℃,Δt=(troom-t0)=7℃ | Cooling area | Pinch | FAN MOTOR | HEATING TUBE | Remark | |||||||
| QTY | DIA φ | air volume | range | motor power | voltage | coil | water pan | voltage | |||||
| m∧2 | mm | pcs | mm | m∧3 | m | w | v | kw | kw | v | Can be used for R134a R404A AND R502 | ||
| LK-DDM7 | 1.4 | 7 | 6 | 1 | 300 | 1*2000 | 6 | 1*130 | 220 | 0.9 | 0.6 | 220 | |
| LK-DDM12 | 2.6 | 12 | 2 | 300 | 2*2000 | 6 | 2*130 | 0.9 | 0.6 | ||||
| LK-DDM15 | 3.0 | 15 | 2 | 300 | 2*2000 | 10 | 2*130 | 380 | 0.9 | 0.6 | |||
| LK-DDM22 | 4.0 | 22 | 2 | 350 | 2*2500 | 10 | 2*135 | 1.2 | 0.6 | ||||
| LK-DDM30 | 5.0 | 30 | 2 | 400 | 2*3500 | 12 | 2*190 | 2.5 | 0.8 | ||||
| LK-DDM40 | 8 | 40 | 2 | 400 | 2*3500 | 12 | 2*190 | 2.8 | 0.8 | ||||
| LK-DDM60 | 12 | 60 | 2 | 450 | 2*5000 | 17 | 2*370 | 4.5 | 1 | ||||
| LK-DDM80 | 15.9 | 80 | 2 | 500 | 2*6000 | 17 | 3*1500 | 6 | 1 | ||||
| LK-DDM100 | 20 | 100 | 3 | 500 | 3*6000 | 17 | 3*550 | 7 | 1.2 | ||||
| LK-DDM120 | 24 | 120 | 3 | 500 | 3*6000 | 17 | 3*550 | 7.7 | 1.4 | ||||
| LK-DDM140 | 28 | 140 | 4 | 500 | 4*6000 | 17 | 4*550 | 9 | 1.5 | ||||
| LK-DDM160 | 32.1 | 160 | 4 | 500 | 4*6000 | 17 | 4*550 | 10.5 | 2 | ||||
| LK-DDM200 | 37.4 | 200 | 2 | 600 | 2*10000 | 20 | 2*1500 | 12.5 | 2.2 | ||||
| LK-DDM250 | 46.8 | 250 | 3 | 600 | 3*10000 | 22 | 3*1100 | 14 | 2.2 | ||||
| LK-DDM310 | 56.2 | 310 | 3 | 600 | 3*10000 | 22 | 3*1100 | 15 | 2.6 | ||||
| LK-DDM360 | 65.2 | 360 | 3 | 700 | 3*14000 | 22 | 3*2200 | 28 | 3 | ||||
| LK-DDM440 | 79.6 | 440 | 3 | 700 | 3*14000 | 22 | 3*2200 | 18.8 | 3.2 | ||||
Main Technical Parameter of LK-DDL Series Unit Cooler:
| Model | Norminal Cooling Capacity kw,troom=-18℃,Δt=(troom-t0)=7℃ | Cooling area | Pinch | FAN MOTOR | HEATING TUBE | Remark | |||||||
| QTY | DIA φ | air volume | range | motor power | voltage | coil | water pan | voltage | |||||
| m∧2 | mm | pcs | mm | m∧3 | m | w | v | kw | kw | v | Can be used for R134a R404A AND R502 | ||
| LK-DDL8 | 1.2 | 8 | 9 | 1 | 300 | 1*2000 | 8 | 1*85 | 220 | 0.8 | 0.8 | 220 | |
| LK-DDL12 | 1.9 | 12 | 2 | 300 | 2*2000 | 8 | 2*85 | 0.9 | 0.9 | ||||
| LK-DDL15 | 2.3 | 15 | 2 | 350 | 2*2500 | 10 | 2*135 | 380 | 1.8 | 1 | |||
| LK-DDL20 | 4.0 | 20 | 2 | 400 | 2*3500 | 12 | 2*190 | 2.4 | 1 | ||||
| LK-DDL30 | 5.1 | 30 | 2 | 400 | 2*3500 | 12 | 2*190 | 3.5 | 1 | ||||
| LK-DDL40 | 7.8 | 40 | 2 | 450 | 2*5000 | 17 | 2*550 | 4.8 | 1.2 | ||||
| LK-DDL55 | 9.8 | 55 | 2 | 500 | 2*6000 | 17 | 2*550 | 6.8 | 1.2 | ||||
| LK-DDL70 | 12.8 | 70 | 3 | 500 | 3*6000 | 17 | 3*550 | 7.8 | 1.5 | ||||
| LK-DDL80 | 15.7 | 80 | 3 | 500 | 3*6000 | 17 | 3*550 | 8.5 | 2 | ||||
| LK-DDL100 | 18.8 | 100 | 4 | 500 | 4*6000 | 17 | 4*550 | 10 | 2.2 | ||||
| LK-DDL115 | 21.6 | 115 | 4 | 500 | 4*6000 | 17 | 4*550 | 12 | 2.2 | ||||
| LK-DDL140 | 23.8 | 140 | 2 | 600 | 2*10000 | 22 | 2*1100 | 15 | 2.4 | ||||
| LK-DDL170 | 29 | 170 | 3 | 600 | 3*10000 | 22 | 3*1100 | 16 | 2.4 | ||||
| LK-DDL210 | 35.9 | 210 | 3 | 600 | 3*10000 | 22 | 3*1100 | 19 | 3 | ||||
| LK-DDL250 | 42.7 | 250 | 3 | 700 | 3*14000 | 22 | 3*2200 | 28 | 3 | ||||
| LK-DDL300 | 50.3 | 300 | 3 | 700 | 3*14000 | 22 | 3*2200 | 28.8 | 3.2 | ||||
As for the cooling capacity under condition of the refrigeration is R22,troom=0℃,At=7℃,we need to multiply the correction factor for the cooling capacity with refrigerant R134,QoR134a=QoR22*f.
Main Technical Parameter of LK-DDH Series Unit Cooler:
| Model | Norminal Cooling Capacity kw,troom=-18℃,Δt=(troom-t0)=7℃ | Cooling area | Pinch | FAN MOTOR | HEATING TUBE | Remark | |||||||
| QTY | DIA φ | air volume | range | motor power | voltage | coil | water pan | voltage | |||||
| m∧2 | mm | pcs | mm | m∧3 | m | w | v | kw | kw | v | Can be used for R134a R404A AND R502 | ||
| LK-DDH10 | 2.2 | 10 | 4.5 | 1 | 300 | 1*2000 | 8 | 1*130 | 220 | 0.5 | 0.5 | 220 | |
| LK-DDH15 | 3.3 | 15 | 2 | 300 | 2*2000 | 8 | 2*130 | 0.8 | 0.8 | ||||
| LK-DDH20 | 4.2 | 20 | 2 | 300 | 2*2000 | 10 | 2*135 | 380 | 0.9 | 0.6 | |||
| LK-DDH25 | 5.2 | 25 | 2 | 350 | 2*2500 | 10 | 2*135 | 1.2 | 0.6 | ||||
| LK-DDH40 | 8.1 | 40 | 2 | 400 | 2*3500 | 12 | 2*190 | 1.4 | 0.6 | ||||
| LK-DDH55 | 11.2 | 55 | 2 | 400 | 2*3500 | 12 | 2*190 | 1.8 | 0.8 | ||||
| LK-DDH80 | 16.2 | 80 | 2 | 450 | 2*5000 | 17 | 2*550 | 2.8 | 0.8 | ||||
| LK-DDH105 | 21.6 | 105 | 2 | 500 | 2*6000 | 17 | 2*550 | 3 | 0.8 | ||||
| LK-DDH125 | 25.5 | 125 | 3 | 500 | 3*6000 | 17 | 3*550 | 4.5 | 0.8 | ||||
| LK-DDH160 | 34.2 | 160 | 3 | 500 | 3*6000 | 17 | 3*550 | 5.5 | 0.8 | ||||
| LK-DDH185 | 38.7 | 185 | 4 | 500 | 4*6000 | 17 | 4*550 | 6 | 1.2 | ||||
| LK-DDH210 | 42.8 | 210 | 4 | 500 | 4*6000 | 17 | 4*550 | 7.5 | 1.4 | ||||
| LK-DDH260 | 52.6 | 260 | 2 | 600 | 2*10000 | 22 | 2*1100 | 9 | 1.5 | ||||
| LK-DDH330 | 67.7 | 30 | 3 | 600 | 3*10000 | 22 | 3*1100 | 11 | 1.5 | ||||
| LK-DDH410 | 82.6 | 410 | 3 | 600 | 3*10000 | 22 | 3*1100 | 12.5 | 2 | ||||
| LK-DDH470 | 95.6 | 470 | 3 | 700 | 3*14000 | 22 | 3*2200 | 15 | 2.5 | ||||
| LK-DDH580 | 117 | 580 | 3 | 700 | 3*14000 | 22 | 3*2200 | 16.2 | 2.7 | ||||
we need to multiply the correction factor for the cooling capacity with refrigerant R134,QoR134a=QoR22*f.

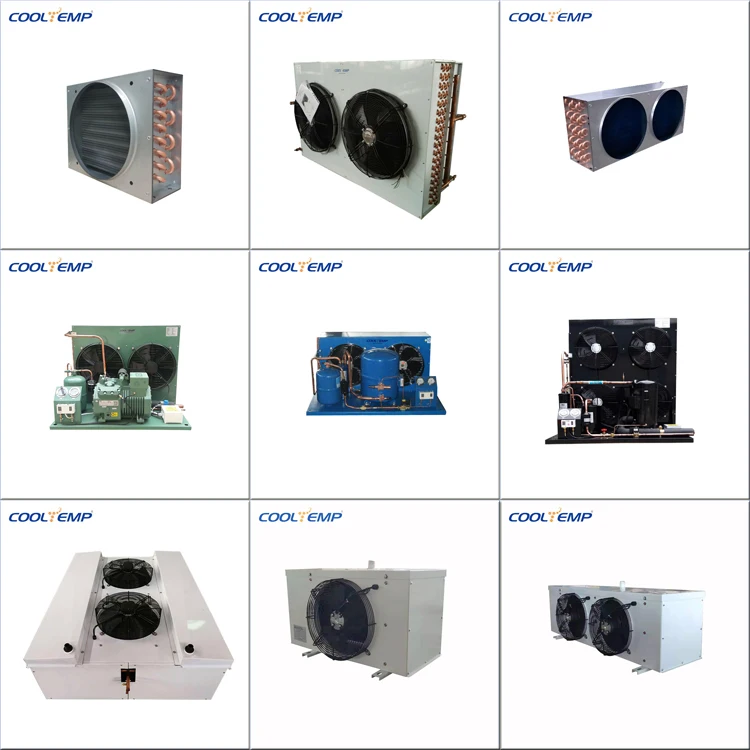

Related Products
Packaging & Shipping
Our Services
Company Information
FAQ
Question:Are you a factory or a trading company?
Answer: We are a factory
Question:Where is your factory located?
Answer: Our factory is located in shengzhou city,zhejiang province you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory.
Question:Can we do our OEM logo?
Answer: Yes, we can do OEM logo for you.
Question: What is the main market for your products?
Answer: Our main market is in Southeast Asia, South America, Europe and USA.
Question: What is your warranty?
Answer: We can assure you one year against manufacturing defect.
