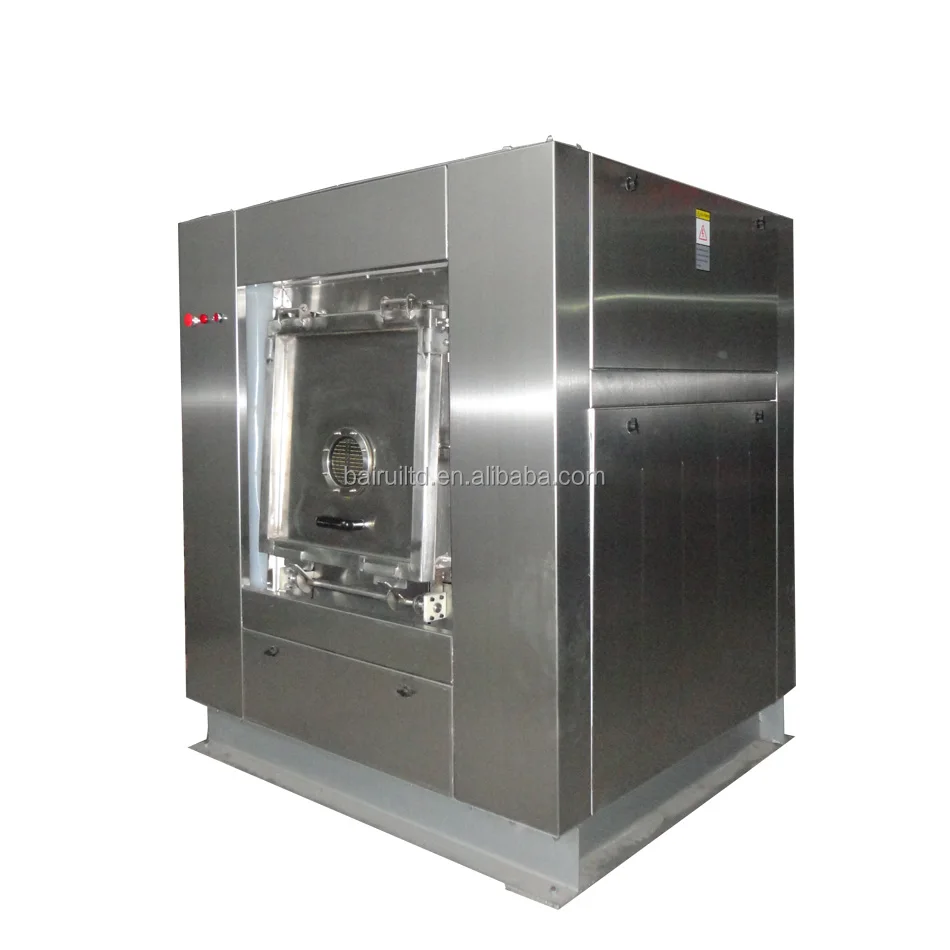

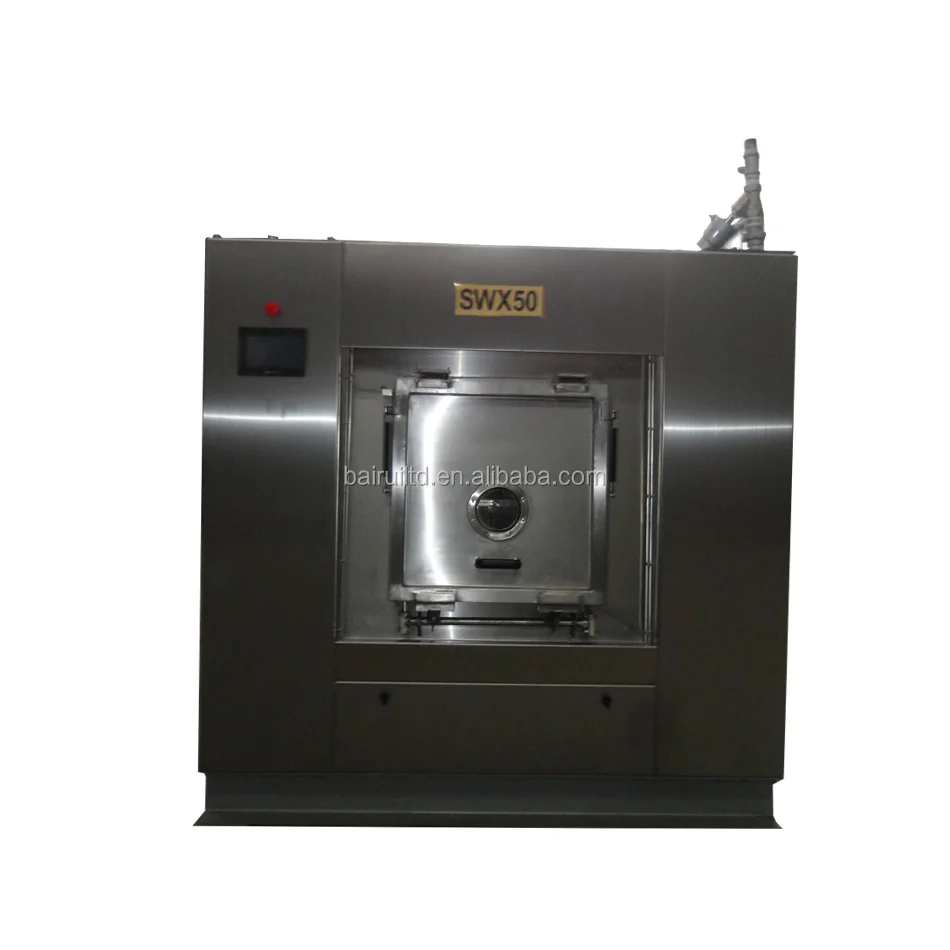

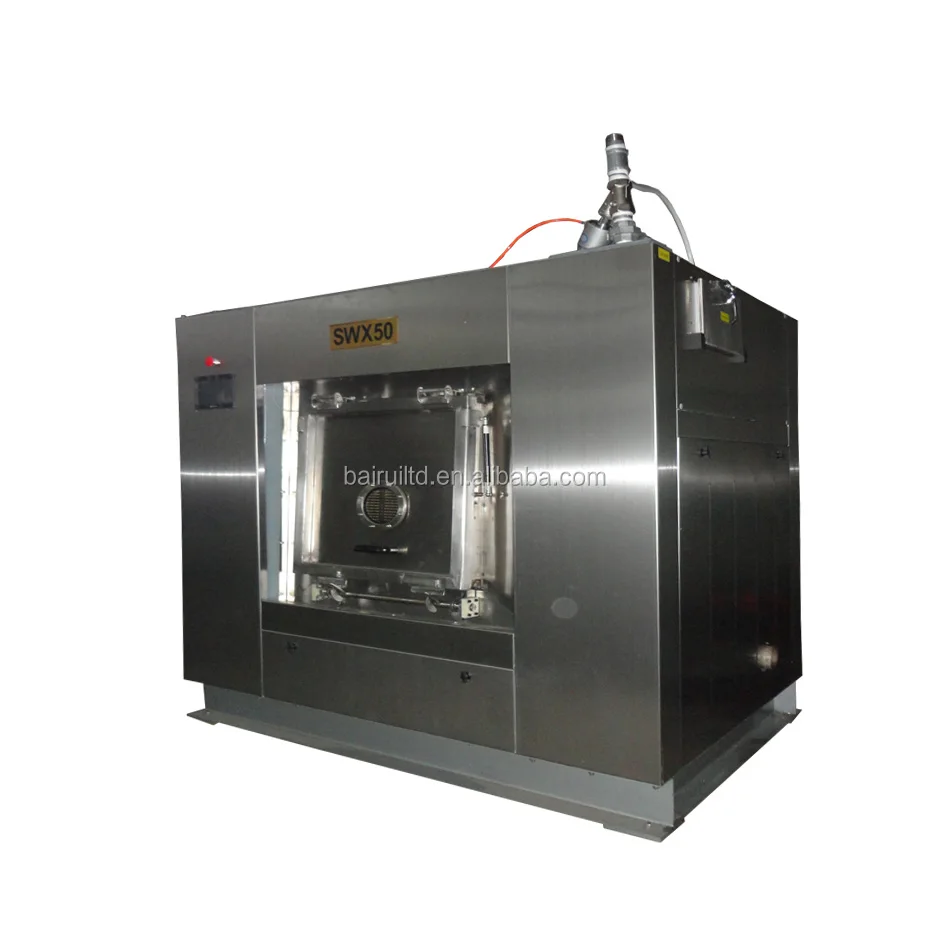

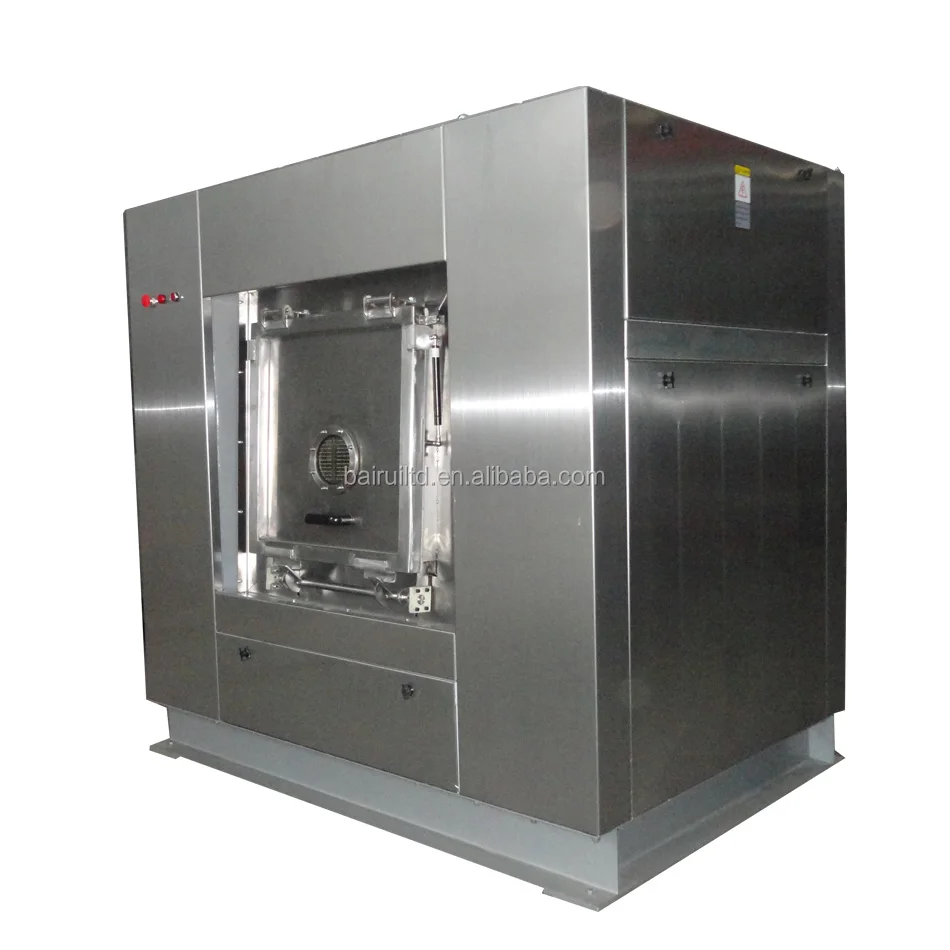

Barrier Washer Extractor:
Our newly designed Barrier Washer Extractor meets the needs of bacteria-free and anti-static requirements. Utilizing the Barrier Washer Extractor and wall partition, the laundry room can be divided into two separate independent operating zones ‘Clean’and‘Non-Clean Zone.’
Laundries will be loaded into washing machine through the loading door from ‘Non-Clean’zone. When washing is completed, unloading will be carried out from the ‘Clean’zone. Thus it prevents clean laundry from being contaminated and get infected again after washing.
Barrier Washer Extractors are of advanced design, well fabricated, economical to operate, easy maintenance and of high performance. They are widely used by hospital, food and pharmaceutical factories, nuclear power plants etc where extremely strict dust and bacteria-free environment are being observed.
Specification:
Type | SWX30 | SWX50 | SWX70 | SWX100 |
Max rotated capacity (kg) | 30 | 50 | 70 | 100 |
Diameter (mm) | 800 | 900 | 1060 | 1220 |
Depth | 750 | 800 | 800 | 853 |
Volume (L) | 301 | 508 | 706 | 1000 (separated) |
Term of heating | 0.4~0.6Mpa | |||
Drum speed (r/min) | It is controlled by inverter | |||
Power supply (V/Hz) | 380V/220V/50Hz | |||
Motor power (kw) | 4 | 5.5 | 7.5 | 11 |
VFD capacity (kw) | 5.5 | 7.5 | 11 | 15 |
Cold/Hot water | 1/2’’ | 2’’ | ||
Steam | 6’’ | 1’’ | ||
Drainage | 3’’ | |||
Compressed air pressure (Mpa) | 0.4~0.6 | |||
Water consumption capacity (kg) | 1000 | 1200 | 1250 | 1800 |
Electricity consumption capacity (kwh) | 1.5 | 2.1 | 2.8 | 2.8 |
Overall dimension (mm) | 1540*1480*1650 | 1710*1590*1715 | 1750*1770*1945 | 1810*1950*2165 |
Weight (kg) | 1650 | 1900 | 2500 | 2900 |
