12TONS No-Installation containerized Ice Block Making Machine KW-CB12

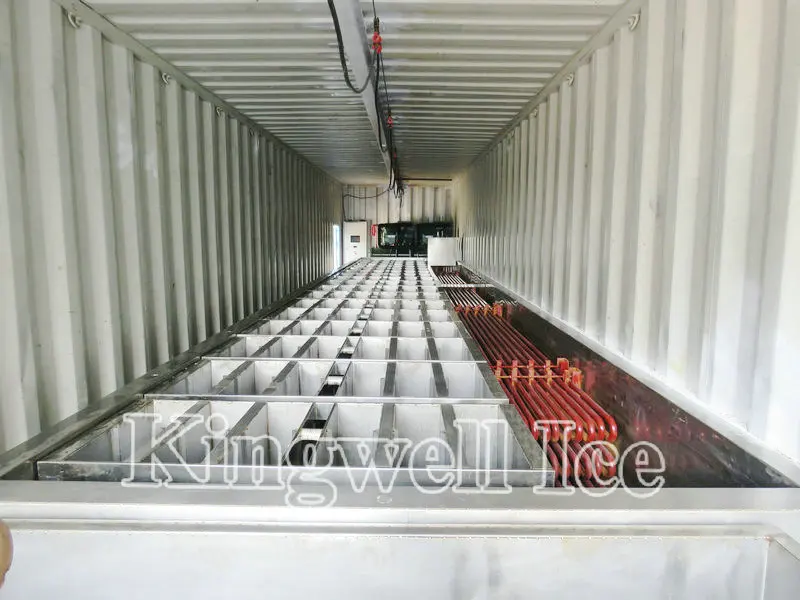

This containerized block ice machine is an updated block ice machine developed through feedback from our customers.The whole set of block ice machine is well installed except cooling tower inside the container before shipping, the buyer only need to install cooling tower, connect water and power to start working, it's quite easy for transportation and installation.





SPECIFICATIONS FOR 12 TON CONTAINERIZED BLOCK ICE MACHINE


Compressor
Brand
Bitzer, Germany
Horse Power
2 X 28HP
Type
Semi-hermetic compressor


Technical specification
Supply Power
380V, 50Hz, 3Phase / Customized
Input Water Temp.
21℃
Condensing Temp.
40℃


Measurement
Compressor machinery unit
2350mm(L)*1350mm(W)*1620mm(H)
Salt water tank
6150mm(L)*2007mm(W)*1200mm(H)
Water cooling tower
1880mm(L)*1880mm(W)*1750mm(H)




Main Features

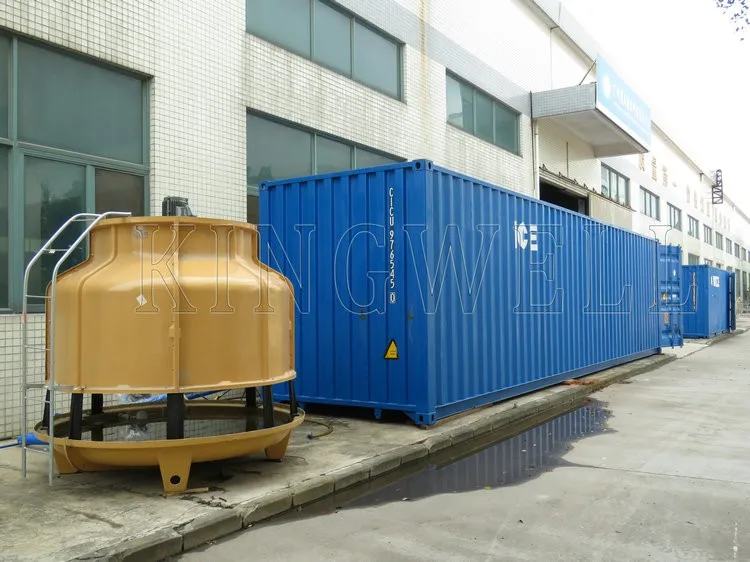

1). No need  to do installation in customers' site (All equipments are tested and installed well in a 40HQ container, except cooling tower. The buyer only need to assemble cooling tower, connect water and wires, the they can start the production, it's very easy job for installation)
2). No factory for putting the machine is possible. If there is no place to put the machine, they buyer can make simple cover for the container, it's fine.
3). Matching with crane system : It's easier for harvesting ice blocks, can help to save labor energy and labor cost.
4). Different capacities: Containerized block ice machine KW-CB series has different capacities of 1-15 tons.



Detailed Images

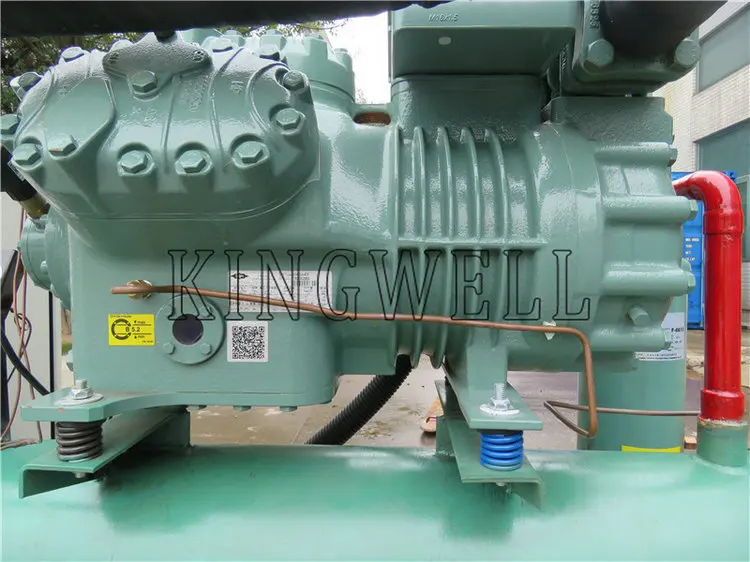

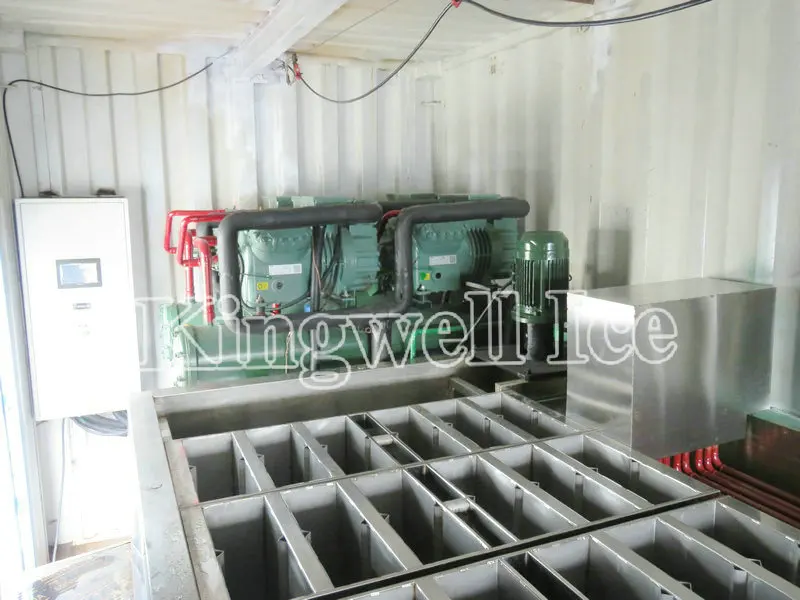

Compressor

Name: Bitzer

Brand: Germany brand

The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.



High/Low Pressure Controller

Name: Danfoss
Brand:  Denmark brand
The high/low pressure controller is  used as pressure controller and pressure protector, when the pressure of system reaches the setting point, it turns on or off automatically to keep the compressor refrigeration unit from damage.

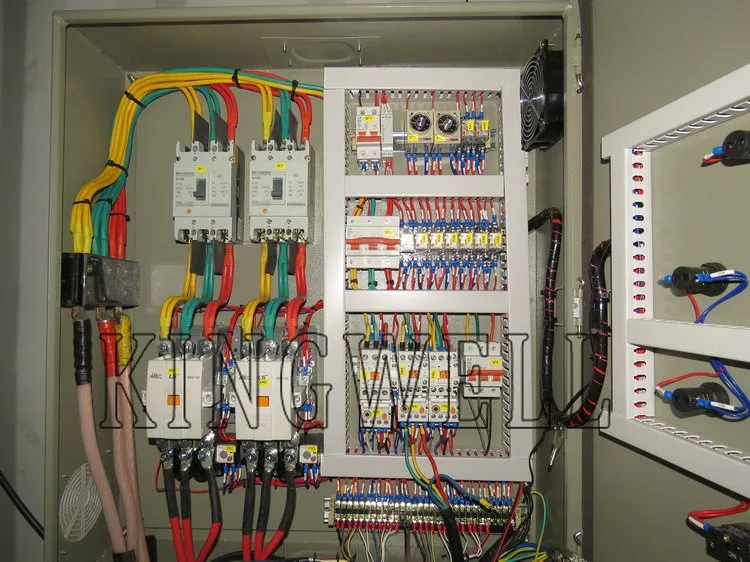

Electrical components

Name: LS
Brand: South Korea brand
The electrical components like power switch, contactor, thermal relay are all protector for other refrigeration components.

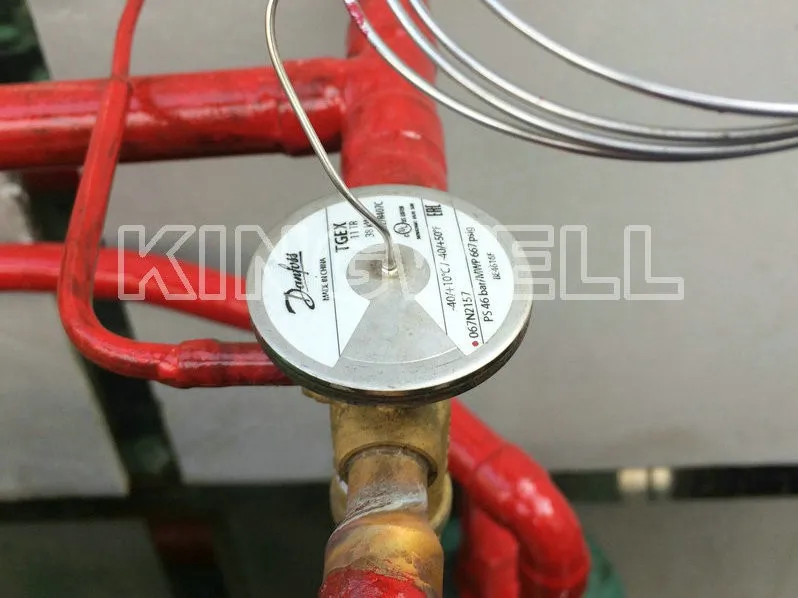

Expansion Valve

Name: Danfoss
Brand: Denmark brand
World famous brand, with stable performance and low failure.

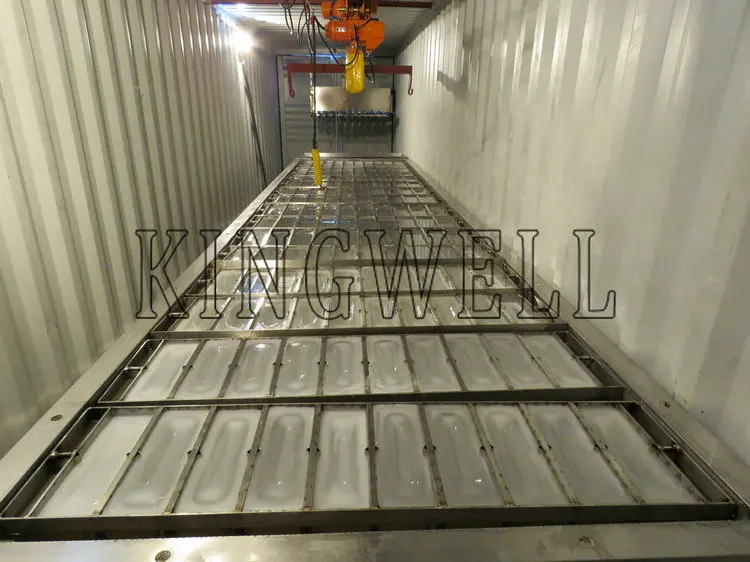

Crane system


This set of crane system is including crane equipment, ice thawing tank, ice falling shaft and water filling device, which is convenient for ice harvest, can save labour cost.



Crane equipment:

Crane for ice cans lifting and moving

Ice thawing tank




Ice falling shaft


Water filling device

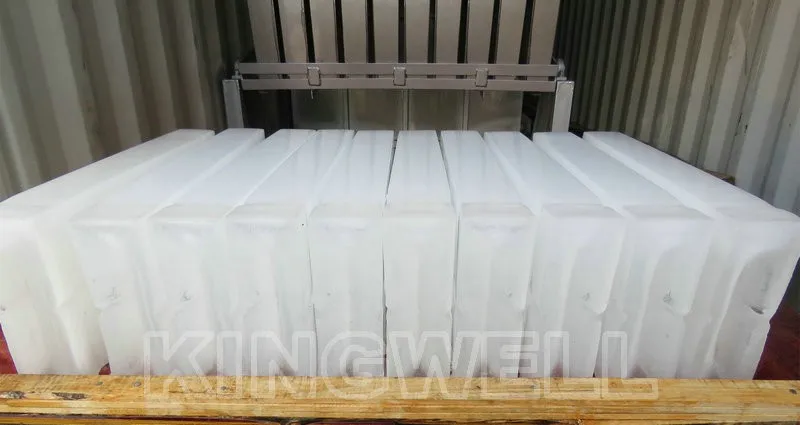

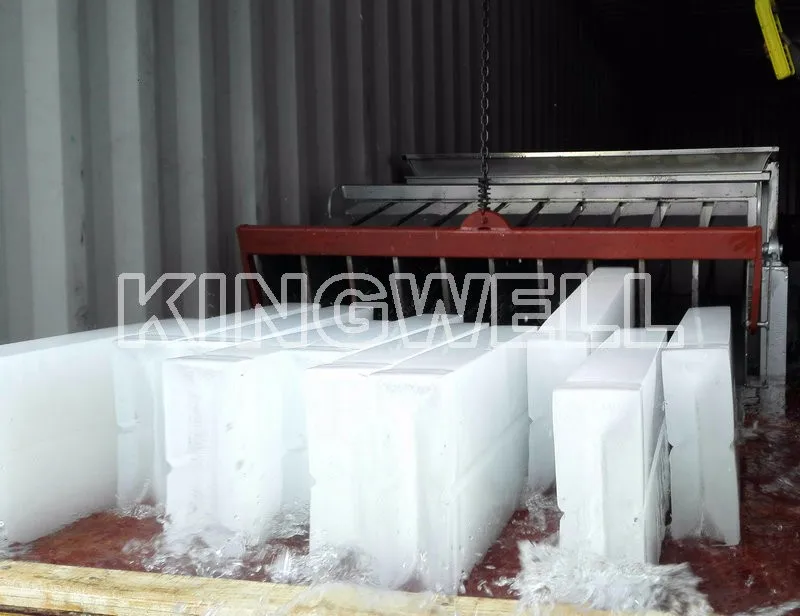

Block ice harvest




More Models


Item
Capacity
(ton/day)
Refrigerant
Cooling way
Match with cold room or not?
20GP container
KW-CB 1
1
R22/R404a
Air
Matching with a 10m³ cold room
KW-CB 2
2
R22/R404a
water/air
Matched with a 10m³ cold room
KW-CB 3
3
R22/R404a
water
No cold room
40HQ container
KW-CB 4
4
R22/R404a
water
Matched with a 30m³ cold room
KW-CB 5
5
R22/R404a
water
Matched with a 30m³ cold room
KW-CB 10
10
R22/R404a
water
No cold room, but with crane system
KW-CB 12
12
R22/R404a
water
No cold room, but with crane system
KW-CB 15
15
R22/R404a
water
No cold room, but with crane system


More types of block ice machines

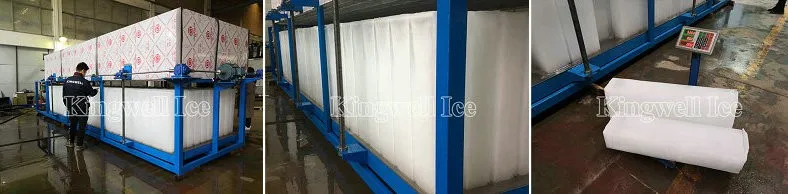

A. Traditional salt water cooling block ice machine




B. Direct cooling block ice machine

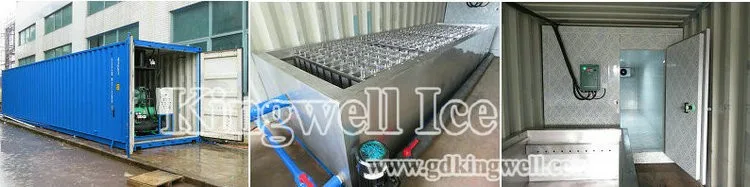

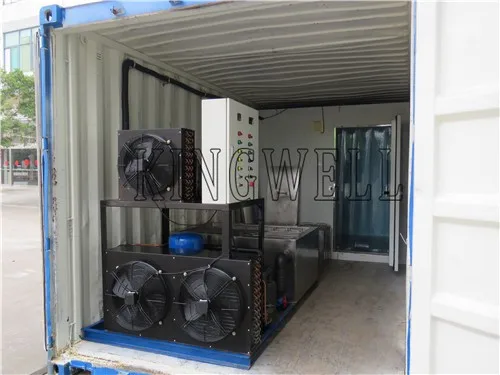

C. Containerized block ice machine

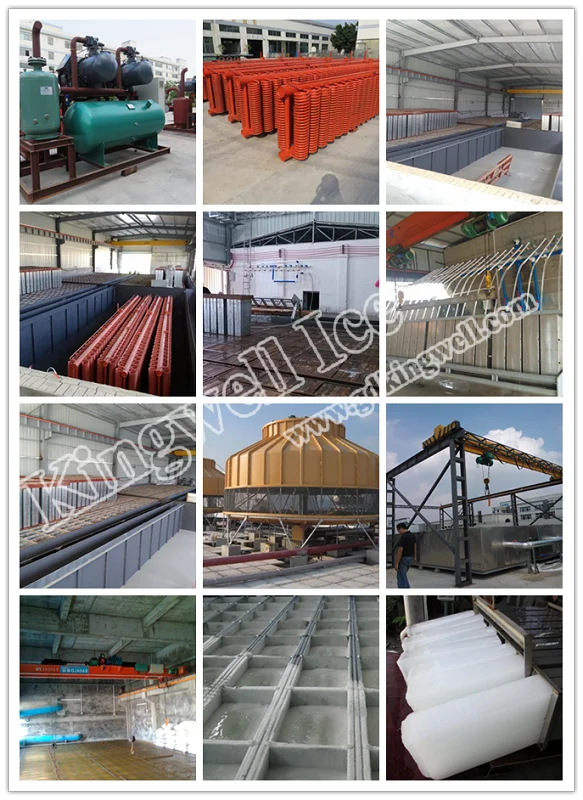

Big capacity block ice project

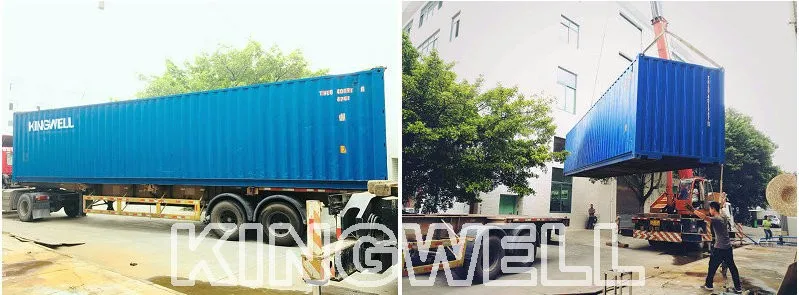

Loading





Our Clients




Kingwell Online Transation History








Our Service




Certifications


With more than 13 years experience, our engineers have their own ideas how to make the machine stable and last longer, moreover, we're more and more concerned on the safety and healthy. Trust then choose, welcome to join us!
