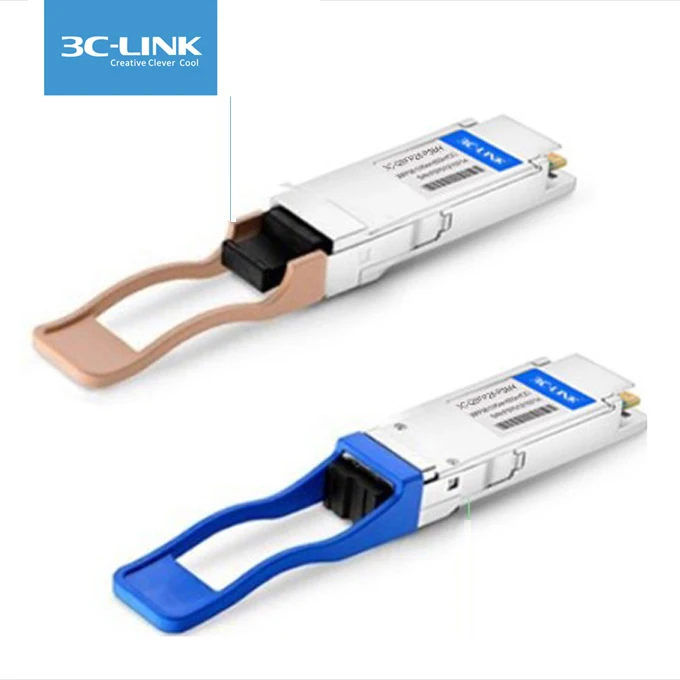

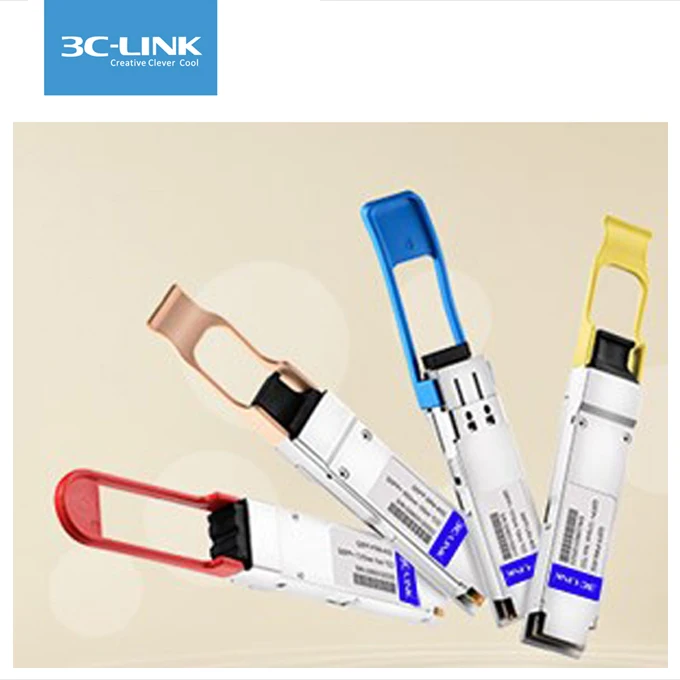

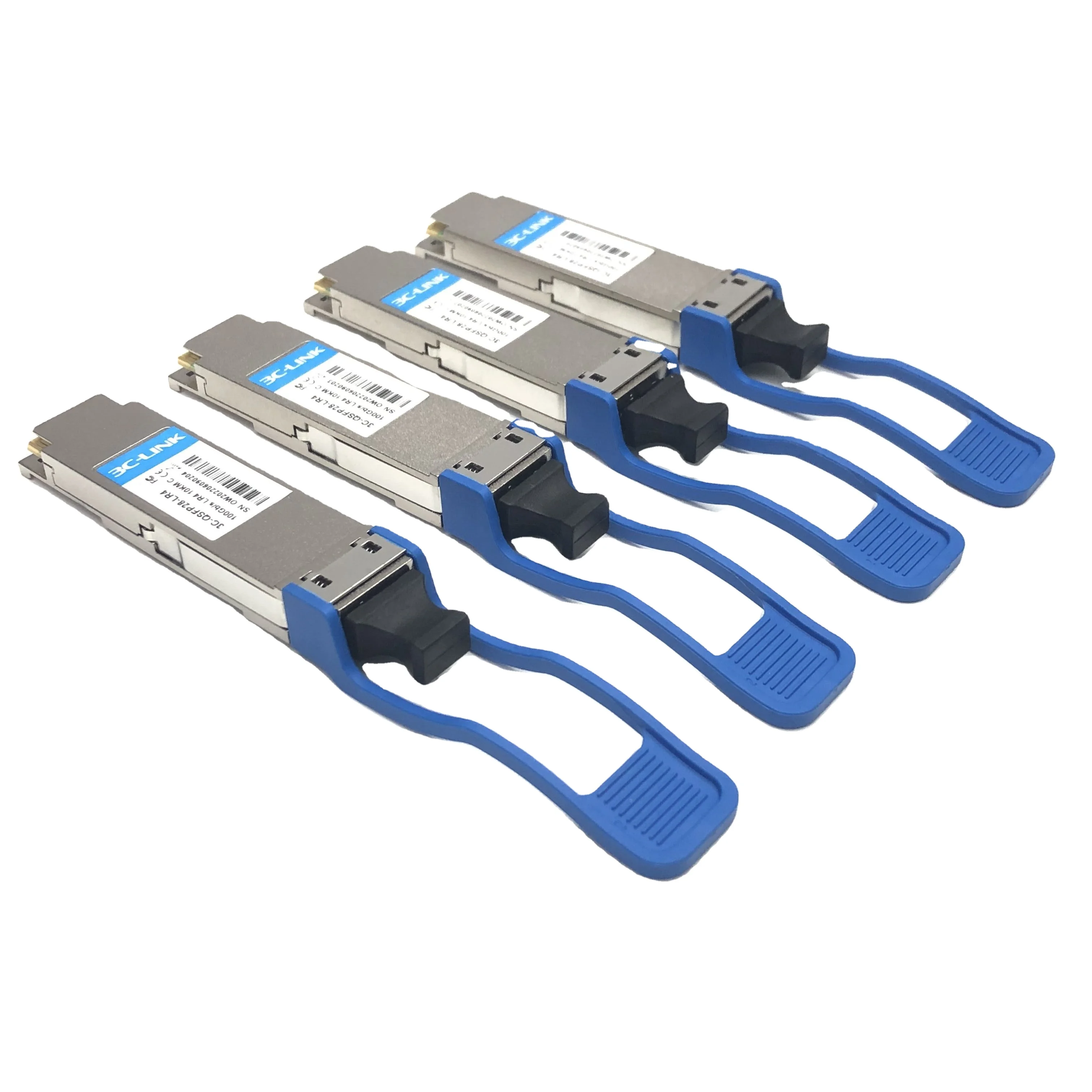

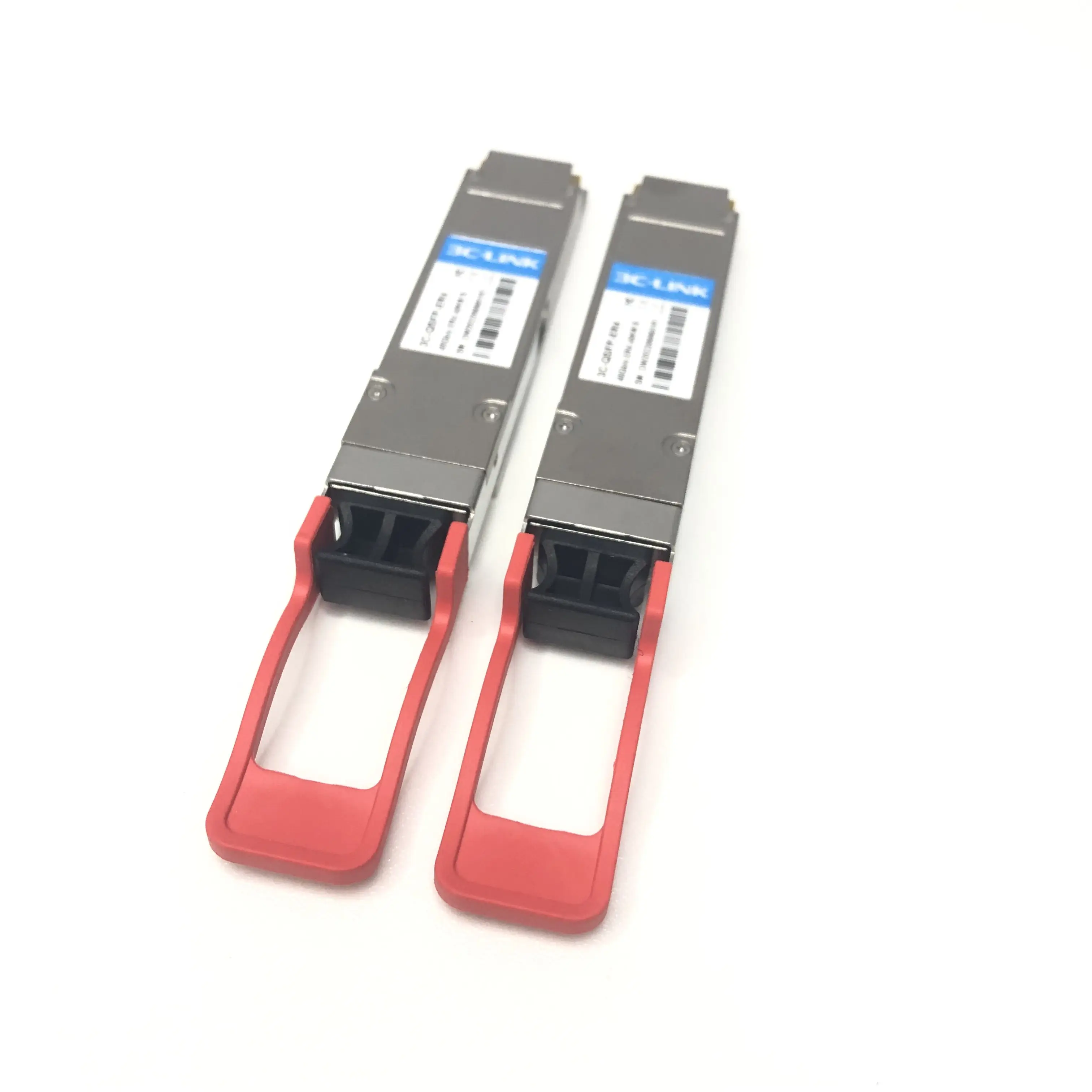

QSFP28 100G QSFP28 LR4 Compatible 100GBASE LR4 1310nm 10km Transceiver
- Category: >>>
- Supplier: Shenzhen 3C-Link Opto Co. Ltd.
Share on (60633156389):
Product Overview
Description
Product Description

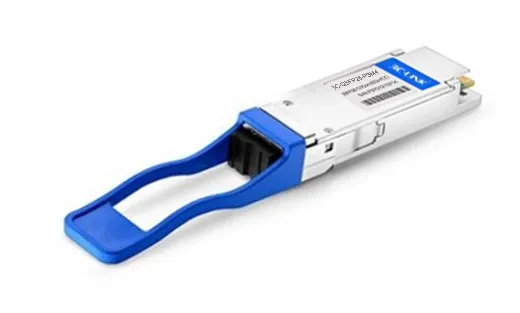

QSFP-100G-LR4 Compatible 100GBASE-LR4 QSFP28 Transceiver (SMF, 1310nm, 10km, LC, DOM)

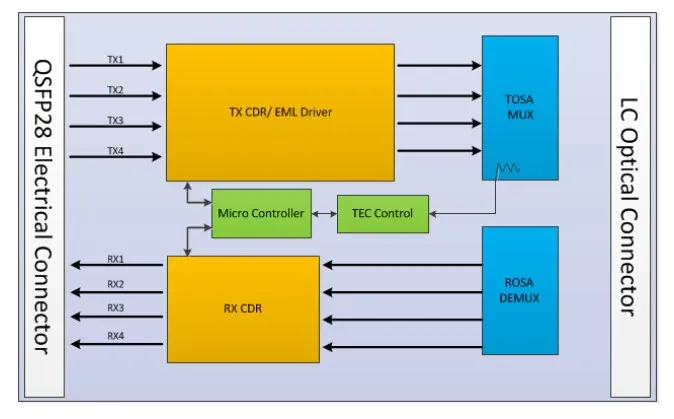

The 3C-LINK 1310nm 10km QSFP28 100G LR4 Optical Transceiver is a 100Gb/s optical transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module of this 100G QSFP28 LR optical transceiver converts 4 input channels of 25Gb/s electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gb/s optical transmission. Reversely on the receiver side, the module demultiplexes a 100Gb/s optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data. The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km data links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements
Parameter
•Hot pluggable QSFP28 MSA form factor
•Compliant to IEEE 802.3ba 100GBASE-LR4
•Up to 10km reach for G.652 SMF
•Single +3.3V power supply
•Operating case temperature: 0~70oC
•Transmitter: cooled 4x25Gb/s LAN WDM EML
•TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
•Receiver: 4x25Gb/s PIN ROSA
•4x28G Electrical Serial Interface (CEI-28G-VSR)
•Maximum power consumption 4.0W
•Duplex LC receptacle
•RoHS-6 compliant
More information
The production of transceiver optics is taking place according to the respective current MSA standard. All modules also meet the most important standards and norms for electronic products. The continuous control of product quality before, during and after the manufacturing process is the top priority. Each produced batch is scheduled with standardized quality assurance procedures and the production process is constantly monitored and supervised.
Good Compatible
Wide Compatibility
99.99% compatible with all major vendors and systems. Customer told me the brandanme, we can pragram the compatible code inside the module EPPROM.

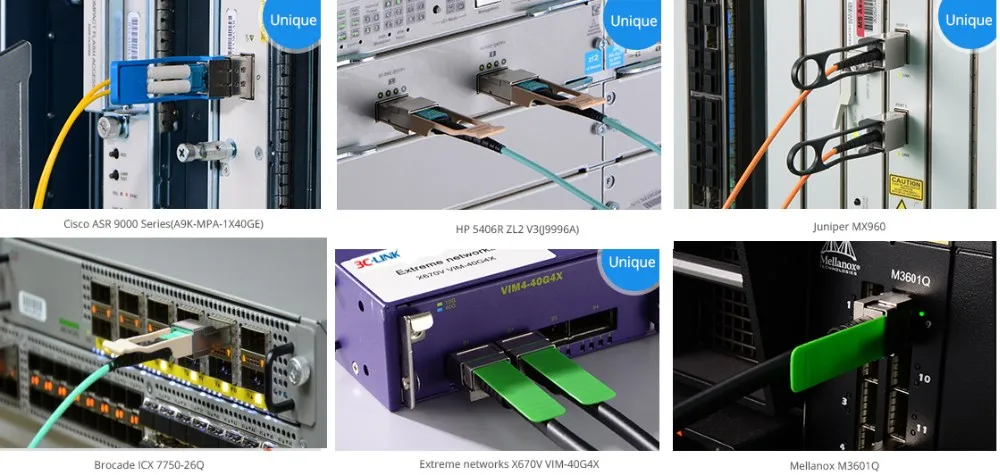

3C-LINK Test Bed has completely upgraded for now which set us apart from other third party products provider. All of the 10G, 40G, 100G transceivers and direct attach cables have already passed through the test on the latest top-brand switches
Company Value
Integrity - We build trust by being fair and consistent, communicating clearly and honestly, making and keeping realistic promises, protecting confidences and treating others with respect Results Driven - Everybody is accountable for results
Innovation - The ability to generate a flow of new ideas and creative solutions
Quality - We establish superior product and service quality by
striving to do everything right first time
Customer Focus - We respond with a sense of urgency and anticipation to each customer
Continuous Improvement
- Everybody is aware of the role they play in increasing productivity and controlling costs
One Company - We are all members of the same global team, with the same objectives, with the same desire for the company to win

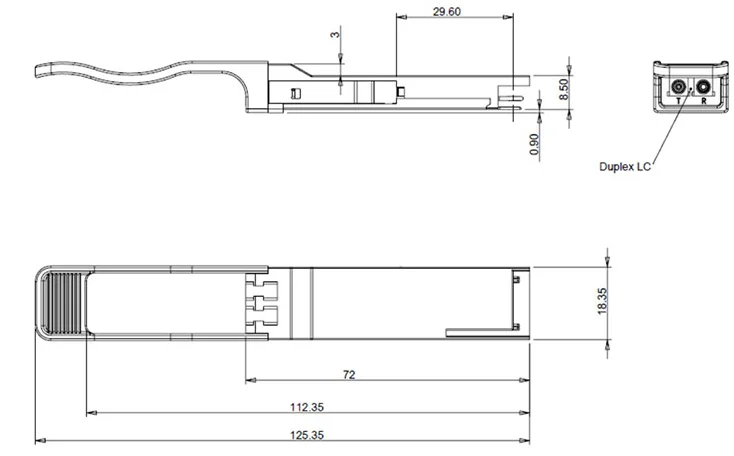

Size and Application
