IN STOCK! Intel Original Intel J1900 Mini ITX Motherboard ZA POS19C2, fanless embedded motherboard, ALL IN ONE BOARD
- Category: >>>
- Supplier: Shenzhen Zeal-All Industry Co. Ltd.
Share on (60633186044):
Product Overview
Description
Product Description

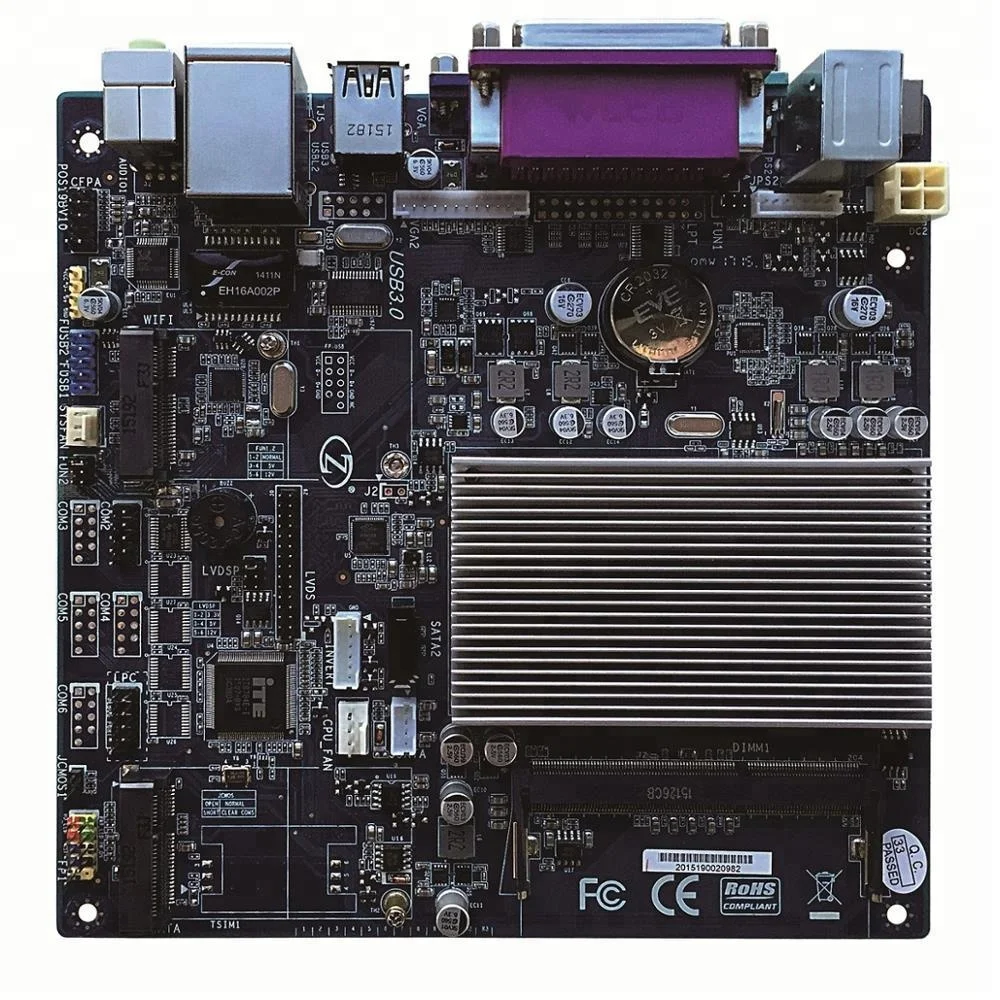

IN STOCK! Intel Original Intel J1900 Mini-ITX Motherboard ZA-POS19C2, fanless embedded motherboard, ALL IN ONE BOARD
Product Features:
-Support Intel J1900 2.0GHz QUAD CORE
-Intel J1900 Chipset
-Intel HD Graphics
-Support VGA/LVDS Display.
-DC_IN 12VC Input power.
Model NO. | ZA-POS19C2 |
Size | 170mm x 170mm |
CPU | Support Intel J1900 2.0GHz QUAD CORE |
Memory | 1 DDR3 Slot ,1600/1333MHz memory,Support 2GB,Up to 8GB |
Graphics | VGA,LVDS,Intel HD Graphics |
Chipset | J1900 |

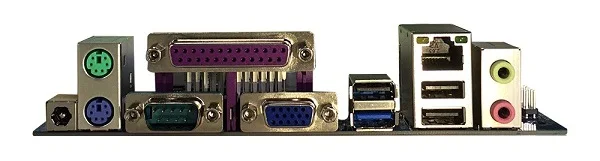

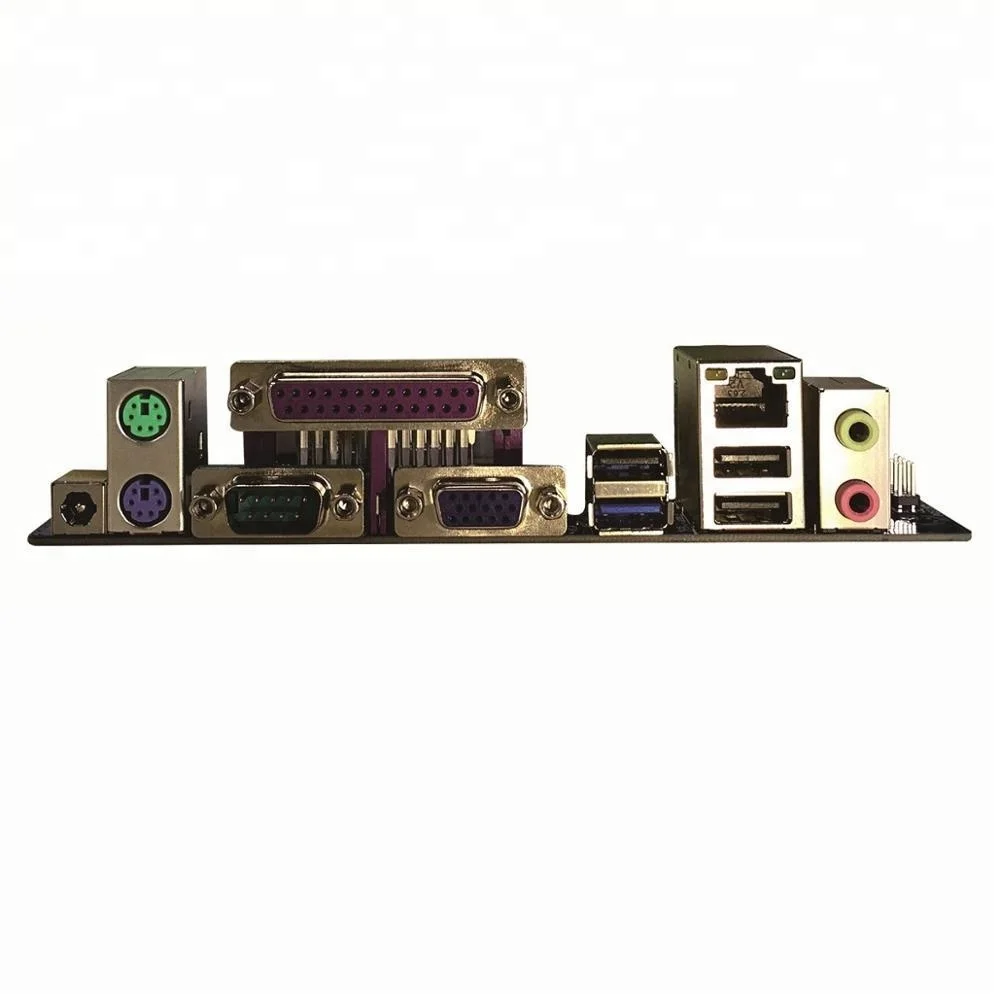

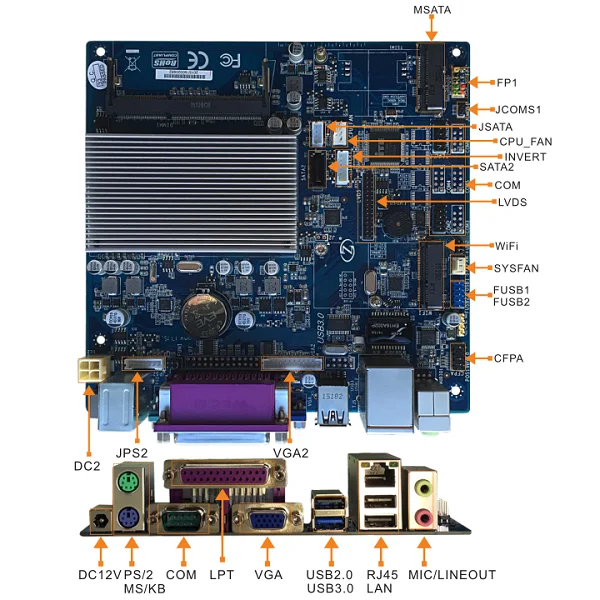

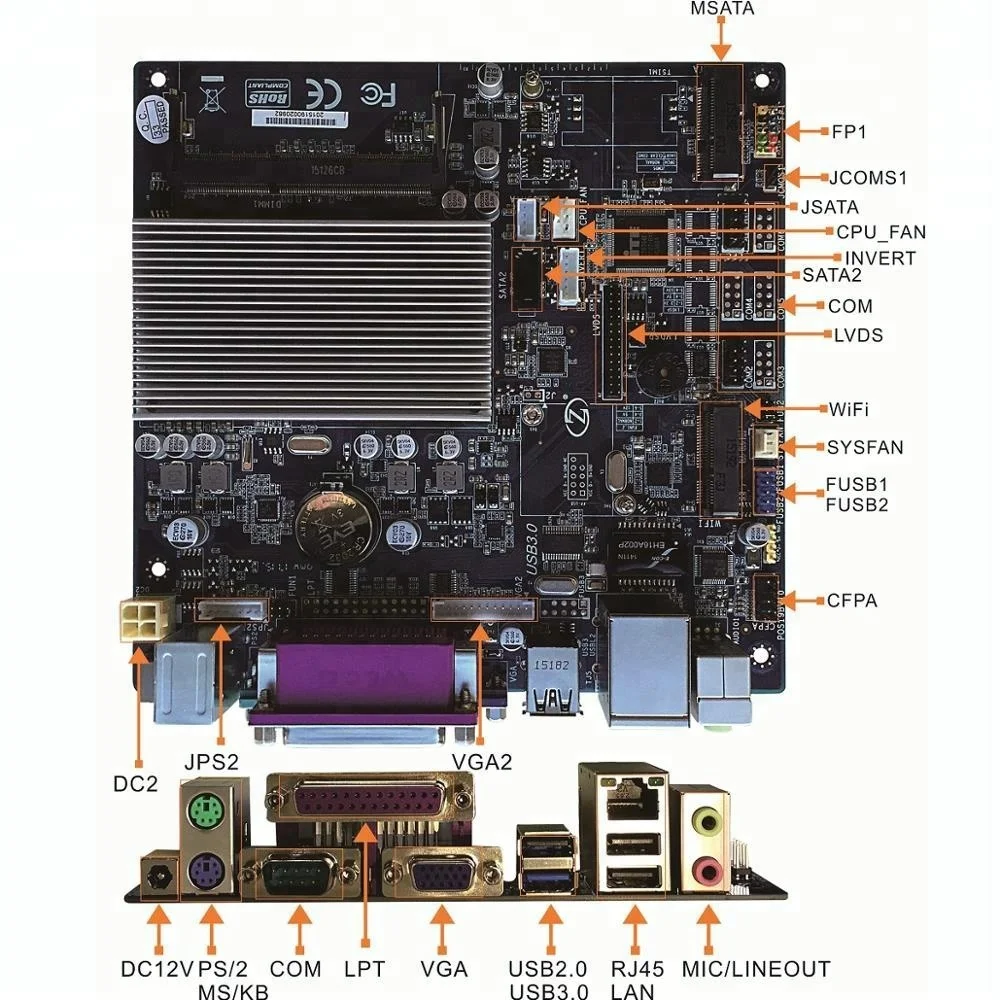

Rear I/O | 1* DC Power Input (12V) |
1* PS/2 | |
1* COM | |
1* LTP | |
1* VGA | |
3* USB2.0,1*USB3.0 | |
1* LAN | |
1* MIC/LINE OUT | |
Internal I/O | 2* USB PIN,Support 3* USB2. 0 |
1* CPUFAN And SYSFAN | |
1* Serial Port PIN (Optional 5Group) | |
1 Group LVDS PIN(Support Dual Channel 8BIT) | |
1* SATA | |
1* 1X12 VGA PIN | |
1* LCD Backlight | |
1* LCD Power | |
1* 2X2 PIN Power Outlet | |
SATA | 1* SATA ,1* MSATA Slot |
BIOS | AMIBIOS,32M bit Flash Memory |
H/W Monitoring | Temperature Management ,Voltage Management ,System Power Management |
Audio | ALC662 2 Channel Output |
Operating System | Windows7, Windows8, Linux |
Temp. | -10° C ~ 55° C |
Humidity | 0% ~ 95% (Relative Humidity ,No Condensation) |
Characteristic | Support dual extended display |
Product Showcase
Packaging & Shipping
Packing:
Original factory package
In anti-static bag + air bubble +paper box
Customized package
Delivery Time:
1 working day to confirm our stock.
3 working days for testing and shipping.
Customized product delivery negotiation via email.
Shipping Ways:
It will be shipped by DHL/Fedex/TNT/UPS/EMS or other ways.Please contact us and choose the best one.
All products will be strictly tested by QC department and shipped worldwide directly by sea,air and express.
We will provide all document you need to import.
Motherboard EXPO

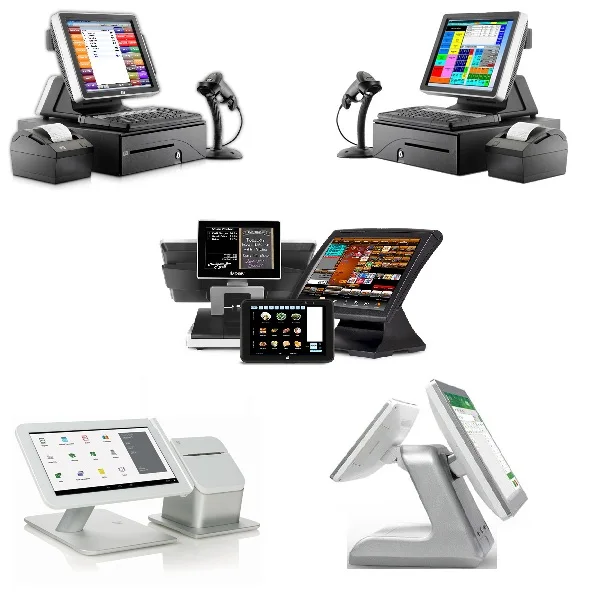

Application
