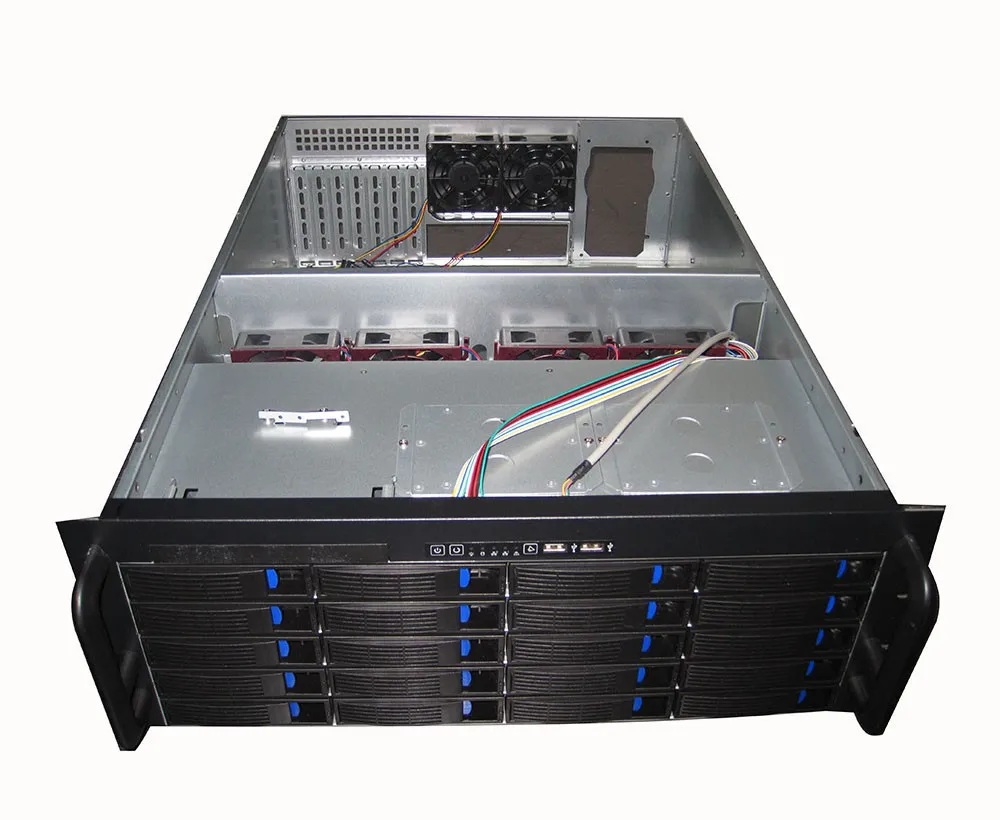

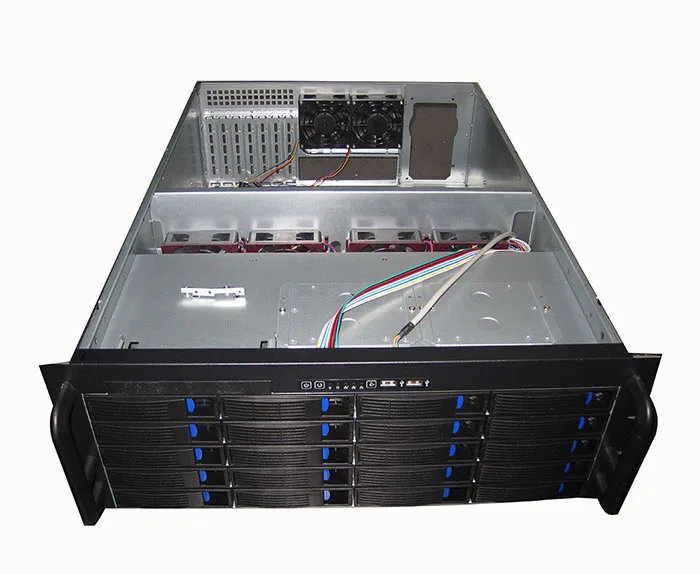

4u waterproof server rack cabinet/chassis/cabinet 20 x hot swap SATA/SAS 6G hard drive bay
- Category: >>>
- Supplier: Euromicron Mould Engineering Ltd
Share on (60633192138):
Product Overview
Description
4u waterproof server rack cabinet/chassis/cabinet 20 x hot-swap SATA/SAS 6G hard drive bay
Model:4320
Product name: 4u waterproof server rack cabinet
Product Description
Drive bay | 20 x hot-swap SATA / SAS 6G hard drive bay |
Cooling fan | 4 x 80mm center wall, 2 x 80mm rear panel fan |
switch | Power switch x 1, the system restarts x 1 |
Indicator light | Power switch x 1, hard disk x 1, network x 2 |
interface | 1 front board USB port, 5 internal SFF-8087 Mini SAS interface, 10 4-pin redundant power connectors |
Motherboard compatibility | Support for EEB (12 "x13"), CEB (12 "x10.5"), ATX (12 "x9.6"), Micro ATX (9.6 "x 9.6") |
Optional power supply | Standard ATX power supply, Mini redundant power supply (high x width 5.91x3.39 inches) |
Size (width x depth x height) | (430 mm x 650 mm x 176 mm) |
package | Single package / double package |
Weight (no hard drive) | 18 kg (net weight) 21 kg (gross weight) |
Ambient temperature | 0/40, 32/104 ° F (working) -20 / 60Ç, -4 / 140 (non work) |
Relative humidity | 5% to 95% non-condensing |
Features |
1 • 4U rack design |
2 • 20X hot-swap SATA / SAS 6G hard drive bays |
3 • 5 internal SFF-8087 mini SAS cables support up to twenty 3.5 "or 2.5" SATA (I or II) or SAS drives; |
4 • The backplane is well ventilated with a horizontal installation |
5 • The LED indicator shows the power and operating status of each hard disk drive |
6 • Supports EEB (12 "x13"), CEB (12 "x10.5"), ATX (12 "x9.6"), MICRO ATX (9.6 "x 9.6") |
7 • Complies with EU RoHS regulations |
8 • Redundant 4-pin Molex power connector supports redundant power supplies |
9 • A front USB port |
10 • Smooth border prevents scratching your skin |

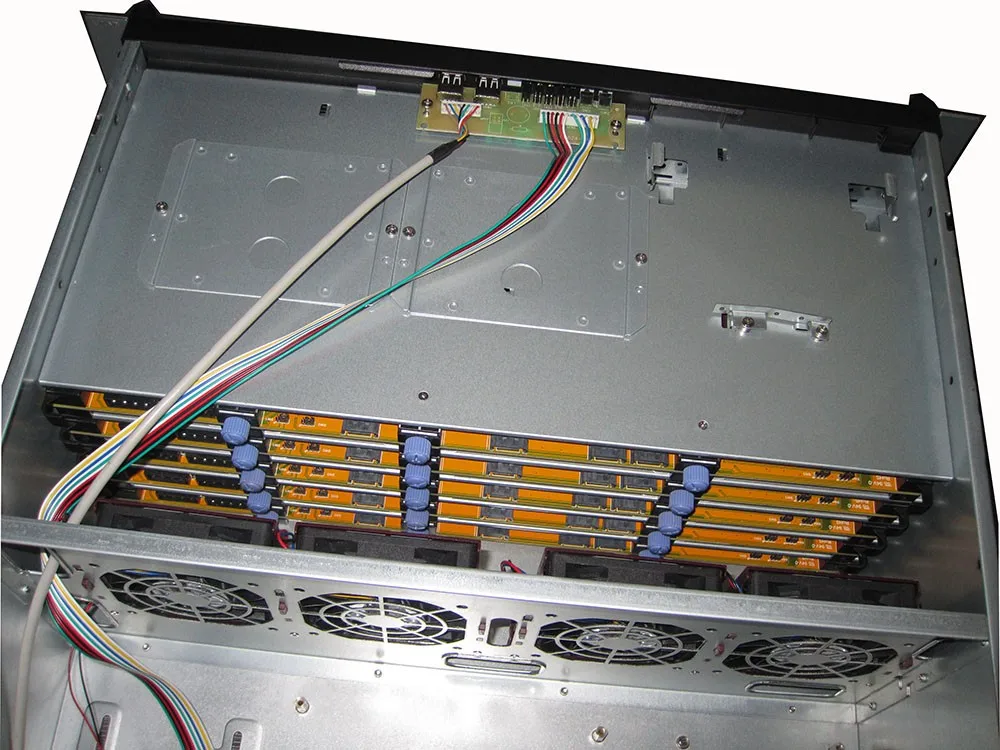

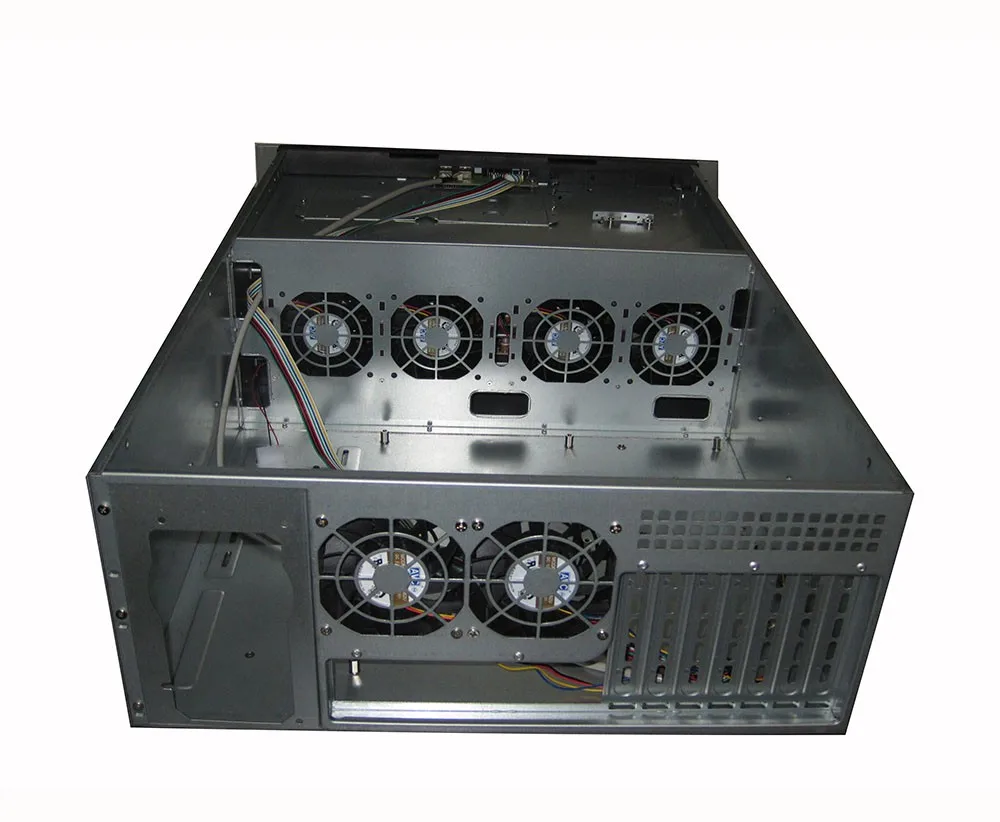

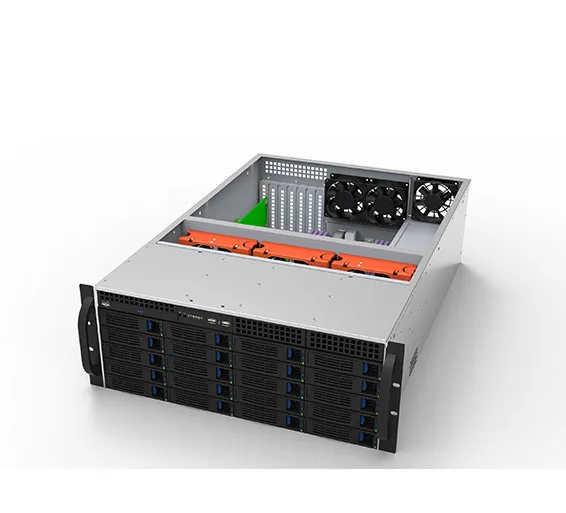

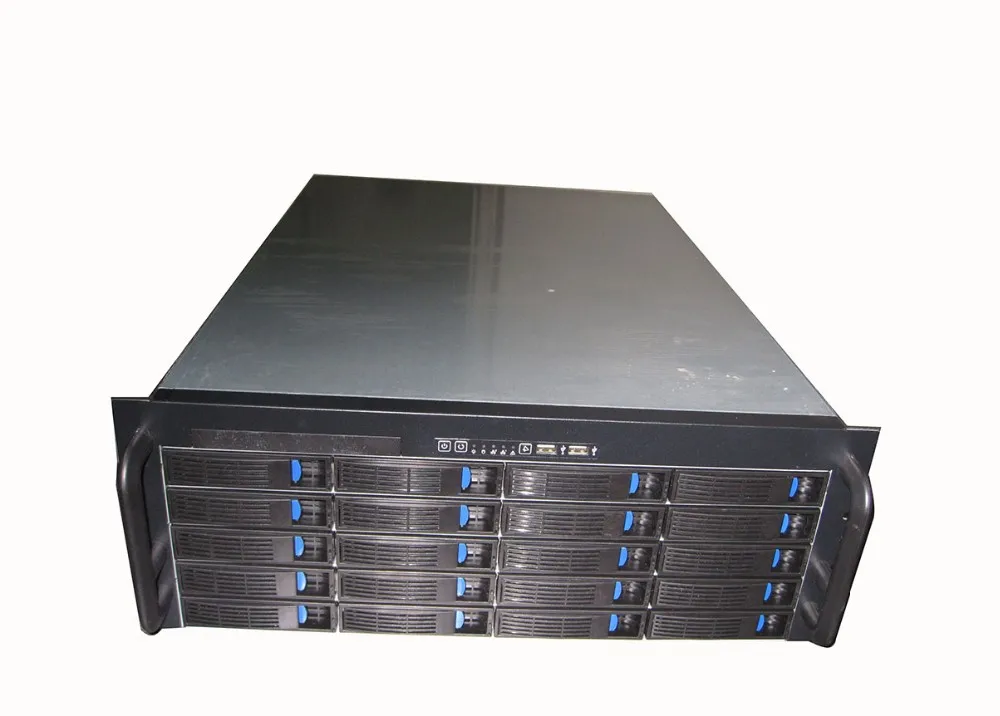

product pictures

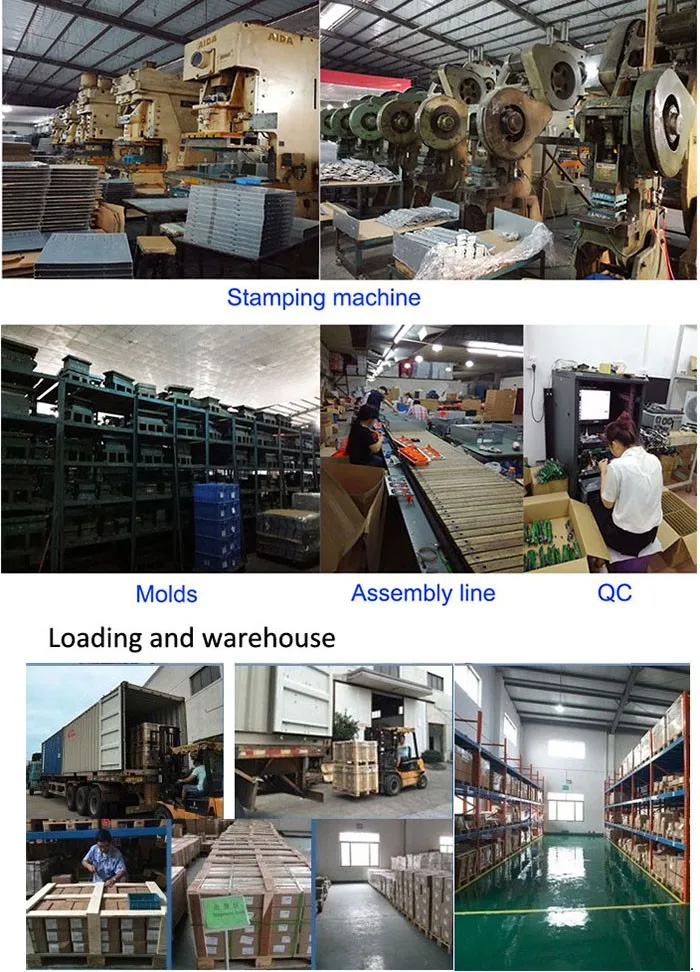

Factory show
Packaging & Shipping
Shipment&Payment
FAQ
Q1 | How fast can i get the quotation? |
A | We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry as priority. |
Q2 | Can I get a sample to check the quality of product? |
A | Yes. We can send you samples to check the quality within 3-5days. |
Q3 | Do you offer guarantee for the products? |
A | Yes, we can offer 1 year guarantee for the goods. |
Q4 | What is the packaging? |
A | We provide PE bag, gift box, blister package and carton box packaging, we also can make your own designed OEM packaging. |
Q5 | What is your terms of delivery? |
A | We accept EXW, FOB, CIF etc. You can choose the one which is the most convenient or cost effective for you. |
