Mini Air Conditioning Condenser Price
- Category: >>>
- Supplier: Shengzhou Lanco Refrigeration Equipment Co. Ltd.
Share on (60633194264):
Product Overview
Description

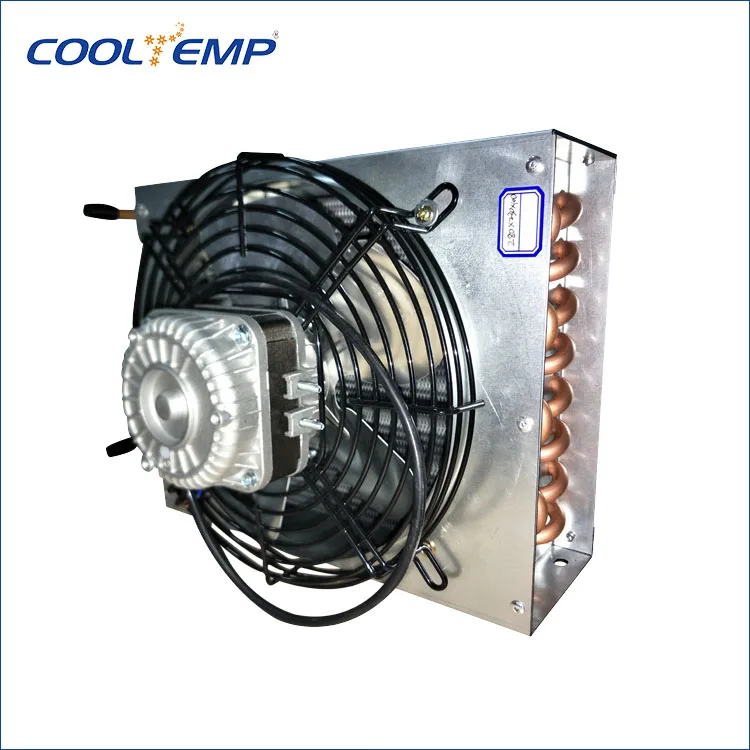

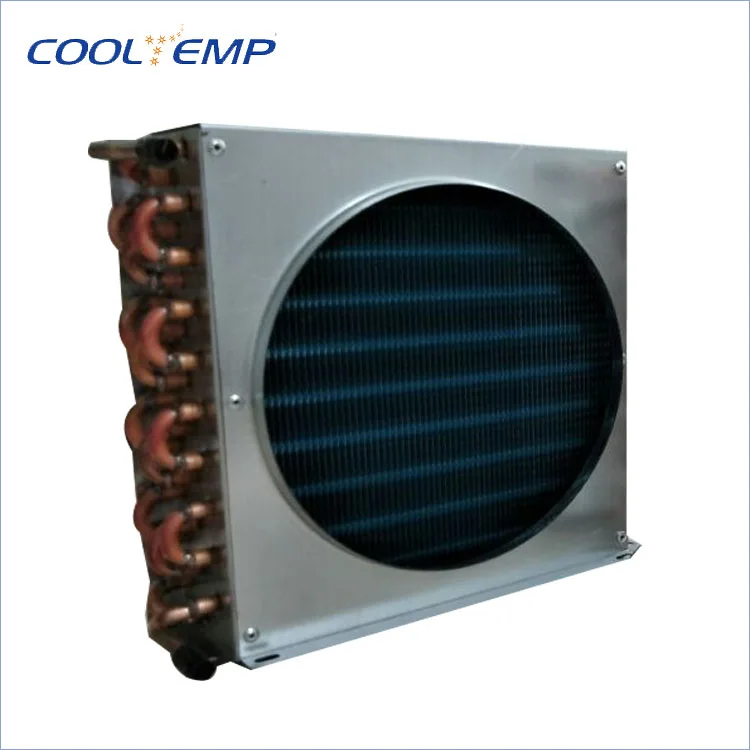

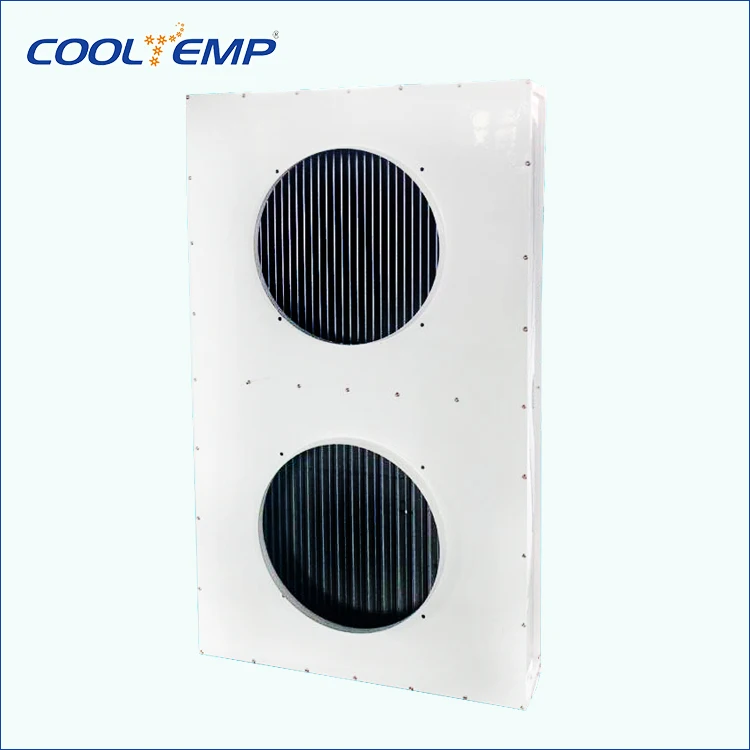

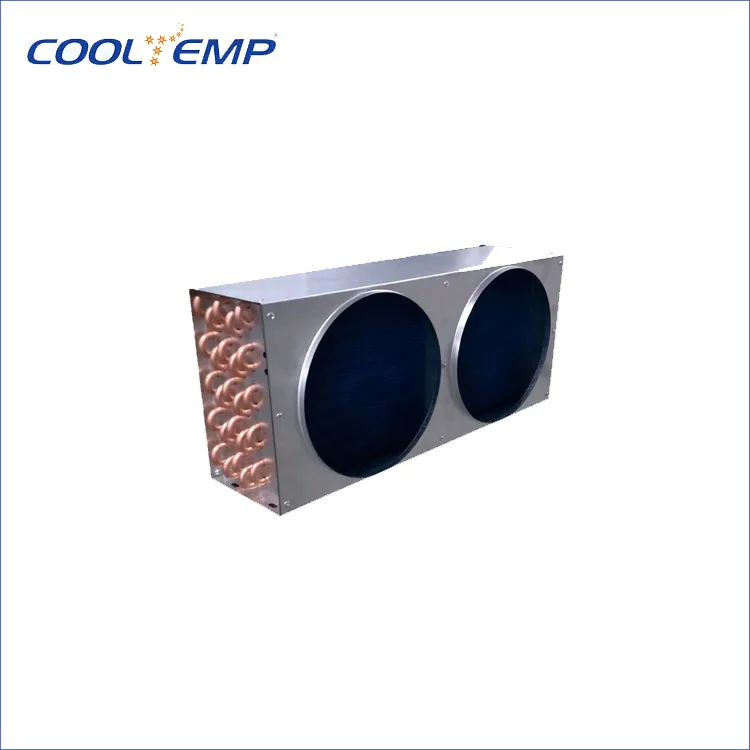

Mini Air Conditioning Condenser
Product Description
| Model | Nominal heat transfer tk-tal=15℃;KW | Heat exchange area | coppertube arrangement | fan motor | INLET mm | OUTLET mm | ||||
QTY pcs | DIA mm | AIR m^3/H | POWER W | VOLTAGE V | ||||||
| LK-ACH2 | 0.6 | 2 | 2*4 | 1 | 200 | 780 | 1*55 | 220 | 10 | 10 |
| LK-ACH3 | 0.9 | 3 | 3*4 | 1 | 200 | 780 | 1*55 | 220 | 10 | 10 |
| LK-ACH4 | 1.2 | 4 | 3*5 | 1 | 250 | 970 | 1*80 | 220 | 10 | 10 |
| LK-ACH6 | 1.7 | 6 | 3*6 | 1 | 300 | 1700 | 1*90 | 220/380 | 10 | 10 |
| LK-ACH8.5 | 2.5 | 8.5 | 3*8 | 1 | 300 | 1700 | 1*90 | 220/380 | 10 | 10 |
| LK-ACH15 | 4.6 | 15 | 4*8 | 1 | 350 | 2200 | 1*140 | 220/380 | 19 | 16 |
| Model | L | K | H | A | B | W |
| LK-ACH2 | 280 | 95 | 240 | 260 | 65 | 140 |
| LK-ACH3 | 280 | 120 | 240 | 260 | 80 | 165 |
| LK-ACH4 | 300 | 120 | 290 | 280 | 80 | 175 |
| LK-ACH6 | 350 | 150 | 340 | 330 | 110 | 235 |
| LK-ACH8.5 | 450 | 150 | 435 | 420 | 100 | 250 |
| LK-ACH15 | 520 | 170 | 485 | 490 | 130 | 280 |
Product Images
1.we take very strict inspection for each product before shipping ,and the soldering by our professional and experienced workers ;
2.and we have kinds of mould for your choose as below:
Diameter Of Copper Tube (mm) | Moulds | Pitch Of Fins (mm) | Smooth Copper Tube/Inner Grooved Copper Tube |
| 9.52 | 25*21.65 | 1.8~6 | |
| 7.94 | 25*21.65 | 3.5~5.5 | |
| 7.94 | 22*19.05 | 1.8~4.6 | |
| 7.94 | 21*18.19 | 1.8~2.5 | |
| 7 | 21*12.7 | 1.2~25 | |
| 14.5 | 52*45 | 3.5~9.5 | |
| 12.7 | 31.75*27.5 | 1.8~6 | |
| 9.52 | 31.75*27.5 | 3.5~7 | |
| 12.7 | 38.1*33 | 4.5~9 |
Production Flow
Packaging & Shipping
♣.We Offer many types packages to meet customers' requirements according to different products,and we design reasonable loading way to arrange containers to be fill with all goods as order.
♣.We and our professional shipping agents work together for many years ,we always can get a competitive price and best service for many shipping lines.
Our Services
We have exported our goods to many countries with our own Brand "COOL TEMP" ,our Products' Warranty is 1 Year,any Manufacturing defect ,you can contact us by Email /Call,we will try to solve first time till you are satified.
Also OEM and ODM Welcome , Distributors and Agents welcome !
Company Information
Why We Say We Should Be Your Preferred Supplier ?
Service:
We put our Customer first no matter Big or Small,Your Business is most important to us We are here to support you.
Technology
With the support of a Competent R & D team giving strong technical support to help you make your job more easy.
Factory Equipment
we have a fully fitted factory for sheet metal processing offering a range of materials to suit the what the Customer demands are.
Coil heat exchanges manufacturing offering rang fin profiles and material required from flat type to hydrophilic fin coil where corrosion control is required.Fully painting service either our standard choice Blue ,Green,Black,White or Customized to your Choice.
Sales Marketing
Are Customer Focused Solve purpose of bringing you an easy pleasant company to deal with.
Factory Location Advantage
We are Closed to Shanghai, Ningbo,Hangzhou,Yiwu etc City ,it takes around 1.5 - 3 hours to our factory from one of those cities by car, and it takes 2 hours from Guangzhou/Shenzhen to our airport(Hangzhou xiaoshan airport),Welcome to visit Us When you are avaliable.
