Беспроводной повторитель доступа SKYLAB 300 Мбит/с, 4g, usb, openwrt, прямой 2,4 ГГц, усилитель 1000 МВт, Wi Fi, модуль маршрутизатора openwrt для домашней автоматизации

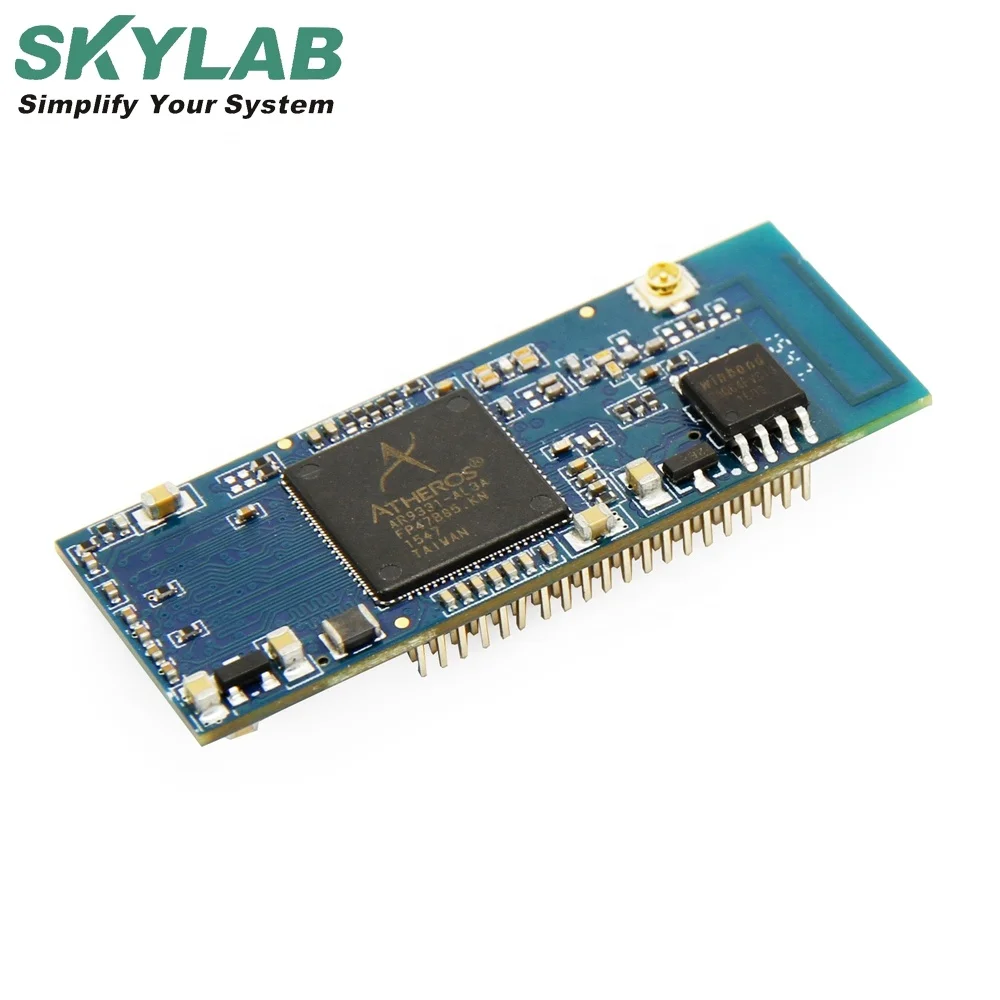

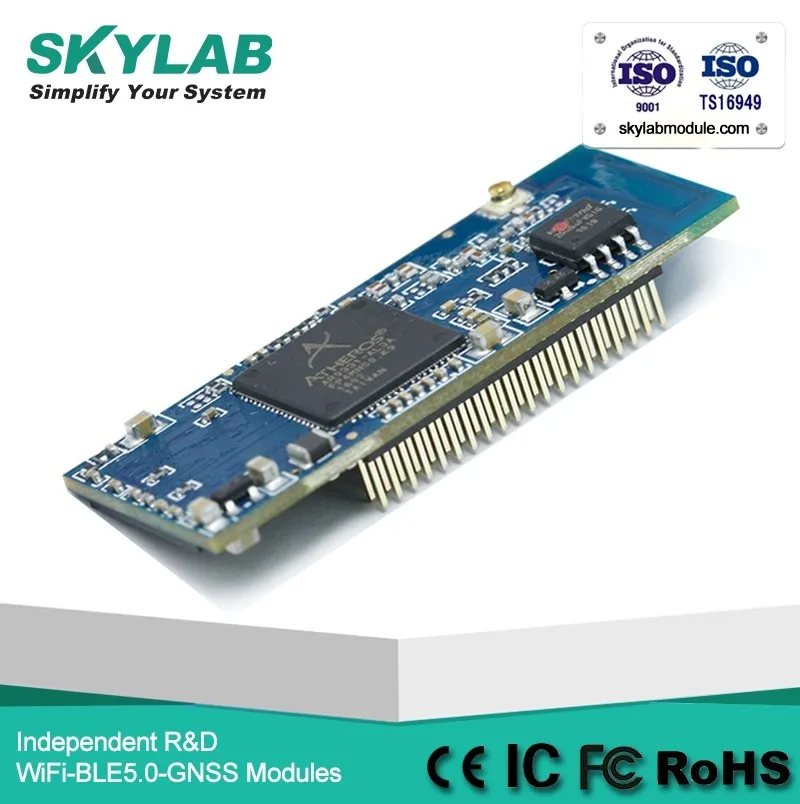

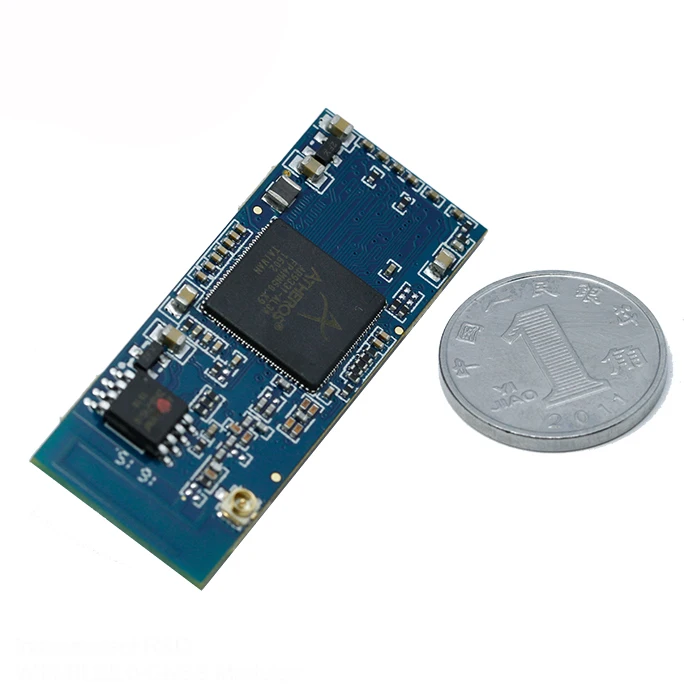

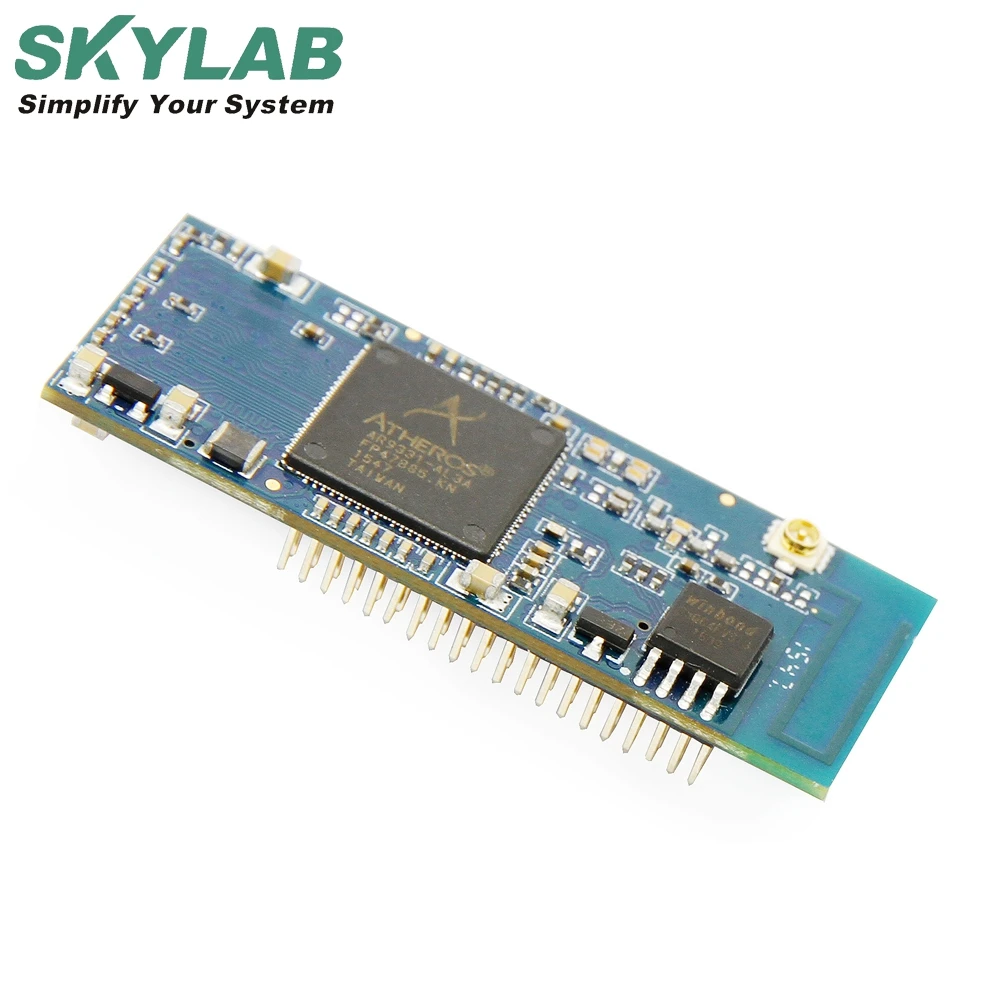

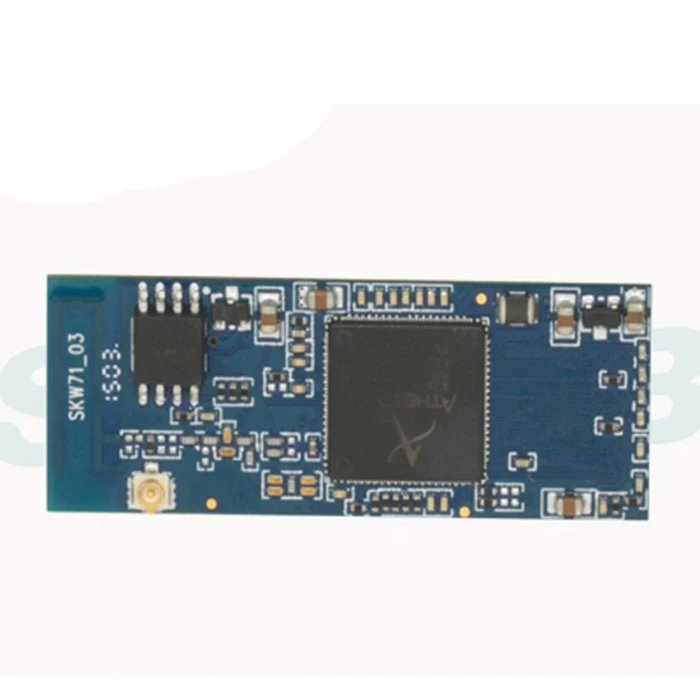

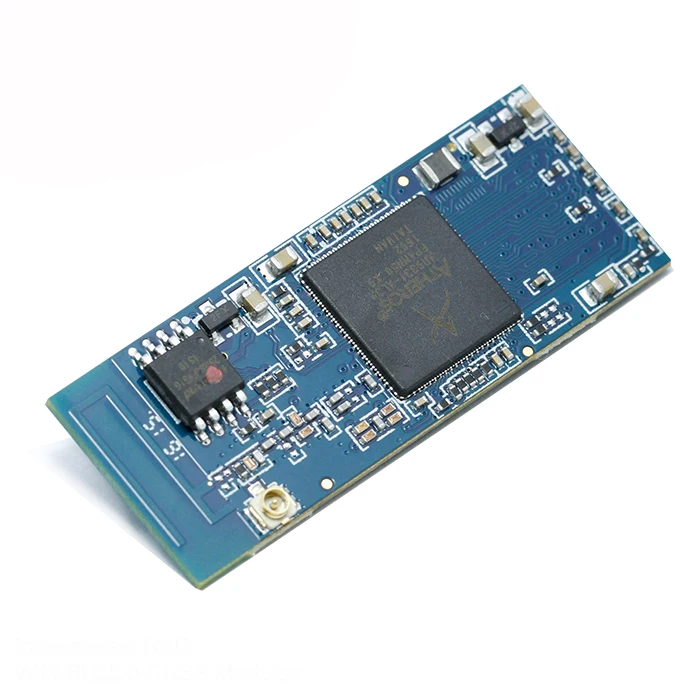

The SKW71 module integrates a 1T1R 802.11n Wi-Fi radio, a MIPS 24K processor, 2-port fast Ethernet PHY, USB2.0 host, I2S and multiple slow IOs. Solution for low power, low-cost, and highly integrated AP router and consumer electronic devices, the module requires only an external 3.3V power supply. It supports 802.11n operating up to 72.2 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates. The module supports AP mode and client mode and repeater mode and UART WiFi. The high performance module can process advanced applications effortlessly, such as routing, security and VoIP.

Features

  Compliant to IEEE 802.11b/g/n 1x1WLANs

  DDR2 memory up to 512Mb

  Flash memory up to 64Mb

  1LAN ports and 1 WAN port

  High-speed UART

  USB 2.0 host device mode support

  Support I2S/SPDIF interface

  Support AP/Client/Repeater mode

  Support UART to WiFi transparent

  Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI

  RoHS compliance meets environment-friendly requirement.

  45(L) x 17.3(W) x 9.0(H) mm small dimension

Applications

  AP WiFi

  UART WiFi

  Repeater WiFi

  IP TV

  IP DVD(Internet VOD Player)

  Building Automation

  Home Automation

  Gaming Consoles

   DVR
