Linares Dl 4006 высокоскоростной 230 мм четырехсторонний формовщик
- Category: >>>
- Supplier: Weihai Hanvy Plywood Machinery Manufacturing Co. Ltd.
Share on (60633303106):
Product Overview
Description
Product Description

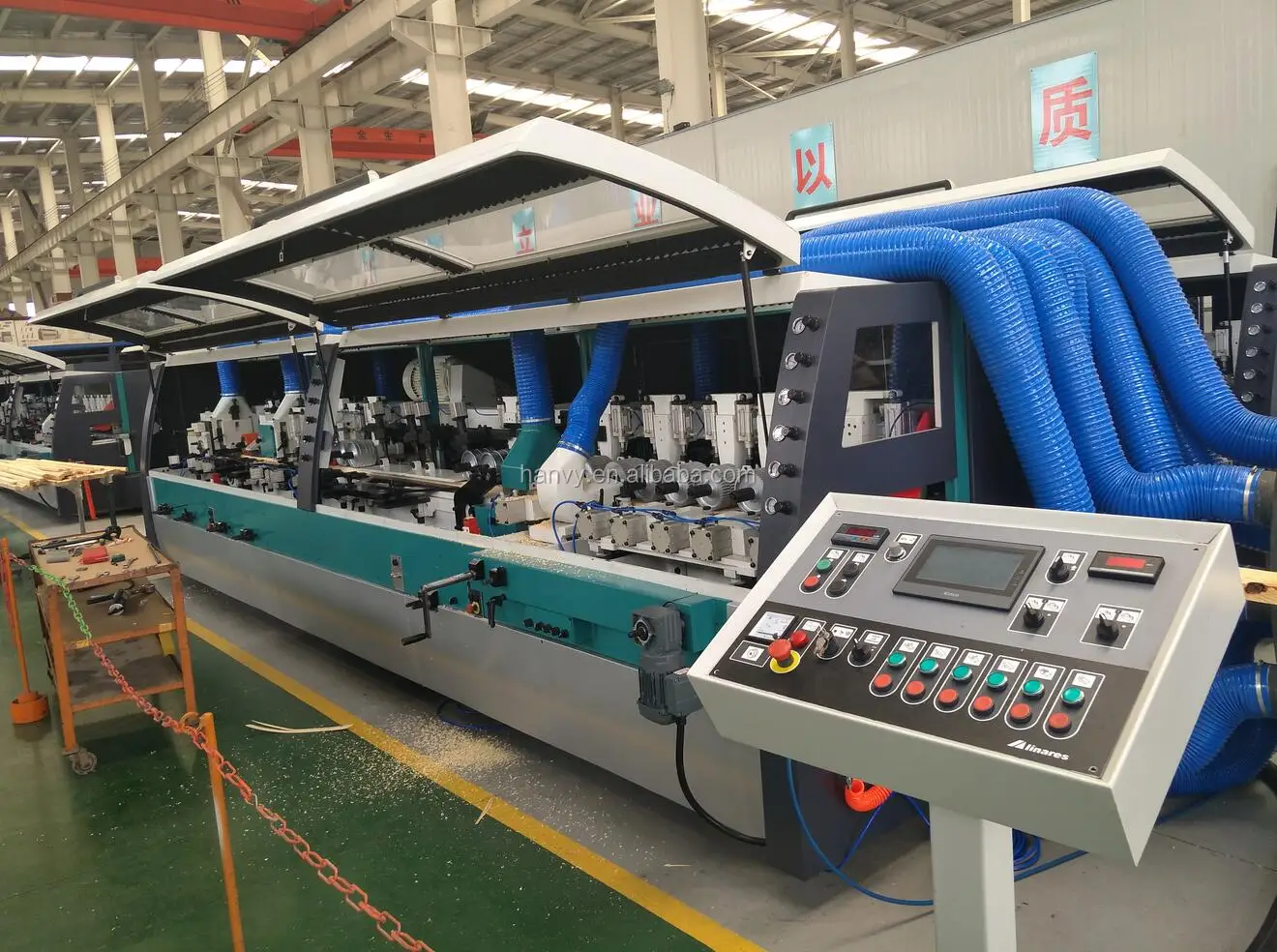

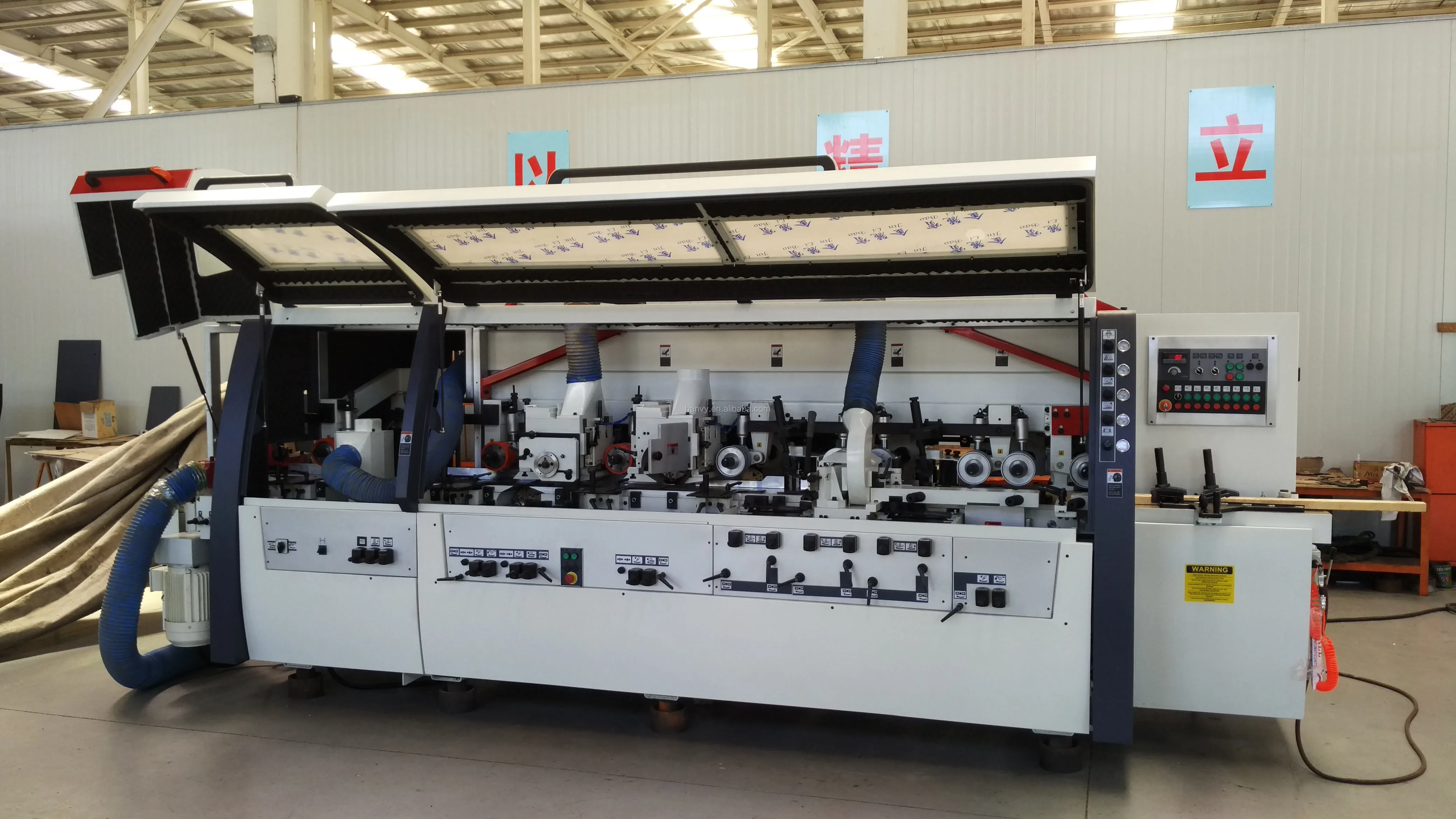

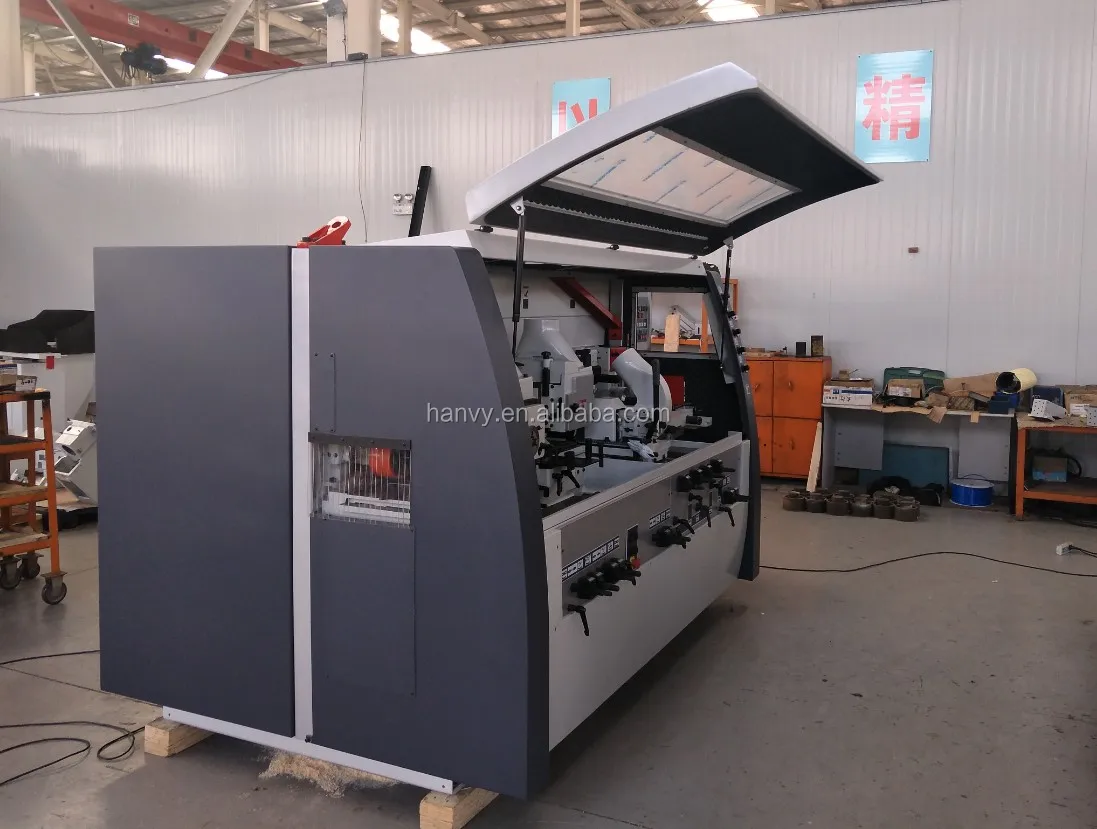

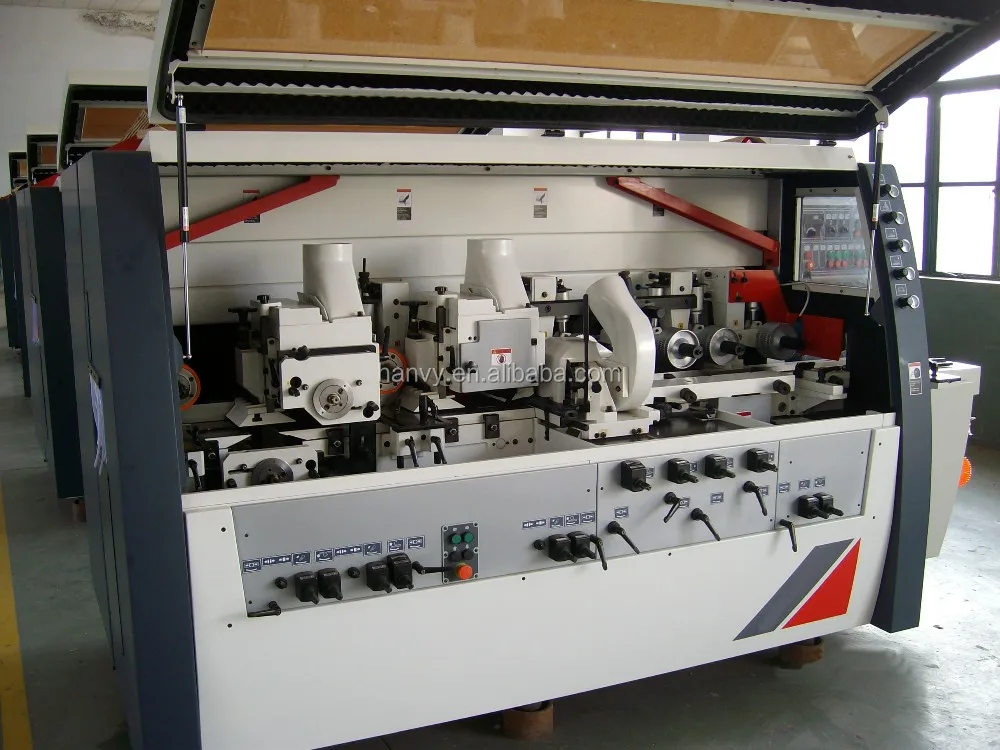

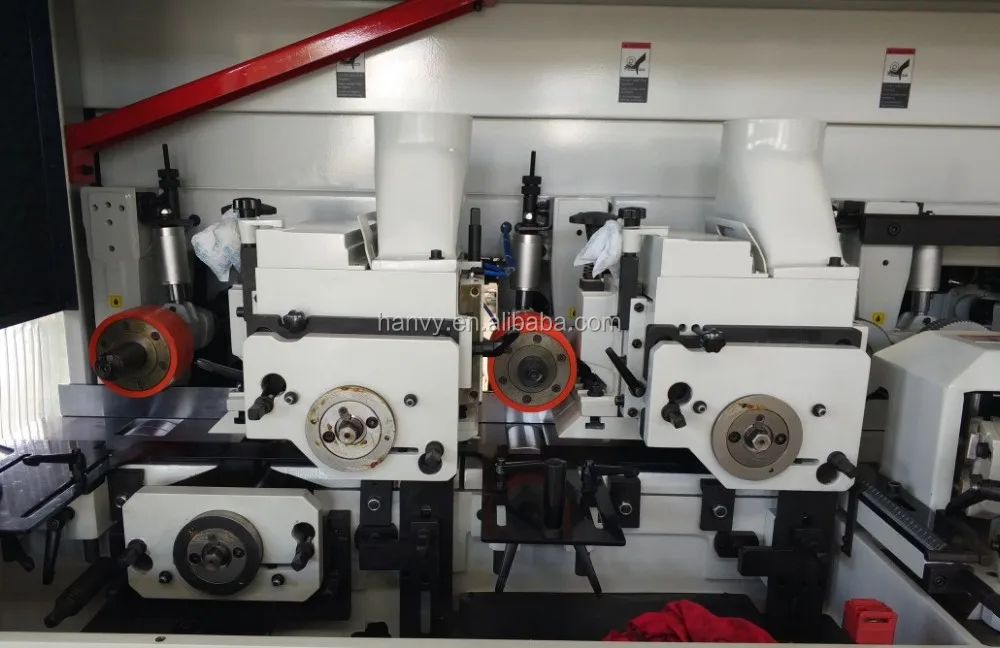

Product Application-Linares Dl-4006 High Speed 230 mm Four Side Moulder
Concept Dl-4006
* Higher speed moulder (up to 80 meters per minute)
* Cardan Transmission System
* Splitting saws module (optional)
* Individual pneumatic locking of the axial movement for the horizontal axes
* Cardan Transmission System
* Splitting saws module (optional)
* Individual pneumatic locking of the axial movement for the horizontal axes

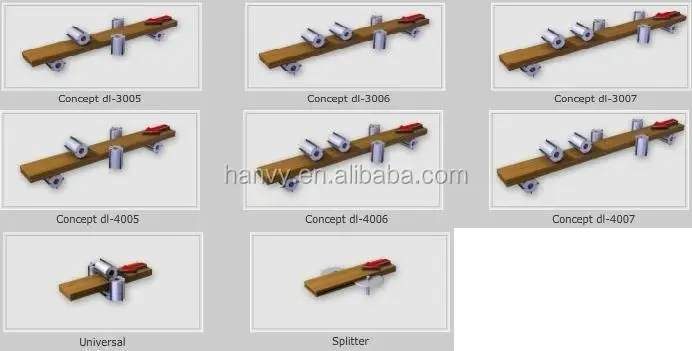

Four Side Spindle Planer Moulder Machine adopts advanced technology, it has strong power, fast transfer system with many couple of carrier rollers. precision planing can match with saw blade. According to production conditions it can be four, five, six, seven, eight, nine, ten spindles.
Max.working width | 230mm | Feeding table length | 1200mm |
Max.working height | 150mm | Weight | 4.2 tons |
Max.planing speed | 5-60m/min, 80m/min(option) | ||
Numbers of spindle | 6pcs |
Main Features-Linares Dl-4006 High Speed 230 mm Four Side Moulder
1) Heavy duty frame
2) Max.planing speed is 60m/min.80 m/min is option
3) Seven spindles makes sure perfect planing effect
4) Electric magnetic switch makes sure operating safety,the worker can not open the machine cover till machine stops working completely
5) Pressing roller could lift automatically
6) Planing cutter rack could tilt 20 degree max.
7) IF80 feeding machine and OF28 collecting machine could improve working efficiency.
Detailed Images
2T Spliter-DI-4006 four side moulder
Install one the last step of four side moulder, to split the wood.
SP-150H Multiple blade saw-DI-4006 four side moulder
Cut the wood into small pcs
DI-300 Profile Grinder- DI-4006 four side moulder
Grinding diameter is 100-300 mm
Nominal knife bevel angle adjustment is 35-65 degree
Relief grinding angle adjustment +-20 degree

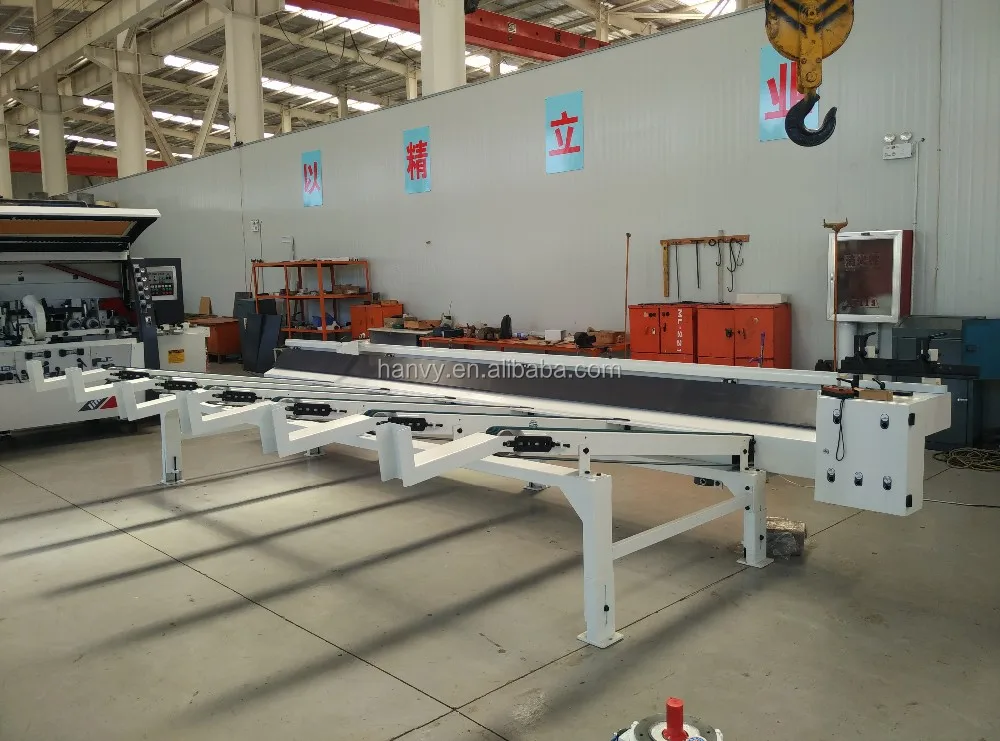

IF-80 Feeding Machine-DI-4006 four side moulder
Due to high speed of DI4007, So IF-80 automatic feeder is needed.

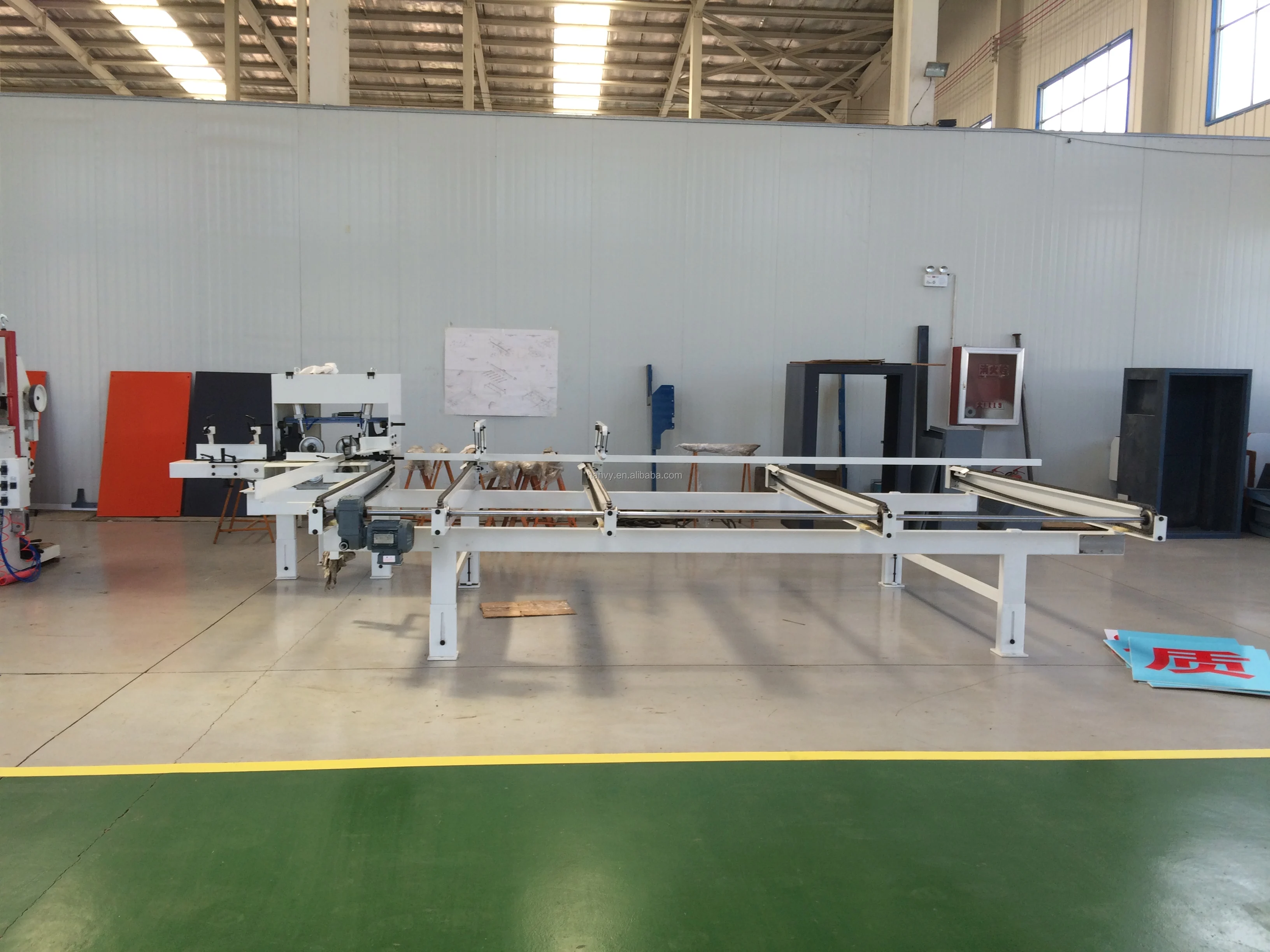

OF-28 receiving machine-DI-4006 four side moulder
Receive the finished-product automatically
Lamelmac pl 706
* Sawing system before the first horizonal axis allows to optimize and reduce the waste of wood to make the lamellas
* System of linear guides and vertical axis with automatic positioning.
* Control panel with touchscreen
* Last two axes hydro supported
* Sawing system before the first horizonal axis allows to optimize and reduce the waste of wood to make the lamellas
* System of linear guides and vertical axis with automatic positioning.
* Control panel with touchscreen
* Last two axes hydro supported
Certifications
Packing & Delivery
Packaging | ||
Size | 1*20ft container | |
Weight | 6ton | |
Packaging Details | Shrimk film,with better fixed block to make sure no damage during transportation. | |
Packaging | ||
Size | 1*20ft container | |
Weight | 6ton | |
Packaging Details | Shrimk film,with better fixed block to make sure no damage during transportation. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
