Top Quality Sanitary stainless steel T Clamp Butterfly Valve

Product Overview

Description

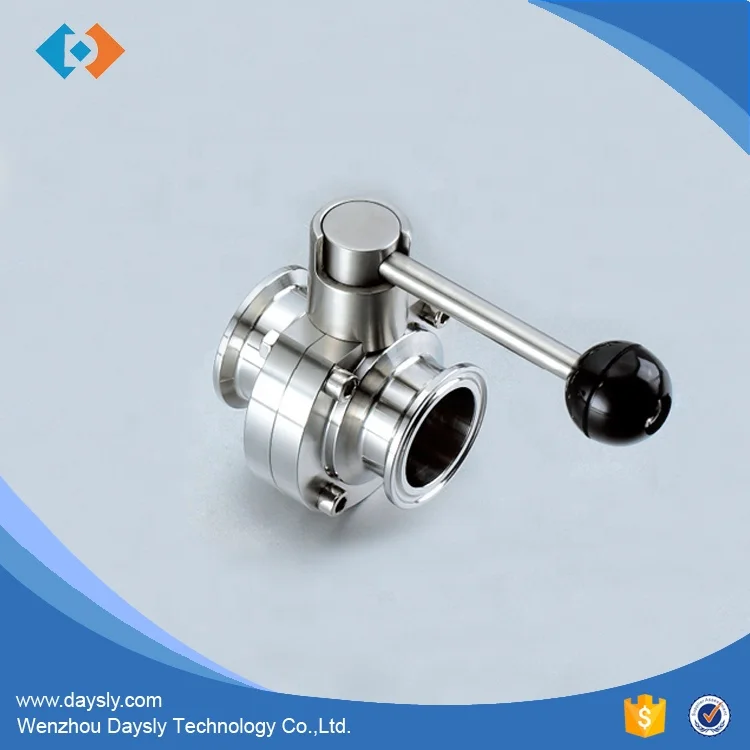

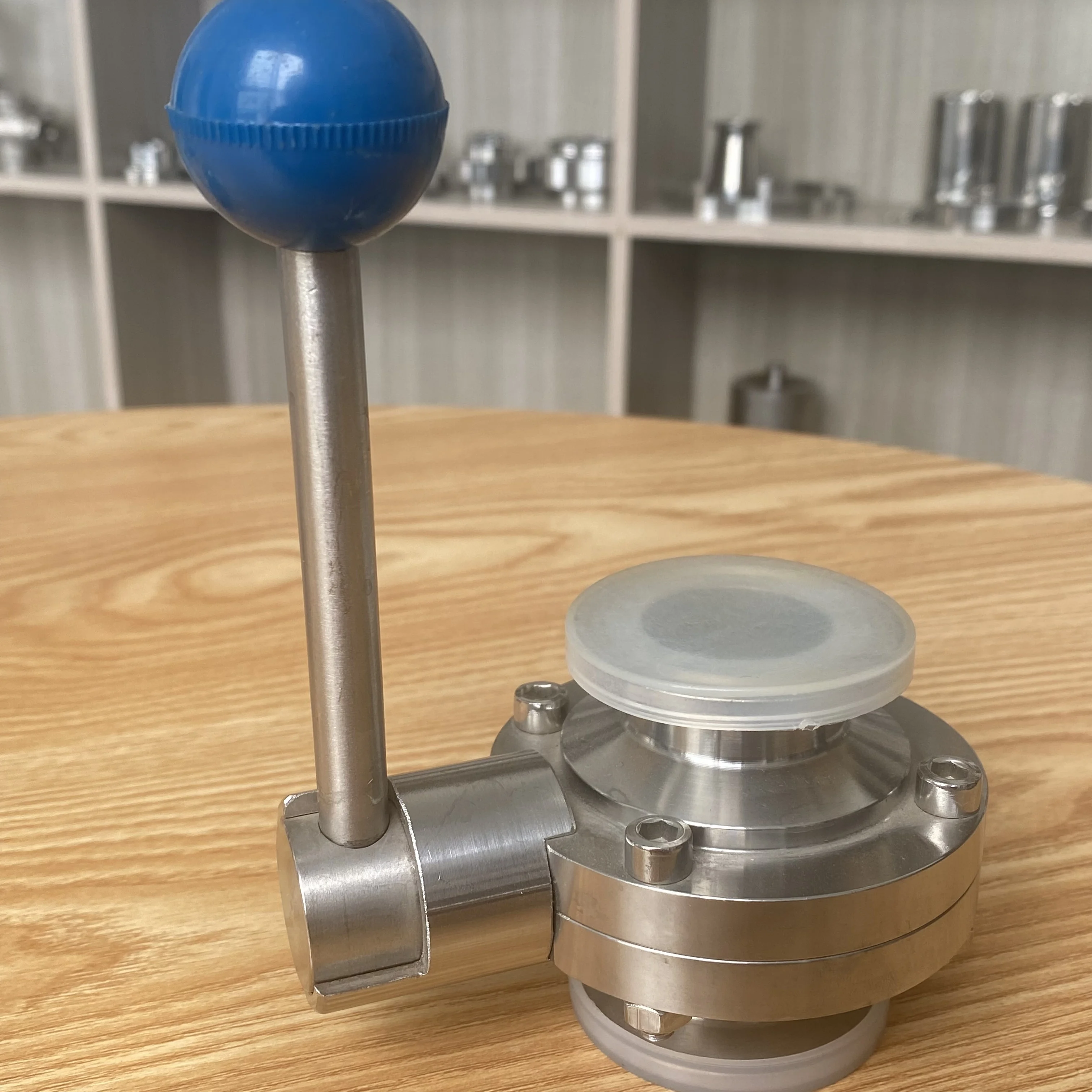

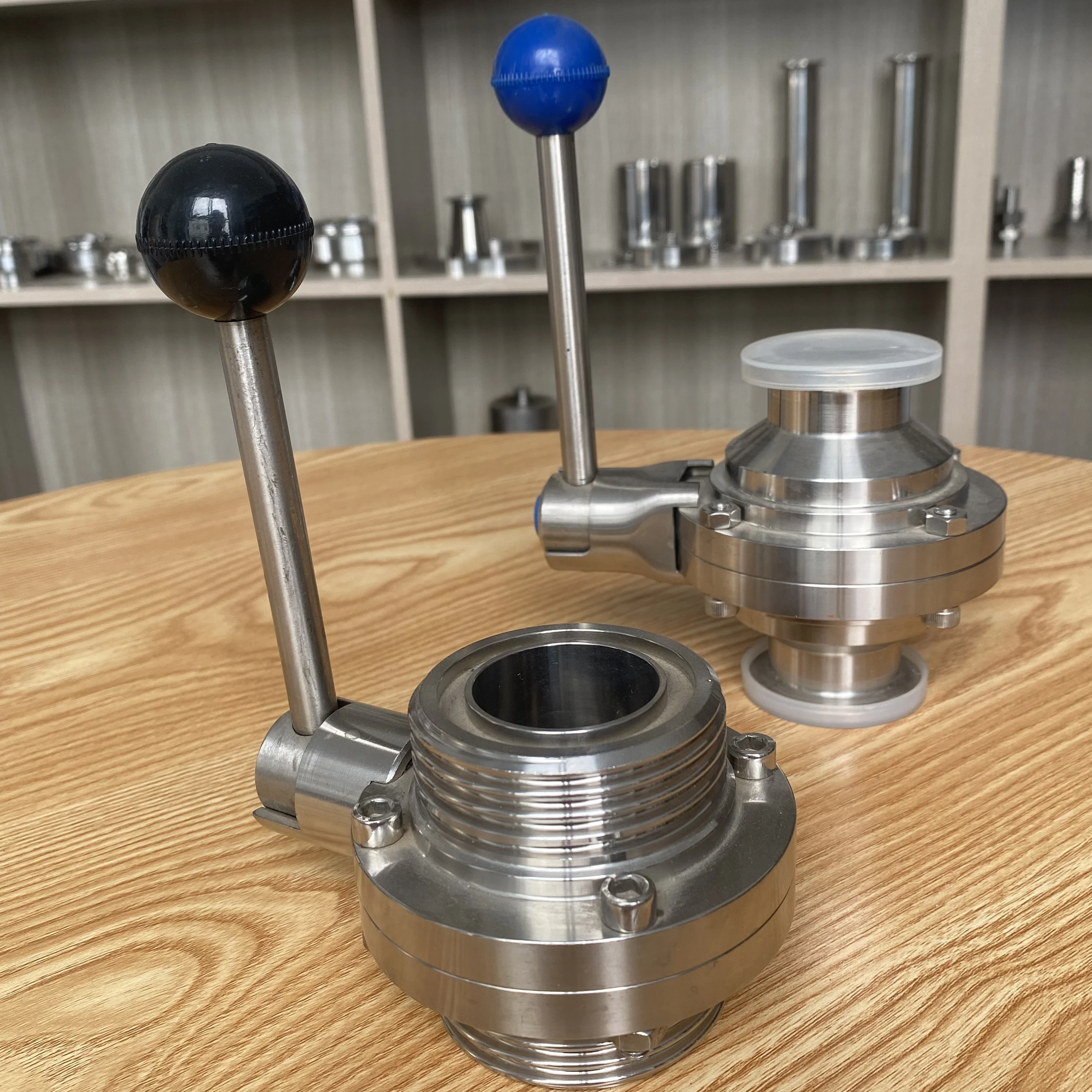

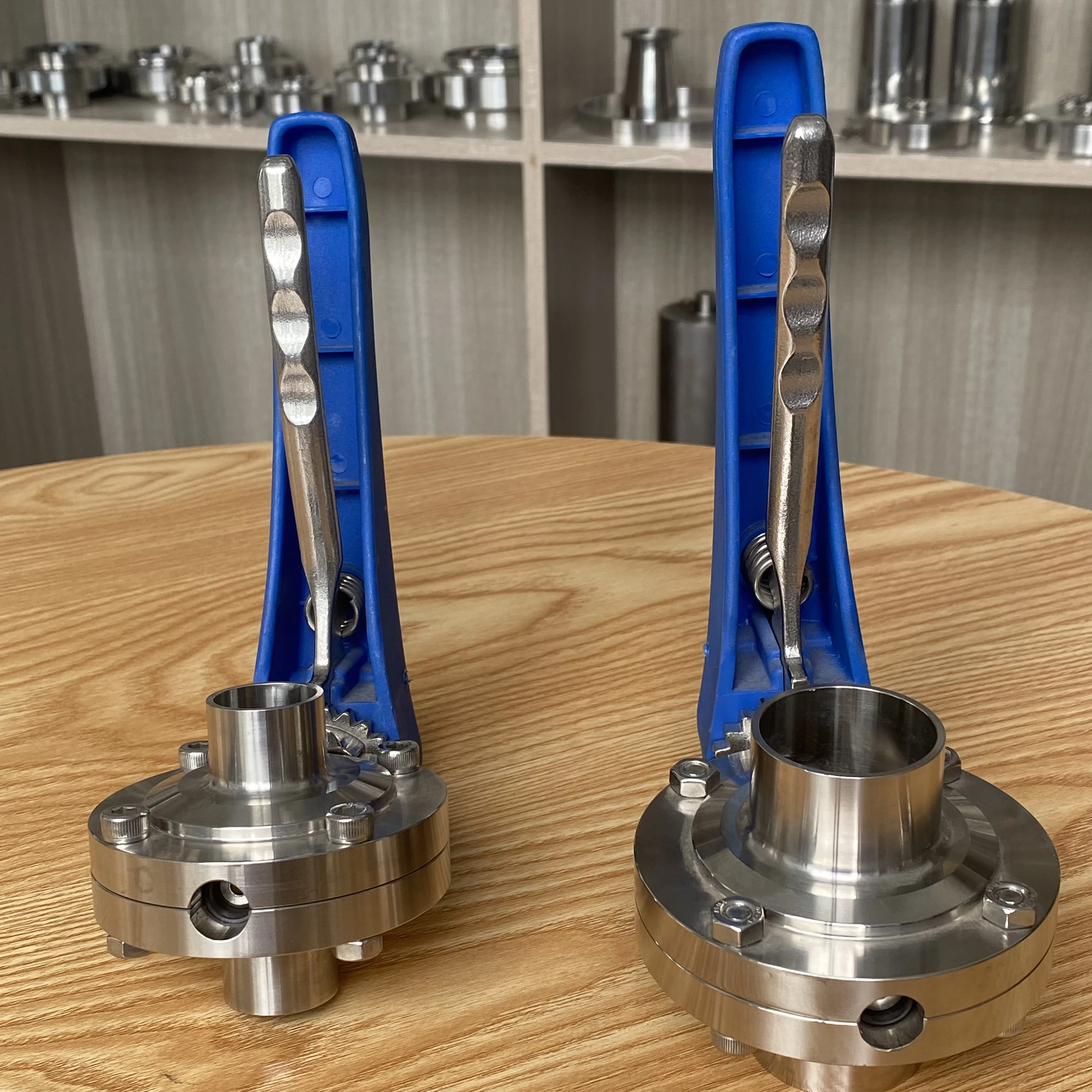

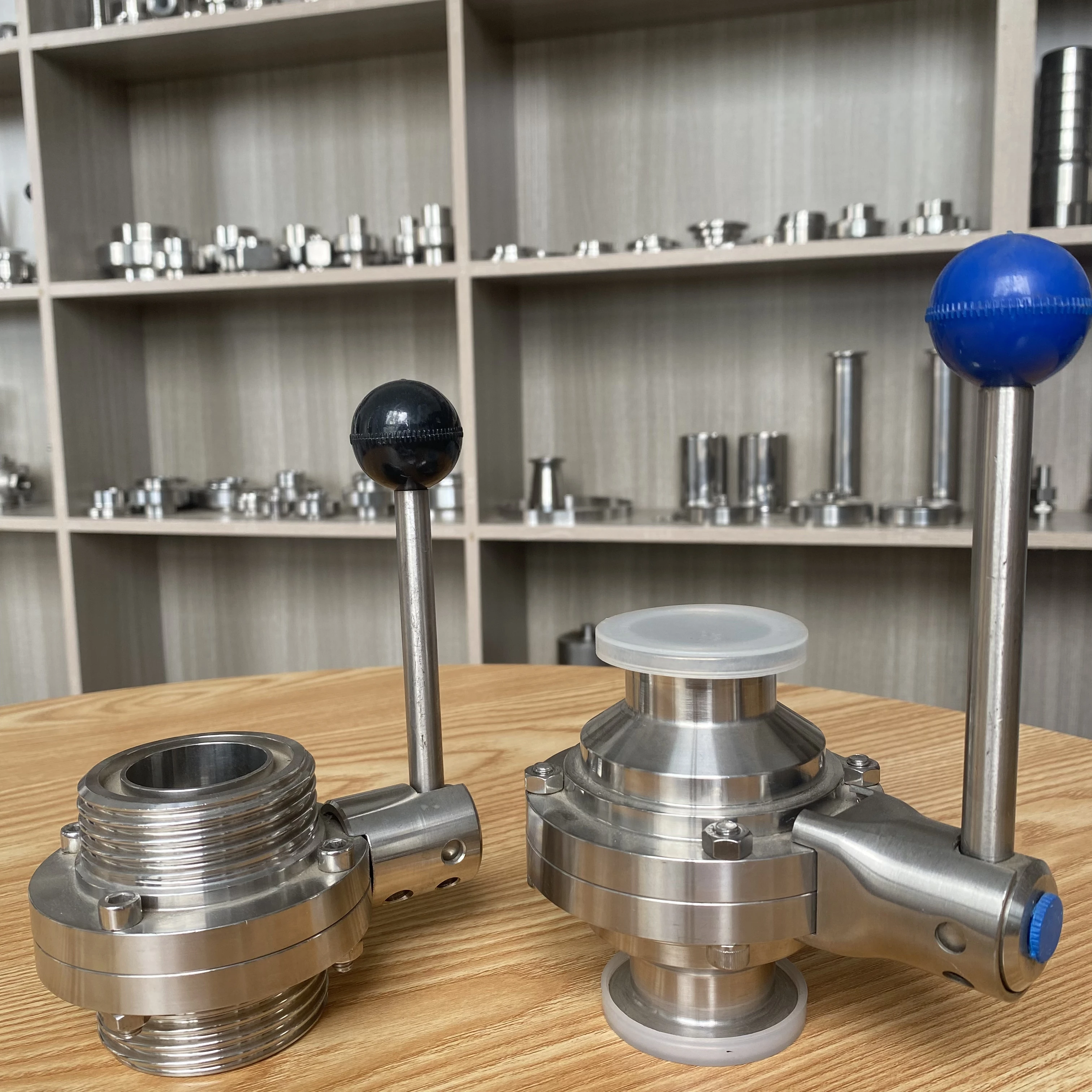

Top Quality Sanitary stainless steel T-Clamp Butterfly Valve



1. Options

Size: 1"-8", DN25-DN200
Standard: DIN, SMS, 3A, ISO, IDF, RJT
Gasket material: Silicon, EPDM, Viton , NBR, FPM, which all confirm to standard of FDA.
Connection: Weld, clamp, thread, single weld single thread, flange
Handle: 2-position handle, 3-position handle, 4-position handle pull rod handle, multi-position plastic handle and multi-position stainless steel handle.
Actuator: Pneumatic stainless steel actuator, pneumatic aluminium actuator, electric actuator.

2. Applications:
Sanitary butterfly valve is automatically or manually operated valve. It is well suited for various applications in stainless steel pipe systems. Which use for food, beverage, brewage, dairy, pharmacy and chemical industry area.



3. Operating Principle:
It can be either remote-controlled by an actuator or manually operate a handle.
The actuator has three standard types, namely normally closed (NC), normally open (NO) and air/air activated (A/A).
The actuator push piston of axial movement into 90 degree so that it controls butterfly valve.



4. Performance:
Disc is producing by the import CNC machine. It is connect with the sealer perfect so the sealing function is better. 2. Valve body and disc are made from precise forging. AISI304/316L
Diversiform operation (manual and pneumatic) and adjustable operation as different points.
All butterfly valves can be installed sighed-position indicator and switch.



5. Technical Data



Metal material	Product wetted	304/316L (forged)
	Non-product wetted	304
Disc& body	AISI 304/316L(precise forged), producing by the import CNC machine
Seal material	Standard	DIN, SMS, 3A, ISO, IDF, RJT
	Options	EPDM, VITON, FPM, NBR, Silicone
	Color	Blue, red, black, green, translucent (milk white)
	All seal materials comply with FDA
Handle	2-position handle, 3-position handle, 4-position handle pull rod handle, multi-position plastic handle and multi-position stainless steel handle.
Temperature	Continuous working temperature	-10°C ~ +135°C(EPDM)
	Sterilization temperature	150°C (Max 20min)
Pressure	Working pressure	0~10bar
	Control air pressure	5~8bar
Surface treatment	Internal surface	R≤0.8µm
	External surface	R≤1.6µm
Connection	Connection standards	Welding end: DIN 11850 series 2
	standards	Welding end: Inch pipe diameter standard
	Connection methods: welding, thread, clamp, flange
Options	Smart controller	24V DC
		Solenoid valve (1 or 2)
	Position sensor	24V DC
		NPN/PNP position sensor (2)

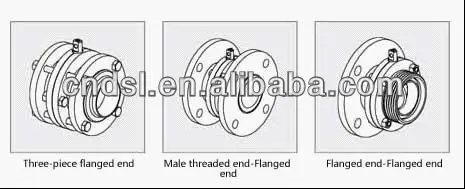

Body Configurations
