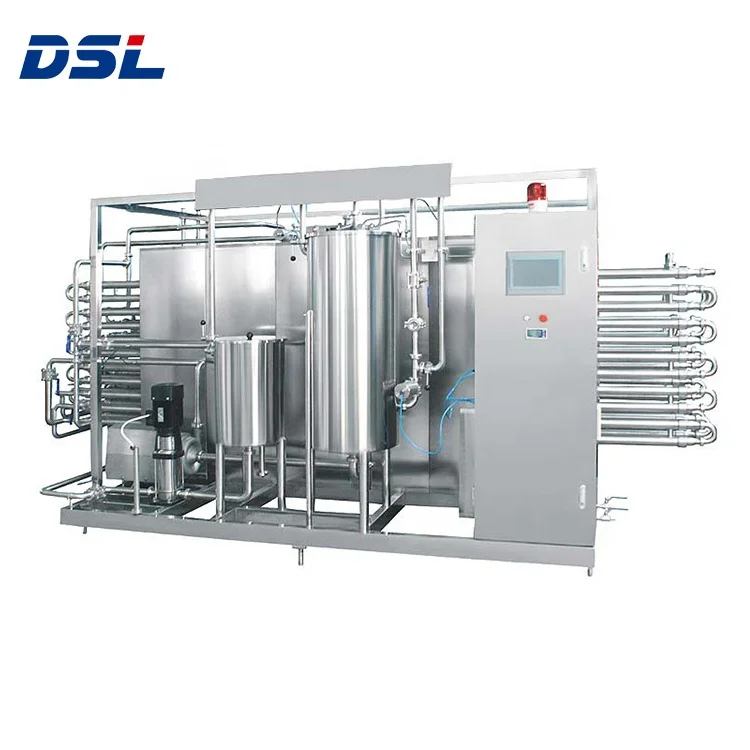

Continuous Juice UHT sterilizer for fruit
- Category: >>>
- Supplier: Wenzhou Daysly Technology Co. Ltd.
Share on (60633392656):
Product Overview
Description
Product Description
Specification
UHT Tubular sterilizer
Application:
As people's demand for substances increases, the use of UHT sterilizers is becoming more and more widespread.
Milk, yogurt, beverages, soy milk, soy milk, cereal drinks, condiments, coffee, thin cream, egg liquor, ice cream, etc.
Working Principle
The product is pumped from the balance tank, preheated to homogenization temperature of 65℃, then preheated to 90~120℃ for milk protein stabilization, then ultra-high temperature sterilization of 140℃, holding for 4 seconds, and finally cooled to filling temperature of 25℃. The system is pre-pasteurized with hot water is in the circulation loop to save energy. The diameter of the tube, the shape (flat or corrugated) and the choice of bundle are determined by the needs of the product.
Features:
1.All materials are sanitary stainless steels
2.Humanized structure design.
3.PLC control with simple and correct operation;touch screen display, which is direct
4.High degree of automation for precise and stable control
5. reliable materials with high pressure withstanding capacity;low maintenance cost.
As people's demand for substances increases, the use of UHT sterilizers is becoming more and more widespread.
Milk, yogurt, beverages, soy milk, soy milk, cereal drinks, condiments, coffee, thin cream, egg liquor, ice cream, etc.
Working Principle
The product is pumped from the balance tank, preheated to homogenization temperature of 65℃, then preheated to 90~120℃ for milk protein stabilization, then ultra-high temperature sterilization of 140℃, holding for 4 seconds, and finally cooled to filling temperature of 25℃. The system is pre-pasteurized with hot water is in the circulation loop to save energy. The diameter of the tube, the shape (flat or corrugated) and the choice of bundle are determined by the needs of the product.
Features:
1.All materials are sanitary stainless steels
2.Humanized structure design.
3.PLC control with simple and correct operation;touch screen display, which is direct
4.High degree of automation for precise and stable control
5. reliable materials with high pressure withstanding capacity;low maintenance cost.
The tube type ultra-high temperature (UHT) sterilizer is the ideal equipment for ultra-high temperature liquid processing, which applies tube heat exchanger to indirect heating of products, and its technical performance is comparable to imported advanced equipment of the same kind. It is suitable for instantaneous ultra-high temperature sterilization and pasteurization of liquid materials such as milk, juice and beverages, and can also be used for liquids with large viscosity and containing fibers and granules. Materials through the processing of this equipment, can achieve the purpose of sterilization and cooling, and can well maintain the original nutrients and color and flavor of dairy products, beverages. Equipped with aseptic canning equipment can make the product shelf life of up to 1 year or more.
It can be customized to satisfy individualized requirements of different customers.
It can be customized to satisfy individualized requirements of different customers.
\t\t\t\t\t\t\t\t\tOur company \t\t\t\t\t\t\t
WENZHOU DAYSLY TECHNOLOGY CO.,LTD is located in Binhai, a science and technology park of WENZHOU, CHINA. The company was set up in 1996 to fulfill the needs of the local and oversea Food, Beverage, Pharmaceutical and Chemical industries. In line with the principle on “quality first,credit first, customer supreme”, developing and innovating our product. Our mission is to engage in powerful professional foreign trade ,to continually acquire international clients,and to provide services and solutions that meet or exceed international standards.
Packing & Delivery
Packaging | ||
Size | (L) * (W) * (H) | |
Weight | According to capacity | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
