50L 10000L stainless steel 304 beer pubs/wine brew tank/alcohol conical fermenter
50L-10000L stainless steel 304 beer pubs/wine brew tank/alcohol conical fermenter
50L-10000L stainless steel 304 beer pubs/wine brew tank/alcohol conical fermenter
50L-10000L stainless steel 304 beer pubs/wine brew tank/alcohol conical fermenter

50L 10000L stainless steel 304 beer pubs/wine brew tank/alcohol conical fermenter

Share on (60633394211):


Price:

Quantity:


Product Overview

Description


Overview:



Fermenter tank is used for beer fermenting and brewing. it is widely used in world brewing industry.

The whole set equipment is made of international stainless steel. The cooling jacket adopts the form of honeycomb jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different properties can be allocated according to customers’ technological requirements. Small 60 deg conical bottom which is designed for fermenting and improving beer, as well as breeding yeast. PU heat preservation is adopted, and the external coating is made of fully welded stainless steel sheet. Manhole, CIP cleaning, temperature connection and sampling vent etc. Accessories are available.

 Technical Parameters:

  1. working capacity:25bbl
  2. packing size(L*W*H): 1160mm*1360mm*2410mm
  3. Net weight:310kgs, Gross weight:315kgs
  4. All international standard 304 stainless steel.
  5. Fully welded exterior.
  6. Dual zones for cooling
  7. Double walls, jacketed & insulation.
  8. Choice of side or top manway.
  9. Four legs support, adjustable feet.
  10. 60 degree cone
  11. 25% free headroom
  12. 15 PSI operating pressure
  13. Rotating racking arm
  14. CIP & spray ball
  15. Pressure/vacuum relief valve, thermowell
  16. All clamps, valves and fittings

    17.Including 2pc of SS 304 butterfly valves

Detailed Images

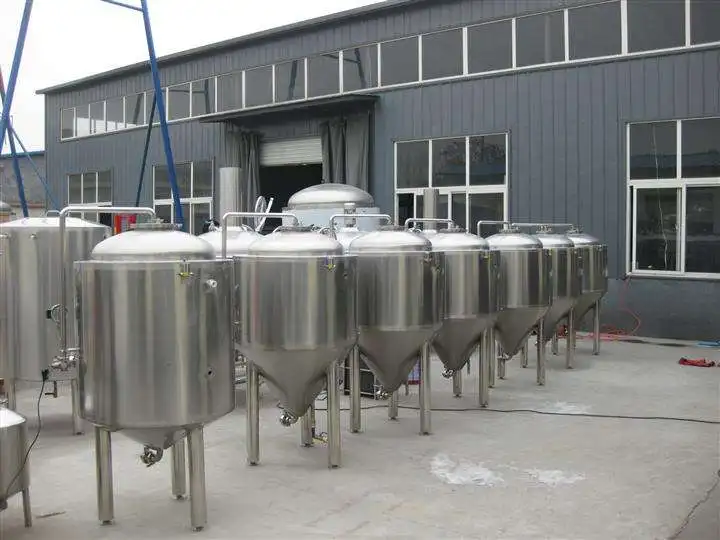

 timg (1).jpg.png





Packaging & Shipping

 Packing details:

Standard export package for FCL, and strong plywood case for ocean transport for LCL

Shipping mode:

By sea,by air or other ways according to your requirements.




Company Information




Our Services

 N%ZPRNJI%2CO(]Z[G)YR`NV



FAQ



1.Reasons for choosing DAYLSY:

Wenzhou DAYSLY Technology Co.,Ltd is a high-tech science and technology enterprise which specializes in the manufacture and sale of various sorts of pressure vessels and non-standard equipment ,such as stainless steel tanks, concentration, alcohol recovery equipment, online CIP cleaning equipment, stainless steel pipe, sheet, valves fitting and so on.

2. About Price:

The price is negotiable. It can be changed according to your quantity or package.

When you are making an inquiry, please let us know the quantity you want.

3. About MOQ:

We accept 1 piece as the minimum order quantity.

4. About OEM:

Yes, OEM service is available and very welcome to place the order with your drawings.

5. About warranty:

We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But any quality issue, we will deal with it immediately.

6.About minimizing damages during delivery:

1.Standard: mass orders will be shipped by container.

2.Available requirement:bubble packing for each part of product,total packed in strong wooden case.

7.About the sample service:

1.We can send you the video of the running machine.

2.You are welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
