High Pressure Processing Types Milk Homogenizer

Product Overview

Description

Feature:

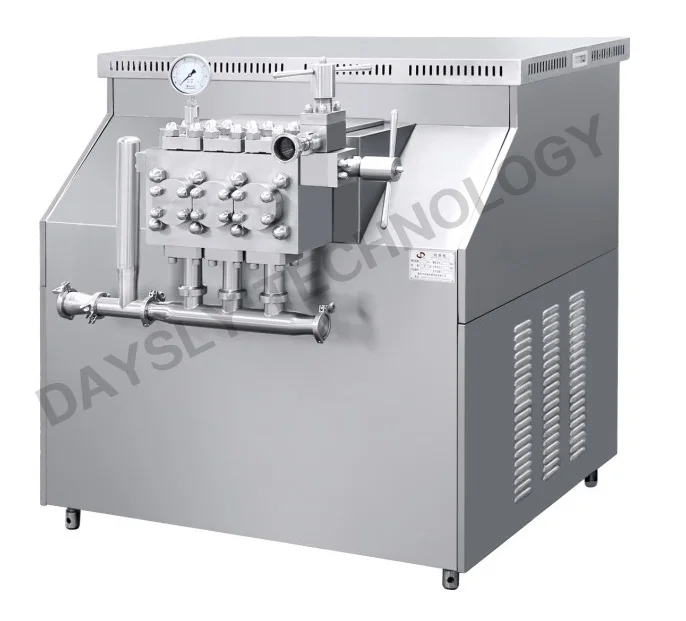

1, GJB high pressure homogenizer pump series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.

2, The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; make the product much more nicety, to prove the quality of the product.

3, The high pressure homogenizer pumps also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc.)

4, Do not use the product to handling the suspending liquid or the high viscosity liquid.(viscosity less than 0.2 Pa.S)



Technical parameter:



Model No.	0.3/25	0.5/25	0.8/28	1.0/25	1.5/25	2.0/25	2.5/25	4.0/25	5.0/25	0.3/40
Rated pressure (Mpa)	25									40
Rated flow (m3/h)	0.3	0.5	0.8	1	1.5	2	2.5	4	5	0.3
Pumped medium	Liquid milk syrup soy milk oil etc
Medium temperature	≤85
Feeding pipe diameter (mm)	25					40	50			25
Discharge pipe diameter (mm)	15						25			15
Feeding requirement	ZG1/2''(15)						ZG3/4''(20)			ZG1/2''(15)
Power of motor (KW)	2.2	4	5.5	7.5	11	15	22	37	45	5.5
Outline dimension (L*W*H)	920X 500X950	1020X 580X1000	1050X 680X1110	1050X 680X1110	1200X 720X1110	1250X 830X1270	1300 X1060X1350	1400X 1260X1600	1400X 1260X1600	1050X 680X1110







After Sales Service

The above machine which we supply it to you, we can give you one years after sales warranty, we can also send our engineer to you factory to install this equipment and train your staff, but the Buyer should pay the round air ticket cost and arrange the hotel accommodation as well as the means for Seller’s engineer. We will send some free set of spare parts for you change it.
