Meanwell 200W 16.7A RSD-200D-12 Railway 100V DC To 12V DC Converter
Product Description
Features:
- Meanwell 100V DC To 12V DC Converter
- Complaince to EN50155 and EN45545-2 railway standard
- 2:1 wide input range
- Protections: Short circuit / Overload / Over voltage / Over temperature / Input reverse polarity
- 4000VDC I/O isolation
- Cooling by free air convection
- Half encapsulated
- Built-in constant current limiting circuit
- 1U low profile 40mm
- All using 105°C long life electrolytic capacitors
- LED indicator for power on
- 100% full load burn-in test
- 3 years warranty
Model Series:
RSD-200B-5 / RSD-200B-12 / RSD-200B-24
RSD-200C-5 / RSD-200C-12 / RSD-200C-24
RSD-200D-5 / RSD-200D-12 / RSD-200D-24
Details:
| MODEL | RSD-200B-12 | RSD-200B-24 | RSD-200B-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 16.7A | 8.4A | 4.2A | |
| CURRENT RANGE | 0 ~16.7A | 0 ~ 8.4A | 0 ~ 4.2A | |
| RATED POWER | 200.4W | 201.6W | 201.6W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 180mVp-p | |
| VOLTAGE TOLERANCE | ±2.0 % | ±2.0 % | ±2.0 % | |
| LINE REGULATION | ±0.3% | ±0.2 % | ±0.5 % | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | |||
| HOLD UP TIME (Typ.) | B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load | |||
| INPUT | VOLTAGE RANGE CONTINUOUS | 16.8 ~ 31.2VDC | ||
| VOLTAGE RANGE 1 SEC. | 14.4 ~ 33.6VDC | |||
| EFFICIENCY (Typ.) | 89% | 89% | 89% | |
| DC CURRENT(Typ.) | 9.6A/24V | |||
| INRUSH CURRENT (Typ.) | 45A/24VDC | |||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.8 ~ 16.2V | 27.6 ~ 32.4V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 90°C ±5°C (TSW1) detect on main power transformer | |||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +55°C (no derating) ; +70 at 60% load by free air convection ; +70°C no derating with external base plate, TX class compliance | ||
| WORKING HUMIDITY | 5 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 5 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373 | |||
| SAFETY & EMC | SAFETY STANDARDS | Meet IEC60950-1(LVD) | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A | |||
| RAILWAY STANDARD | Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC | |||
| OTHERS | MTBF | 218.2K hrs min. MIL-HDBK-217F (25°C ) | ||
| DIMENSION | 191*86*40mm (L*W*H) | |||
| PACKING | 0.94Kg; 12pcs/12.3Kg/0.8CUFT | |||
| MODEL | RSD-200C-12 | RSD-200C-24 | RSD-200C-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 16.7A | 8.4A | 4.2A | |
| CURRENT RANGE | 0 ~16.7A | 0 ~ 8.4A | 0 ~ 4.2A | |
| RATED POWER | 200.4W | 201.6W | 201.6W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 180mVp-p | |
| VOLTAGE TOLERANCE | ±2.0 % | ±2.0 % | ±2.0 % | |
| LINE REGULATION | ±0.3% | ±0.2 % | ±0.5 % | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | |||
| HOLD UP TIME (Typ.) | B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load | |||
| INPUT | VOLTAGE RANGE CONTINUOUS | 33.6 ~ 62.4VDC | ||
| VOLTAGE RANGE 1 SEC. | 28.8 ~ 67.2VDC | |||
| EFFICIENCY (Typ.) | 91% | 91% | 91% | |
| DC CURRENT(Typ.) | 4.8A/48V | |||
| INRUSH CURRENT (Typ.) | 45A/48VDC | |||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.8 ~ 16.2V | 27.6 ~ 32.4V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 90°C ±5°C (TSW1) detect on main power transformer | |||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +55°C (no derating) ; +70 at 60% load by free air convection ; +70°C no derating with external base plate, TX class compliance | ||
| WORKING HUMIDITY | 5 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 5 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373 | |||
| SAFETY & EMC | SAFETY STANDARDS | Meet IEC60950-1(LVD) | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A | |||
| RAILWAY STANDARD | Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC | |||
| OTHERS | MTBF | 218.2K hrs min. MIL-HDBK-217F (25°C ) | ||
| DIMENSION | 191*86*40mm (L*W*H) | |||
| PACKING | 0.94Kg; 12pcs/12.3Kg/0.8CUFT | |||
| MODEL | RSD-200D-12 | RSD-200D-24 | RSD-200D-48 | |
| OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 16.7A | 8.4A | 4.2A | |
| CURRENT RANGE | 0 ~16.7A | 0 ~ 8.4A | 0 ~ 4.2A | |
| RATED POWER | 200.4W | 201.6W | 201.6W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 180mVp-p | |
| VOLTAGE TOLERANCE | ±2.0 % | ±2.0 % | ±2.0 % | |
| LINE REGULATION | ±0.3% | ±0.2 % | ±0.5 % | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 800ms, 50ms at full load | |||
| HOLD UP TIME (Typ.) | B/C- type comply with S1 level @ full load, comply with S2 level @ 70% load ; D-type comply with S2 level @ full load | |||
| INPUT | VOLTAGE RANGE CONTINUOUS | 67.2 ~ 143VDC | ||
| VOLTAGE RANGE 1 SEC. | 57.6 ~ 154VDC | |||
| EFFICIENCY (Typ.) | 91% | 91% | 91% | |
| DC CURRENT(Typ.) | 2.1A/110V | |||
| INRUSH CURRENT (Typ.) | 45A/110VDC | |||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 13.8 ~ 16.2V | 27.6 ~ 32.4V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | 90°C ±5°C (TSW1) detect on main power transformer | |||
| Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +55°C (no derating) ; +70 at 60% load by free air convection ; +70°C no derating with external base plate, TX class compliance | ||
| WORKING HUMIDITY | 5 ~ 95% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85°C , 5 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | |||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes ; Mounting : compliance to IEC61373 | |||
| SAFETY & EMC | SAFETY STANDARDS | Meet IEC60950-1(LVD) | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |||
| EMC EMISSION | Compliance to EN55022 (CISPR22) Conduction Emission: Class A, Radiation Emission: Class B | |||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A | |||
| RAILWAY STANDARD | Meet EN50155 / IEC60571 including IEC61373 for shock & vibration, EN50121-3-2 for EMC | |||
| OTHERS | MTBF | 218.2K hrs min. MIL-HDBK-217F (25°C ) | ||
| DIMENSION | 191*86*40mm (L*W*H) | |||
| PACKING | 0.94Kg; 12pcs/12.3Kg/0.8CUFT | |||

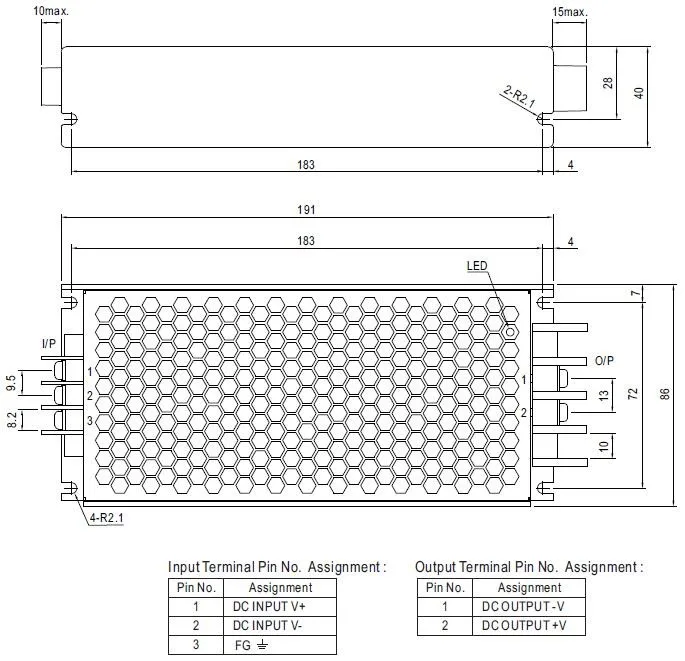

Mechanical Specification
