Product Overview

Description

New Version 8-channel UHF RFID Reader Fixed Battery Powered RFID Reader For Retail Management



Specification of products

Dimension	198mm(L) * 198mm(W) * 28mm(H)
Weight	1.4 kg
Body material	Aluminium Alloy
Operating Voltage	12V – 18V
Standby Mode Current	<70mA (EN high level)
Sleep Mode Current	<100uA (EN low level)
Operating Current	600mA  +/-5% @ DC 12V Input
Operating Temperature	- 20 °C  -  + 55  °C
Storage Temperature	- 20 °C  -  + 85  °C
Humidity	< 95% ( + 25 °C)
RF Channel	Eight channel
RF Connector	MMCX
Interface Connector	Molex 53261-1571
RF Connector Material	Gold-plated brass
PCB Material	Pogers FR4 gold-plated
Shield Material	Aluminum
Air Interface Protocol	EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ISO 18000-6B
Spectrum Range	860Mhz – 960Mhz
Supported Regions	US, Canada and other regions following U.S. FCC Europe and other regions following ETSI EN 302 208 with & without LBT regulations Mainland China, Japan, Korea, Malaysia
Supported Regions	0 – 33dBm
Output Power Precision	+/- 1dB
Output Power Flatness	+/- 0.2dB
Receive Sensitivity	< -85 dBm
Peak Inventory Speed	> 700 tags/sec
Tag Buffer Size	1000 tags @ 96 bits EPC
Tag RSSI	Supported
Antenna Detector	Supported
Ambient Temp Monitor	Supported
Working Mode	Single/DRM
Host Communication	TTL Uart port
GPIO	2 inputs optical coupling   2 outputs optical coupling
Max Baud Rate	115200 bps
Heat Dissipation	External cooling fin

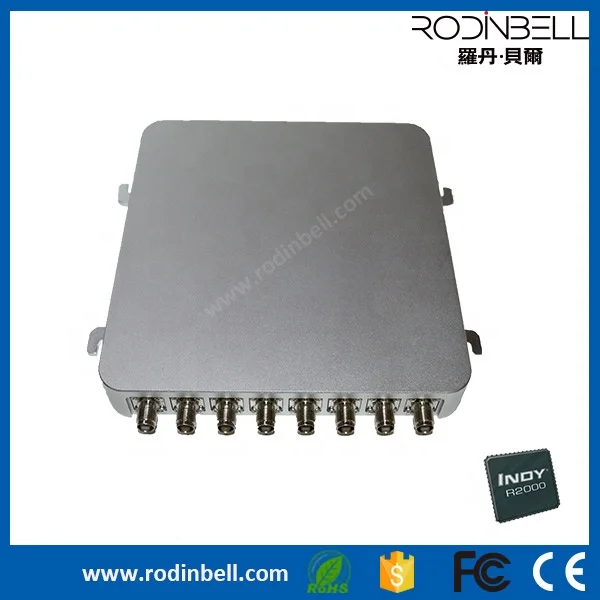

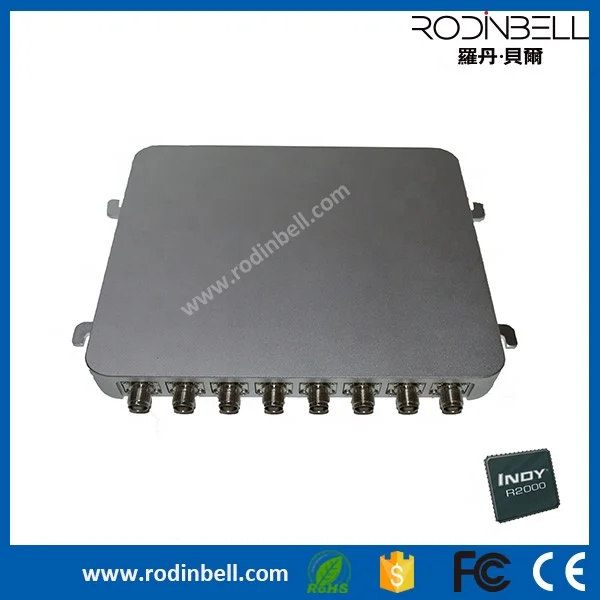

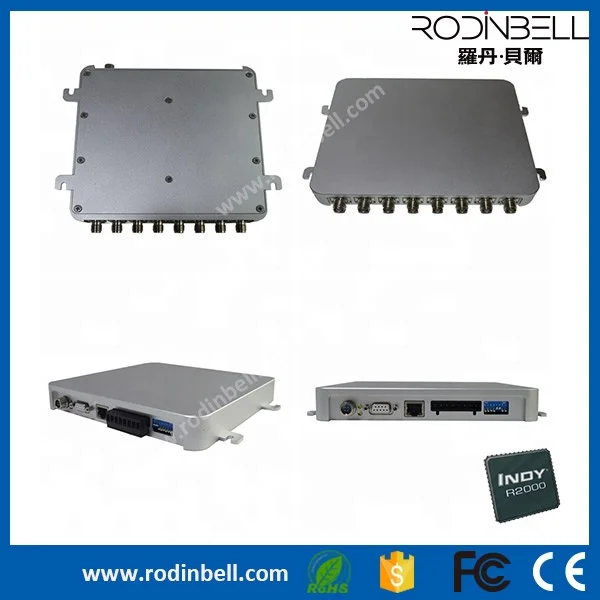

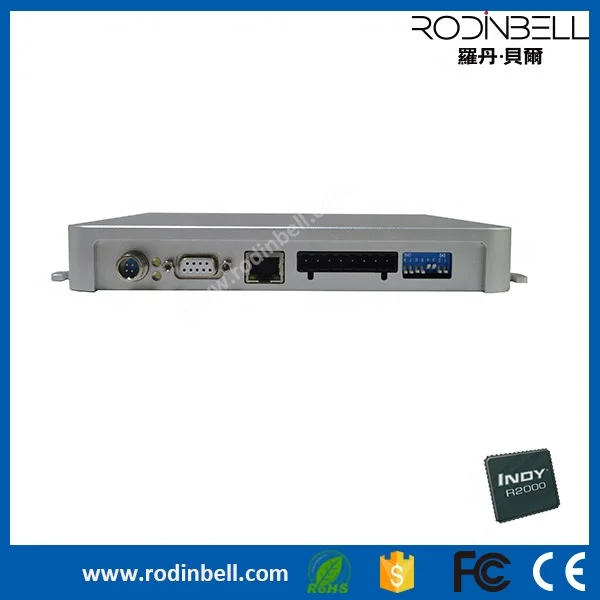

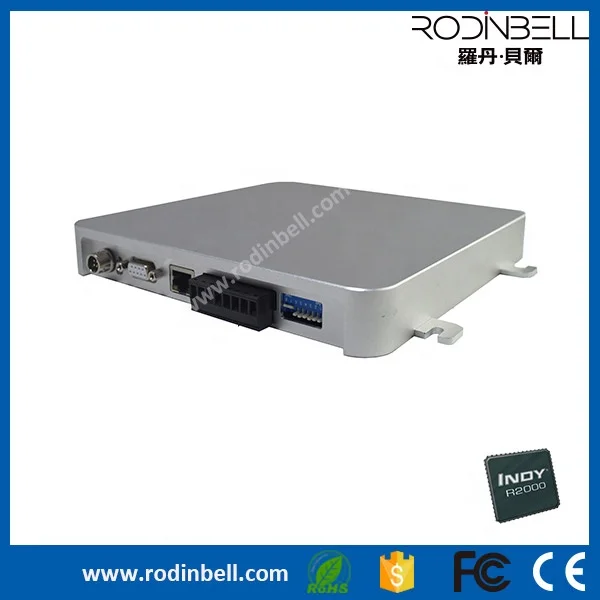

Detail pictures of products









Working condition



Application

RodinBell products have been widely used in logistics, retail, transportation, education, finance, security and entertainment industry, etc

Packing & Shipping



Packed with PP bag and Paper box

Shipped with DHL, FEDEX, UPS, TNT and other methods





Company Information



Founded in 2010, Shenzhen RodinBell Technology Co., Ltd. is one of the leading companies that offers products and solutions confining industrial and commercial intelligent equipment.

With the importance we attached to the integrity of research, development and innovation, and to the respect for independent intellectual property rights, RodinBell R&D team is made up of engineers and designers including those who had worked in microwave communications, embedded operating systems, application development and industrial design for more than 20 years.

Our service:



SDK/API file willed be provided for you with the products
