Flier Boat electric engine esc 200A 16s for rc boat

Product Overview

Description

 RC speed brushless controller esc for Boat 200A marine controller













Features



 Design for boat, brand new and more efficient water cooling structure.



l   The firmware is upgraded recently .



l Battery voltage from 12V to 65V for super high voltage version.



l Two way communication while connecting it with computer.



l Firmware can be upgraded by user



l     Motor cable can be inspected while Connecting the power battery.

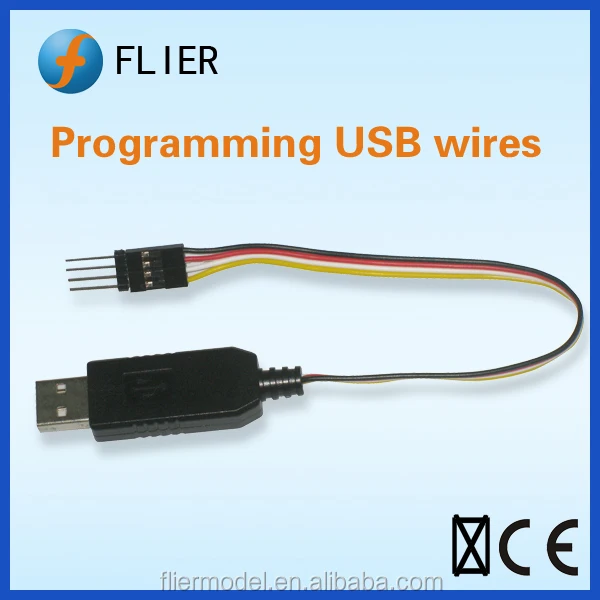

l     Simply set function value by Prog-Box or by PC via USB link wire.



l     Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.



l     Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-mH 0.4-1.0V,LiFe from2.2-2.8V



l     Reverse function. the delay time of reverse is adjustable.



l     The power of the motor forward/ reverse can be set.



l     Automatically detection the throttle route or can be set a fixed number by manual operation.



l     Auto cut off the power within 3 seconds if no radio signs.



l     Timing setting may be adjusted (0°-30°) to suit the motor type.





Setting function value:



1. Reverse: On/Off.



2. Timing:0°,1°,2°,3°,4°……30°.



3. Frequency: 8KHz, 16 KHz, 32 KHz.



4. Acceleration:  Soft / Medium / Hard.



5. Accumulator type:NiCd/NiMh,Li-Ion/Li-Pol,LiFe.



6. NiCd/NiMH CUTOFF:×0.05,0.4V,0.5V,0.6V,0.7V,0.8V,0.9V,1.0V.×0.05 means the cut off voltage is 5% the voltage while connecting.



7. Number of cells:Auto,2S,3S,4S,5S,6S,7S,8S,9S,10S,11S,12S,16S.



8. LiIo/Pol  CUTOFF:2.0V,2.1V,2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V,2.9V,3.0V,3.1V,3.2V,3.3V,3.4V,3.5V,3.6V.



9. LiFe cutoff:2.2V,2.3V,2.4V,2.5V,2.6V,2.7V,2.8V



10. Cut Off  Type::Slow down,Hard. l



11. Power limited forward: Off, 75%, 50%, 25%.



12. Power limited reverse: Off, 75%, 50%, 25%.



13. Delay time when direction convert: 0.25S, 0.5S, 0.75S, 1S, 1.5S, 2S, 3S, 5S.



14. Reverse point:Auto,fixed 1.0mS,fixed 1.1mS,fixed 1.2mS,fixed 1.3mS.



15. Forward point:Auto,fixed 1.7mS,fixed 1.8mS,fixed 1.9mS,fixed 2.0mS.



16. Throttle curve: Logarithmical,Linear,Exponential.



17. Rotation direction: Left, Right.



18. Timing monitor (TIMING MONTITOR): ON, Off.



 Note:the red mark is the factory default value,you can setting function value by youself.

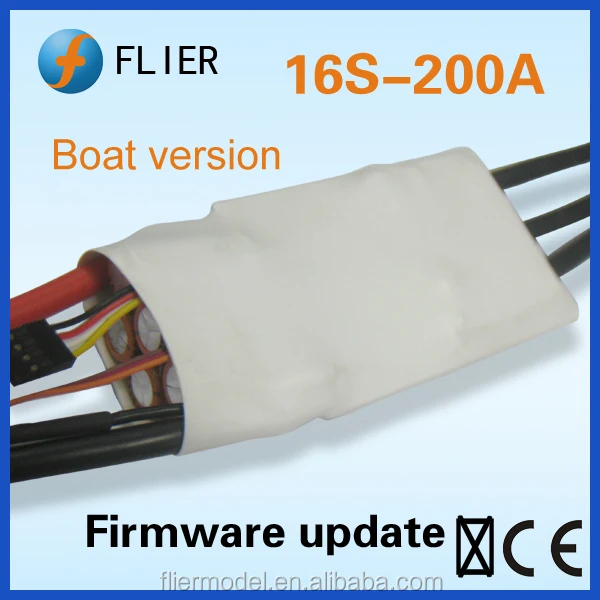

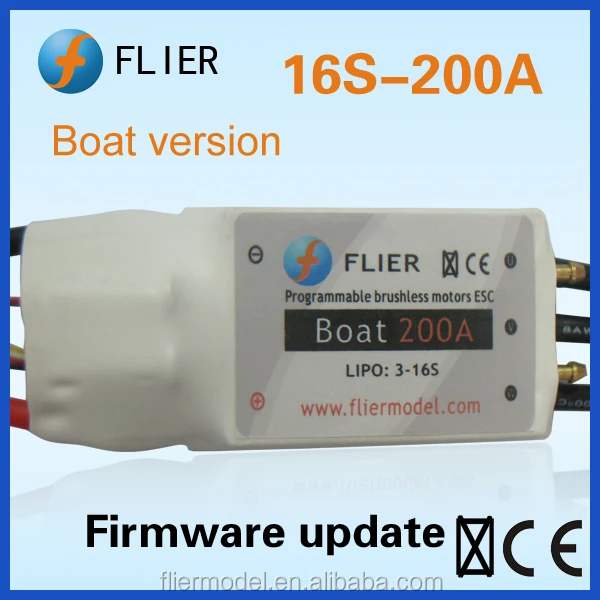

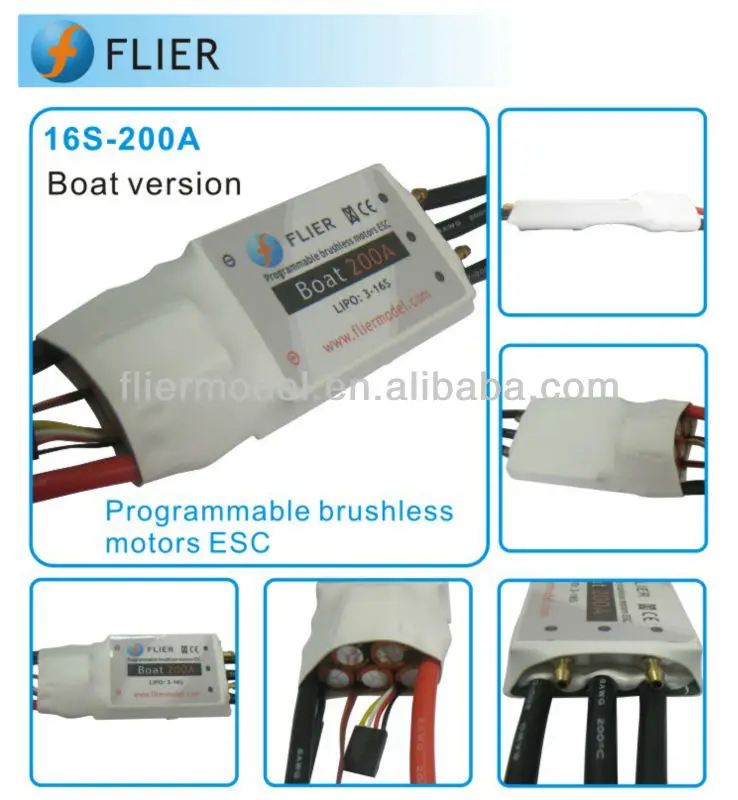

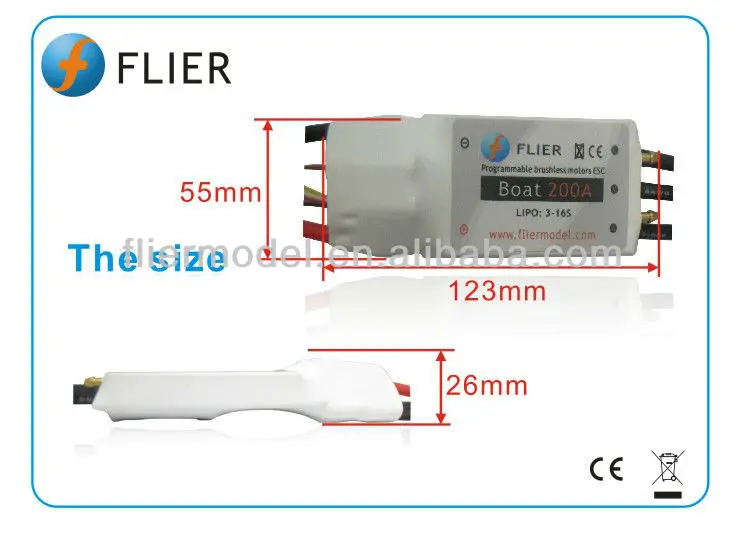

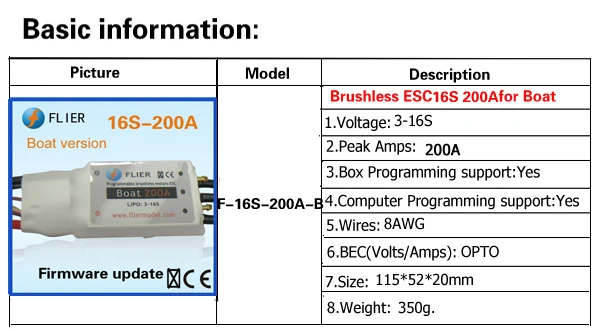

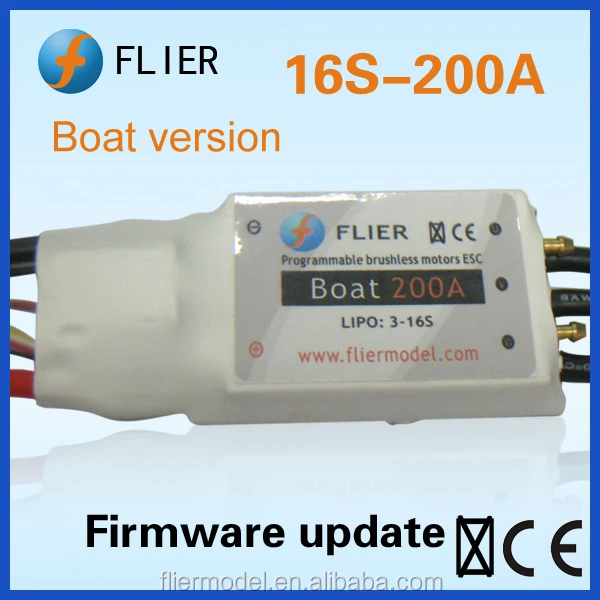

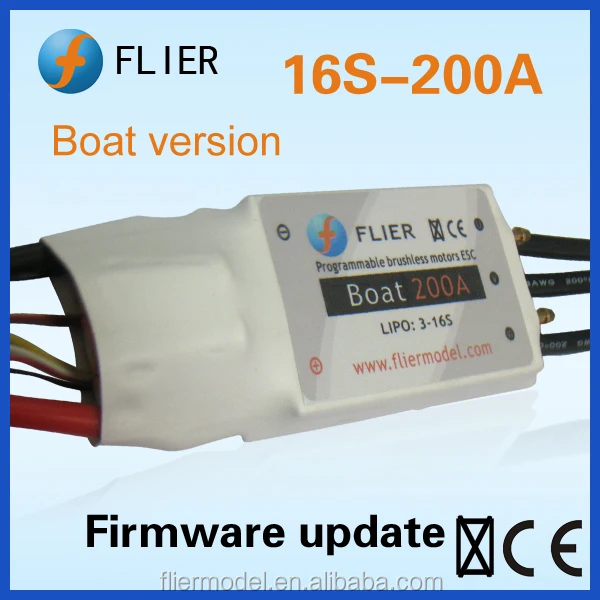

Products Picture:







 Testing pictures:













Trade Terms:







1.Payment :T/T ,Paypal,West union .



2.Production lead time :5 days for 100-200 pcs ,10days for 200-300pcs .



3.Sample can be delivered within 3 days.



4.Discounts are offered based on order  quantities .



5.MOQ: 2 pcs.







Shipping&Return:



1. Items will be shipped within 3 business day after payment completed received.

2. Items are shipped from DHL Express ,UPS ,EMS,, reach most of the countries within 3-7 days respectively.



3. Warranty Period is 2 yrs for this item.



4. If product can not work, or find it as defects within in 7 days after receipt, please contact us, we will replace or refund.

5. All emails will be answered within 1 working day.
