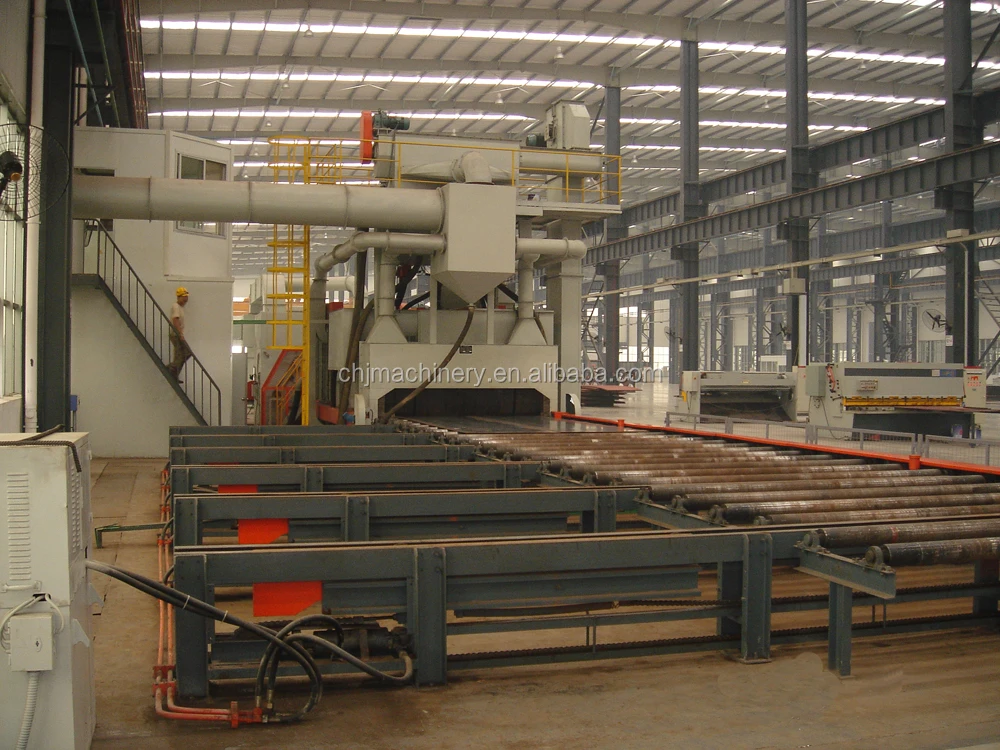

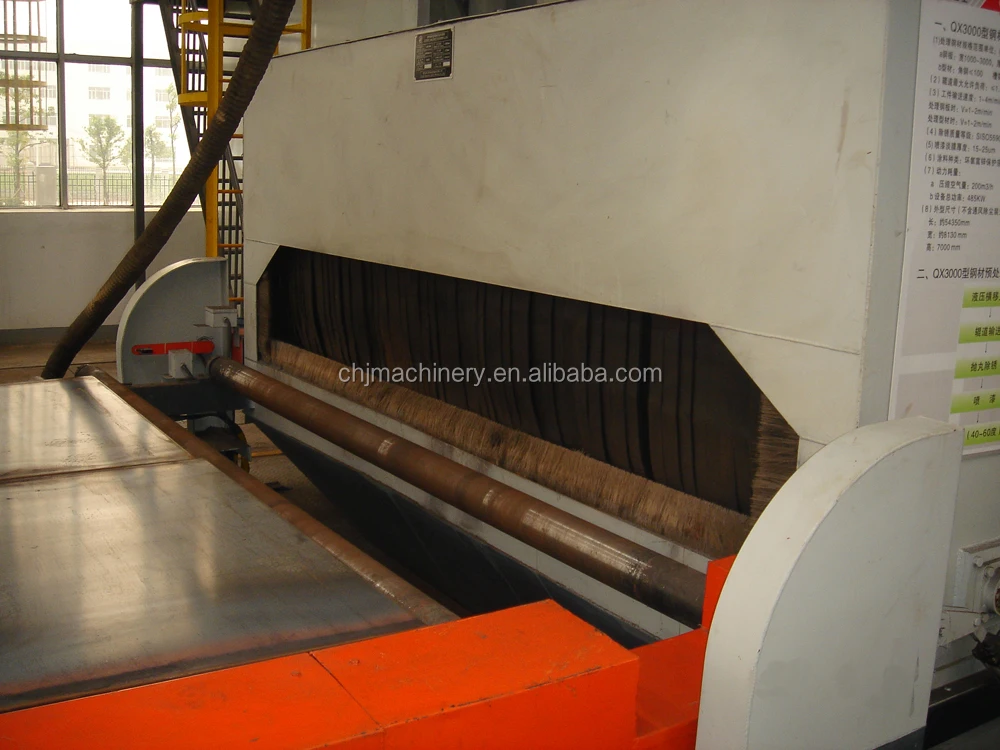

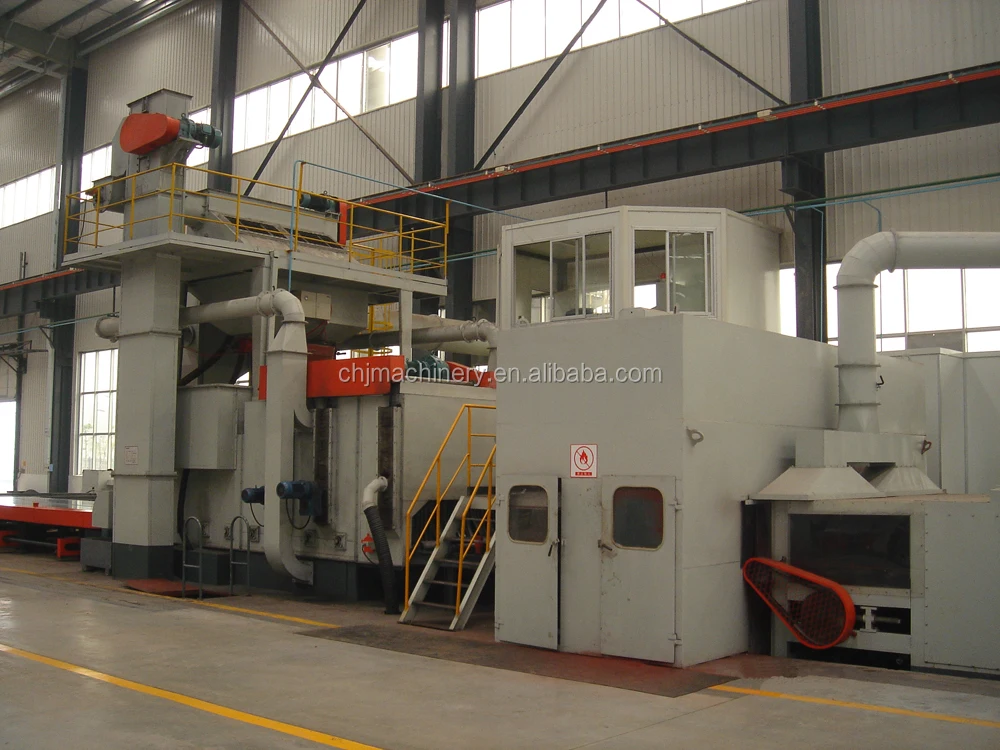

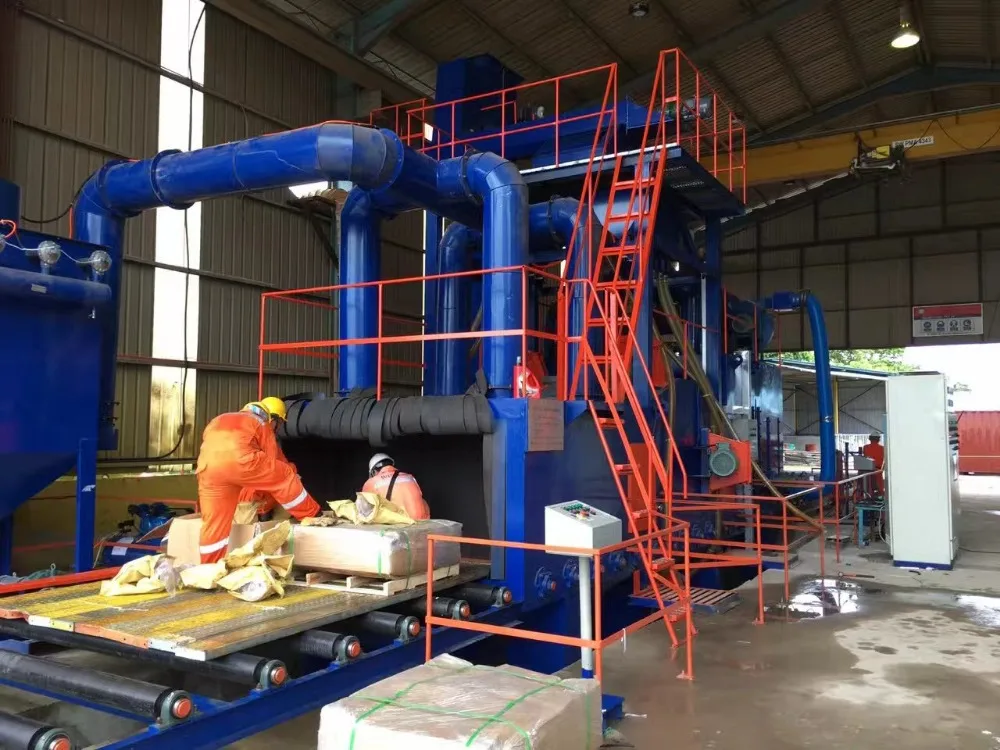

Steel Plate Surface Automatic Pre Treatment Line Roller Type Shot Blasting Machine
Steel Plate Surface Automatic Pre-Treatment Line Roller Type Shot Blasting Machine
Steel Plate Surface Automatic Pre-Treatment Line Roller Type Shot Blasting Machine
Steel Plate Surface Automatic Pre-Treatment Line Roller Type Shot Blasting Machine
Steel Plate Surface Automatic Pre-Treatment Line Roller Type Shot Blasting Machine
Steel Plate Surface Automatic Pre-Treatment Line Roller Type Shot Blasting Machine

Steel Plate Surface Automatic Pre Treatment Line Roller Type Shot Blasting Machine

Share on (60633576159):


Price:RUB 1,533,506.00 - RUB 4,600,518.00

Quantity:


Product Overview

Description

Product Description

Product Application

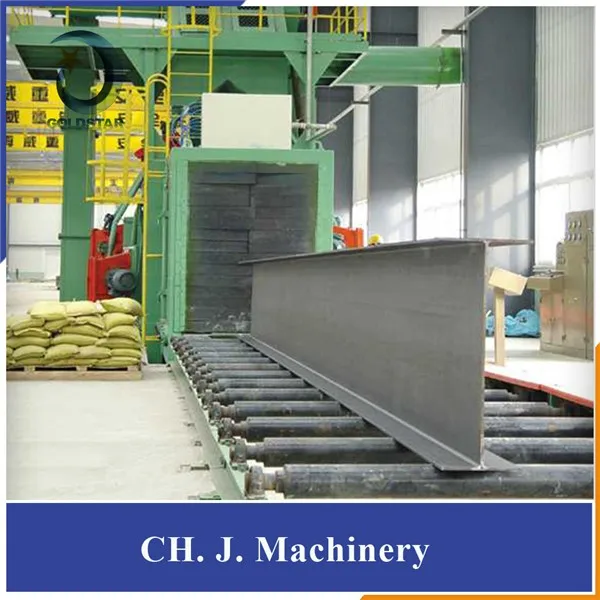

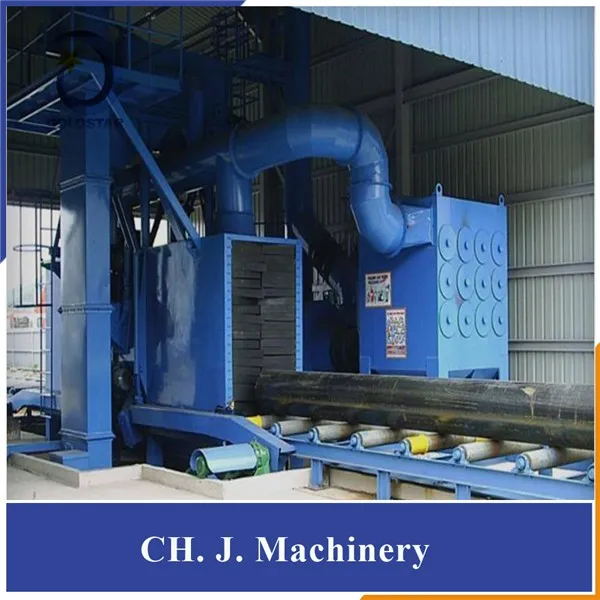

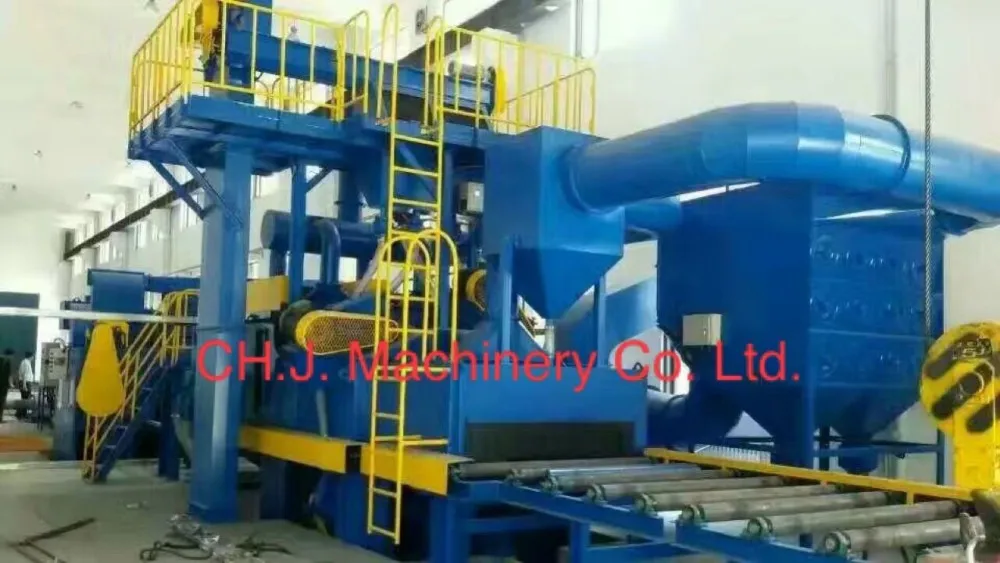

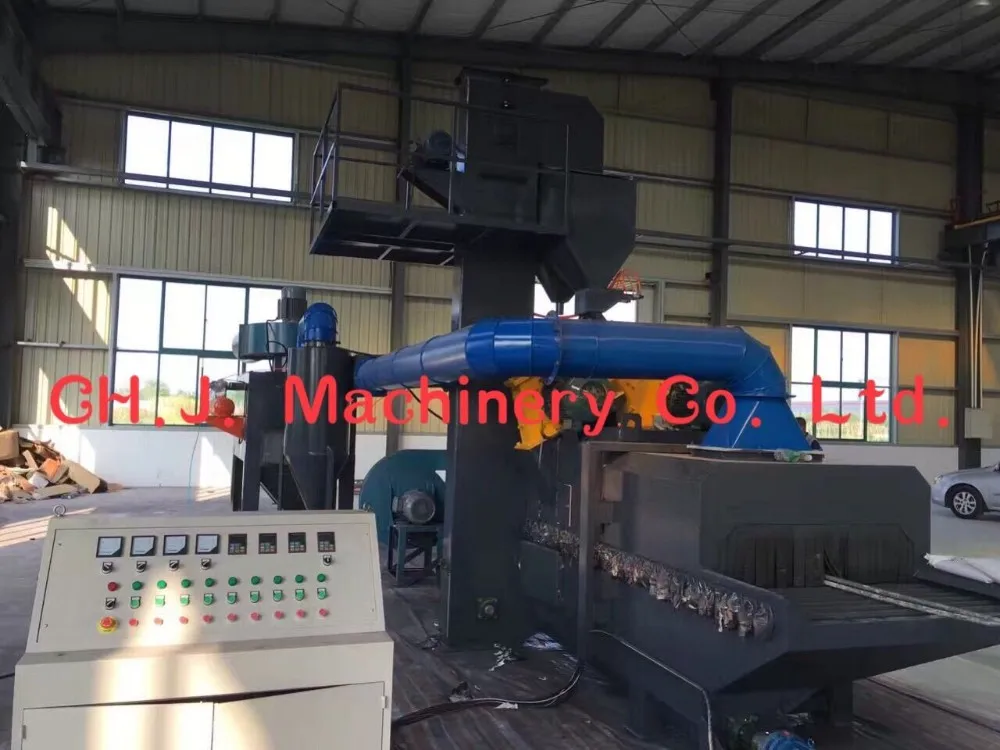

The wheel shot blasting machine cleans plates, beams, structures removing scale, dirt and rust. The chamber with protection has a closed metal construction covered inside with rubber sheets to absorb cinematic shot energy. The pipes are directed in translation and rotation motions, one after another, by a transport device into the shot blasting chamber where they are cleaned.


Shotblasters build-up a high-velocity directional metal shot stream. The shotblaster construction allows to form and regulate the directional stream. The regeneration of used shots takes place continuously in closed cycles charging shots by a screw conveyor an elevator into the separator, shot eliminator and then into the hopper.

MODEL AND SPECIFICATION OF ROLLER TYPE SHOT BLASTING MACHINE
ITEM   /  MODEL
Q695
Q6910
Q6915
Q6920
Q6930
Workpiece width
<500mm
<1000mm
<1500mm
<2000mm
<3000mm
Workpiece height
<200mm
<400mm
<600mm
<600mm
<800mm
Workpiece length
1-14m
1-14m
1-14m
1-14m
1-14m
Turbine quanity
4
4/6
6
6/8
8/10
Turbine motor power
7.5 kw
7.5 kw/ 11kw
11kw
11kw/15kw
15/kw
Roller length
6m-12m
6m-12m
6m-12m
6m-12m
6m-12m
Foundation
no pit
no pit
no pit
need pit
need pit
Total power
about 35 kw
about 50 kw
about 65 kw
about 96 kw
about 140 kw
Abrasive used
S280, S330
S280, S330
S280, S330
S330,S390
S330,S390
Dust collector
Cartridge type
Cartridge type
Cartridge type
Cartridge type
Cartridge type

Main Features

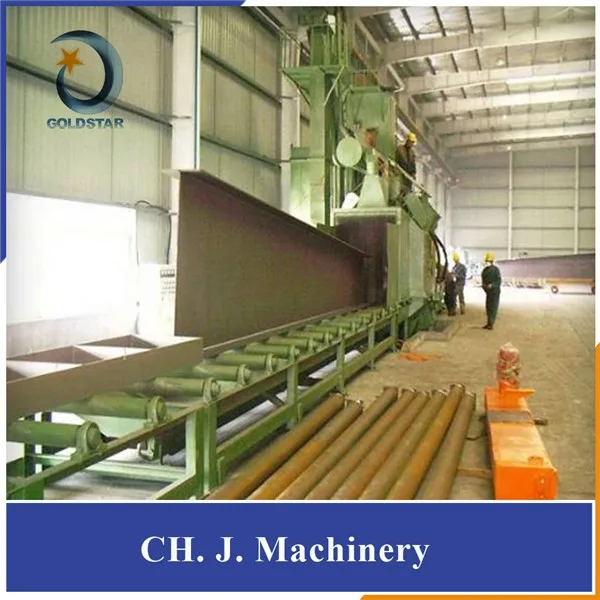

1. Steel plate shot blasting machine has three kinds of pass through type:  Roller conveying pass through, trolley pass through, hanger pass through.
2. They are widely used in the industry of steel plate, steel structure, engineering machinery, bridge building and so on. By shot blasting, it can remove rust, oxide layers, welding slag and other pollutant and eliminate surface stress force.
3. After shot blasting, it can improve paint film adhesion with steel, improve anti-rust capacity, improve the quality and prolong the service life of steel structure.
4. The steel shots blasted by blasting turbines will be collected, purifying by shots circle system and continue to be used again for blasting turbines.
5. The working process flow of shots circle system: steel shots blasted by blasting turbines will be collected by portrait screw conveyor and delivered to bucket elevator then the bucket elevator will lift to air wash type separator.
6. After separating, the dust and broken steel shots will be removed away from steel shots and good steel shots will enter storage bin.

Certifications
Detailed Images

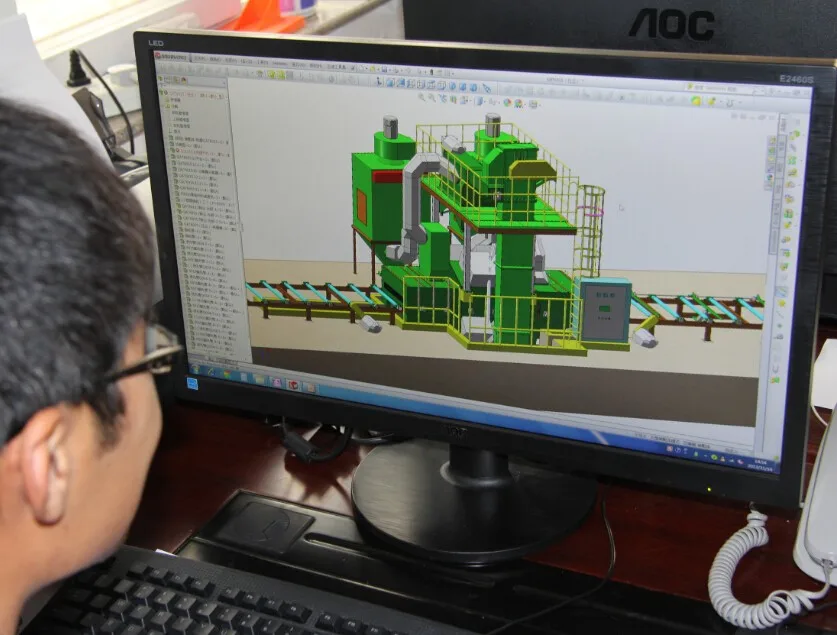

First step: 3D model design

Name: Solidworks

Engineers:  10 engineer use 3D design

Advantage: high precision, visual

Before production, our engineers use 3D model deisgn to make all drawings, and keep filing in our cloud drive for ever.  We can check every detail components for customer at any time when they need.

Main Parts

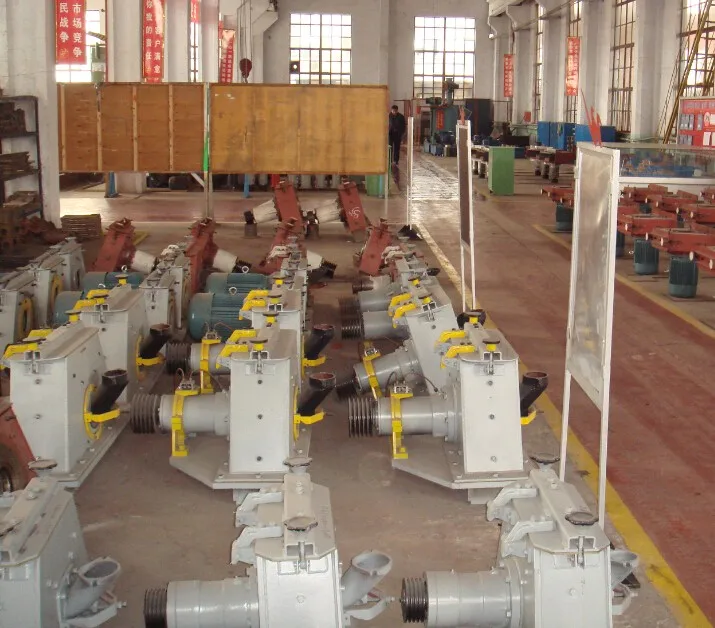

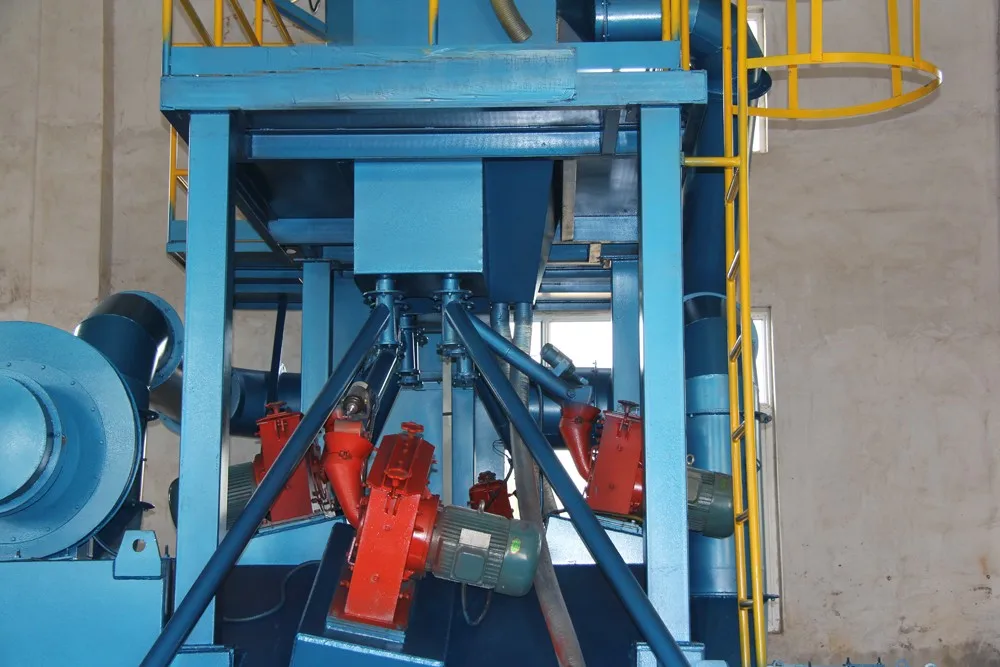

Name:  Turbine wheel
Brand:  CHJ (own brand)
Original: China
We adop Germany technology to make our own turbine wheels, low noise and vibration.  20% chrome steel casting as the inner wearable parts, which has long life time.

Machine Parts

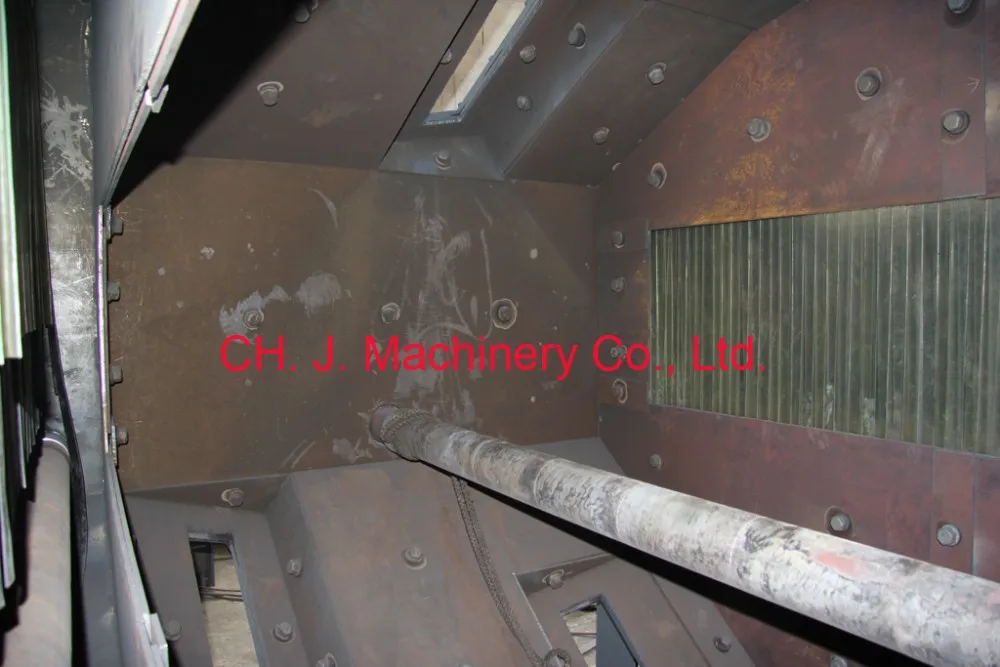

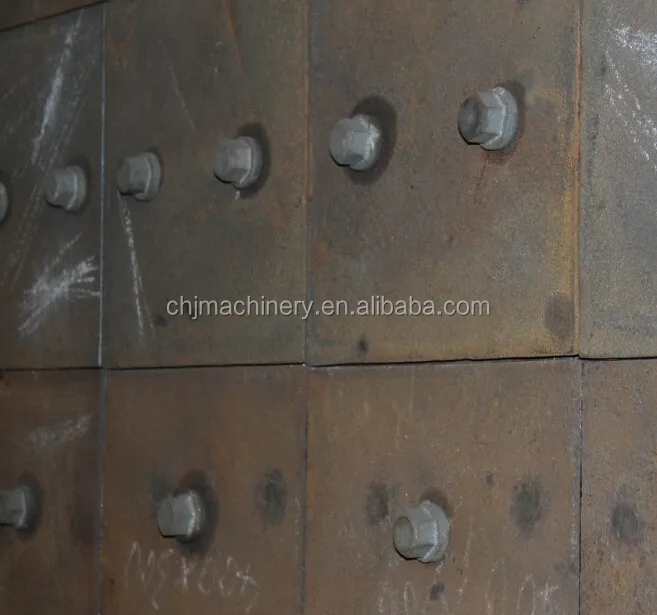

Name:  Protective liner
Material:  Rolled steel Mn 13

Lifetime:  15000 hours
Original:  China
China famous steel mill: Shan Xi Tai Yuan Steel Mill, the only professional SPMn 13 steel plate manufactuer in China.

Main Parts

Name:  Electric cabinet
Brand:  own made
Original: China

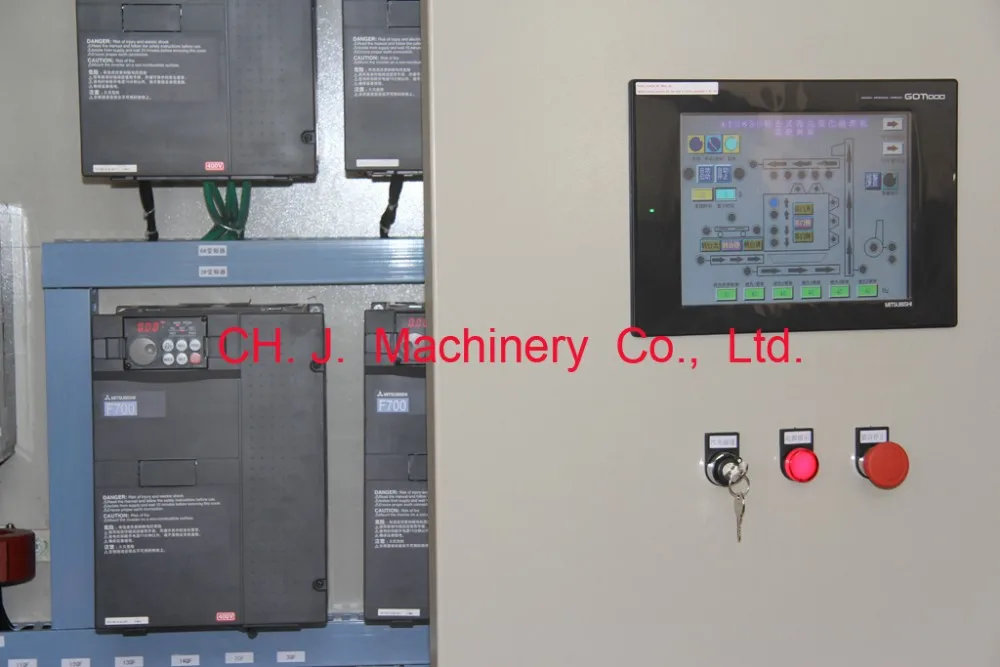

PLC, Inverter and other electric components can choose to use Siemens, Schneider, Mitsubishi, Omron brand accessories.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* 3D model design.

* Professional logistic suggestion.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Oversea service office in Malaysia, which can service MY, VN, Thailand, Phi, Indonesia.

Packing & Delivery
Packaging
Size
fastened tightly in container
Weight
12 ton



Packaging Details

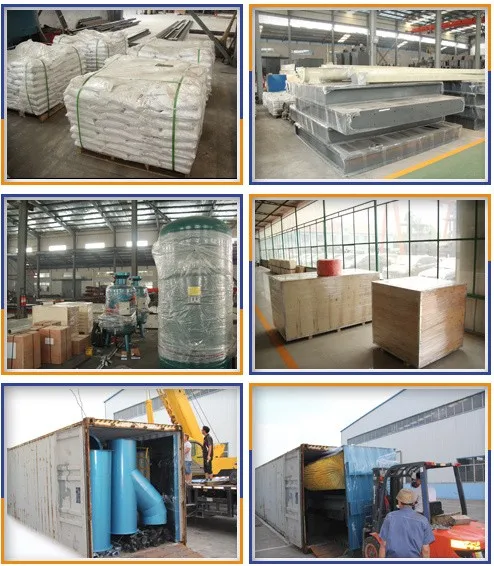

Steel parts wraped with stretch film to protect the surface coating, and then carefully load into container and fastened in container.
