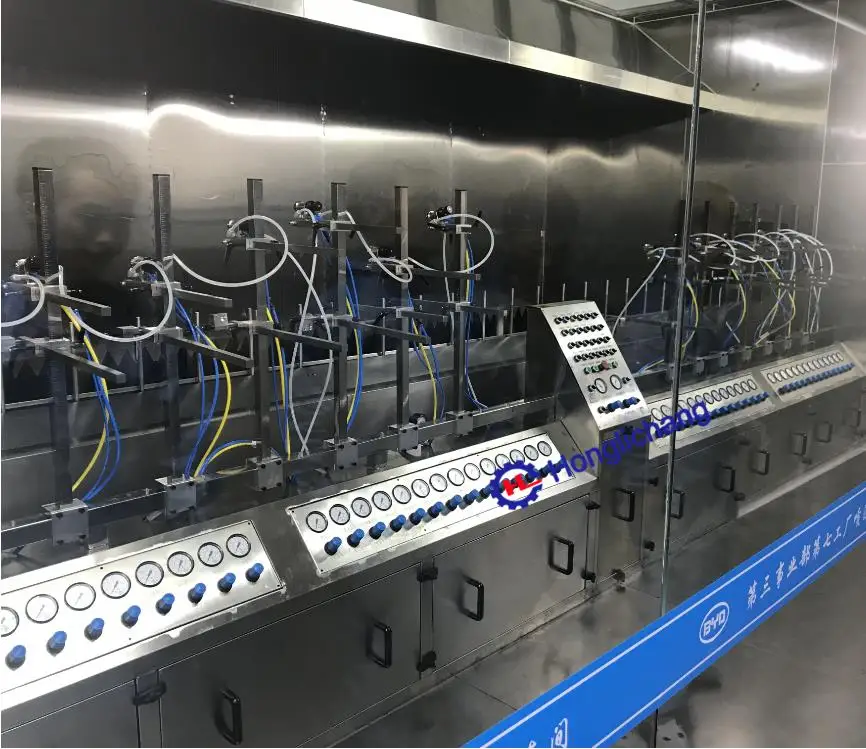

Automatic Spray Metallic UV Coating Line

Share on (60633706936):


Price:

Quantity:


Product Overview

Description


Vacuum Metallizing Automatic UV Spray Gun Painting Line


GUN-FIXED












































Power            380-415V, 3-phase, 50Hz
Spindle Conveyor

  • SS track

  • Sprocket: GI finish

  • VFD control

  • Speed: 3-11mtrs/min adjustable


Deionizing Booth

  • W1.5m*D2.4m*H2.2m

  • Structure: SS304

  • Exhaust CFM: 8000m³/hr

  • Ion Producer: with ion nozzle

  • photo sensor


Spray Booth

  • Size: 4.5*3.5*2.8m

  • SS structure: SS304

  • Water Tank: SS304

  • Explosion-proof lighting system

  • HEPA Filter: efficiency 99.99%

  • Exhaust CFM, Air volume-12000 m³/hr

  • Paint Pump: GRACO


Rotation Unit

  • Rotation: 2 sets (clockwise and anti-clockwise)

  • Rotation Motor: 0.375KW

  • Photo Sensor


Oven

  • IR tunnel oven and UV oven

  • TEM:50-90 degree adjustable

  • Mirror stainless steel inner wall

  • T50mm rockwool thermal panel

  • SCR unit


Control Panel

  • PLC touch screen

  • overload alarm

  • interlock for security

  • MCCB: Japan make

  • VFD: well-known brand



Air Handling Unit




  • CFM: 15000-30000m³/hr

  • Size:2.4*2.1*2.1m

  • T50mm extrusion panel

  • Filters: multiple stages



Coiling Air-conditioning




  • constant temperature & humidity: 25°C±5°C, 65%±5%



Product Description



Product Description


 Vacuum Metallizing Automatic UV Spray Gun Painting Line:
1.automatic plastic painting plant
2.automatic painting plant
3.plastic painting plant
4.automatic painting plant
5.UV oven in thie automatic painting plant
6.used for various Plastic Parts, Automobile Parts, Injection Moulded Plastic Parts

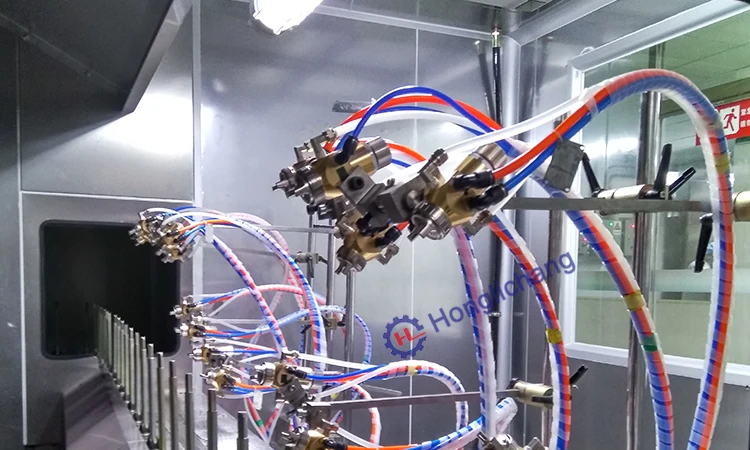

       01

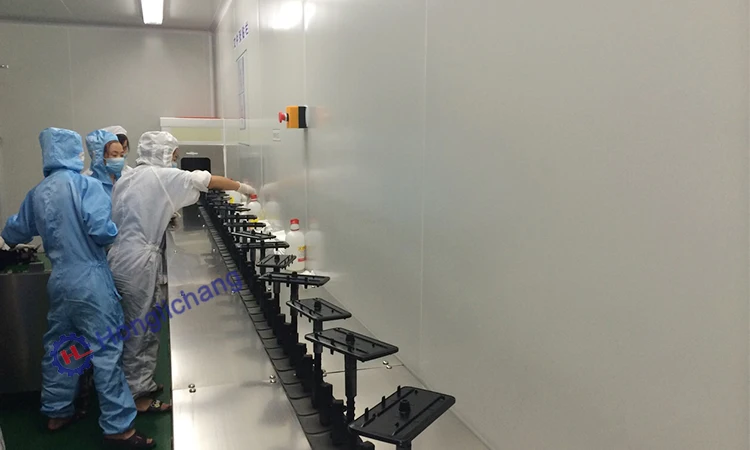

       04

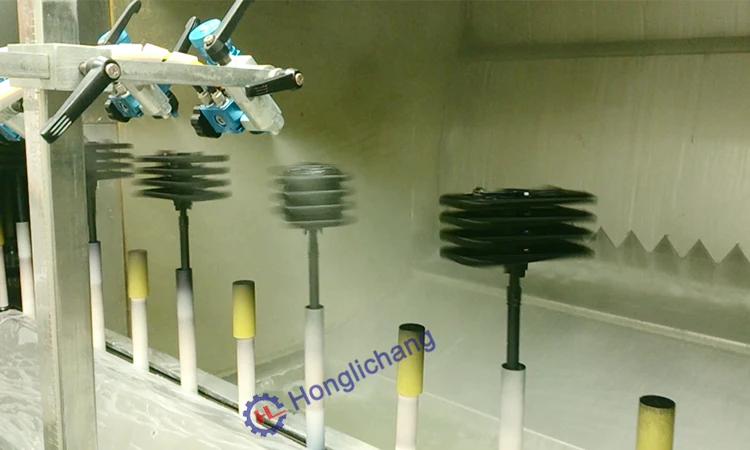

       06





       Process

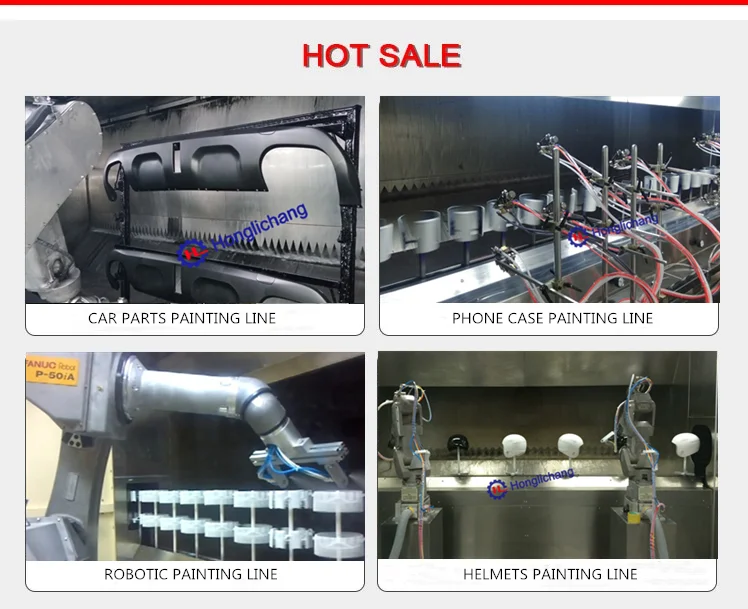

Hot sale


hot sale 6





Company Information


20FAC


08





Packaging & Shipping


_20200811152942





FAQ





 FAQ


 Q1:Are you trading company or manufacturer?


  A1:We are 100% manufacturer,professional supplier of spray painting line for over 12   years.





Q2:How hong is your delivery time?


 A2:Generally it is 40-45 workdays,it is according to the layout.





Q3:What is your terms of payment?


 A3:Multiple,we can disscuss.





 Q4:What is your Pre-sales service?


 A4: *Inquiry and consulting support.


        *Technology solution and quotation.


        *Customer visit our factory and check our production.





Q5:Where is factory? Can visit?


 A5:  Most welcome.!


Office: A901, Building No.2, Tianan Digital Park, Longgang, Shenzhen, China - 518172


Factory: 11, Phase-2, Butterfly Ridge Industrial Park, Heyuan, Guangdong, China - 517583





Q6:Could you provide the design for me?


  A6:Absolutely,we can.We are a manufacturer and designer.Just let me know your product informations and requirements like product sizes,pictures,material,output,field map,technological process,or price budget and so on.We will make a layout according to your requirments.
