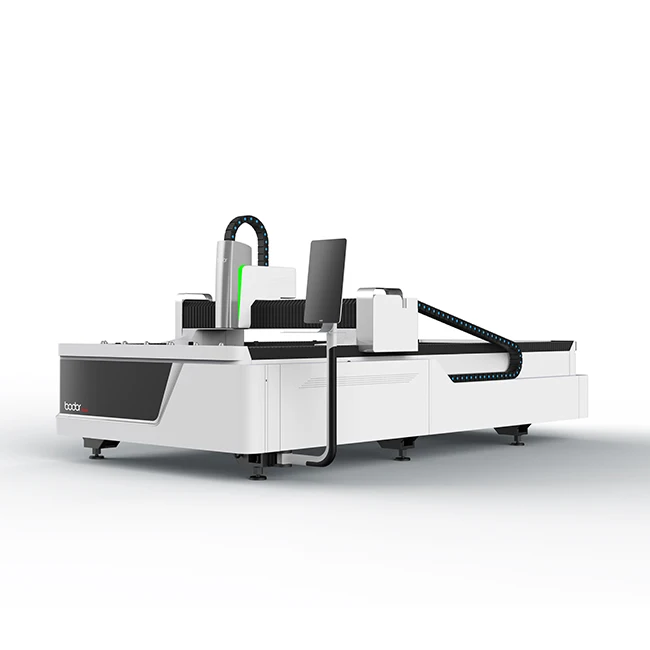

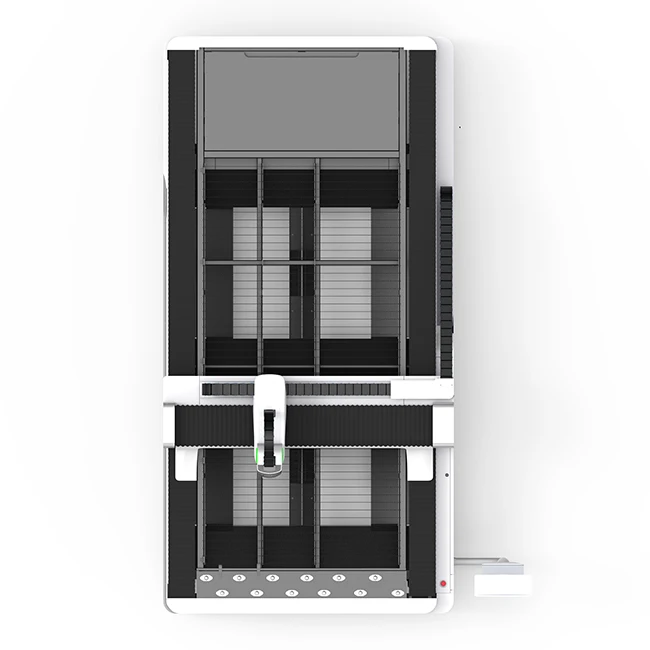

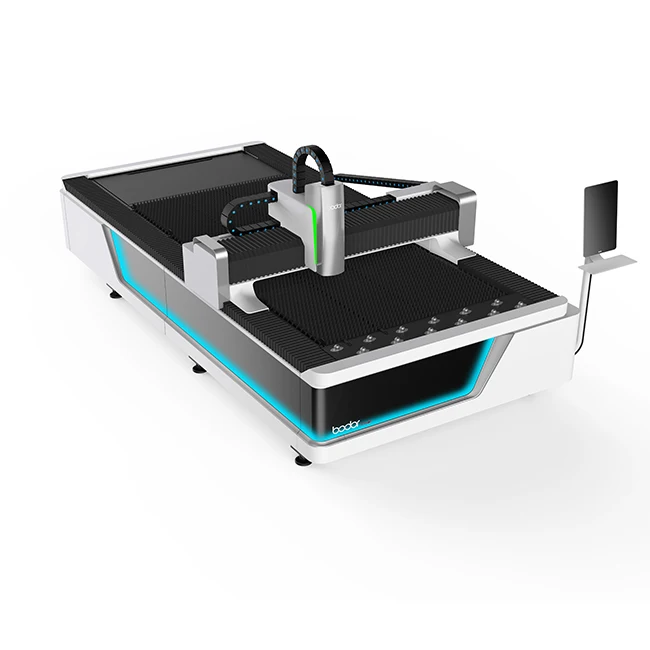

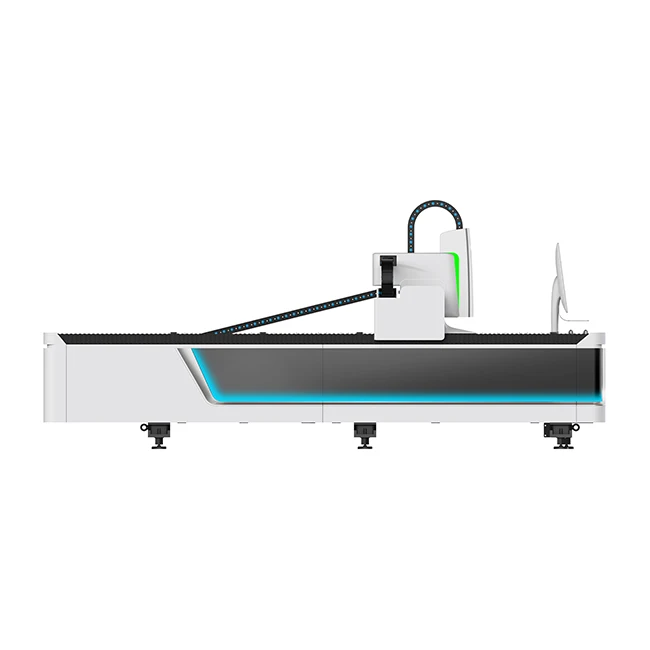

1000w 4000w carbon steel mild steel stainless steel fiber laser cutting machine for sheet metal processing

NO.1 Characteristics of our laser cutting machine

1.Cast iron bed

Integrally formed, reject splicing

Using flake graphite cast iron, the lowest tensile strength of which is 200MPa. High carbon content, high compressive strength and high hardness. Strong shock absorption and wear resistance. Good casting and cutting performance. Excellent lubricity, corrosion resistance and dimensional stability. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.

2.Auto focus laser head

Free your hands, enjoy auto focus

(1)Auto-focus

Applicable to various focal lengths, which are controlled by machine tool control system. Focal point will be automatically adjusted in cutting process to achieve the best cutting effect of different thicknesses sheets metal.

(2)Free

Focal length is controlled by operating system. We don’t need to do manual regulation,which effectively avoids errors or faults caused by manual operation.

(3)Fast

It can automatically adjust the most appropriate focal points in working process, greatly improving cutting speed;

When replacing different materials or different thicknesses sheet, manual focus laser head needs to adjust focal length manually, very inefficient; auto focus laser head can read system storage parameters automatically, very efficient;

(4)Accuracy

Increasing perforation focus length, separately setting perforation focal length and cutting focal length, enhance cutting accuracy.

(5)Durable

Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses.

Increasing collimation protective lens and focus protective lens, carefully protect key components.

3.Operating system display

Elegant appearance curve

The first one to use UI design in the world which lets display respond to processing table, making processing more intuitive. Elegant curves precisely fit machine body. Strong waterproof breathable system creates the best space, making operation more convenient. Diamond cutting process and HD plasma tempered glass make screen more exquisite and comfortable to use.

4.Cast aluminum crossbeam

Integral steel mold pressure casting, light, flexible and efficient

After artificial aging, solution treatment and finishing, crossbeam owns good integrity, rigidity, surface quality, toughness and ductility. Aluminum alloy’s metal characteristics of light weight and strong rigidity are helpful to high speed movement in processing, and high flexibility is beneficial to high-speed cutting of various graphics based on high accuracy. Light crossbeam can give equipment a high operation speed, improving processing efficiency to ensure processing quality.

5.Bodor Por 2.0

Independent R&D operating system, perfectly combines high efficiency and simplicity with inclusiveness

The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhancing the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.

6.Appearance design

Aesthetics was introduced to industrial ID, perfect combination of technology and aesthetics

Powerful hockey stick shaped decorations adopt black acrylic with thickness of 30mm, ice film drawbench silver design of the same car and alpine white sheet metal, the international design style is accepted by global consumer groups.

With precise cast iron bed, the whole machine is as firm as a rock. The most reasonable golden ratio and the greatest parts layout make the whole machine more stable, comfortable, accurate, and technological.

PC head capsule design through vacuum hot deformation processing makes Z axis so light.

Crossbeam adopts ribbon design elements, giving crossbeam limitless velocity space.
NO.2 Machine Application Field
1.Application Materials: Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
2.Application Industries: BODOR Fiber Laser Cutting Machines are widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.

NO.3 Samples

NO.4 Parameters of laser cutting machine

 Our Package Advantage:

1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.

Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly,

make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Payment terms:

100% TT  before delivery or  L/C.

Delivery time:

20-40 working days after received the payment.la

Warranty and service

3 years warranty for machine. English technical to door service.
English manual and installation video for machine using and maintenance.

We offer free training in our factory, welcome to visit and learn more about our machines.

1.Pre-sales service
A. Free sample making
For free sample making/ testing, please send your samples or products DXF or other formats of Graphics to our company in China. Try before you buy.
B. Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.

2. After-sales service:
You will have 3 options:
A. We provide installation video and user's manual in English for our customers, we can send the relative files by email, fax, express,or by Skype, Whatsapp, Wechat,etc. When you meet some problems of installation, using or adjusting you can use these documents as reference, we will also provide on-line service, like TEAMVIEWER,to solve your problem quickly.
B. You can come to our factory for a 3-day free training. Bodor Laser will offer professional guide. Direct and effective face-to-face training.
C. We also provide door to door service, our engineer can go to train you at your factory, the traning cost is 200USD/day, and customer will also need to afford the cost of airplane, room and board of our engineer.

What is Bodor Fiber laser advantages?

>Excellent beam quality (light-concentrating beam from optical fiber)

>Simple , compact, electrically and optically efficient (small footprint and low power consumption by fiber amplification)

>Compatibly powerful and reliable (realized by high brightness, high power semiconductor lasers as pumping light)

>Maintenance free (the entire optical fiber setups without lenses, mirrors)

>multilingual (more than 11 foreign languages)

>3 years warranty,quick and effective response on aftersale problems

1 -Does This Machine Pass CE Certificate?
   -Yes, this machine passed European CE certificate and meet Safety Standard.

2 -How Long Time About Machine Warranty?
   -3 years.

3 -Do You Have Agent Or Distributor In Our Country?
   -There are so many end-users in your country, and just we are looking for agent in your country, do you have any interest?
4 -Could You Ship The Machine To Our Address?

   -Usually how to ship the machine, by sea, by air, by land or even by internation express are considered, we will give you the best choice according to your adress and model, even budget.

In order to recommend to you the most suitable machine with favorable price, would you like to

confirm below questions:
======================================
1)  What is the maxmium dimension of your working materials?
2)  What mainly job you do ? Only engrave, cut or both ?
3) What's your working material and their thickness?
======================================
After your return comments, we will send you

more information about the machine along price . Thanks.
