Cheap solar heaters china tata bp solar water heater with unpressurized
- Category: >>>
- Supplier: Zhejiang Babysun New Energy Technology Co. Ltd.
Share on (60633881403):
Product Overview
Description
Product Description
Cheap solar heaters china tata bp solar water heater with unpressurized.

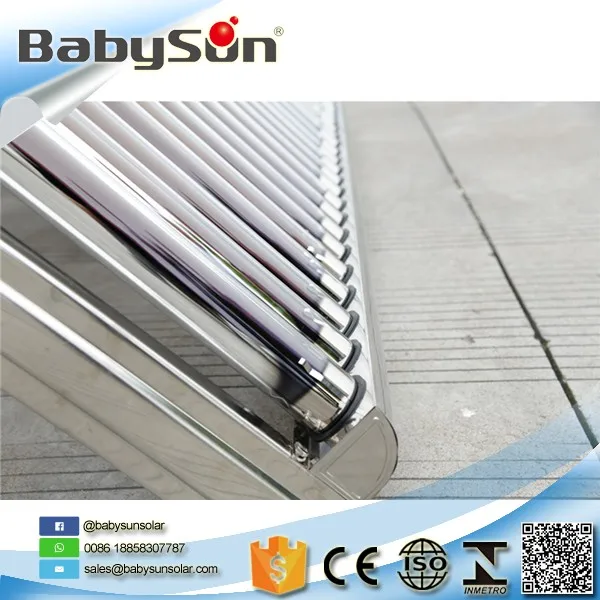

1.Product photos

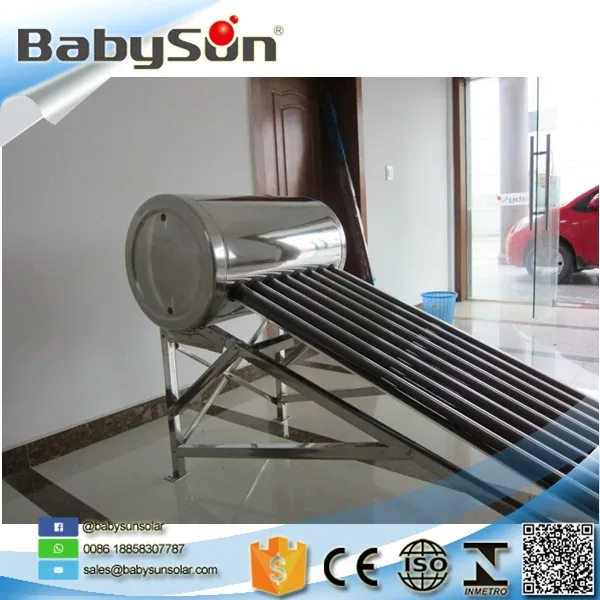

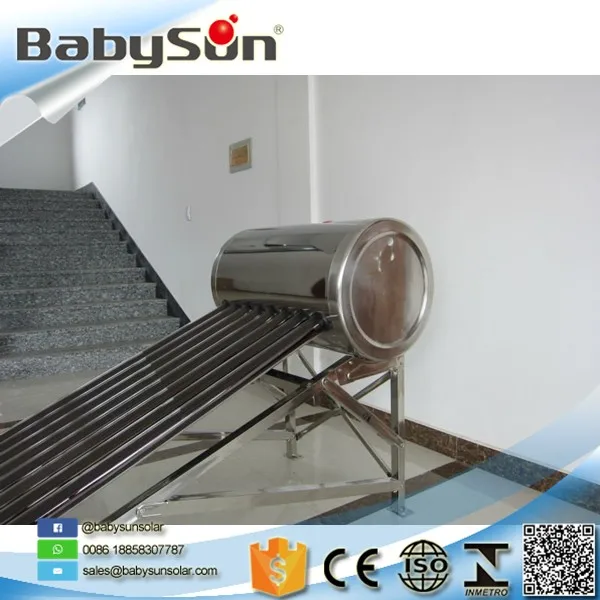

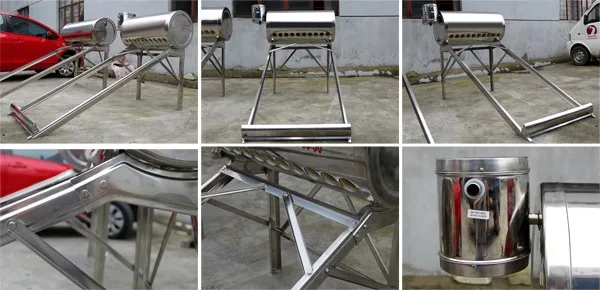

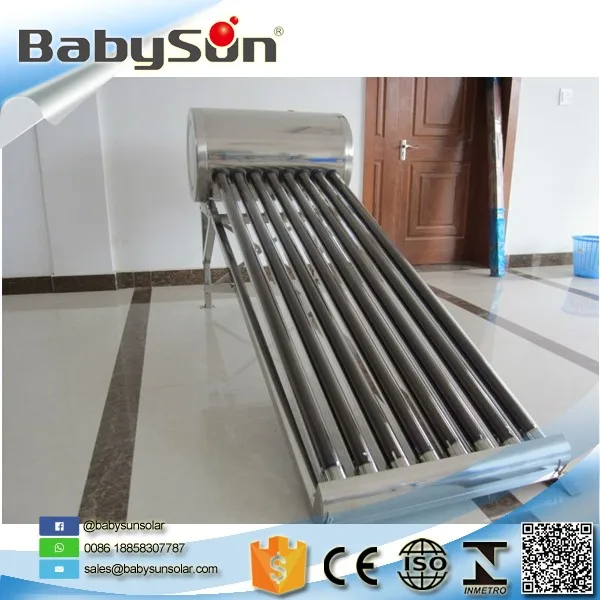

1.All Stainless steel with 8L side feeder tank.
2.Galvanized steel with 8L side feeder tank.
3.Galvanized solar water heater
2.Features And Advantages

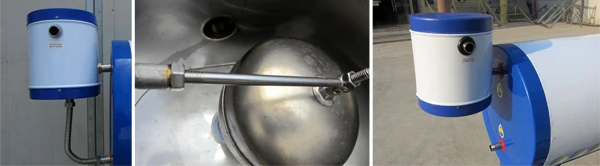

(1) 8L Side Assistant Tank--- More Convenient
With 304 stainless steel floating ball
Advantages of side feeder/assistant tank:
1. Without feeder tank, you should feed cold water manually. It is very inconvenient.
2. With the big container on the roof, the main tank is full of water. When the water gets hot, if the hot air can't get
out quickly, there is much pressure in the tank. The pressure will damage the non-pressure tank soon. Secondly, because the tank is full of water, the above welding is dipped in the hot water all the
time. It will make the welding place leak soon.
3. Using side feeder tank, there is a little space on the top of tank, so it will decrease the pressure in the tank.
Because there is no water on the top, the welding will not be dipped in the tank. It makes the tank have longer lifetime

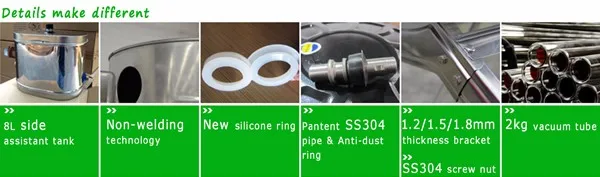

(2) New No Welding Technology---Longer Life
Advantages of no welding:
Welding is a damage to stainless steel. We wrap the cover on the main inner tank,
there is no welding, so there is no leaking.

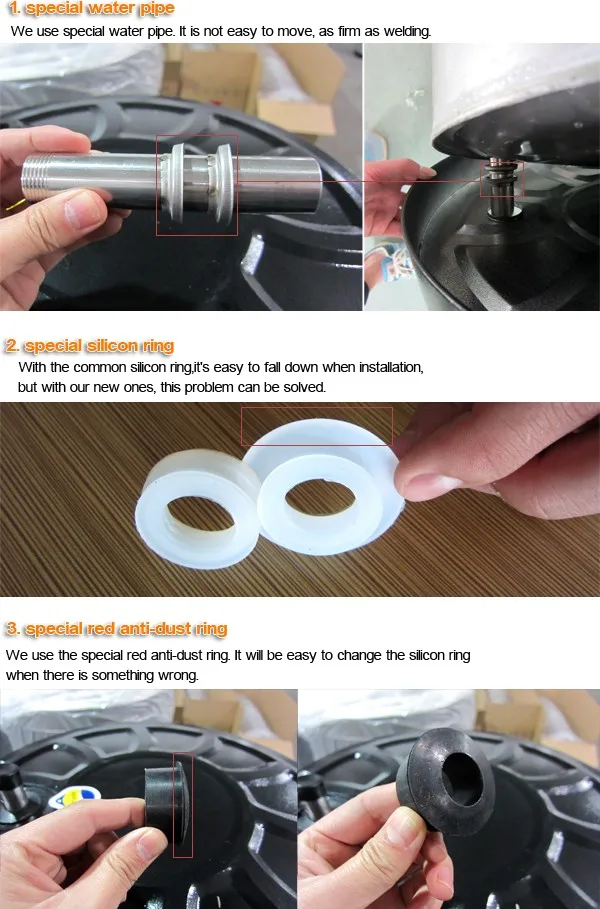

(3) New Silicone Ring,New Water Pipe,New Anti-dust Ring---Longer Life
Want to know more details,just contact me.

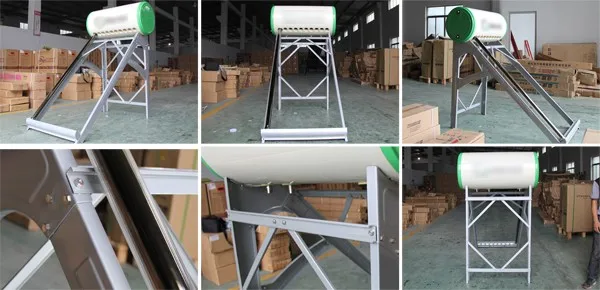

3.Specifications of Non-welding Low Pressure Vacuum Tube Solar Water Heater
4.Non-pressurized Solar Water Heater Series
3.Specifications of Non-welding Low Pressure Vacuum Tube Solar Water Heater
| Brand name | Zhejiang BABYSUN |
| Description | Low pressure vacuum tube solar water heater |
| Material of inner tank | Food grade SUS 304 stainless steel, 0.4mm (Diameter:360mm) |
| Material of outer tank | Galvanized/Stainless steel, 0.4mm(Diameter:460mm) |
| Assistant tank | Galvanized/Stainless steel (8L) |
| Tank insulating layer | 50mm high-density polyurethane foamed |
| Inlet and outlet hole | Male 3/4 |
| Max pressure of tube | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with three-layer coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P≤0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | εh=0.04-0.06(80°C±5°C) |
| Idle sunning property parameters | Y=220~260m2.°C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2*°C) |

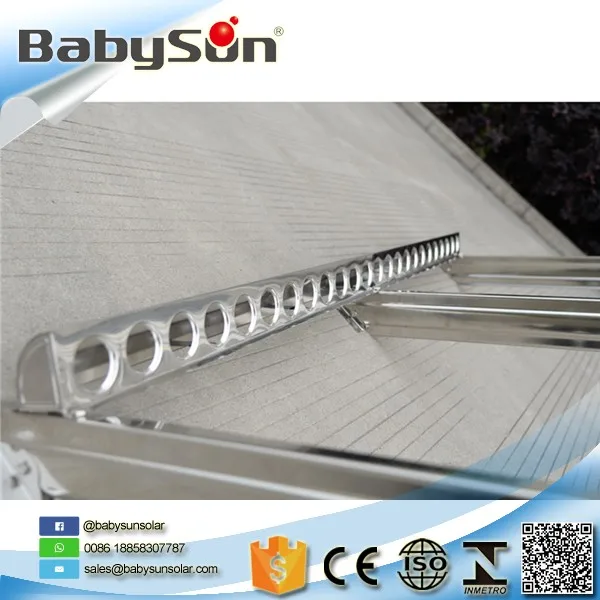

| Bracket | Stronger galvanized steel sheet (25°, 27°, 30°, 35°, 45°, 50°) |
| Structure of tank | 5 holes: air vent/overflow hole/water inlet /water outlet/electric element hole |
| Fastening pieces | Stainless steel screws & nuts |
| Heat preservation | 72 hours |
| Certification | Passed CE/ISO9001/CCC |
4.Non-pressurized Solar Water Heater Series
| Model | Capacity (L) | Tube Specification | Tube Quantity | Packing Size (CBM) |
| BS-CNPG-06 | 60 | Φ58mm*1800mm | 6 | 0.3 |
| BS-CNPG-08 | 80 | Φ58mm*1800mm | 8 | 0.36 |
| BS-CNPG-10 | 100 | Φ58mm*1800mm | 10 | 0.41 |
| BS-CNPG-12 | 120 | Φ58mm*1800mm | 12 | 0.47 |
| BS-CNPG-15 | 150 | Φ58mm*1800mm | 15 | 0.55 |
| BS-CNPG-18 | 180 | Φ58mm*1800mm | 18 | 0.63 |
| BS-CNPG-20 | 200 | Φ58mm*1800mm | 20 | 0.69 |
| BS-CNPG-25 | 250 | Φ58mm*1800mm | 25 | 0.83 |
| BS-CNPG-28 | 280 | Φ58mm*1800mm | 28 | 0.96 |
5.Our Factory
6.Working Principle of Non-pressure Solar Water Heater
7.Accessories for Optional Choice
Company Information
Packaging & Shipping
FAQ
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5-What is your MOQ?
1 sets.
6-What is your Packing?
LCL order/Sample order in wood cartoon.
Full container order in high quality export carton.
7-What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8.-What is your Monthly Production Capacity?
6000 sets.
9-What is your Shipping Term?
By Sea/Air/Rail.
