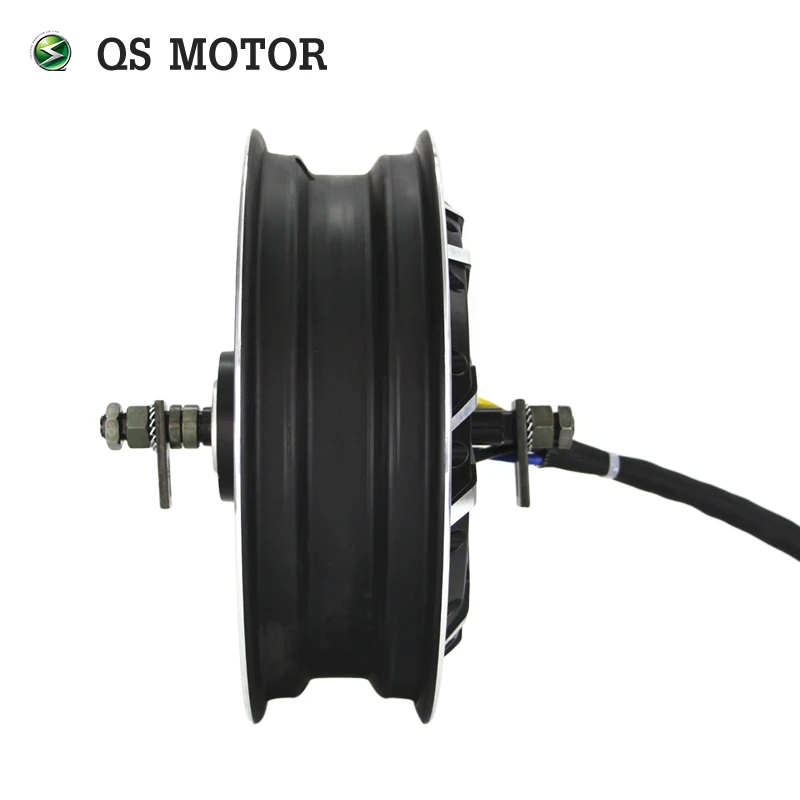

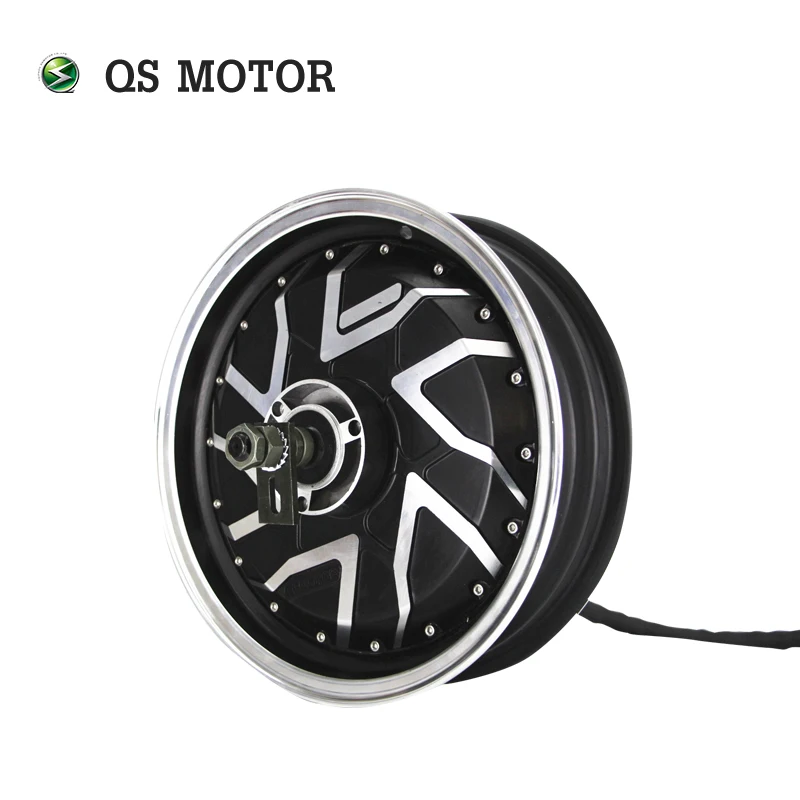

QS Motor 13inch 3000W 260 40H V3 BLDC Electric Scooter Motorcycle Hub Motor

Product Overview

Description

QS Motor 13inch 3000W 260 40H V3 BLDC Electric Scooter Motorcycle Hub Motors





QS Motor Specification

• Motor Type: BLDC Outer Rotor In-Wheel Hub Motor With Hall Sensor


• Brand: QS Motor,QSMOTOR


• Motor Design: Double axle with 13inch moped rim (integrated)


• Rim size: 13x3.5inch


• Magnet Height: 40mm, 16pole pairs


• Stator: Aluminum Core


• Rated Power: 3000W


• Speed(customizable):

48v 30km/h~70km/h

60v 30km/h~70km/h

72v 30km/h~70km/h

• Max Torque approx 190N.m


• KV:14.7/16.55/16.59/16.08/13.13/14.17 (optional)


• Thermic Probe: KTY83-122 (as default, optional)


• Max Efficiency approx 88%


• Brake type: Disc brake (as default), PCD3*80mm-M8, CB 58mm


• Drop-outs: 200mm


• Dual Halls with waterproof connectos(One for spare, in case of damage)


• 10mm² Phase Wire


• Waterproof Grade: IP54


• Color: Black (as default), Yellow or White/Luminous

PS. For delivery cost, please contact with us if it's not reasonable.

We will modify it after place the order on-line (before payment).

When place the order online, please leave the message about the KV and your E-mail address.

(For how to choose the KV, please feel free to contact with us. E-mail used for details confirm)



No QS Motor, No Super EVs!
