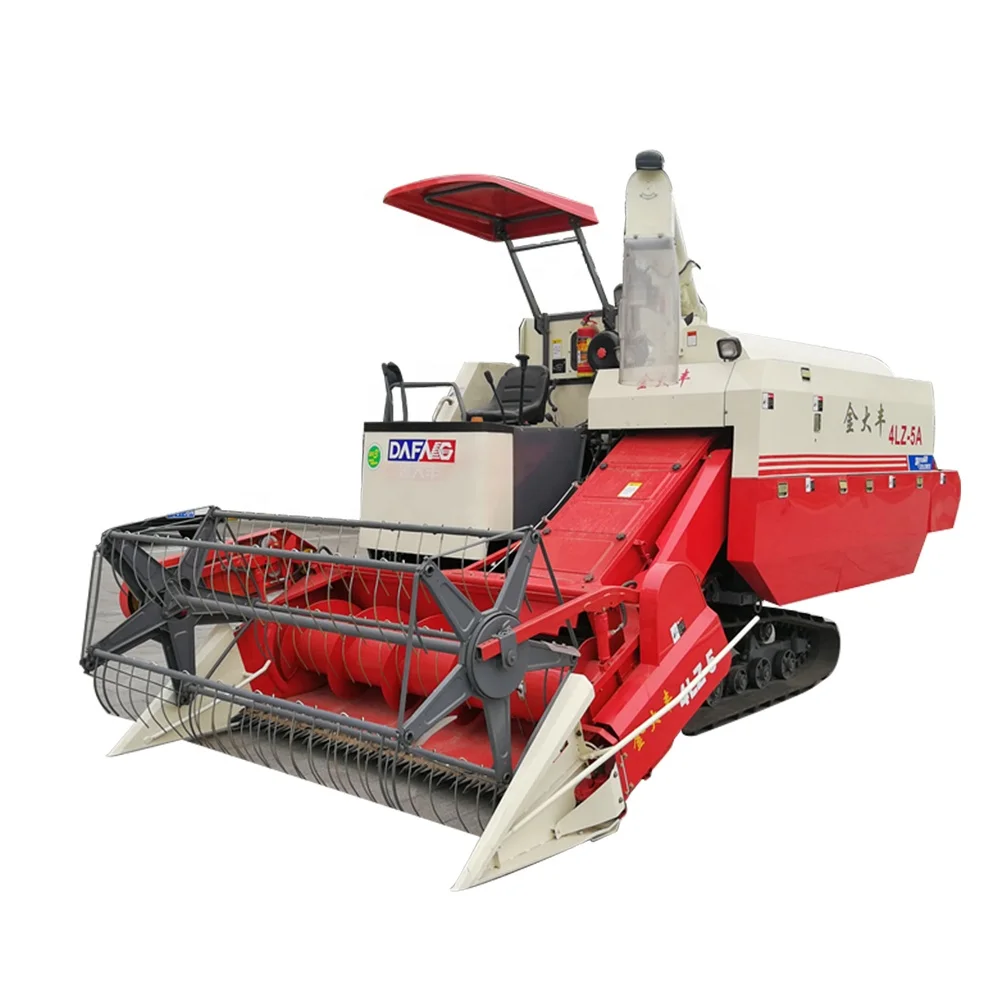

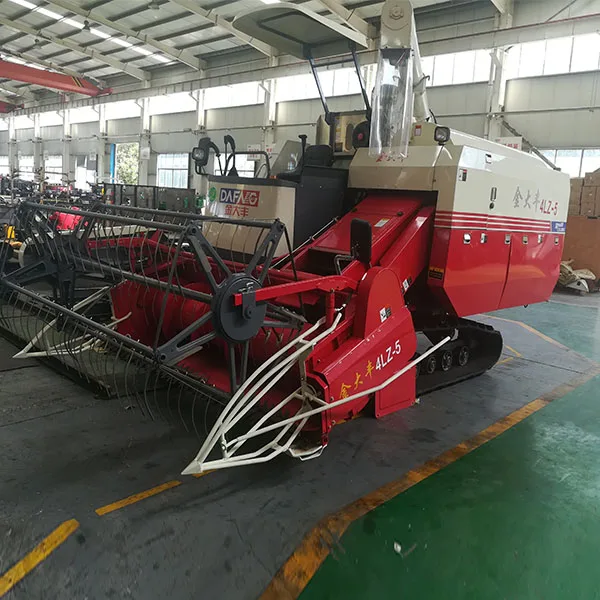

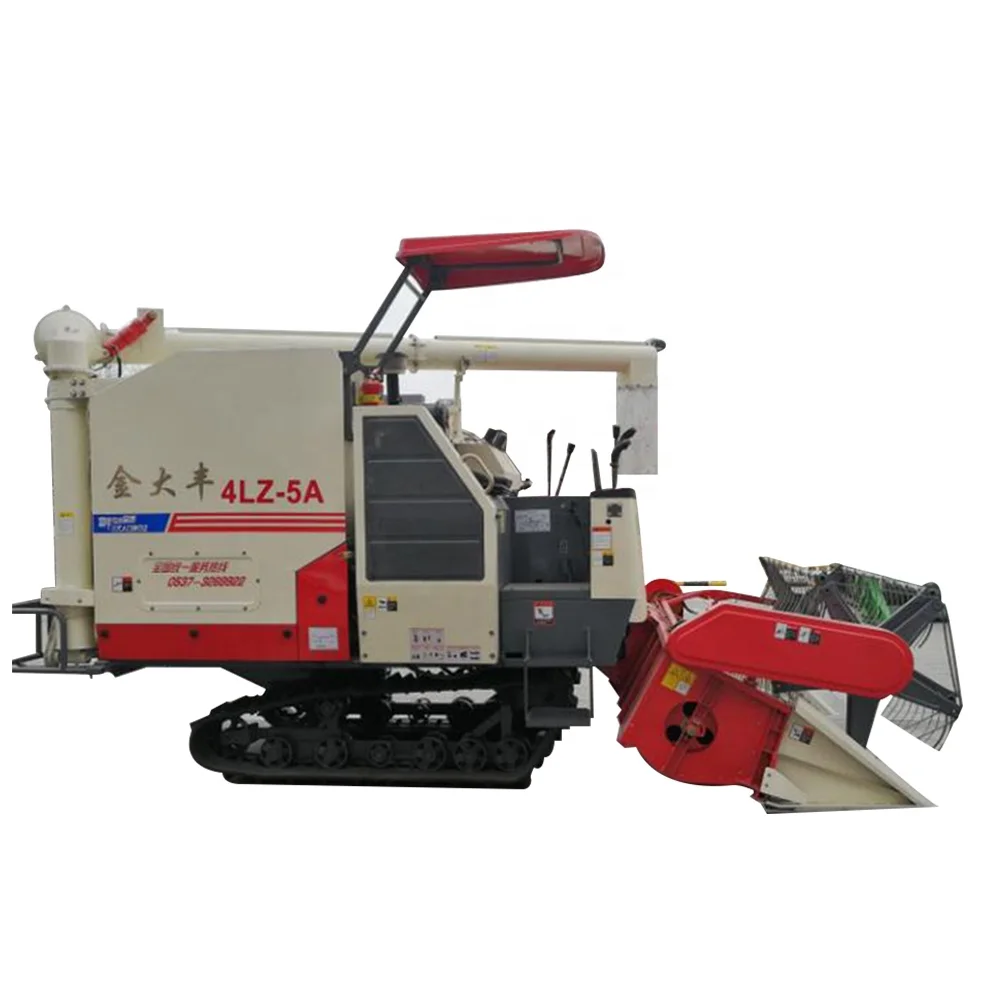

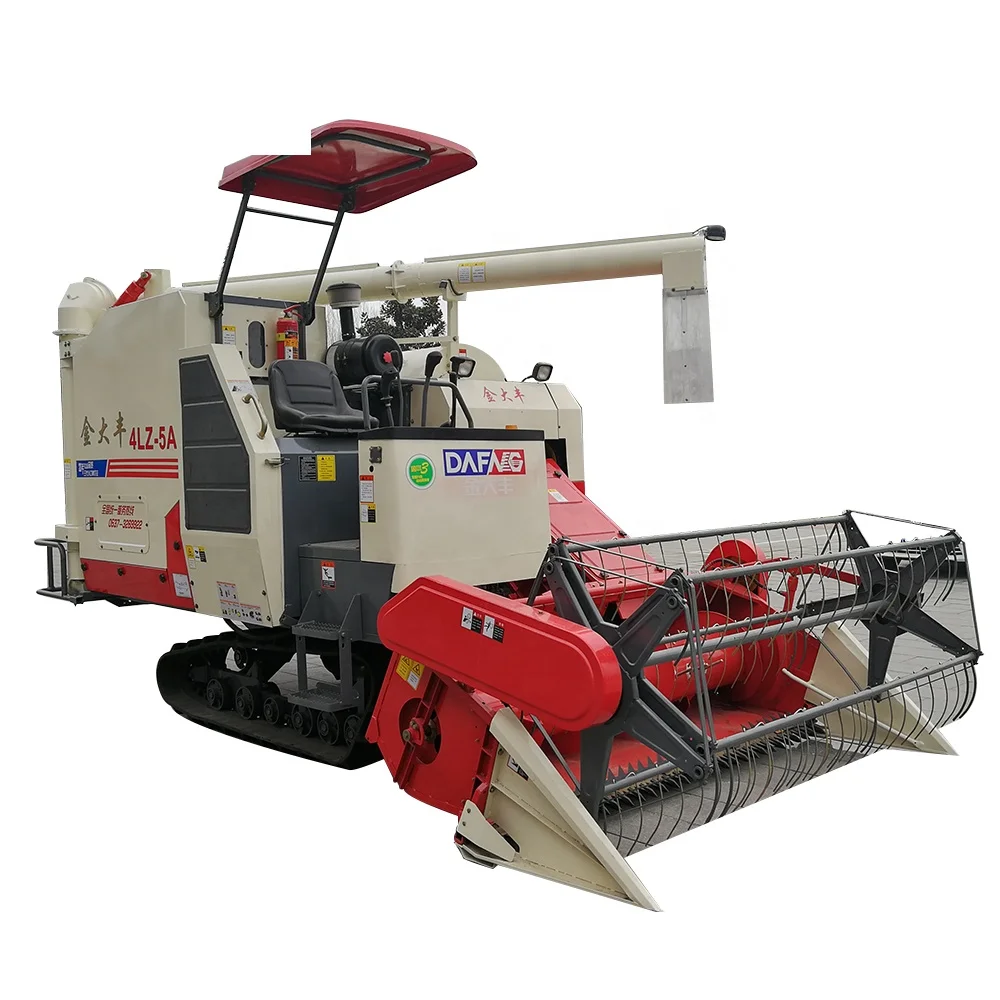

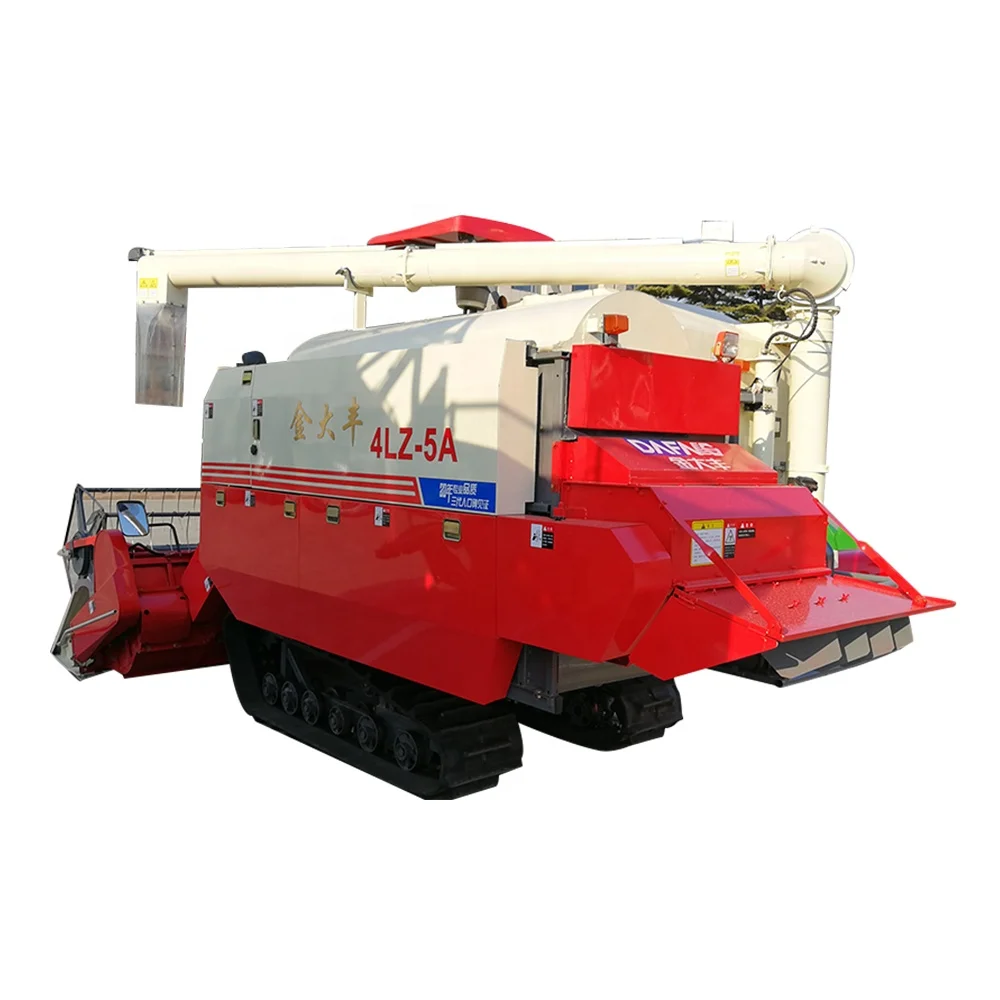

This model is applied to rice and wheat which can achieve harvesting, threshing, separating and cleaning all at one time. The compact body design makes it more easily handling and convenient operating, which is especially for small and medium farms. The cutting platform is equipped at the front of the body, which makes inclining T-shape with the threshing body, is applied to cutting and delivering. Hydraulic controlled lifting of the cutting platform and reel enable the operation more reliable. The threshing and cleaning which includes threshing, separating, cleaning and delivering mechanism etc. is applied to threshing, separating, cleaning and delivering the seeds to the storage box, with the terms in strips and chaffed spread to the ground. The 98hp engine is located at under the driver's seat, which offers the drive forces for the walking, hydraulic system and the working mechanism. Chassis and the walking part are the special self-propelled mechanism, which include front and the rear axle, drive wheels, transmission, and the steering wheels. The cabin includes the operating mechanism and the instrument system which is for the operating and monitoring the working system.
Specifications for wheat&rice combine harvester machine
Model
4LZ-5
Barn capacity
1.3m³
Feeding volume
5kg/s
Threshing type
Longitudinal running axle roll
Working width
2200mm
Horse power
102 HP
Working efficiency
2666-8000m2/h
Dimensions
5450*2520*2870mm
Certifications
Detailed Images
Main Features
Name: Engine Brand: Domestic Famous Brand Original: China powerful and lower fuel consumption, in-line,water-cool,four-stroke,direct injection,powerful and lower fuel consumption
Machine Parts
Name: HST Brand: Domestic Famous Brand Original: KOREA
lower noize and high speed
Main Features
Name: Tension wheel Brand: Domestic Famous Brand Original: China Double-arms type support for tension wheel.
Main Feature:
Name: fuel tank
Brand: Domestic Famous Brand
Original: China
130L fuel tank, enough for one day working, more convenient and higher efficiency.
Main Feature:
Name: Track
Brand: Domestic Famous Brand
Original: China
the track is made from high quality rubber, we promise that recyle of used track never happens
Main Feature:
Name: Opearting System
Brand: Domestic Famous Brand
Original: China
harvest lodged crop, as shown in the picture
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
Size
5450 (L) * 2520 (W) * 2870 (H) mm
Weight
5300kg
Packaging Details
The normal package is steel box(Size: L*W*H). we will use pe film for packing or pack it according to customers special request.
