Product Overview
Description
TI Sitara IDH designed AM335x System-on-Modules Cortex-A8 SoM With 512M DDR3/256M SLC NAND FLASH
Industrial grade SoM
FET335xS system on module was designed based on AM3354 industrial grade processor which tested from -40℃ to +85℃

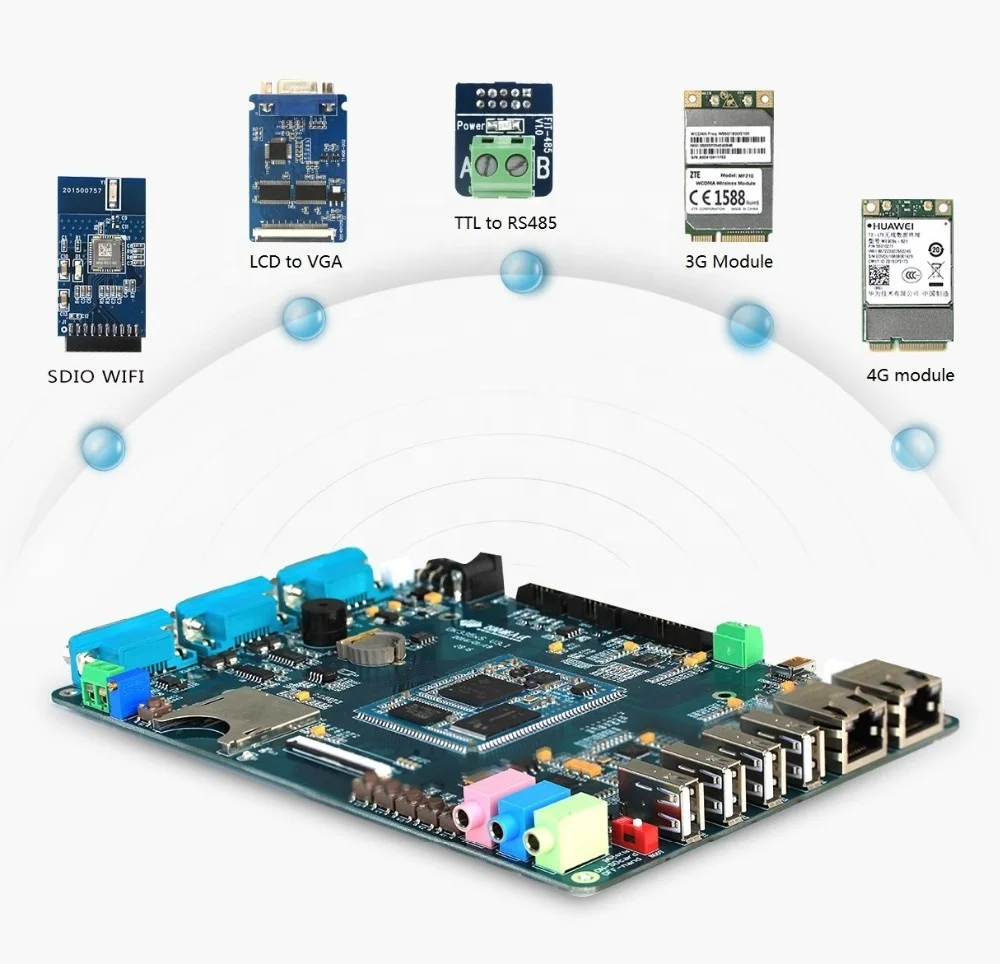

Communication ports are ready-to-use on carrier board

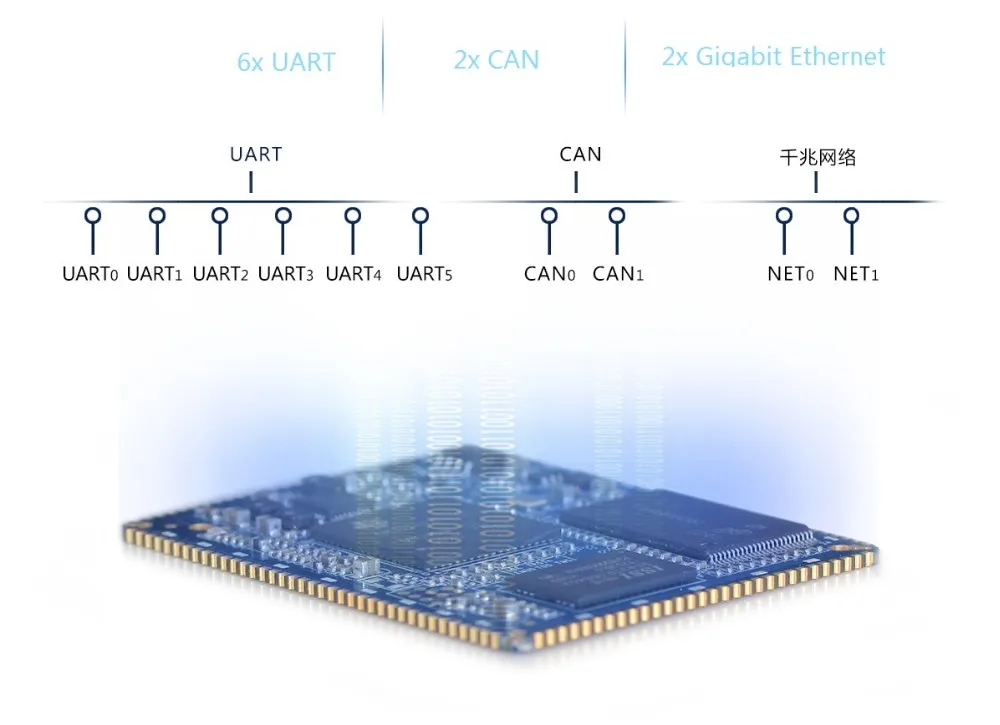

System-on-Modules with 136 pins are all drawn out from CPU, supporting up to 6x UART, 2x CAN, 2x Gigabit Ethernet
Excellent multi-media performance

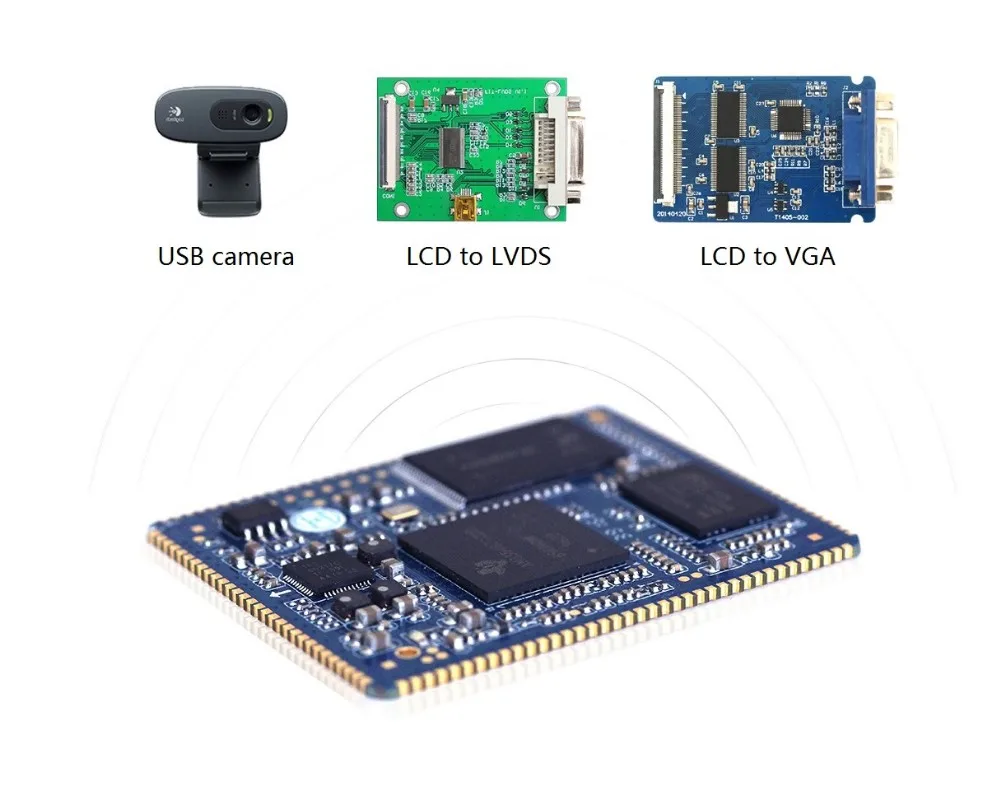

the CPU module FET335xS is supported with RGB 888 LCD, LCD to VGA display and LCD to LVDS display with resolution up to 1366*768. USB camera supported with picture preview, photo taking and video recording
Displays with different sizes and interface types are optional
RGB LCD: 4.3'', 5'', 7'', 8'', 10.4''
LCD to VGA, 7'' LVDS display and 12'' LVDS display are all well supporte
Main Stream OS are all supported
single board computer OK335xS is supported with OS Linux3.2, Android2.3, Android4.2, WinCE7.0, Win CE6.0

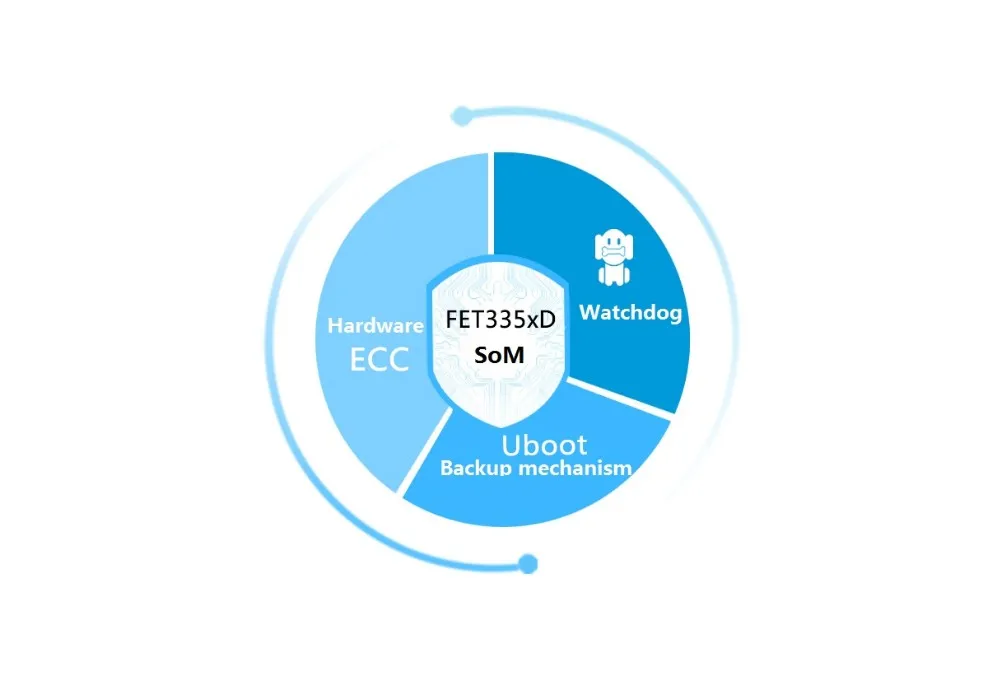

OS running with multiple protection mechanism to allow the board to run stably
the SoM is supported with both hardware watchdog and software watchdog, OS Linux is supported with NAND Flash ECC
exclusively supporting of Uboot backup mechanism to make the system to run stably and smoothly
Hardware
FET335xS Industrial System-on-Module | |||
CPU | TI Sitara AM335x Cortex-A8 processor | I2C | 3-ch |
Architecture | ARMv7 Cortex-A8 | SPI | 2-ch |
Main Frequency | 800MHz | CAN | 1-ch |
RAM | 512M DDR3 | USB HOST | 1-ch USB HOST 2.0 |
FLASH | 256M SLC Nandflash | USB DEVICE | 1-ch USB DEVICE 2.0 |
Temp range | -40℃-+85℃ | SD/MMC/SDIO | 3-ch MMC |
Humidity | 10-90%(Non-condensation) | Ethernet | 2-ch Gb Ethernet port |
Input voltage | 5V | UART/IrDA | 6-ch |
2D/3D | Support | EINT/GPIO | More than 20-ch |
GPU | PowerVRSGX530 | ADC | 7-ch |
PMU | TPS65217C | Video Encoder | Software codec |
Size | 52mm*42mm | JTAG | 1-ch |
Connection type | Half-hole soldering | EEPROM | Support (Only for Encryption) |
OS | Linux3.2/Android4.2/WinCE7.0/WinCE6.0/StarterWare | PWM | 2-ch (1-ch for backlight ) |
LCD | RGB24bit | SATA | None(Suppot USB to SATA) |
Audio | IIS interface |
|
|
OK335xS Industrial Base board | |||
Audio | 3-ch(1-ch phone,1-ch MIC,1-ch line in) | JTAG | 1-ch |
I2C | 1-ch | ADC | 5-ch (4-ch is for resistive touch, 1-ch is for slide rheostat) |
SPI | 1-ch | User key | 5 |
CAN | 1-ch | Boot switch | Set to boot from Nandflash or SD card |
RS485 | 1-ch,multiplexed with Profibus | Reset | 1 |
SD/MMC/SDIO | 1-ch SD card | PWM | 2-ch(1-ch is for LCD backlight,1-ch is for buzzer) |
USB HOST | 4-ch, support USB 2.0 protocol | LED | 1-ch |
USB DEVICE | 1-ch, support USB 2.0 protocol | GPIO | More than 20-ch |
Ethernet | 2-ch gigabit Ethernet port | RTC | Support |
Serial | 4-ch (3-ch RS232, 1-ch TTL) | SATA | Support to connect with USB to SATA module |
Input voltage | 5V | GPS | Support to connect with external GPS module |
LCD | 1-ch, support resistive, capacitive touch screen; support LCD to VGA module, LCD to LVDS module | 3G | Support external AD3812 module(USB) |
Software

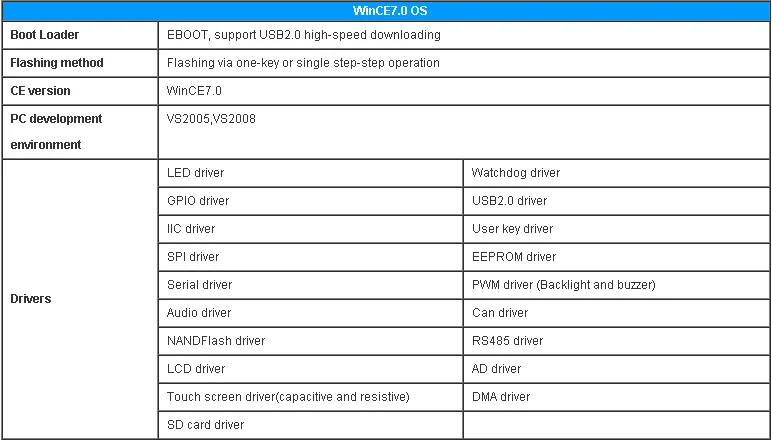

Android2.3/4.2 OS | ||
Android version | Android4.2 | |
Kernel version | Linux-3.2.0 | |
Flashing method | Flashing via one-key or single step-step operation | |
Cross compiler | arm-eabi-4.6 | |
Development environment | Ubuntu12.04.2 | |
Drivers | Ethernet driver | Touch driver(capacitive and resistive) |
LED driver | AD driver | |
LCD driver | RTC driver | |
USB2.0 driver | Audio driver(IIS interface) | |
Watchdog driver | Can driver | |
PWM driver(Backlight and buzzer) | RS485 driver | |
FlashECC | SPI driver | |
NandFlash driver | Serial driver | |
UBI file system | EEPROM driver | |
SD card driver | User key driver | |
LCD FrameBuffer | ||
Linux3.2 OS | ||
U-Boot version | u-boot-2011.09 | |
Kernel version | Linux-3.2.0(open-sourced) | |
Flashing method | Flashing via one-key or single step-step operation | |
Development environment | Ubuntu12.04.2 | |
Drivers | Ethernet driver(Dual1000M/100M) | RTC driver |
LED driver | Audio driver(IIS interface) | |
LCD driver | SPI driver | |
USB2.0 driver | Serial driver | |
PWM driver(Backlight and buzzer) | User key driver | |
FlashECC | EEPROM driver | |
NandFlash driver | Watchdog driver | |
UBI file system | AD driver | |
SD card driver | RS485 driver | |
LCDFrameBuffer | CAN driver | |
Touch driver(capacitive and resistive) | ||
WinCE6.0 OS | ||
BootLoader | EBOOT SD card flashing | |
Flashing method | SD card flashing | |
CE version | WinCE6.0 | |
PC development environment | VS2005 | |
Drivers | LED driver | User key driver |
GPIO driver | RTC driver | |
I2C driver | EBOOT driver | |
SPI driver | NAND Flash driver | |
Serial driver | LCD driver | |
Touch screen driver | Ethernet | |
SD card driver | USB driver | |
DMA driver | Backlight driver | |
Audio driver | AD driver | |
Watchdog driver | PWM driver | |
Packing& Delivery
Generally the SOM could be packed as one pc a box (24*19*10cm), the parcel(s) could be sent out by express/air within 3~5 working days after receipt of full payment.
