*High PrecisionConstant temperature heating system
*Panasonic PLC Control system
*COF Pre-press,contraposition and PCB contraposition and press on the same machine to achieve
*Imported electrical configuration
Model:
OL-DCR006
Product Name:

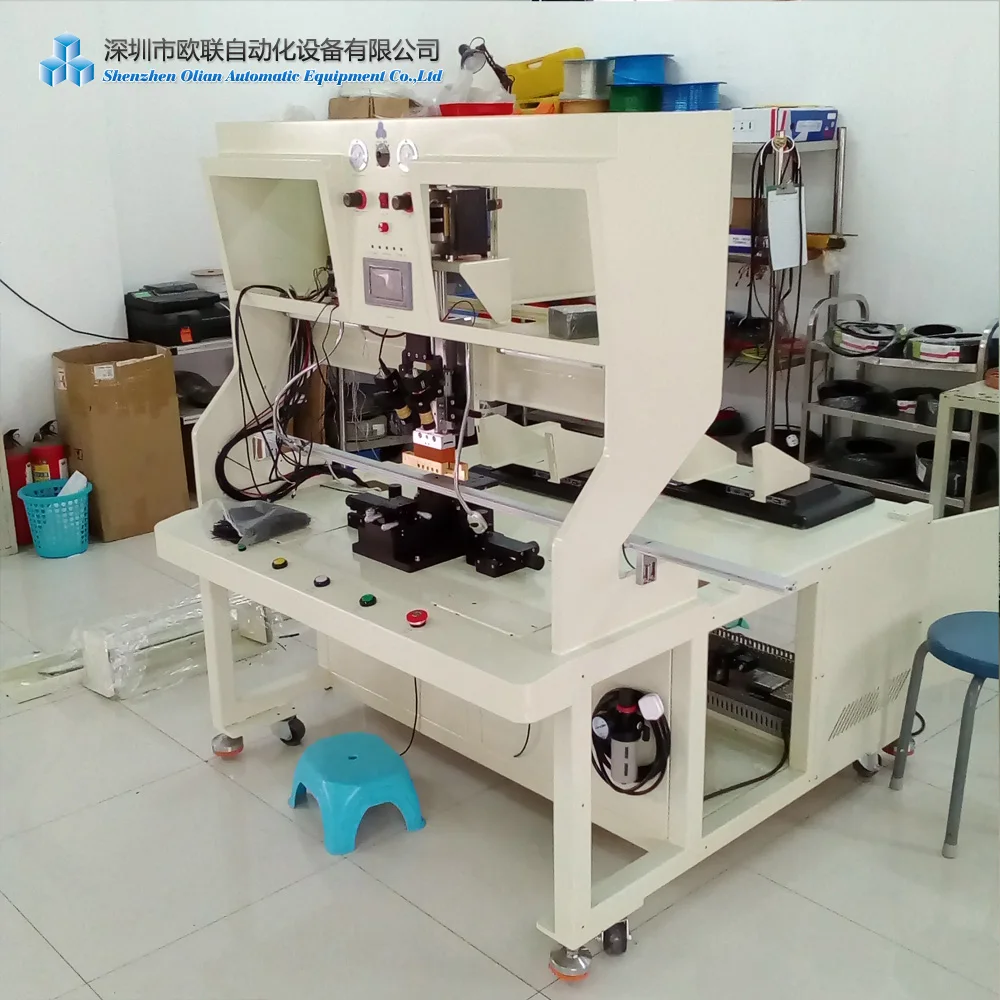

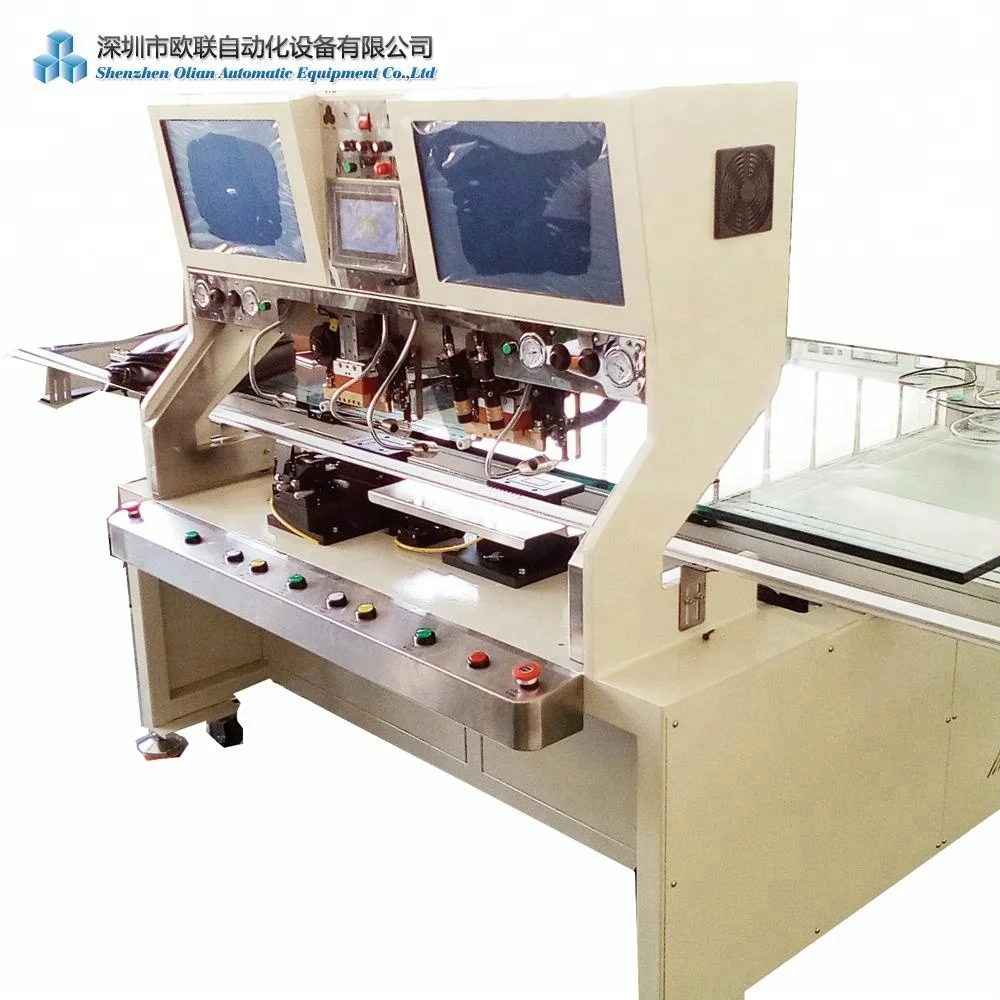

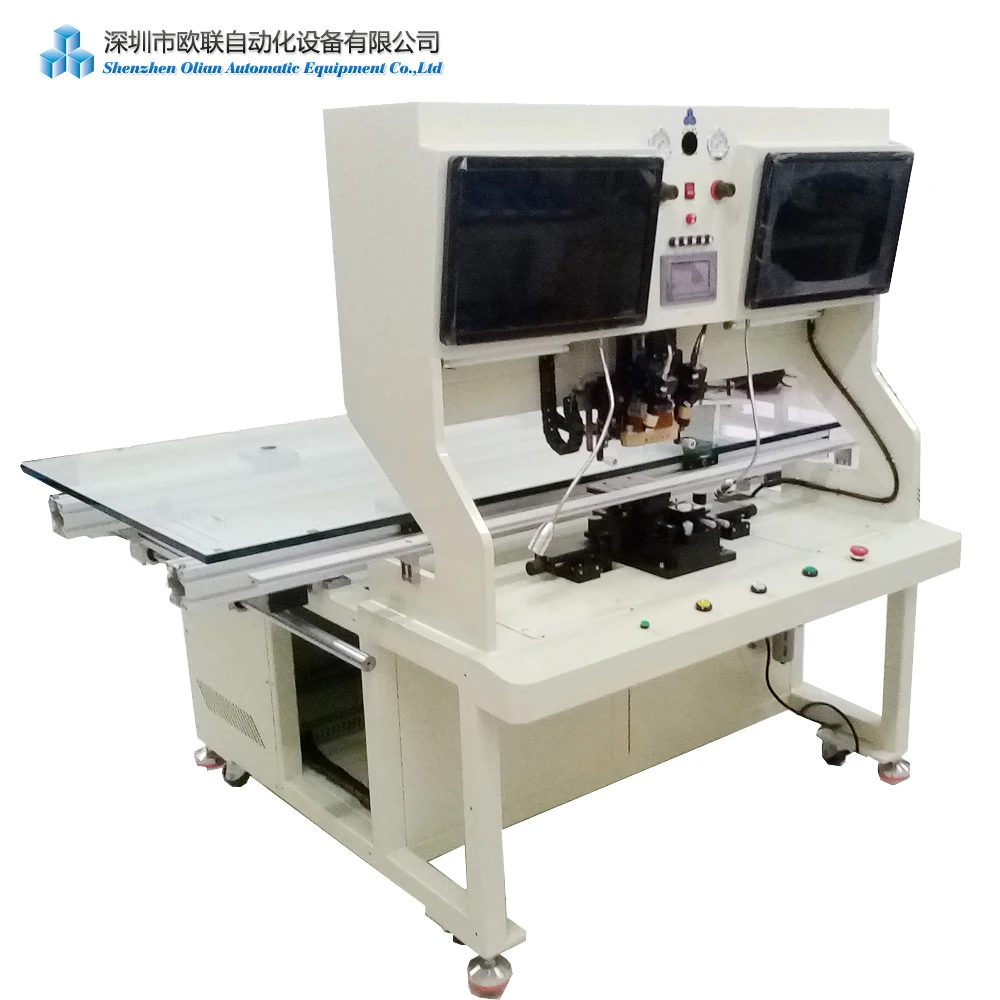

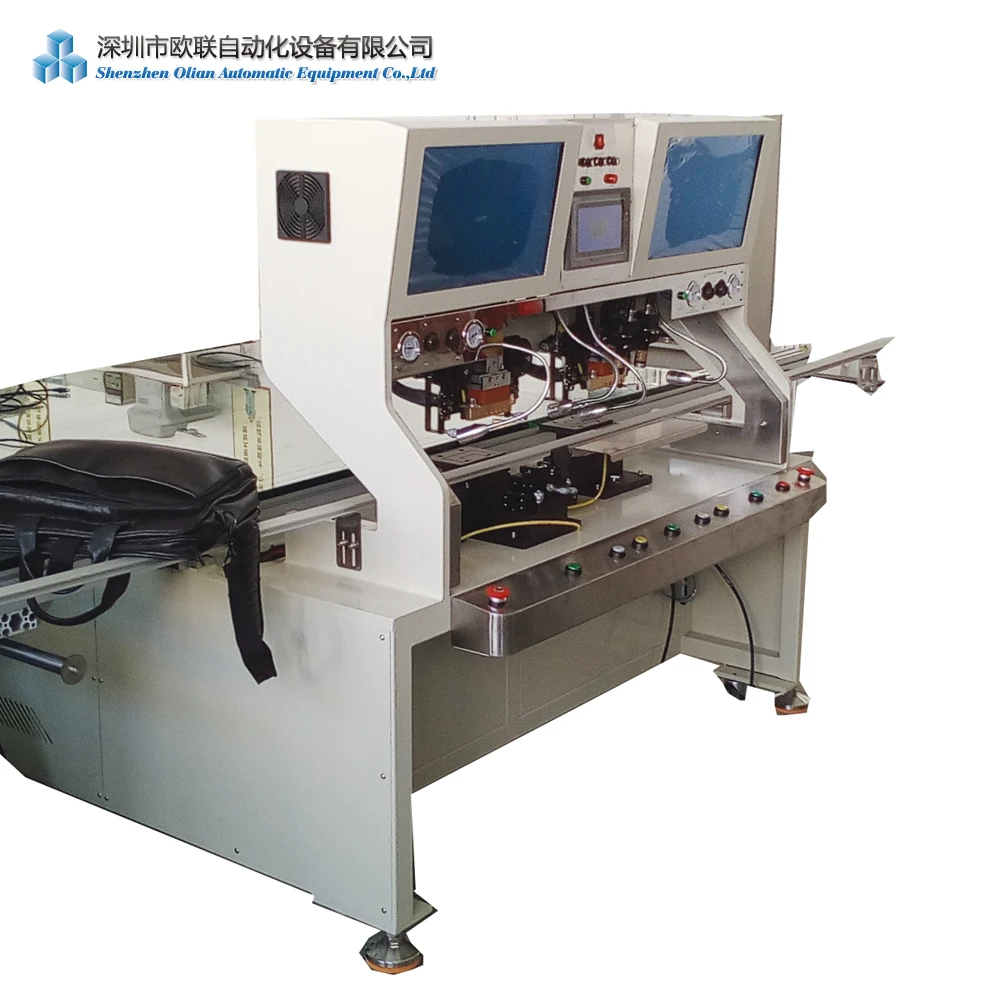

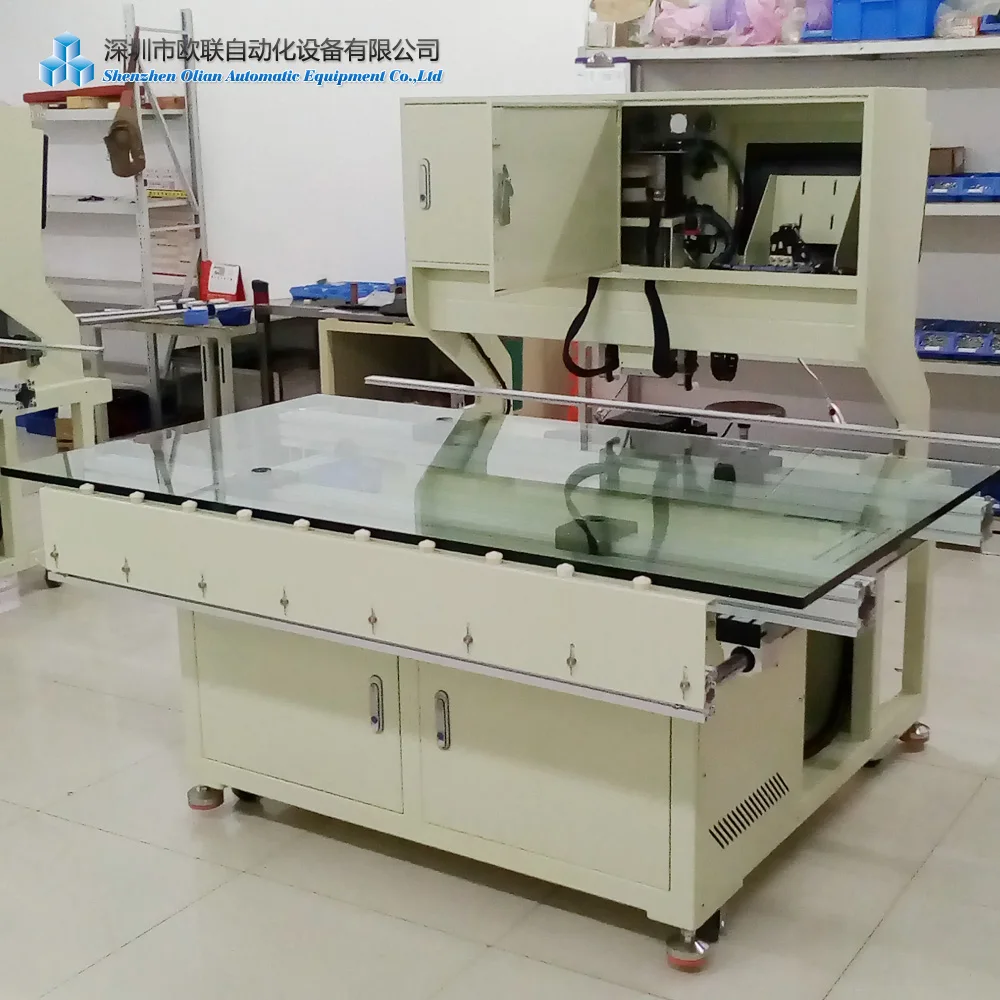

19~42inch COF PCB Manual/Automatic repair machine
Suitable For:
Suitable for COF Contraposition bonded to LCD or PCB which attached ACF,Used for COF repair
Size Range:
19~42inch
Attach Precision:
0.01MM
Process cycle:
13sec/time(10S)
Indenter Qty:
2PCS
CCD qty:
4PCS
Power Supply:
220V±10%,50HZ,1000W
Air Supply:
0.5~0.7MPa,dry air
Pressure Head Size:
60*6MM(customizable)
Temp Range:
1~300℃
Time Range:
1~99.9sec
Product Size:
W1500*D2200*H1700MM
What is the COF
1, The popular explanation:
COF package is to put the IC dependend on FPC: COF package for flip chip film.
2, Professional explanation:
COF is the abbreviation of Chip - on - flex, is to put the IC dependend on FPC,a new technology developed of liquid crystal display module, by it in terms of product size, weight, high integration, have very big breakthrough.Due to the flexible circuit board PCB thickness thin, lighter than the solid, so COF package module is small volume, light weight, and the design and production speed is quickly.
What is the PCB 1, The popular explanation: PCB in Chinese means printed circuit board, printed circuit boards, PCB according to its application fields can be divided into single panel, double panel, four layer board above laminated panel and soft panel. In general, the more complex the function of electronic products, foot loop the longer the distance, contact number, the more PCB layer number is more, such as advanced consumer electronics, information and communication products, etc.; And soft board is mainly used in need around the bend products: such as notebook computer, camera, automobile instrument, etc. 2, Professional explanation:
PCB is a Printed Circuit Board, is an important electronic components, electronic components to support the body, theprovider of the electrical connection in the electronic components. Since it is made of electronic printing, therefore is called "printed circuit board.
What is the TAB/FOB bonding equipment?
1, The popular explanation:
TAB/FOB bonding equipment referred to as "state machine" "hot press," using hair heat pipe heating and heating of the pulse source, mainly used in the process of LCD module production and maintenance of FPC, COF package, attached with a TAB with LCD and PCB after ACF combination states. Using the pressure head, pressure, pressure head temperature time, optical alignment system to make ?FPC with LCD and PCB after connection of ACF glue bonding curing conductive.
2, Professional explanation:
TAB/FOB bonding equipment is the most widely used in LCD assembly process of a device, its main function is to ITO on the LCD panel and ACF, FPC between a mechanical and electrical connection.
What is ACF?
1, The common explanation:
ACF is anisotropic conductive film, a kind of material in the bonding process to be used in capacitive screen, resistive screen, touch screen, LCD screen, tablet PC, mobile phone screens, etc.Means a resin film containing a heat-conductive particles of a thermoplastic or cured. Mainly for LCD panel signal transmission link with the driver IC, the need to bonding different interface to choose suitable conductive particles and density, generally used for fine pitch of the conductive particles having a diameter of about 3 ~ 5 um.
2, Professional explanation:
The English abbreviation of ACF is Anisotropic Conductive Film, ACF is the electrical conduction in the Z-axis direction and the XY insulation resistance characteristic plane has obvious differences. When the difference between Z-axis and the XY plane on-resistance value of the insulation resistance exceeds a predetermined ratio, also can be called well anisotropic conductivity.
What is the ACF equipment
1, The popular explanation:
ACF device is also called "ACF attached machine", "ACF preloading machine", "ACF state machine", USE heat pipe heating mode, half cylinder to push the blade to cut off the ACF protection from type membrane, cylinder from viscose mold plastic, according to the ACF and different models to choose corresponding attached time, output value, corresponding to the pressure head cylinder according to the attached with a length of stepper motor feed, the ACF stickers on LCD (LCD), touch screen glass (TP), a FILM on the SENSOR.FOG is mainly used in LCD module, touch screen, COG in the process of production and maintenance of FPC, COF package, TAB, IC and LCD and PCB combination states.ACF attached machine is divided into semi-automatic and fully automatic, semi-automatic which requires human to cooperate to complete, fully automated equipment to complete the process by itself.ACF attached machine has single period and several attached machine .ACF attached machine is suitable for the card of various width of ACF in TP, or PCB, LCD, used in the TAB, COG LCD module production or high density FPC connection with the PCB.
2, Professional explanation:
ACF is Anisotropic Conductive Film, the guide Film), ACF bonding technology is to use the ACF, directional Conductive Film), IC, or integrated circuit by preloading depended on the LCD glass substrate. If you want to make the IC, or integrated circuit between the glass and well connected with the line, you need to through the integrated circuit and tiny MARK point on the glass substrate, very accurate positioning. The current way of positioning are mainly by installing on the device's camera and monitor, the human eye to find a place to MARK, and manually adjust the slider position, complete orientation.
About 19~42inch COF PCB Manual/Automatic repair machine keywards
According to the different application and promotion of COF bonding equipment(pre-press) ,they are many keywords: Bonding machine, pressing machine, COF pressing machine, COF bonding machine, LCD screen repair machines, COF pressing equipment,thermostat bonding machine, constant temperature hot bonding machines, small and medium-size LCD screen bonding machine, LCM Pradesh machines, modular hot bonding machine, LCD COF bonding machine, cable bonding machines, cable bonding equipment, COF pressure IC devices, COF thermostat pressing machine, COF IC thermostatic pressure machine, COF thermostat The laminate machine, LCD IC pressing machine , COF thermostatic pressing equipment, COF thermostatic pressure IC devices, COF bonding machine customization process, COF crimping machine, COF thermostatic The pressure equipment,, IC bonding machine , IC bonding equipment, IC pressing machine, LCD bonding machine, modular bonding machines, LCD bonding machine, LCD screen pressing machine, LCD pressing machine, COF heated process equipment, COF thermostatic pressure IC devices, IC constant temperature bonding machine, IC thermostat bonding equipment and so on.
