Motor Drive Unit Type CMA9 of on load tap changer for transformer
- Category: >>>
- Supplier: Ningbo Ville Electric Co. Ltd.
Share on (60634072416):
Product Overview
Description
MOTOR DRIVE UNIT TYPE CMA9 of Transformer on-load tap changer
General

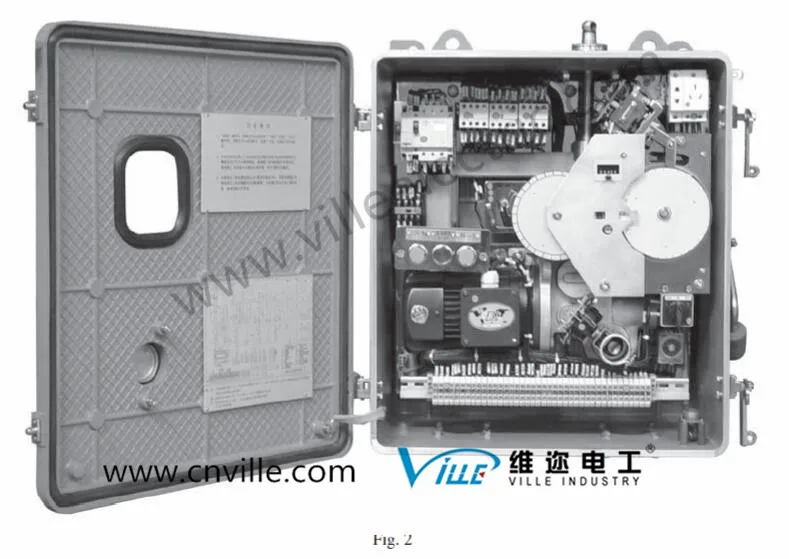

The motor drive CMA9 (fig.1, 2) serves for driving the tap changer type CV to selected operating position. It also can be used for some off-load tap changers. The motor drive housing contains all mechanical and electrical parts necessary for operating the tap changer from one operating position to an adjacent one, the motor drive action is initiated by a single control signal and completed without any possible interruption. Overrunning the end positions is prevented by double limits devices. Safety and monitoring devices are availble with easy operation. Auxiliary devices can be provided for various application requirement and retrofit project.
Note: The installation of motor drive, electrical connection and operation must be carried out by the trained personnel according to the operating instructions. To replace or change the motor drive without permission of our company is not recommended. Failing to do so may cause severe damage to tap changer and transformer.
During the period of installation of motor drive, electrical connection and operation, improper
operation may have influence on the operation of motor drive, on-load tap changer and transformer.

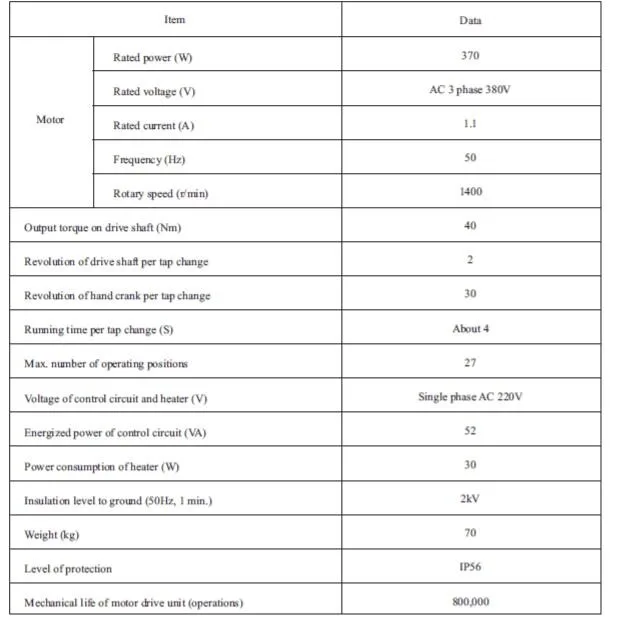

Main technical data
Note: The listed technical data only applies to standard design, there might be some differences with actual device, we reserve the right to make modification.
Working condition of motor drive unit:
1) Applied altitude shall not exceed 2000 meters.
2) The ambient temperature shall be 25~ 40 .
3) Vertical inclination of installation shall not exceed 2%.
4) Operation site should be free of dust,explosive or corrosive gases.
NOTICE TO USE AND ORDER
Customer and end-user should record the operation and inspection of the tap changer. In case of special
condition, please contact with us and give us your report for data collecting purposes that we can give you
possibly further recommendations for your next inspection.
After the OLTC sold out from the factory within 18 months, in case of any damage or malfunction of the
OLTC due to the manufacturing quality encountered by the customer or end-user under the regulations of
storage and application, we can give you inspection and repair work without charges.
Generally the provided cable lead for the indicator is 30M. Please specify your special requirement when
you give your order.
WARMLY WELCOME YOU TO GIVE US COMMENT AND SUGGESTION FOR OUR
PRODUCTS. THANK YOU FOR YOUR SUPPORT AND COORDINATION.
WE WOULD LIKE TO PROVIDE OUR CUSTOMER WITH HIGH QUALITY PRODUCT,
EXCELLENT SERVICE AND PREFERENTIAL PRICE.

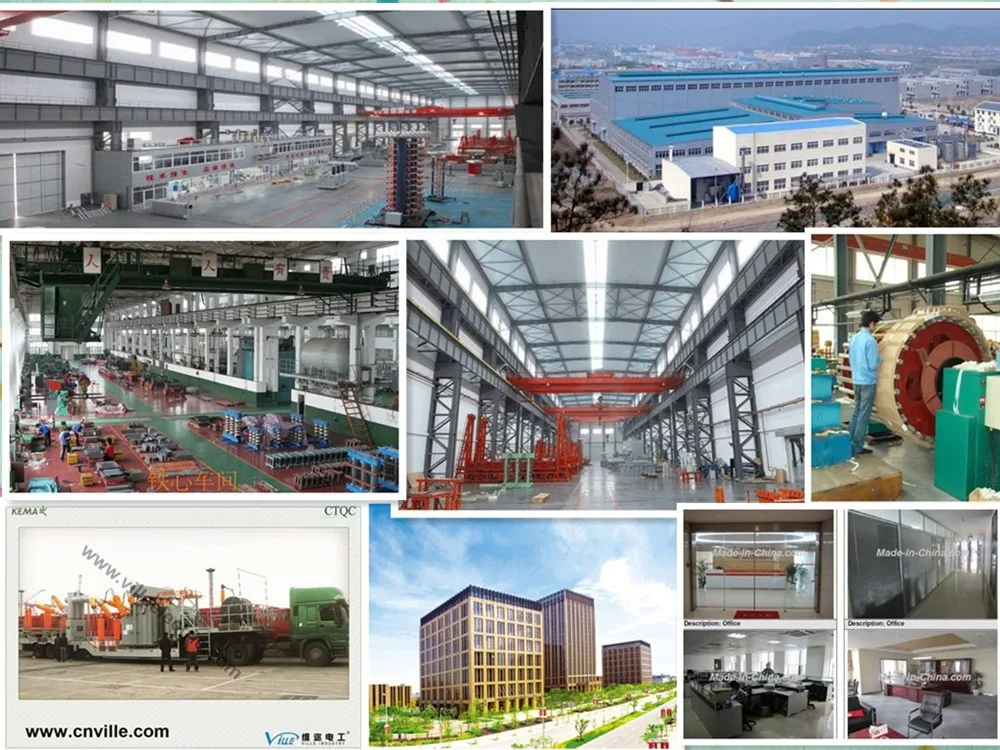

Company Information
