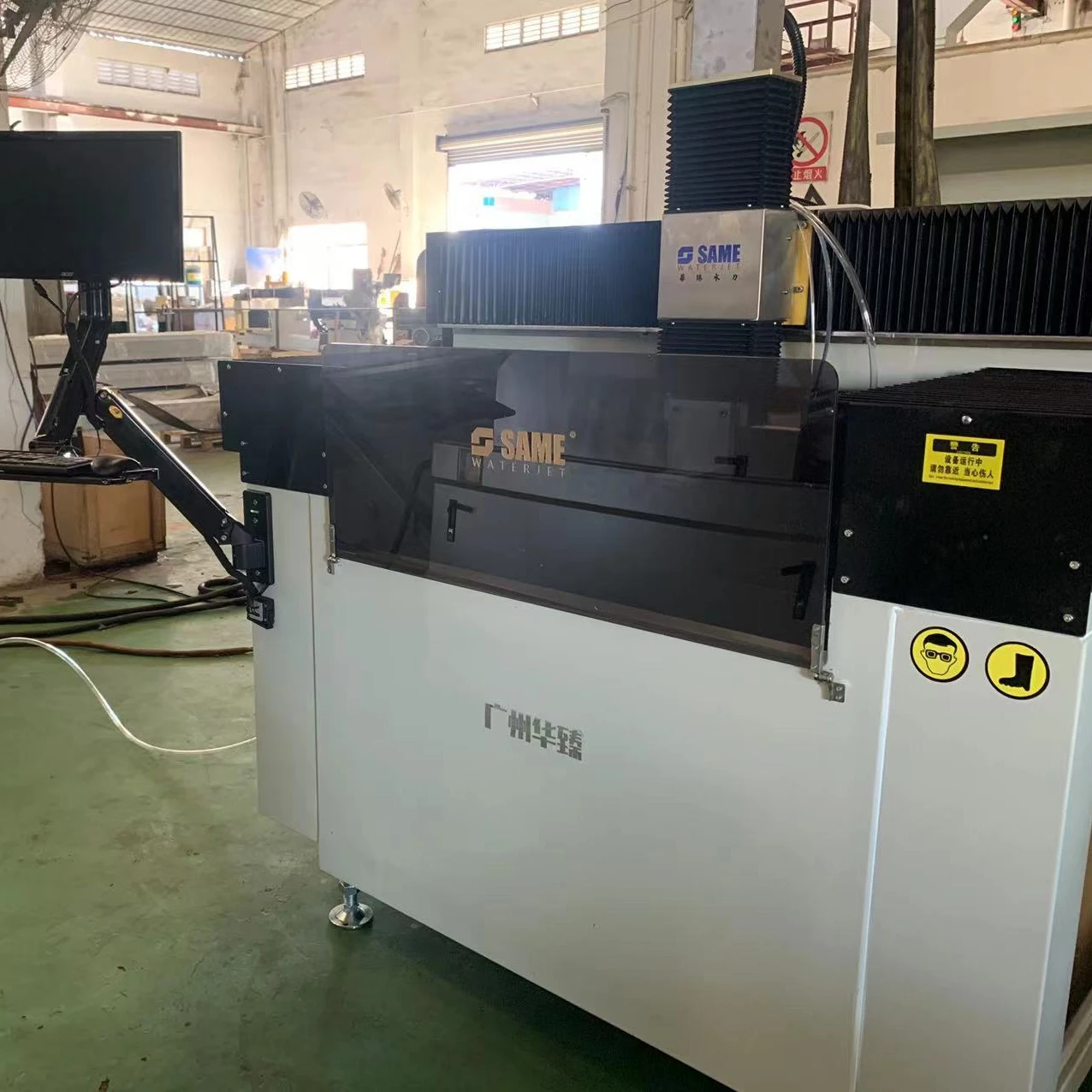

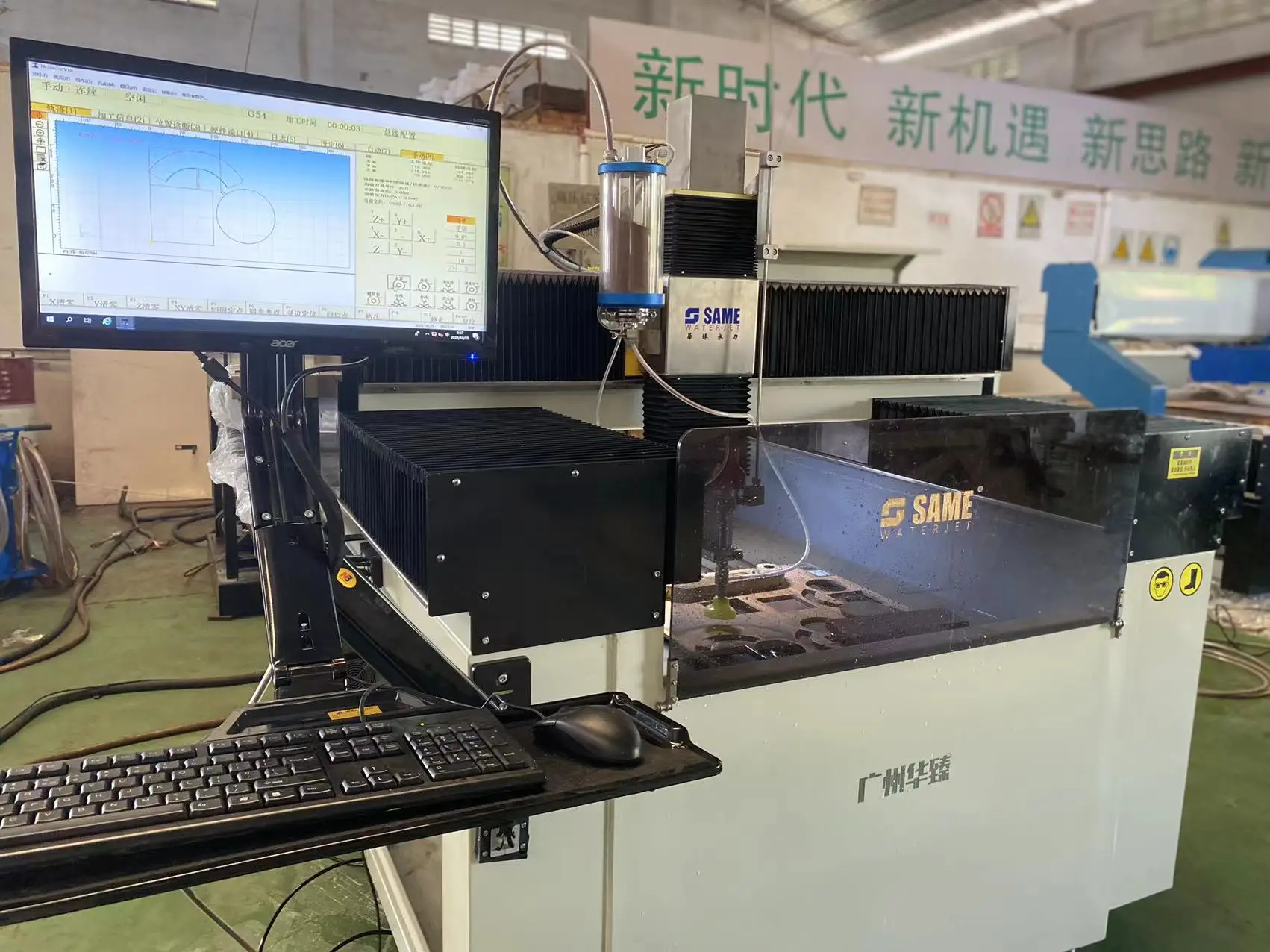

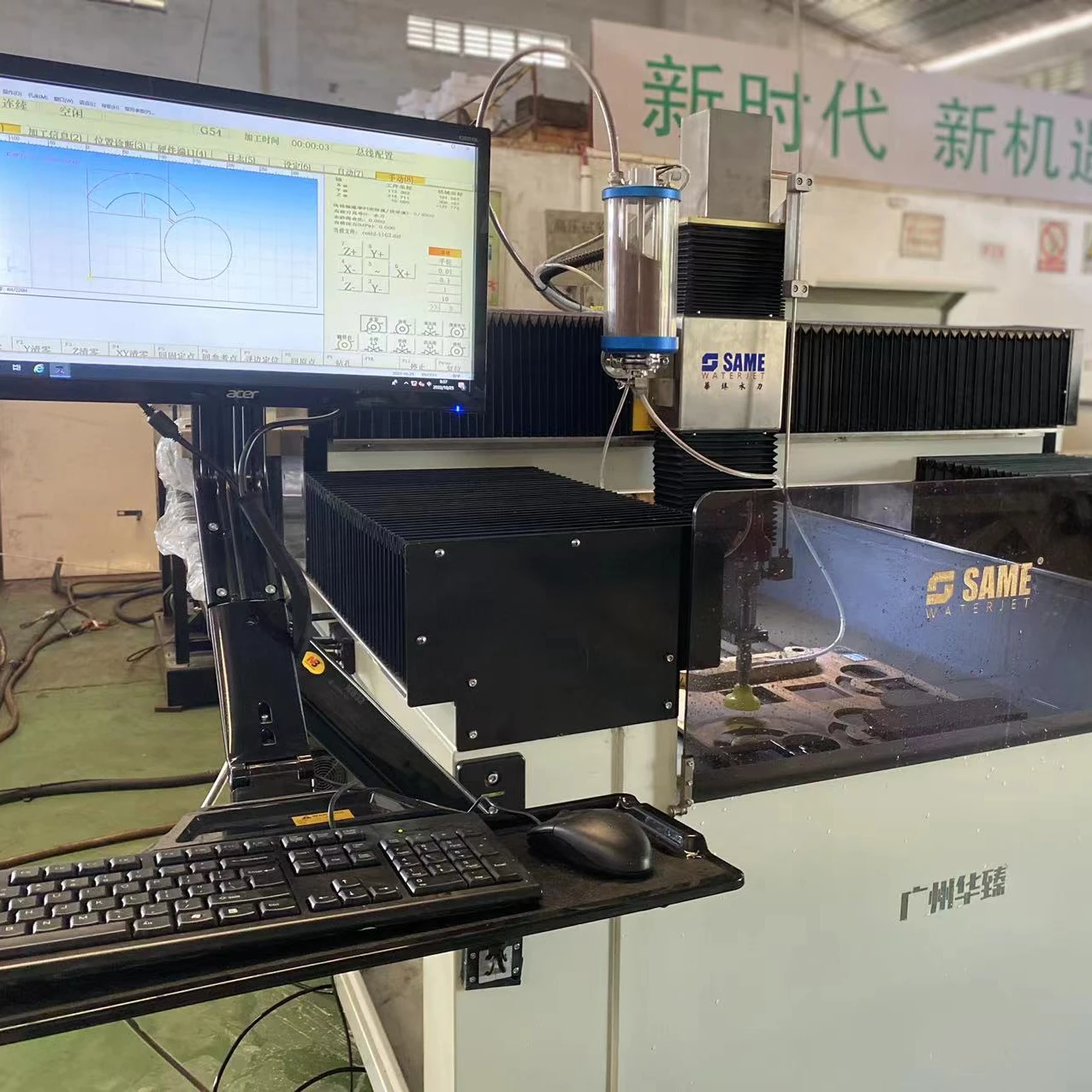

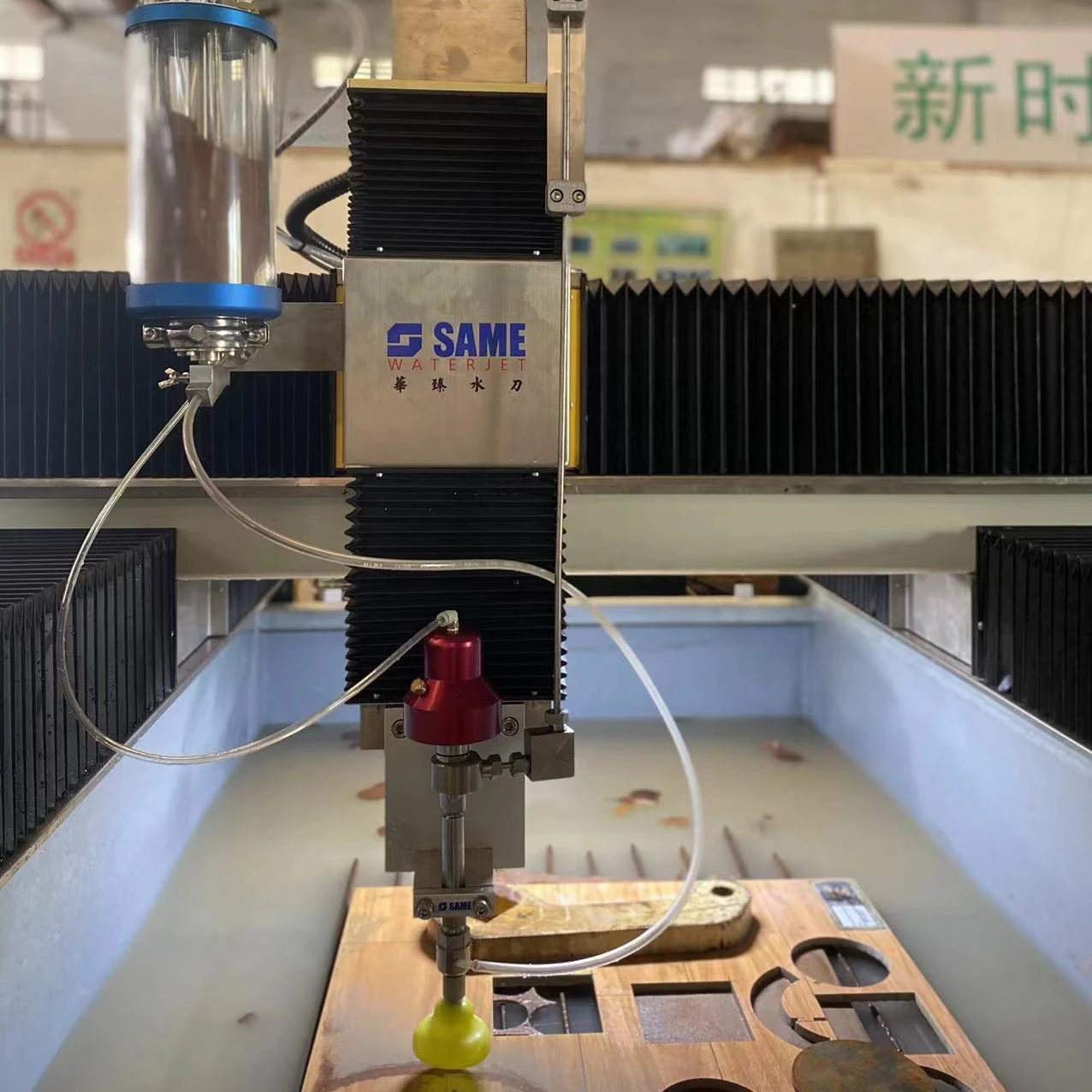

Mini CNC Waterjet Cutting Machine
- Category: >>>
- Supplier: Guangzhou Sino Acheive Mechanical Equipment Co. Ltd.
Share on (60634154276):
Product Overview
Description
Products Description

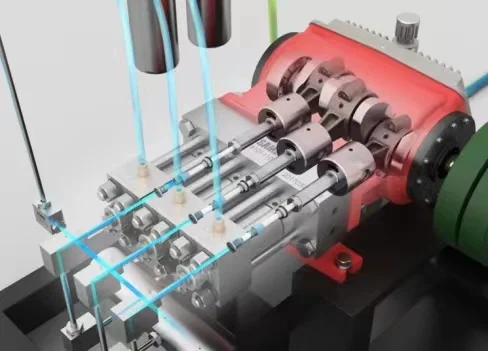

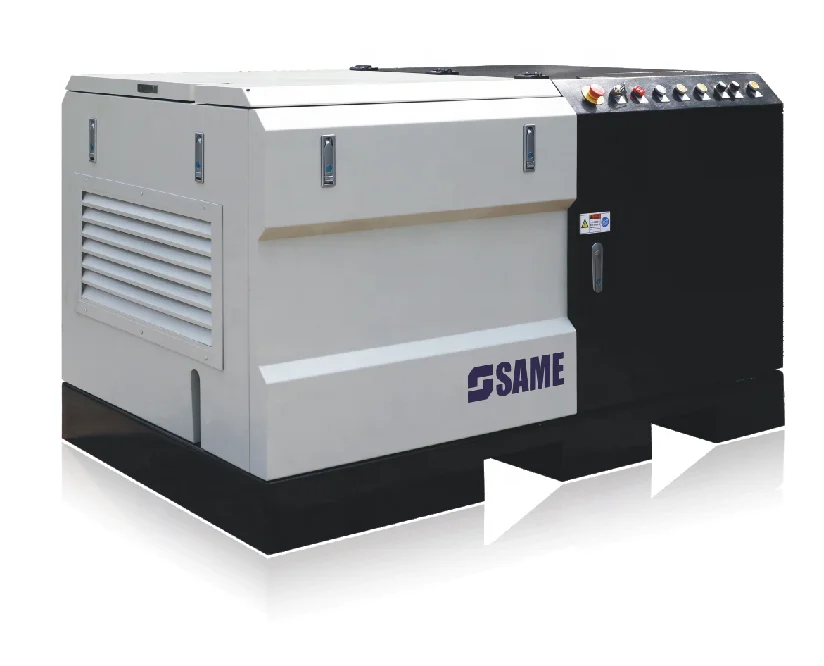

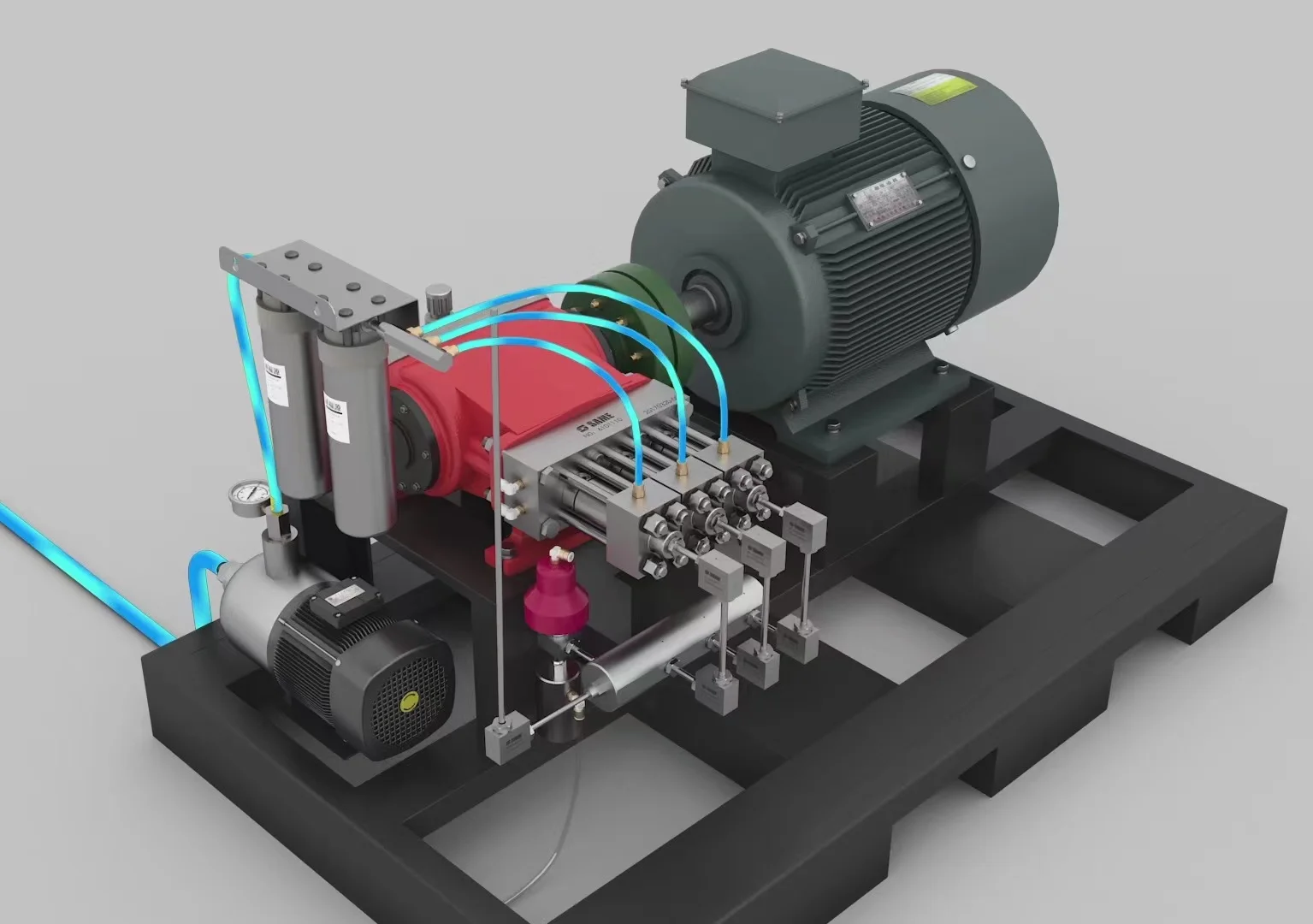

HJ400 Direct-Drive PUMP | ||
Dimension(L*W*H) | 1600*980mm*950mm | |
Power rate | 18.5kw/25hp | |
Max. pressure | 400Mpa /4000bar | |
Working pressure | 200-300Mpa | |
Power supply | 380V 50hz | |
Max.Flow rate | 4L/MIN | |

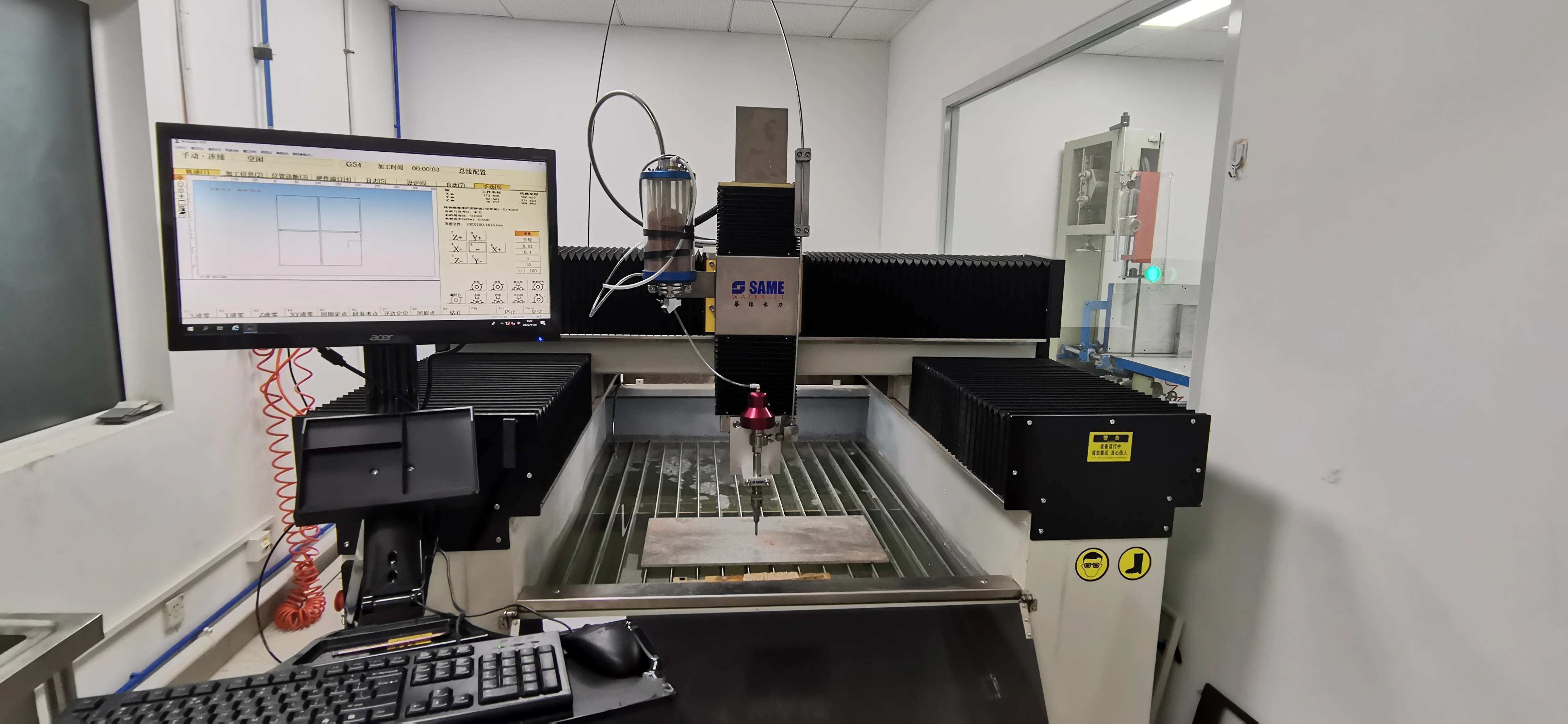

Cutting table | ||
Dimension(L*W*H) | 1880*1500mm | |
Max .CUTTING RANGE | 650*650mm | |
Control accuracy | ±0.01mm | |
Cutting accuracy | ±0.1mm | |
Max.Moving speed | 30000mm/min | |

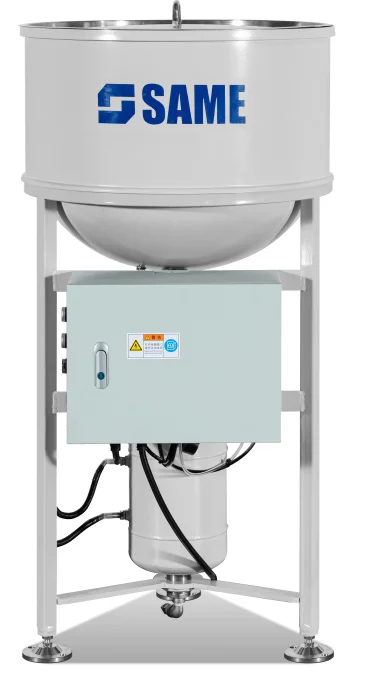

Auto Abrasive Feeding System | Auto Abrasive Feeding System | |
Dimension(L*W*H) | 600mm*600mm*1400mm | |
Weight | 43kg | |
Max.capacity | 200kg | |
Max. air pressure supply | 0.2Mpa | |
Voltage | 24V | |
Power rate | 30W | |
Packing & Delivery
Packing Details : water jet cutting machine in wooden packing ,water-proof , All way well protection
1. Special logistics packaging
2. Suitable carton size
3. All way well protection
After-sale service
1. Training personnel for operation and maintenance of equipment, make sure customers know and master the principle, skills of operate and maintenance SAME waterjet.
2. Providing the equipment installation and commissioning, 12 months (or 2000 hours) warranty period, except spare parts.
.
5. Upgrading new products and new technologies with discount price.
Our Company

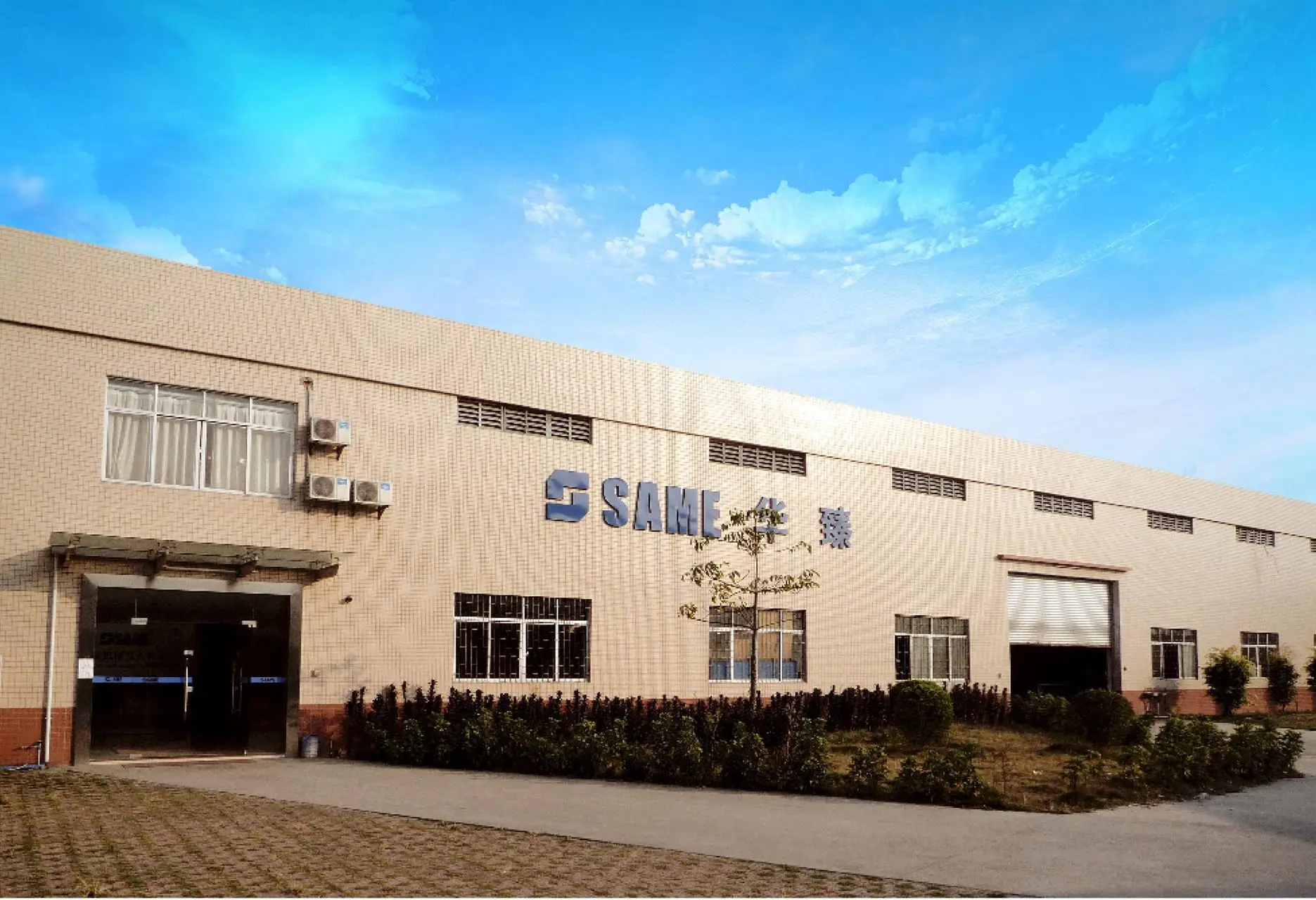

Company Profile
* SAME Waterjet Co. focusing on waterjet cutting machines and waterjet parts developing and Manufacturing since 1997, with more than 24 years of experience to help customers on any kind of waterjet cutting projects.
* SAME waterjet CO. is one of the 5 members who made the Chinese national standard of Ultra-high pressure waterjet cutting
machines.
* We have offered machines to more than 80 countries and area. You can get machines or service from our partners in Germany, theUSA, Saudi Abrasive, Australia,Mexico and Malaysia.
* English Speaking technicians for after-sales support online or at-site.
Our Certifications
FAQ
Cutting speed
Cutting speed effected by materials and cutting requirement, and customers can adjust speed parameters.
Thickness
water jet can cut very thin and up to 150mm (sometimes more) of any metal, glass, stone, composite, etc.
Laser cuts very thin and up to 20mm.
Plasma cuts from about 25mm up to 30mm.
Laser cuts very thin and up to 20mm.
Plasma cuts from about 25mm up to 30mm.
