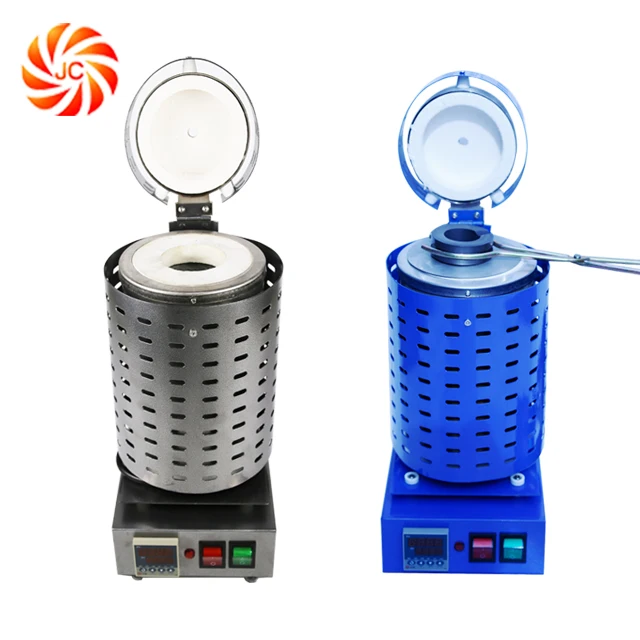

3KG Gold Melting Smelting Kit Machine Furnace Set Kiln
- Category: >>>
- Supplier: Zibo JC Eco-Tech Co. Ltd.
Share on (60634215676):
Product Overview
Description
Product Description

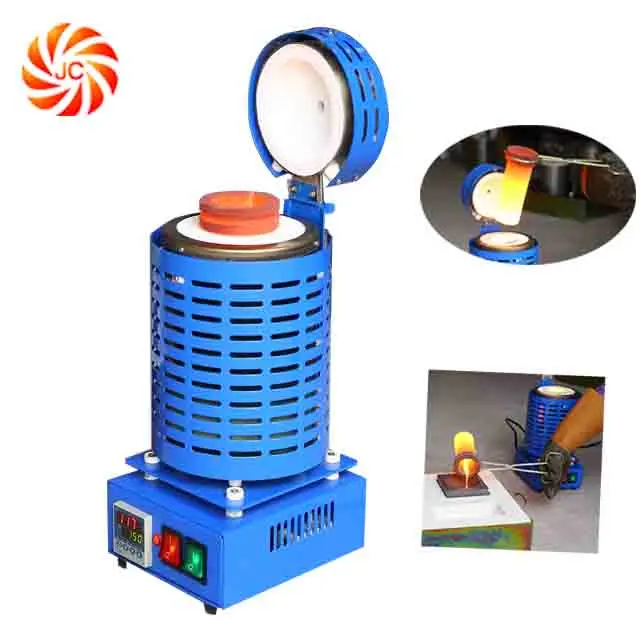

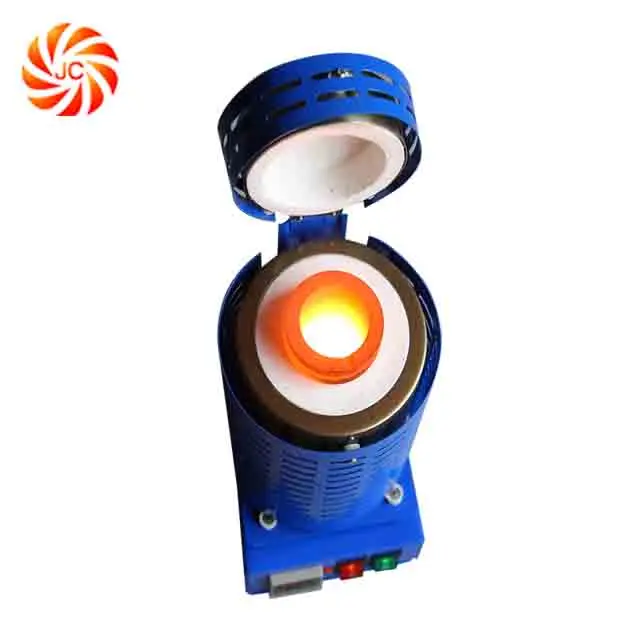

3KG Gold Melting Smelting Kit Machine Furnace Set Kiln

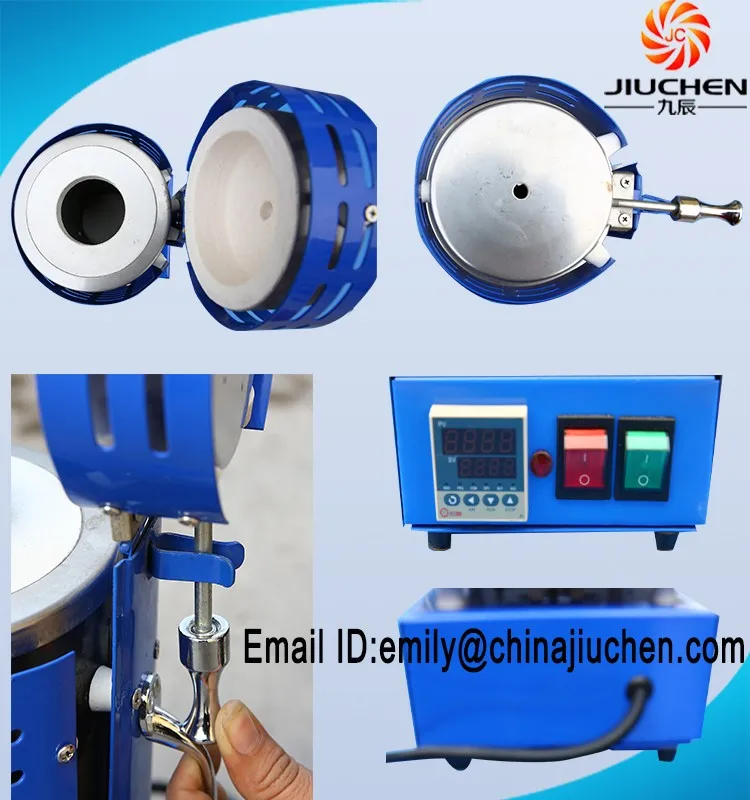

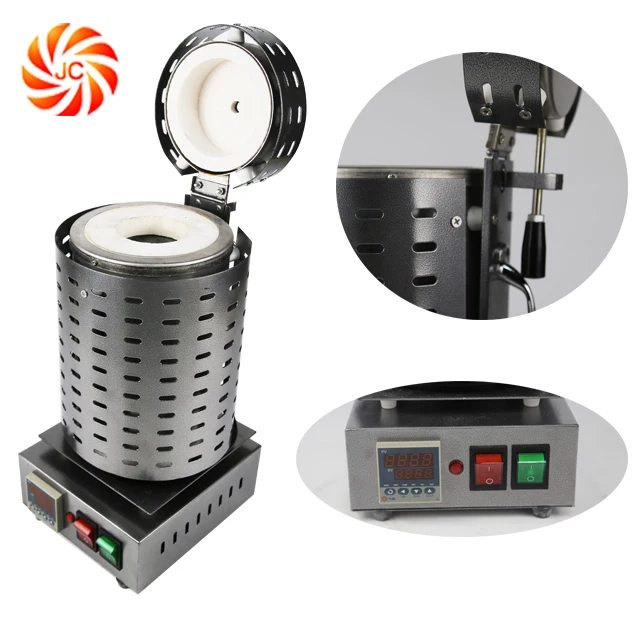

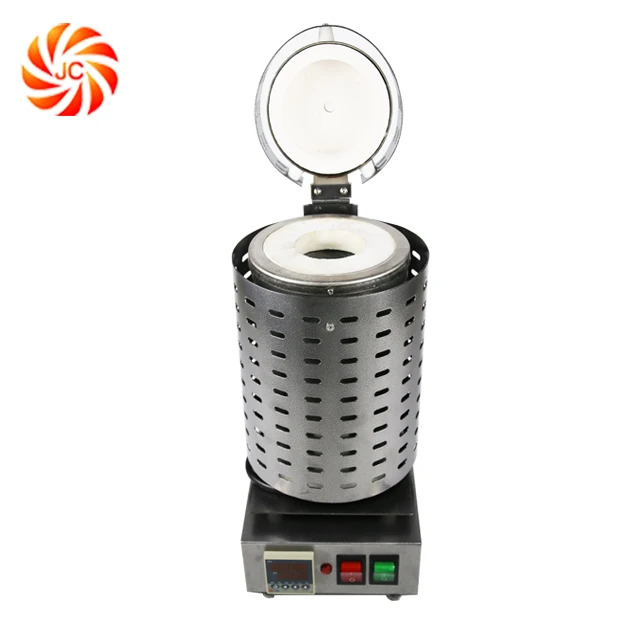

JC-K-220-2 Electric Furnace It comes with durable construction and made of double walled stainless steel. For enhanced thermal efficiency ceramic fiber is used between outer and inner chambers.
The temperature is regulated by a microprocessor based digital controller which ensures temperature stability of +/-1°C.
For safe operation of the equipment, over temperature controller protects the heating elements.
Heating elements are easy to replace, made of international standard quality material and fluxes resistant.

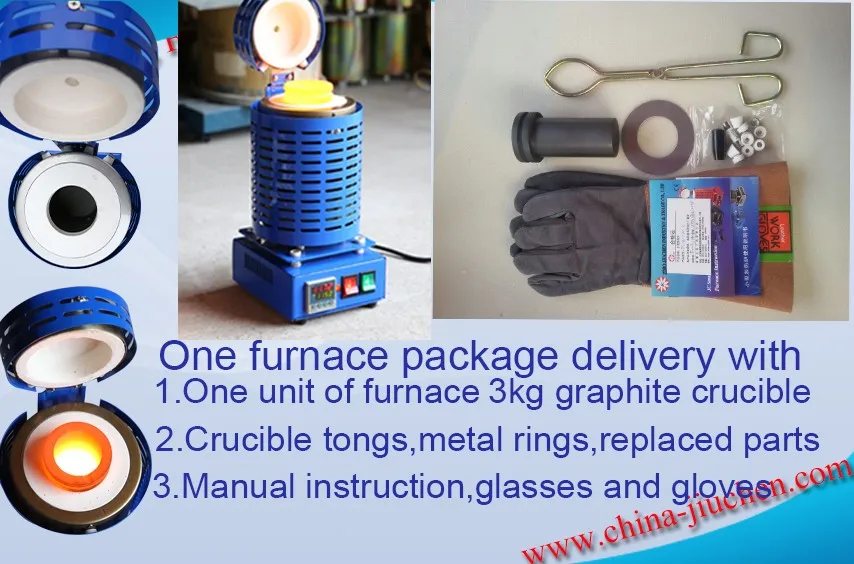

Model JC-K-220-2(220V 1.5kw) Red,Blue ,Gray color is optional
1-3kg graphite crucible
1-crucible tongs.
1-replacement fuse.
1-insulating heat glasses.
1- gloves.
Efficiently melt non-ferrous alloys for casting and ingot-pouring. Simply lift out the crucible with the supplied tongs and easily pour the molten metal--no need to lift a heavy melting unit! Imported for Rio Grande.
• Brushed steel and powder-coated steel housing for long shop life.
• LED display with touch pad digital readout allows precision temperature control to 2,192°F (1,200°C); reads in Fahrenheit).
• Insulated lid holds heat in, keeps oxygen out for a cleaner melt.
• The grooved graphite crucible is designed for easy removal from the furnace using specially designed crucible tongs (included).
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
| \t | \t |
Products Show

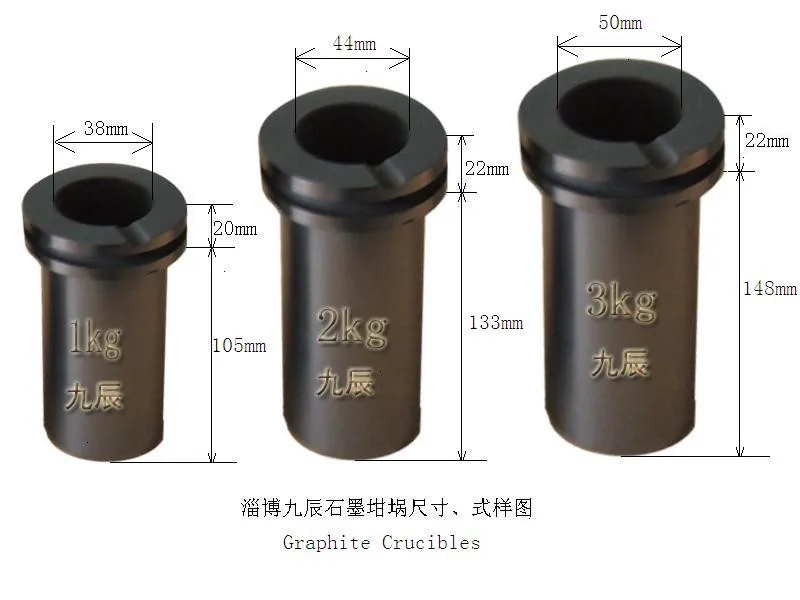

Graphite Crucible

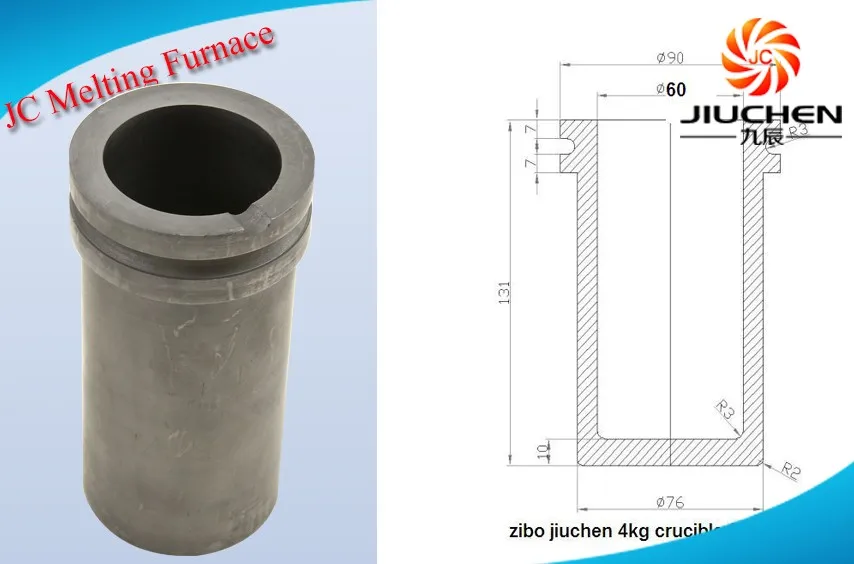

1kg 2kg 3kg Graphite Crucible dimension 4kg Graphite Crucible dimension
Furnace Instruction
1. Power Supply
1) There are 110V,220V and 380V three kinds of AC working voltage provided,
be sure your local working voltage should be matched before using the melt.
2) The power switch should be in OFF state
3) The indicator light of temp meter will turn on after power supplied and turn the green switch into ON state.
2. Temperature Setting.
The temp meter will display the setting value 1150°C (SV) and the
mini-furnace inside actual temp (PV) after power supplied.
3. Working State
A. Put the material into the crucible and set into the melter, close the cover.
B. Turn the red switch into ON state, the melter begins to work,
the meter indicator light will turn on.
C.The temp control meter will automatically control the melter.
4.Power off.
Turn off the red switch into OFF state first, then turn off green switch.
Operation Instructio
Temperature Setting

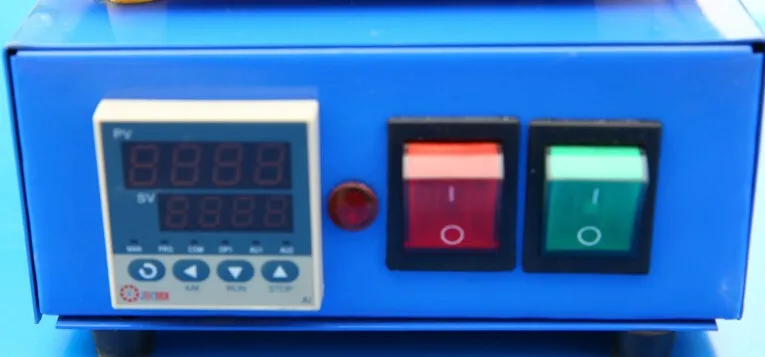

The thermostat has two digital read-outs: the bottom readout (SV) displays the setting you enter into the furnace. The top read-out (PV) displays the actual temperature inside the crucible during operation.
Temperature Setting
To set the desired melting temperature, turn on green on/off switch. Wait a few seconds; the bottom (SV) readout should show the default temperature setting of 1950°F.
To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.
To change the temperature setting, simply press the left arrow key to move the cursor to the proper desired digit and press the up or down keys to adjust it up or down. Adjust each digit to the desired setting.

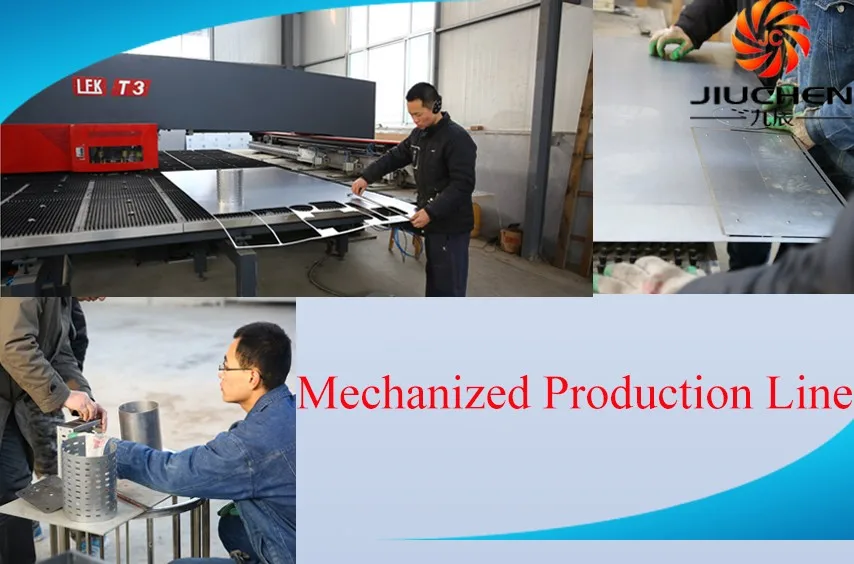

Production Line

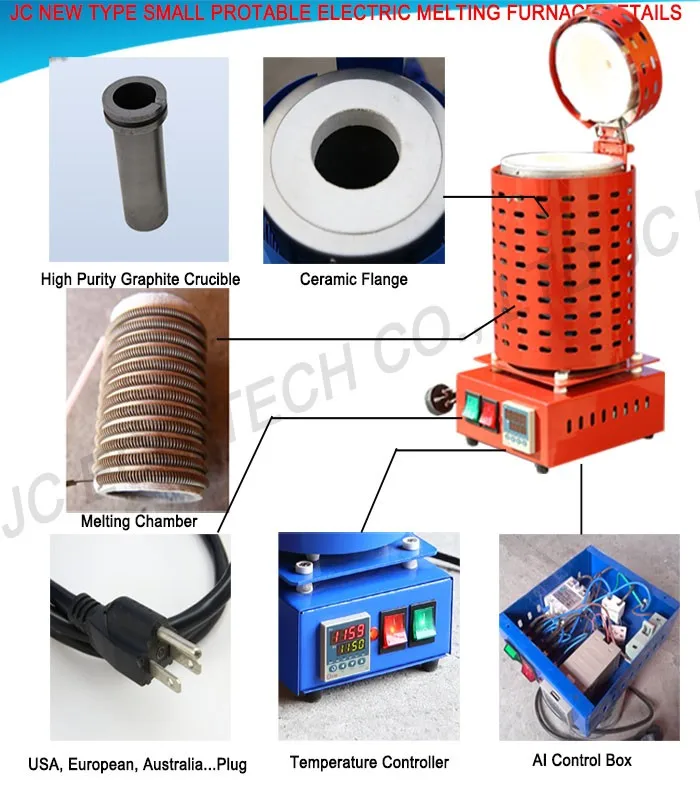

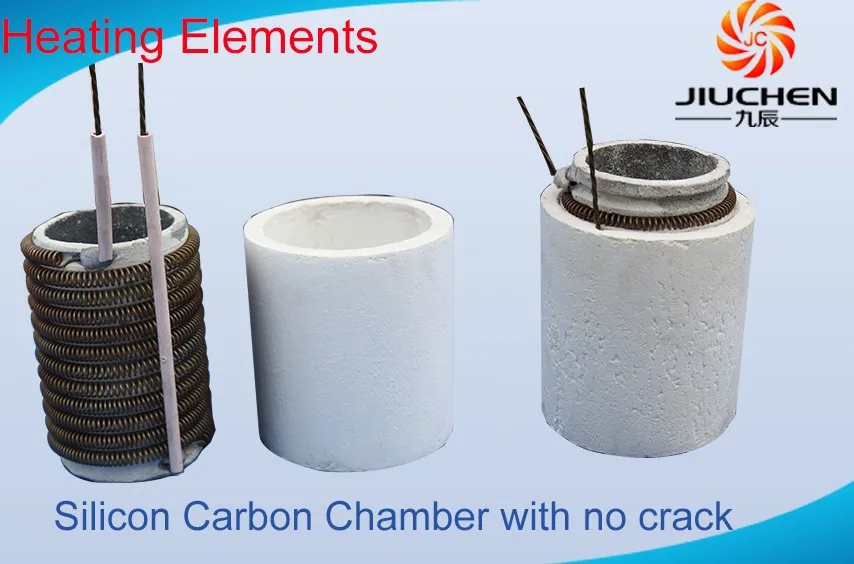

Heating Elements

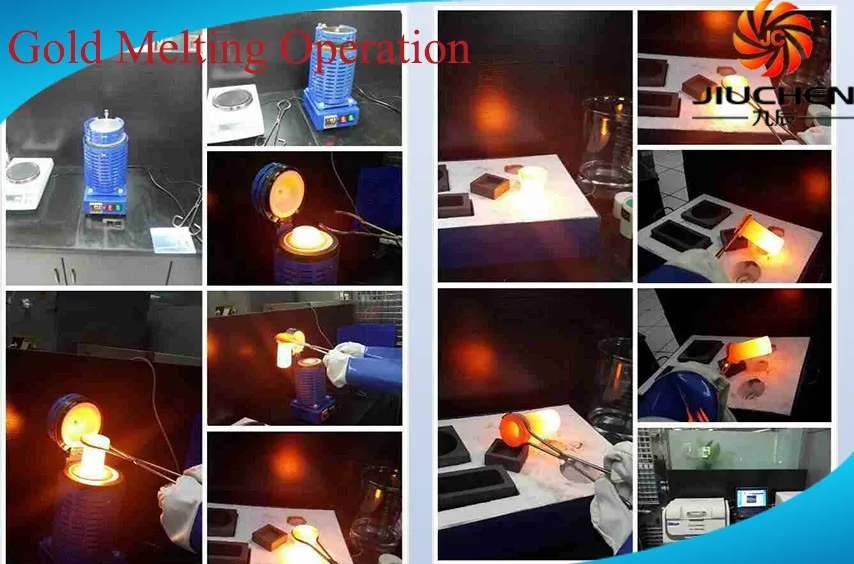

Operation
Smelting

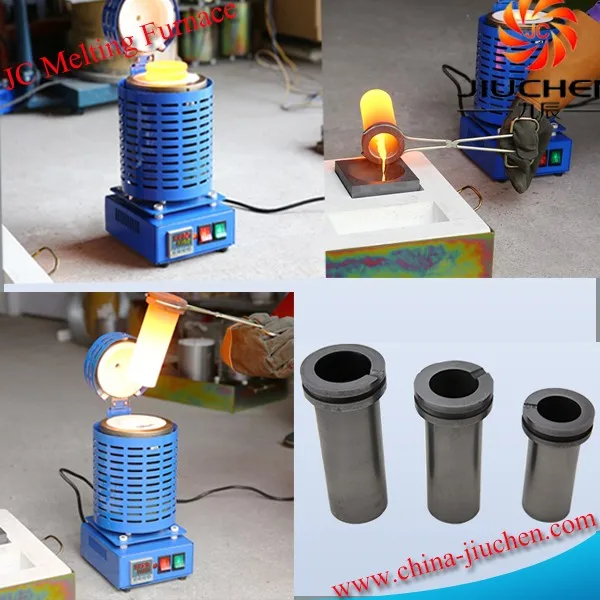

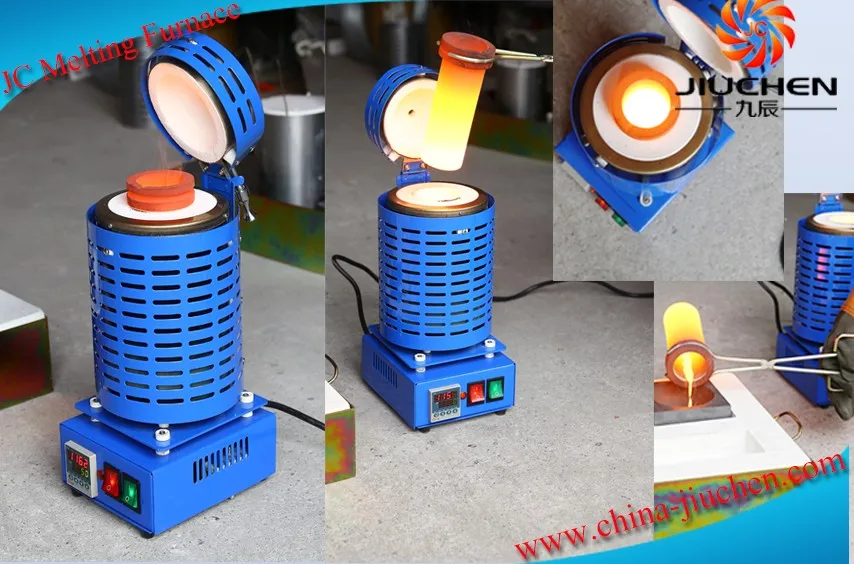

1. Open furnace cover, put the crucible by tongs with melting material into the furnace, close Lid.
2. Turn on the red switch, press the red button to start the melting process, the round indicator light will be light. Then the thermostat control melting automatically.
IV. Pour metal liquid process.(Note:Make sure bear on insulating gloves and glasses during operation)
1. After 15minutes, setting temperature is reached.
2. Wait for 5minutes, open the lid with insulating gloves and glasses to check
3. If melted, metal liquid will appear, it not melted, go on melting.
4. Put it on the insulating tray, wait for cooling with 10 second.
5. Pour the melten into the mould, put the crucible in the tray hole.
6. Turn off red switch and green switch, close lid.
Melting ends, smelting metal can be continued processed according to the user actual demand.
Our Certifications

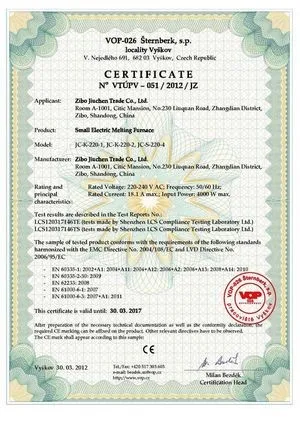

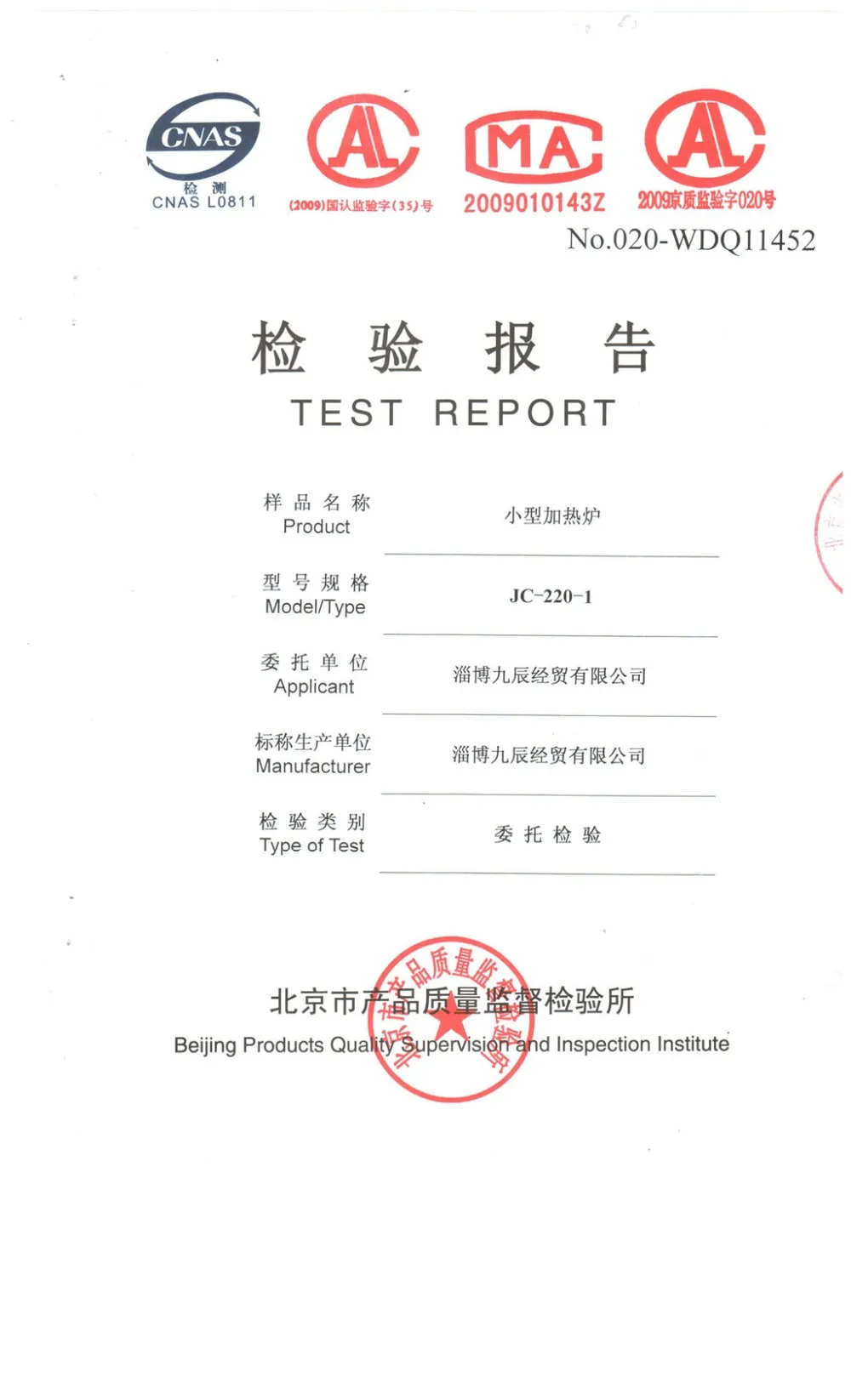

CE ISO9001 Test Report Patent
Technical Data
Gold Melting Furnace is very useful for melting Gold, Silver, Copper, Brass and other metals with melting temperature less than 1150°C/2012F. However, it can be operated up to maximum 1200°C (Continuous operations at maximum temperature reduce the life of Heating Element). JIUCHEN Gold Melter has Digital Display to set and control temperatures. This Digital Electric Gold Smelting Furnace is an ideal supporting unit for Jewellery Casting, Gold & Silver Refining, Alloying

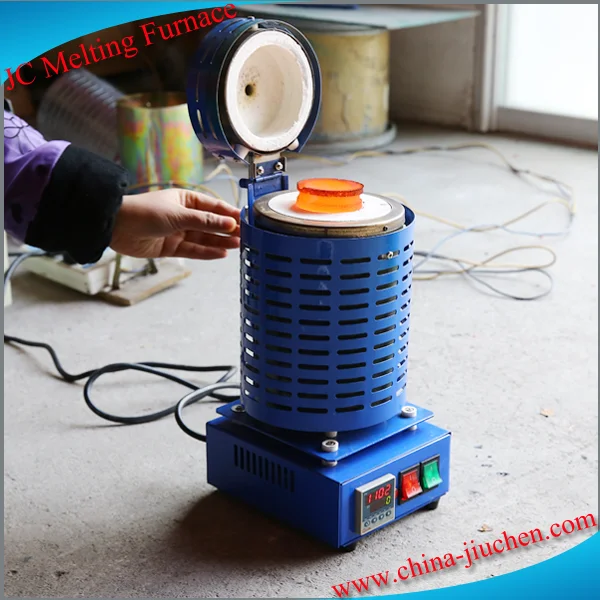

Customer Photo
Favorable Comment
JC-K-220-2 is faster gold melting; Stainless steel construction; Standard and custom designed; Low maintenance required; Digital Operating controls; Compact design.It is an deal model for melting bigger capacity with 5-15KG metal.
Business Seller Information
Contact Ms. Emily Peng
Whatsapp: 86-13953356036
We Chat: 86-13953356036
Skype:emilypeng2010
Shipping &Warranty
We can accept T/T,Paypal,Western Union,Secure Payment,the best and fast way is Paypal.
We choose DHL/Fedex/UPS usually takes about 3-5 working days to the destination,
We will send the goods within 3 working days after the full payment has been confirmed.
All the products have been tested before ship out.
All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.
If there is no man-made problems,we will replace or repair for you freely.
All products electrical parts have 1 year warranty,including temperature controller,relay, thermocouple,heating elements have 6 months warranty,including chamber,heating coil etc.
If there is no man-made problems,we will replace or repair for you freely.
