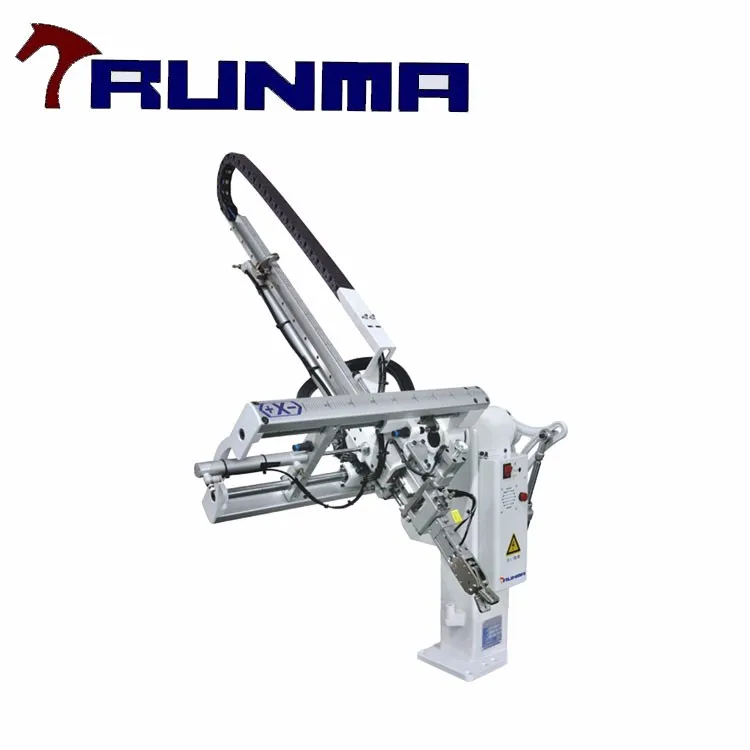

Swing radial Industrial pick and place arm robot manipulator

Main explaination

radial-arm robot series is mainly applied in pouting gate take-out from 50-400T horizontal injection molding machine, there are two forms of arm : single stage and double stage, the whole machine spinning out and in, pulling out, traveling up and down are pneumatic driven, full-featured machine is equipped with vacuum generator and standard ceiling fixture, but single-function machine has no such device.

Main Features

1) Simple structure in linear type ,easy in installation and operation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization, can work with various brand of injection molding machine smoothly and stably.

Main Accessories

Name: AC servo motor

Brand: DELTA

Original: Taiwan,China

Domestic famous engines, strong driving force, low fuel consumption, high economic benefits 12F+4R sliding sleeve shift.

Main Accessories

Name: Linear Guideway
Brand: PMI
Original:Taiwan,China
High precision and good repeatability.
Low friction resistance, long time maintenance accuracy.
Easy to assemble and interchangeable.

Machine Accessories

Name: Control system
Brand: Runma
Original: China
-Color screen, single-sheet multi-line display, making it easy for users to set parameters and signal monitoring
-32-bit double-CPU control, fast action response, smoother page switching
-Open program teaching mode, easy to learn, provide common fixed programs, users can also self teach a variety of complex mold processes.
-Ac servo direction can have multi-point placement, up to 99 sets.

Main Accessories

Name: Pneumatic Cylinder
Brand: AOKEDA
Original: Taiwan,China
 Electric adjustment is an optional choice.

Where is your factory located?

Our head factory located in Hengli town, Dongguan city, Guangdong province,China. welcome to visit our company, we will provide car to pick up you if necessary.

What about your machinery?

Our strength technical team guarantee the highest quality, not only for machine, but also for precisely control and final product.

What about delivery time?

We have products in storage.So we can send within 10days for normal plastic injection molding machine.Normally We can send within 30days afer payment.
