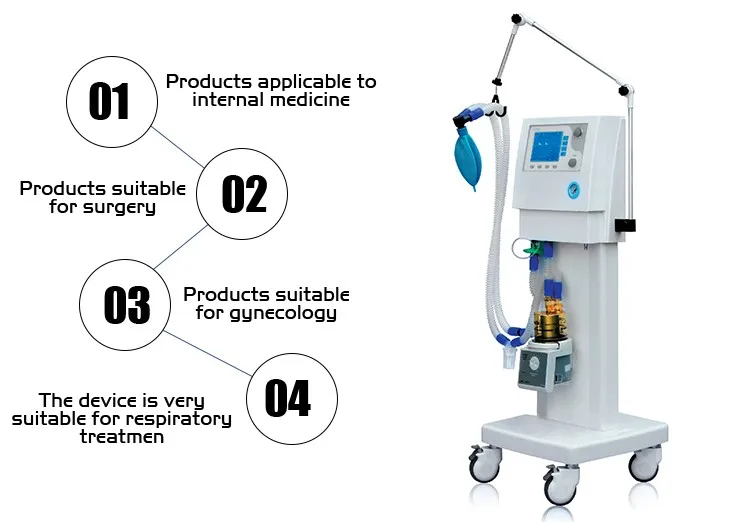

Ambulance Mobile Anaesthesia Ventilator Machine

VENTILATOR

Model

AV-2000B1

Portable Ventilator

AV-2000B1

Vertical Ventilator

AV-2000B2

ICU Ventilator

AV-2000B3

ICU Ventilator

Display mode

5.7”

5.7”

10.4”

10.4”

Mode

IPPV, SIPPV, SIMV, MANUAL

VCV,PCV,SIMV,PSV,PSV+SIMV,CPAP

Function

PEEP,SIGH, IRV

PEEP,SIGH, IRV, IP,Standby

Tidal volume

50~1500ml

50~1500ml

20~1800 ml

20~1800 ml

Rate

2~99bpm

2~99bpm

2~120bpm

2~120bpm

SIMV rate

2~20bpm

2~20bpm

2~120bpm

2~120bpm

I:E

2:1~1:8

2:1~1:8

4:1~1:8

4:1~1:8

Inspiratory trigger pressure

-1.0~2.0 kPa

-1.0~2.0 kPa

-1.0~1.0 kPa

-1.0~1.0 kPa

PEEP

0~2.0 kPa

0~2.0 kPa

0~25 cmH2O

0~25 cmH2O

Pressure range

1.0~6.0 kPa

1.0~6.0 kPa

3~50 cmH2O

3~50 cmH2O

Pressure limitation

/

/

5~60 cmH2O

5~60 cmH2O

Pressure slope

/

/

1~10 gear

1~10 gear

Flow rate setting

/

/

1~10 gear

1~10 gear

Time control

/

/

1~10s

1~10s

SIGH

1.5 times the inspiratory time

1.5 times the inspiratory time (60-120 adjustable)

Inspiratory platform

/

/

0~50%

0~50%

Oxygen concentration

/

/

45%~100%

21%~100%

Parameters for ventilation monitoring

tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure

Expired tidal volume, Inhale tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, autonomous inspiratory rate, I/E, peak pressure of airway, average pressure, PEEP, inspiratory trigger pressure, Inspiratory platform, oxygen concentration, battery capacity, pressure - time waveform, flow rate - time waveform, flow-volume loop, pressure-volume loop

Power

220V±10%, 50Hz±1Hz. UPS, Storage battery

Mechanical Arms

/

/

YES

YES

Compressor

/

/

/

YES
