20s pcb board for 66.6v lithium battery pack custom balance 18s 57.6v pcm 20a lifepo4 bms 16s
- Category: >>>
- Supplier: Shenzhen Li-Ion Battery Bodyguard Technology Co. Ltd.
Share on (60634444534):
Product Overview
Description
Advantages
- Supply OEM/ODM and custom service
- High quality with smart balance function
- Wholesale price
- ISO9001/ISO14001/CE/ROHS certificates
- Fast delivery
About the battery BMS/PCB/PCM
Function: Detect and protect the battery from over-charge ,over-dicharge, over-current short-circuit ,temperature detecting protection and auotmatically voltage balance function .
Build with high end electronic components (High End IC and MOSFET ) ,simple structure design
will let it have more stable quality working performance , Flexible application ( it can be used for less
series battery by leaving some connection pins at empty status ),full set of protection measures let it
works well without any infulence from external unexpected accidents.
About your products,just tell us the relative voltage/ cells/ current A or equipment etc,we will help to recommend the most suitable products for you.
Product Description
| Products | balance 18s bms 57.6v pcm 20a lifepo4 | |||

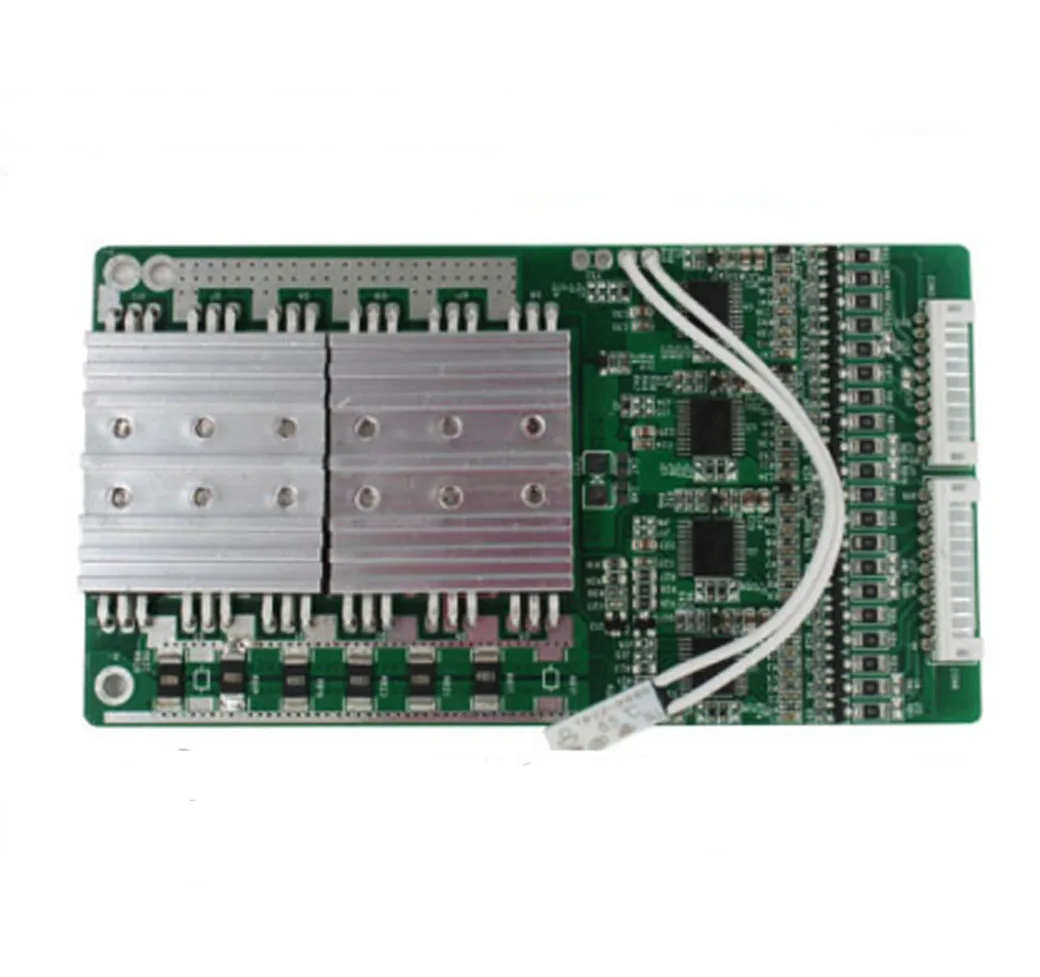

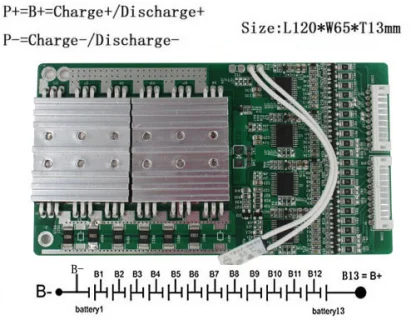

| Model | LWS-20S20A-154(18S) Size:L120*W65*T13mm | |||
| Test No. | Test item | Details | Criterion | |
| 1 | Voltage | Charging voltage | DC:75.6V CC/CV | |
| Balance voltage for single cell | 4.20±0.025V | |||
| 2 | Current | Balance current for single cell Current consumption | 60±5mA Max:20μA | |
| Maximal continuous charging current | 20A | |||
| Maximal continuous Discharging current | 20A | |||
| 3 | Over charge Protection | Over charge detection voltage for single cell | 4.25±0.025V | |
| Over charge detection delay time | 0.5S—2S | |||
| Over charge release voltage for single cell | 4.05±0.05V | |||
| 4 | Over discharge protection | Over discharge detection voltage for single cell | 2.50±0.062V | |
| Over discharge detection delay time | 10mS—150mS | |||
| Over discharge release voltage for single cell | 3.00±0.062V | |||
| 5 | Over current protection | Over current detection voltage | 0.20±0.015V | |
| Over current detection current | 200±30A | |||
| Detection delay time | 5ms—15ms | |||
| Release condition | Cut load | |||
| 6 | Short protection | Detection condition | Exterior short circuit | |
| Detection delay time | 200-500us | |||
| Release condition | Cut load | |||
| Resistance | Protection circuitry(MOSFET) | ≤60mΩ | ||
| 7 | Temperature | Operating Temperature Range | -40~+85℃ | |
| Storage Temperature Range | -40~+125℃ | |||
Our Services
1.after sales services
2.OEM,ODM,Customized Design
3.We can provide 24 hours service for you. We pride ourselves on our ability to custom tailor programs
around our customers'needs. We take time to listen to your unique business needs and then set out to
surpass them .
Payment Term:L/C,T/T,Paypal
Can provide variouse capacity and size is per your requirements.
Packaging & Shipping
Packing: Inner packing:Vaccum packing/Plastic bag.
Outer packing:Standard carton packing or packing per customer's requirements.
Delivery type:by air such as TNT,UPS,FEDEX or by sea ,just depend on your convenient.
Payment:L/C,T/T,Western Union,PAYPAL etc.
Company Information
Shenzhen Li-ion Battery Bodyguard Technology Co.,Ltd was founded in 2013.Mainly provide Battery PCM & BMS for Lithium ion ,Lifepo4 ,LTO battery pack.
Since 2013, the company has more than 400 types of hardware PCM/BMS,and software BMS including HDQ/12C/SMBUS/RS482/RS232 tooth and so on.
Mainly covers battery assembly 1S-35S in series ,working current up to 350A;the products are widely used in solar street lamp,golf ,LED light,power tool,electric bicycle,medical equipment,EV application......etc.

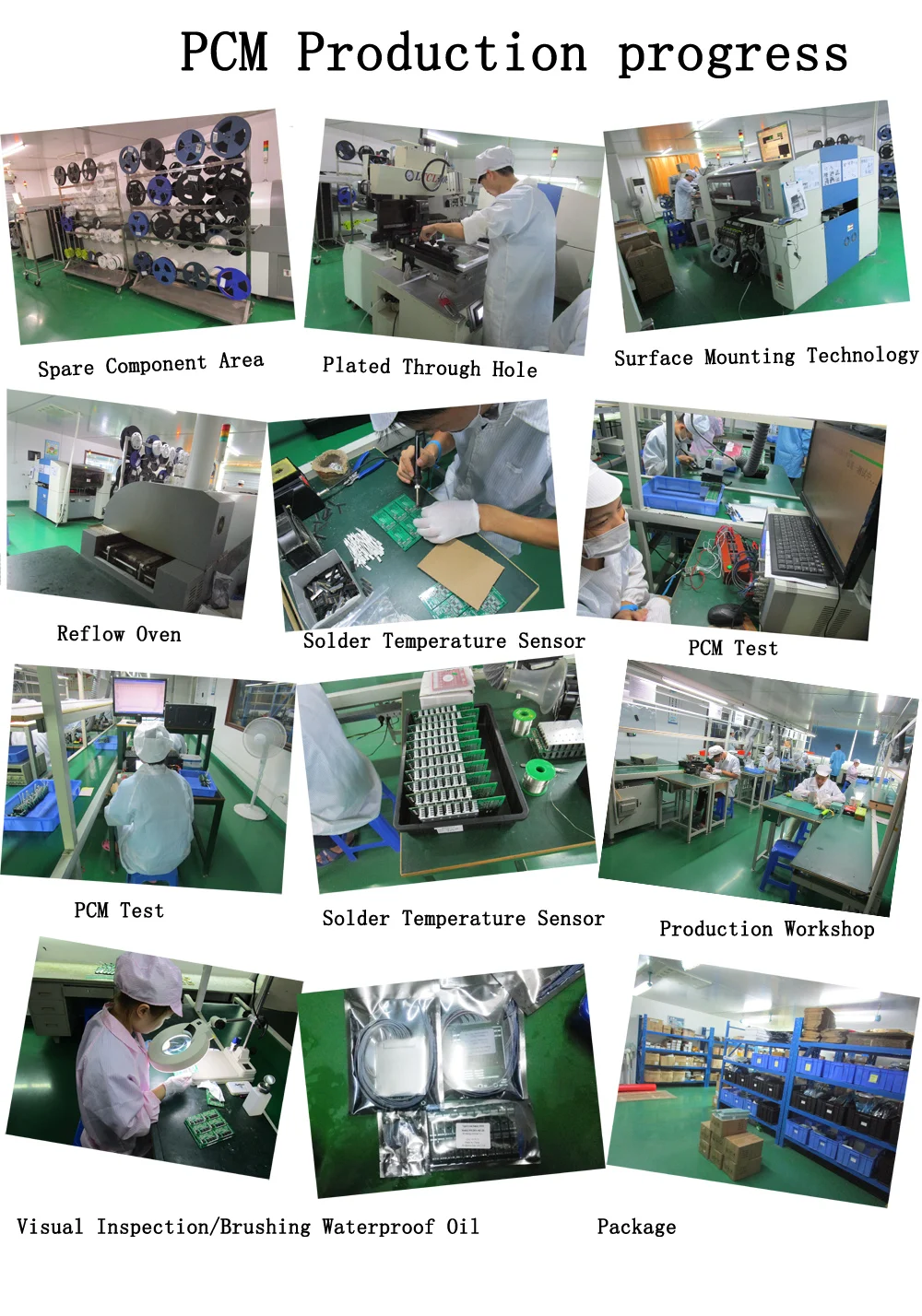

Production workshop
*Complete products contract PCB assembly and manufacturing services
*Circuir boards 2 to 30 layers PCB layout,fabrication, PCB assembly and box build
*Active and passive components source is directly from original manufacturer
*Enclosure cabinet case plastic injection molding,mental stamping,manufacture and assembly
*High-precision 0201 size components SMT technology and lead-free
*IC pre-program
*Hight-precision E-Testing
