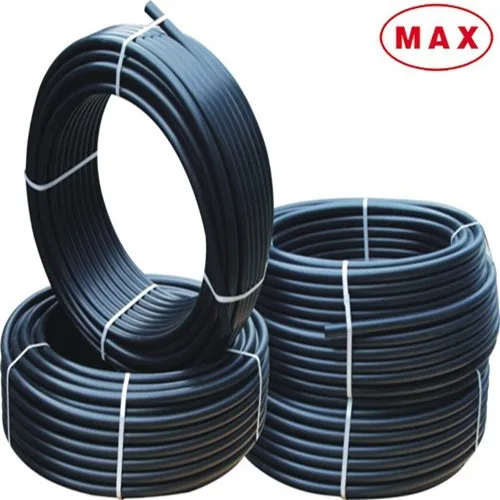

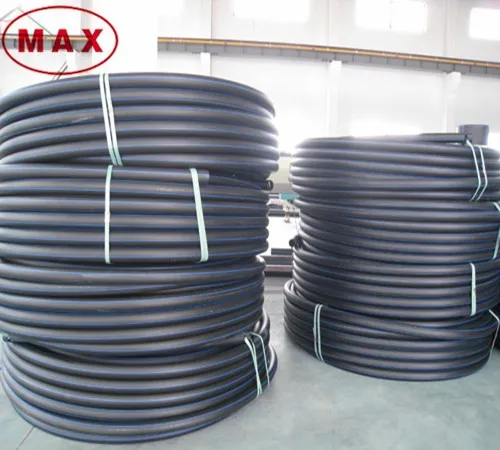

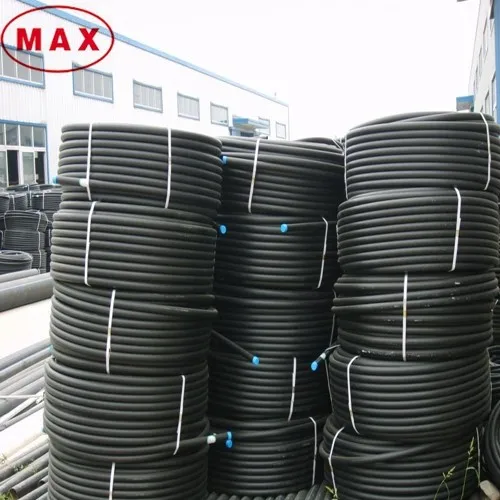

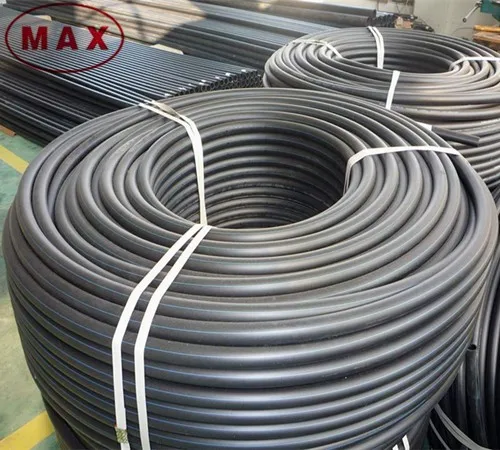

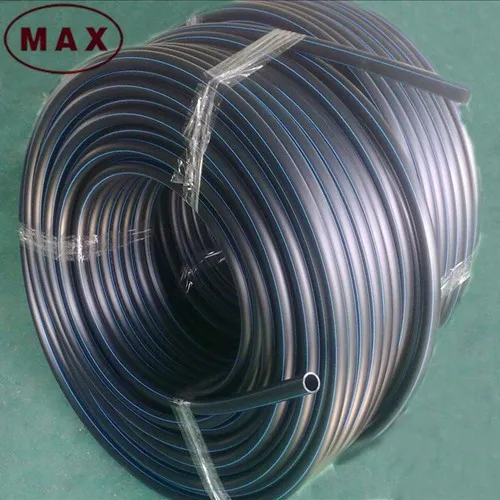

1.5 inch, 2 inch, 2.5 inch Black Plastic Drip Irrigation Pipe Price list

Product Overview

Description

1.5 inch, 2 inch, 2.5 inch Black Plastic Drip Irrigation Pipe Price list







HDPE pipe for gas supply

HDPE pipe for mining use



HDPE PIPE feature

1.Nontoxic:

 PE pipe material nontoxic, tasteless,it belongs to green building materials, never scaling,

 which can effectively improve the water quality.

2.Corrosion resistance:

 High resistance to attack from various types of chemicals. No electrochemical corrosion.
3.No Leakage:

 PE pipe is connected in the ways of butt fusion, socket fusion and electrofusion and the

 strength of joint point is higher than tube itself .

4.higher flow capacity:

The Smooth inner wall is easy for pipeline transportation .Under the same condition

delivery capacity can be increased by 30%.

5.Convenient for construction and installation:

PE pipe could be installed in a variety of trenchless ways, so it is very convenient for

construction and installation.

6.Lower system and maintenance costs:

PE pipe is not only convenient to transport and install, but also  reduce the worker’s

labor intensity and improve work efficiency.
7.Longevity:

 50 years under pressure use.

8. Recycled and Environment-friendly





2.Advantage of hdpe pipe



1.anti-scaling



2.cold stability



3.smooth interior



4.zero leak rate



5.high performance



6.weather resistance



7.corrosion resistance



8.light weight and weldability



9.Non-toxic ,tasteless, odourless



3. Application of hdpe pipe



(1). Municipal/Industrial Market: Underground Potable Water Distribution



(2). Drainage:  Storm Water, Culverts, Highway /Residential / Agricultural Water Collection



(3). Sanitary Sewer: Gravity Sewer Systems, Sewer Force Mains, Directional Bore



(4). Water Distribution: Potable Water Systems, Water Service Systems



(5). Irrigation: Underground Irrigations Systems, Agricultural Systems



(6). Rehabilitation: Slip Lining, Pipe Bursting



(7). Reclaimed Water: Water Re-processing Systems



(8). Mining: Liquid Chemical Mining, Slurry and Tailing Lines, Mineral Extract System



(9).  Geo-thermal Heating/Cooling:  Heating/Cooling System for home and business







HDPE PIPE demension

HDPE WATER SUPPLY PIPE (PE 100) SPECIFICATION
EXECUTIVE STANDARD:GB/T13663-2000            THICKNESS:MM
NOMINAL PRESSURE	0.6Mpa	0.8Mpa	1.0Mpa	1.25Mpa	1.6Mpa
STANDARD SIZE RATIO	SDR26	SDR21	SDR17	SDR13.5	SDR11
NOMINAL OD
16					2.0
20				2.0	2.3
25				2.3	3.0
32			2.3	2.4	3.0
40		2.3	2.3	3.0	3.7
50		2.3	2.9	3.7	4.6
63	2.3	2.5	3.6	4.7	5.8
75	2.9	3.6	4.5	5.6	6.8
90	3.5	4.3	5.4	6.7	8.2
110	4.2	5.3	6.6	8.1	10.0
125	4.8	6.0	7.4	9.2	11.4
140	5.4	6.7	8.3	10.3	12.7
160	6.2	7.7	9.5	11.8	14.6
180	6.9	8.6	10.7	13.3	16.4
200	7.7	9.6	11.9	14.7	18.2
225	8.6	10.8	13.4	16.6	20.5
250	9.6	11.9	14.8	18.4	22.7
280	10.7	13.4	16.6	20.6	25.4
315	12.1	15.0	18.7	23.2	28.6
355	13.6	16.9	21.1	26.1	32.2
400	15.3	19.1	23.7	29.4	36.3
450	17.2	21.5	26.3	33.1	40.9
500	19.1	23.9	29.7	26.8	45.4
560	21.4	26.7	33.2	41.2	50.8
630	24.1	30	37.4	46.3	57.3
710	27.2	33.9	42.1	52.2
800	30.6	38.1	47.4	58.8
900	34.4	42.9	53.3
1000	38.2	47.7	59.3
1200	45.9	57.2	70.6
1400



 Processing workshop

 Shipping details





Main products of Luoyang Max Corportion

Our customers from different countries

Dynamic Team of Luoyang Max Company

To provide the best products and service for our customers is what we have been pursuing and doing,quality is our baseline,reputation is what we cherish and we guarantee it. Call us now!!!









Luoyang Max Pipe Industry CO.,Ltd welcomes your inquiry and visit!
