LY5 Battery Indicator

      LY5 is a kind of voltage-type battery indicator, LY5 can test voltage and capacity of lead-acid/lithium-ion battery, and display them with intuitive battery symbol and percentage. Users can know the state of battery in time. It is suitable for mobile and portable equipments,ups battery,electric vehicles,ebike,balance cars,cleaning machines,ups and so on.

Application:

      Lead-acid battery:12V, 24V, 36V, 48V
      Lithium-ion battery:3Cells~15Cells(Except Lithium iron phosphate battery)
      Note:Other specifications (1cell, 2cells and more than 15 cells) should be customized, and the specifications can't be adjusted.

 Basic parameters:

Install:

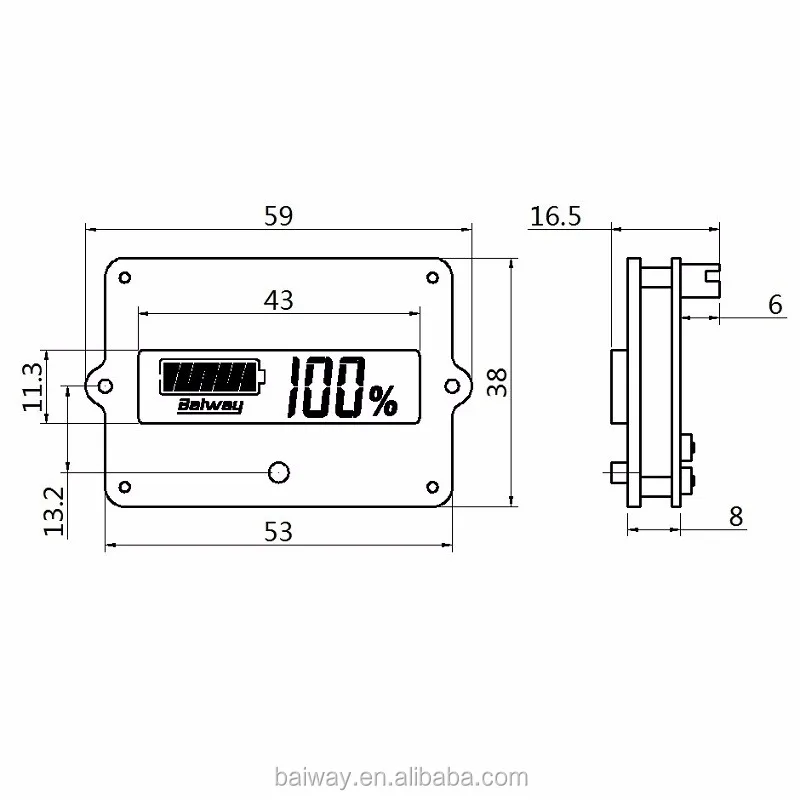

      1. Open one rectangular orifice,one round hole and two screw holes on the panel of equipment according to the dimensions in the drawing.

Specification adjustment:

       When turn off,hold down the "K-"key on the back and power on. LCD displays the present specification. Use the "K+"key and"K-"key to adjust specifications, select suitable specification you need, then turn off and power on again. The battery indicator will be work normally (correspond code as below form).
