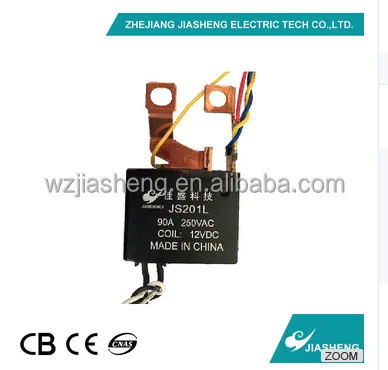

latching relays from 40 amps to 100 amps 250 VAC, 9 v 12v 24v

Product Overview

Description

 latching relays from 40 amps to 100 amps 250 VAC. Coil 9 volt and 12 volt



Latching relay description:

Latching relay is a new type of relay which uses magnetic principle to control circuit’s on and off. Its normally open and closed state are provided completely by permanent magnet steel’ working and completed the conversion of on-off state base on the triggering of a certain width pulse signal.

Product Properties of latching relay:

1.Small volume, big switching power and low consumption

2.Coil instantaneous pulse driving and without fever

3.Stable permanent magnet force and save energy

4.High contact pressure, low contact resistance, working stable and reliable, anti-vibration and anti-shock.

5.Use manganin welding, low material temperature coefficient and compact structure.

Latching relay advantages:

(1)only need pulse excitation and can be single or double coils working

(2)small volume and PCB installation

(3)low power consumption and strong load capacity

(4)security, reliable and long working life

The effect of magnetic latching relay:

1.Expand control range. For example, when Multi- contact relay control signal reaches a certain value, it can simultaneously switch, disconnect and connect multiplex circuits according to the different forms of contact groups.

2.Enlarge. Such as sensitive relay, intermediate relay etc, it can control big power circuit with a very small control signal.

3.Integrated Signal. For example, when many control signals input multi-winding relay per required form, after comparing and integrating it can reach the intended control effect.

4.Automatic, remote control, monitor. For example, other relays and relay of automatic device can make up programs to control circuit, then reaching automatic operating.

Contact Specification:

Dimensions(mm)	38*32*16.5
Contact Form	1A/1B
Contact Material	Silver Alloy
Max Switching Current(Anti-load)	100A
Max Switching Voltage	250VAC
Max Switching Power	25.5 kVA
Wight (without accessories)	60 g

Coil Specification (20°C):

Rated Coil Voltage		6VDC	9VDC	12VDC	24VDC	48VDC
Coil Resistance	Single Coil(±10%Ω)	24	54	96	384	1536
	Double Coil±10%Ω)	12	27	48	192	768
Pick-up Voltage		≤75% Rated Coil Voltage
Drop-out Voltage		≤75% Rated Coil Voltage
Over-load Voltage		≤120% Rated Coil Voltage
Pick-up Time (At Rated Voltage)		≤20ms
Drop-out Time (At Rated Voltage)		≤20ms
Bounce Time		≤2ms
Power Consumption		Single coil: 3W;Double coil: 6W(special power consumption needs customize)



Characteristics:

Ambient Temp		-40~+70°C
Anti-vibration		10~55Hz,0.5mm (Double Amplitude)
Anti-shock		98m/s2,11ms
R.H.		45%~85%
Contact Resistance		≤2.0mΩ (1A/6VDC test)
Insulation Resistance		1000MΩ (500VDC)
Dielectric voltage-withstand	Between Contacts	1500 VAC 50/60Hz (1 Minute)
	Between Contact & Coil	4000 VAC 50/60Hz (1 Minute)
Life	Electrical Life	≥1*104OPS
	Mechanical Life	≥5*105OPS



External diagram of JS201L Latching relay



Wiring diagram of JS201L latching relay

Application on latching relay:





-          Prepayment energy meter

-          Smart meter

-          Concentrated meter reading system

-          Street lamp control system

-          Compound switch, Combination switch

-          Automatic control device/ system

-          AMR system

-          Elevator control
