SPS Series 1 Passage DSTI Rotary Unions & Joints
- Category: >>>
- Supplier: Tengzhou Daxuan Machinery Co. Ltd [Shandong China]Tengzhou
Share on (60634728593):
Product Overview
Description

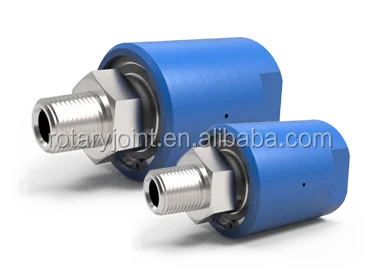

SPS Series 1-Passage DSTI Rotary Unions & Joints
A rotary union (or swivel joint) is a mechanism used to transfer fl uid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fl uid connection. Rotary unions are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fl uid simultaneously.
Product Description
| Operating Parameters | ||
Max. Pressure: | 40 bar | |
Max.Tempreture: | 120 ℃ | |
| Max.speed: | 500 rpm | |
| Medium: | air/gas, chemical, oil, water | |
| Material: | alluminum housing, ss shaft | |
| Size | 1/8", 1/4", 3/8", 1/2", 3/4", 1" | |
| Passages No. | 1 Passages | |
| Thread Type | BSP, NPT | |
| Package: | Standard export packaging | |
| Payment times: | T/T,L/C, western union | |
| Delivery time | 3 to 5 days(according to total quantity) | |
Product Drawing
Order No.,
