Product Description

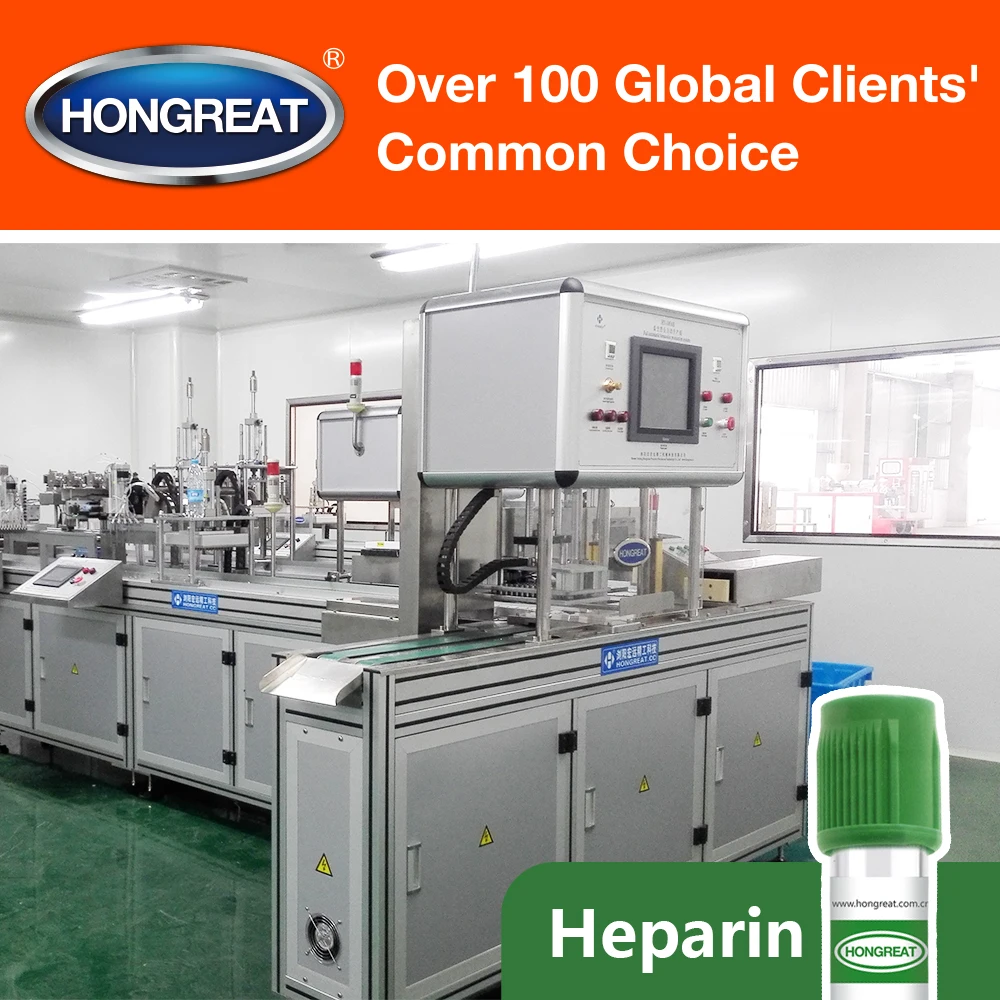

Automatic Lithium Heparin Blood Test Tube Production Line
• Application: Full automatic production line of blood collection tubes(vacuum & non-vacuum).
• Process flow: Reverse tube detection→EDTA / BCA dosing-spraying→Drying→Cap adding→Vacuuming→Unloading into tray→Sealing & shrinking packaging→Finished product.
Product name | Automatic Lithium Heparin Blood Test Tube Production Line | ||||
Production capacity | 12,000-15,000 pcs/h | ||||
Tube size | Ø13*75mm, Ø13*100mm (available for PET, PP, Glass) | ||||
Cap size | Outer Ø16±0.05*19mm+0.1 | ||||
Control way | Touch screen operation, PLC Control | ||||
Dosing system | 10 sets of precision ceramic metering pump for EDTA K2/K3: 20-50ul±6%; 10 sets of metering valve for BCA: 20-50ul±10% | ||||
Drying system | 2 sets of “PTC” dust-free drying system | ||||
Detecting system | Reverse tube detection before additive dosing-spraying Alarm function in case of lack of foam tray storage. | ||||
Vacuum degree | 0 ~ -95Kpa ±5% for vacuum tubes; 0 for non-vacuum tubes (Numerical control for vacuum pressure, Frequency conversion control for vacuum pump) | ||||
Configurations | 1) Reverse tube detection device- 1pcs 2) EDTA Precision Dosing Sprayer(10 sets) - 1pcs 3) BCA Precision Dosing Sprayer(10 sets) - 1pcs 4) PTC Dust-free Drying machine - 2pcs 5) Cap taking and wearing machine - 1pcs 6) NC Vacuuming and Cap-pressing Machine - 1pcs 7) Tube taking and unloading into Tray device - 1pcs 8) Sealing & shrinking packaging machine - 1pcs Remarks: 1) Sodium citrate/Heparin dosing spray optional; 2) Customized spec available; | ||||
Air consumption | Max. 1m3/min; Air supply pressure P: 0.7Mpa≤P≤1Mpa | ||||
Power | 30KW/AC380V | ||||
Machine type | Blood test tube production line | ||||
