fiber optic splitter 1:8 1:4 1:2 1:16 1:32 1:64 price

Product Overview

Description

fiber optic splitter 1:8 1:4 1:2 1:16 1:32 1:64 price



Specification



PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size

makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels

The PLC splitters are available with one or two input ports and up to 64 output ports.

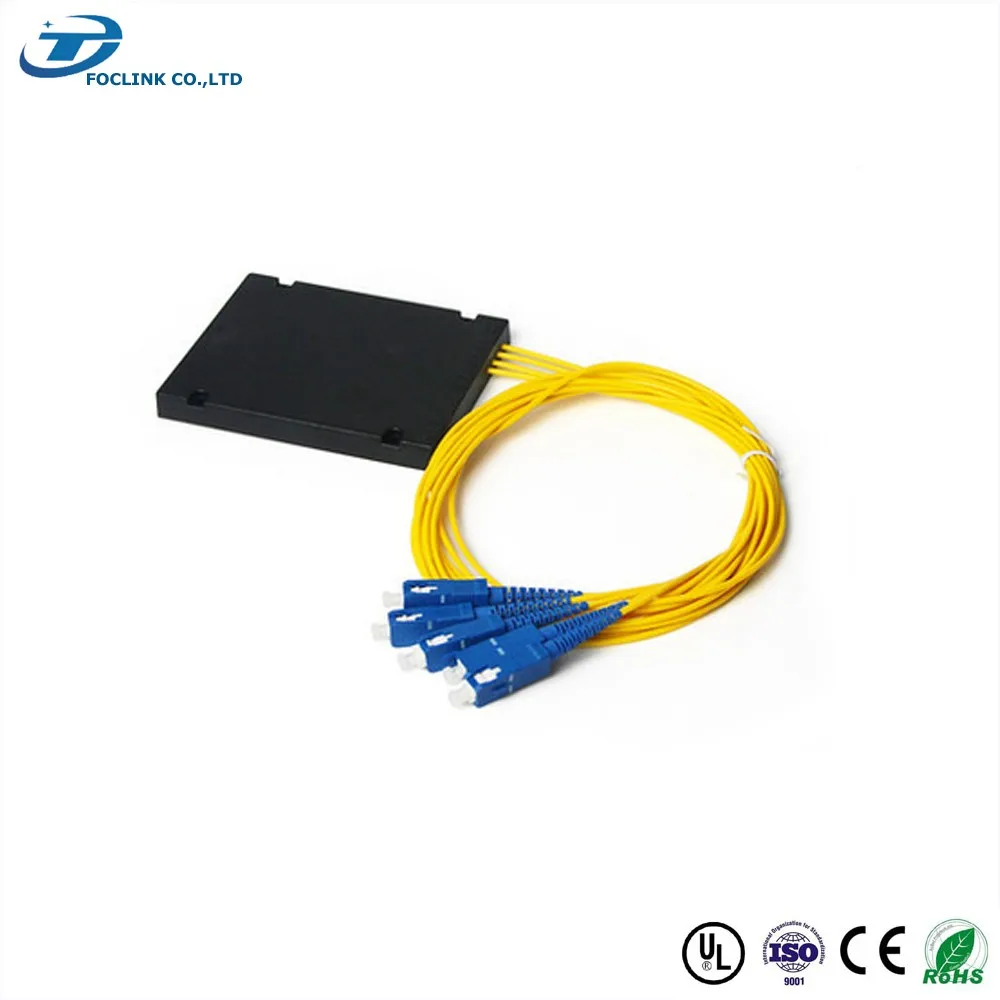

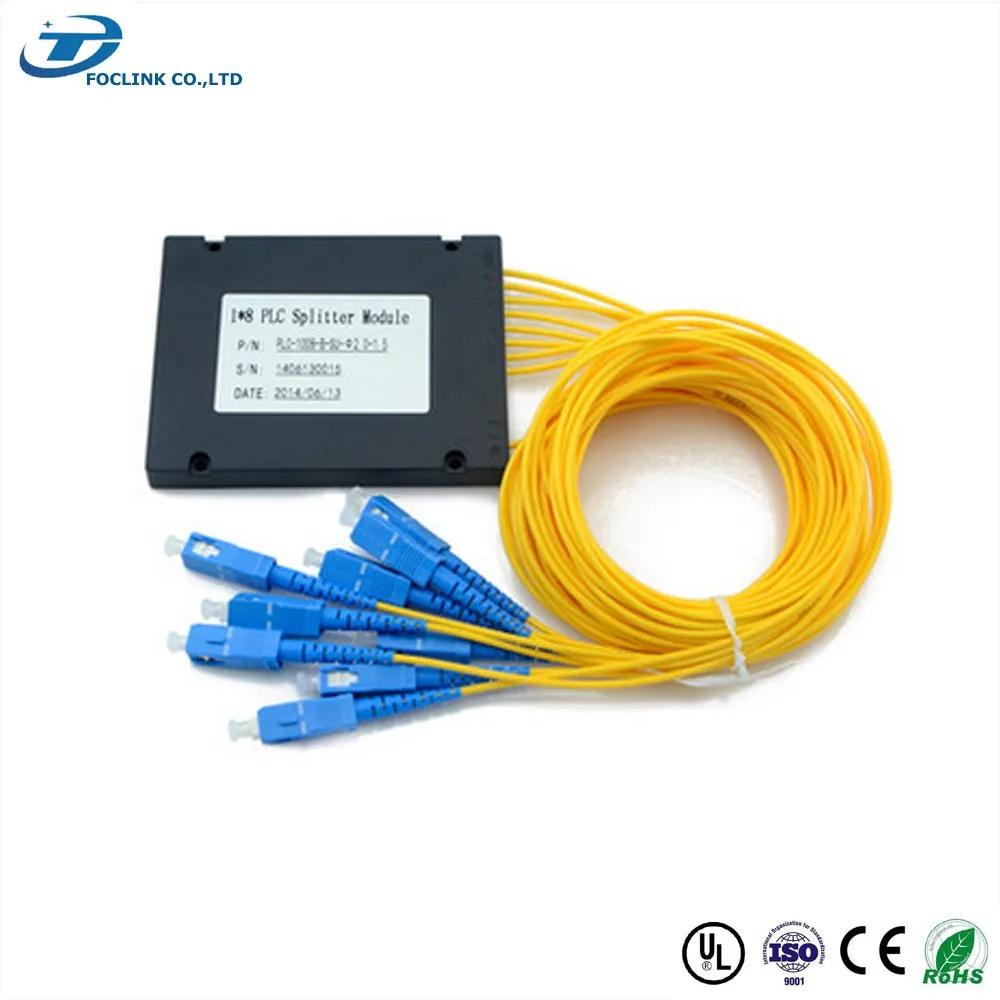

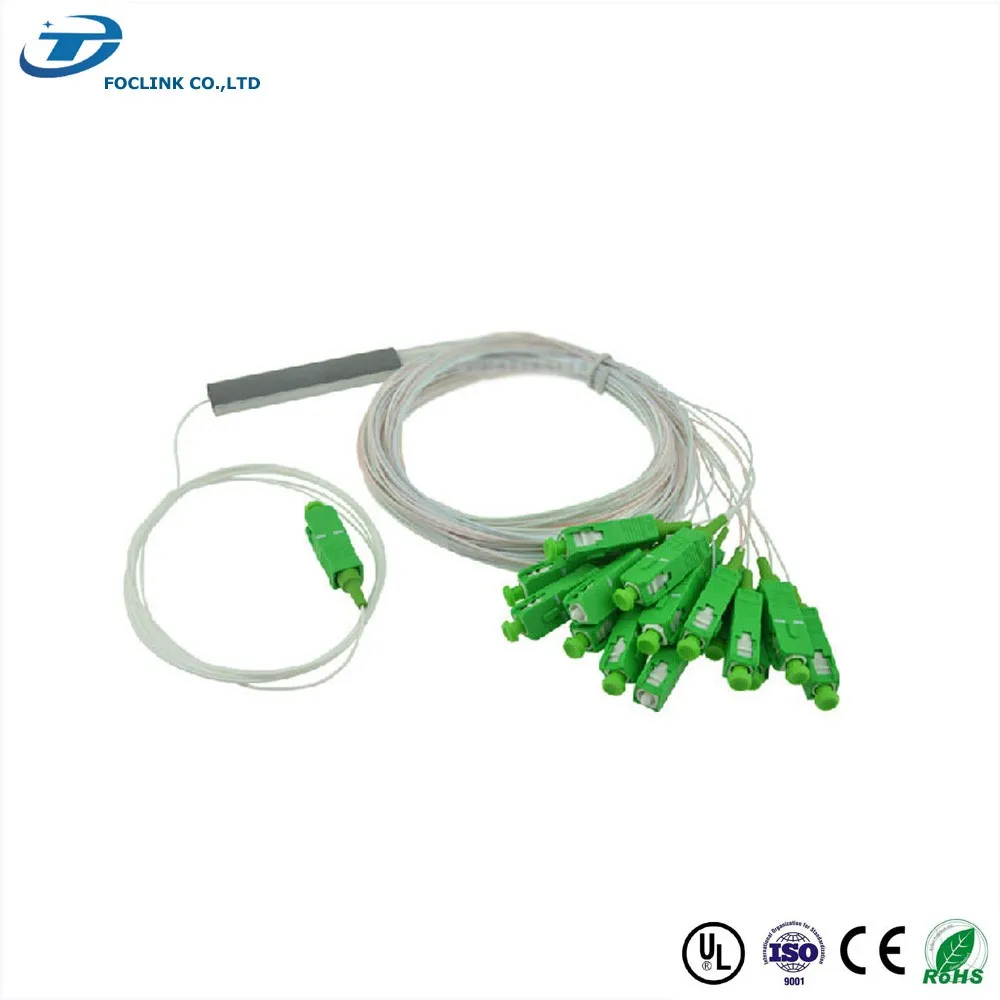

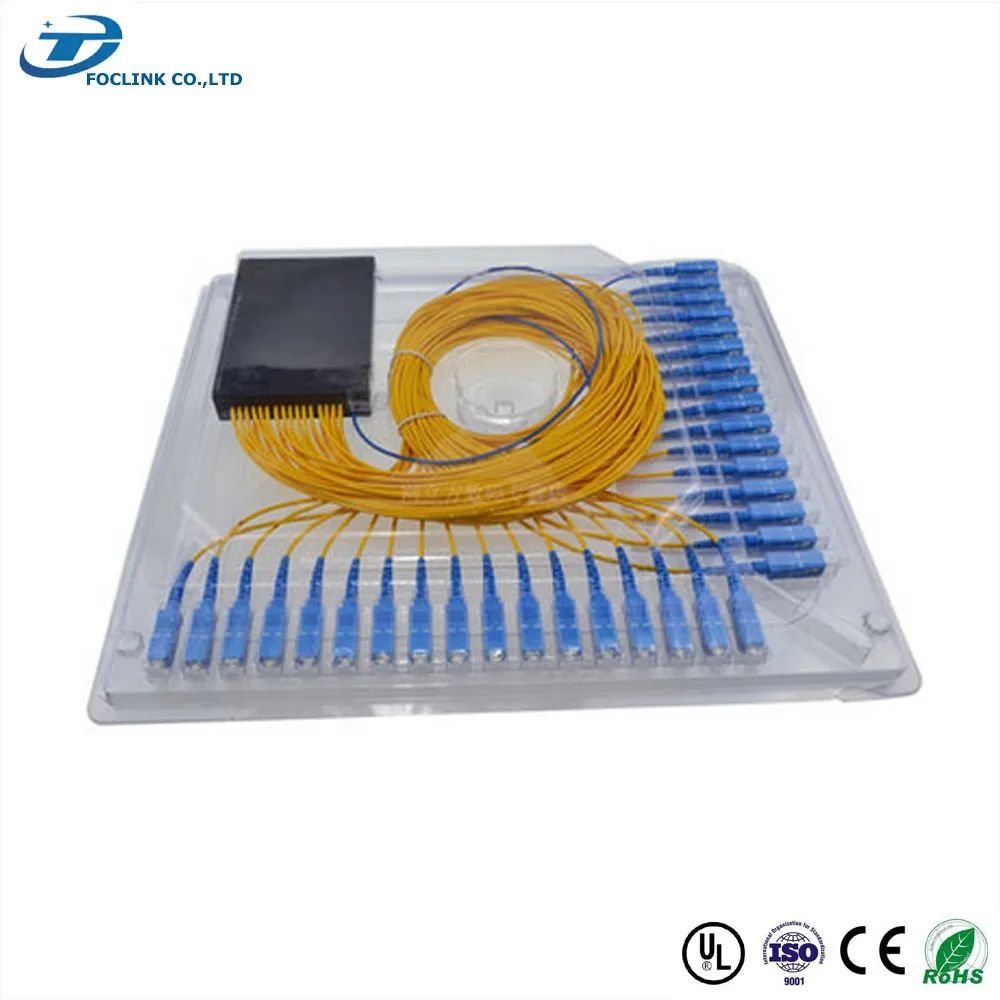

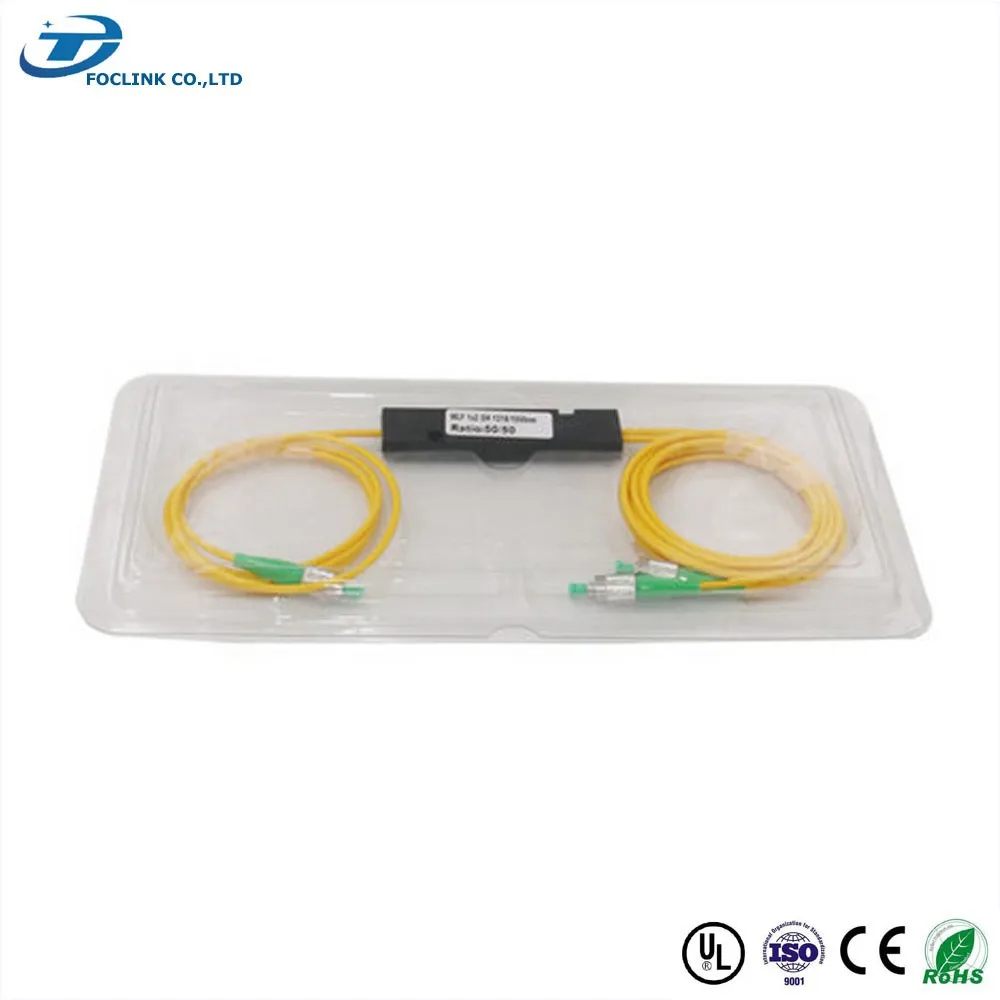

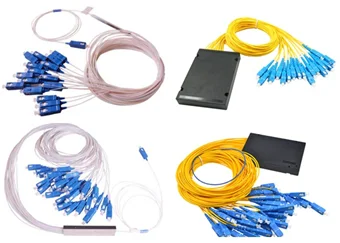

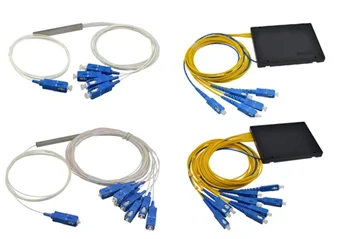

Products Show







Fiber optic splitter technical specifications

Wavelength(nm)	1260-1650
Parameters	1×4	1×8	1×16	1×32	1×64	2×4	2×8	2×16	2×32
Insertion Loss(with connector)(dB)	≤7.4	≤10.7	≤13.7	≤16.9	≤21	≤7.8	≤11.5	≤14.5	≤17.7
Insertion Loss(W/O connector)(dB)	≤7.7	≤11.2	≤14.2	≤17.5	≤21.5	≤8.3	≤12	≤15	≤18.2
Uniformity (dB)	≤0.8	≤1.0	≤1.4	≤1.9	≤2.7	≤1.7	≤1.7	≤2.2	≤2.7
PDL(dB)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.4	≤0.2	≤0.4	≤0.4	≤0.4
Size(bare bype) (H×W×L)(mm)	4×4×50			4×7×50	4×12×60	4×4×50			4×7×50
Return Loss(dB)	>50
Directivity(dB)	>55
Temperature Range(°C)	-40~+75
Storage Temperature(°C)	-40~+85



Notes:1.Specified without connectors.

            2.Add an additional 0.2dB loss per connector

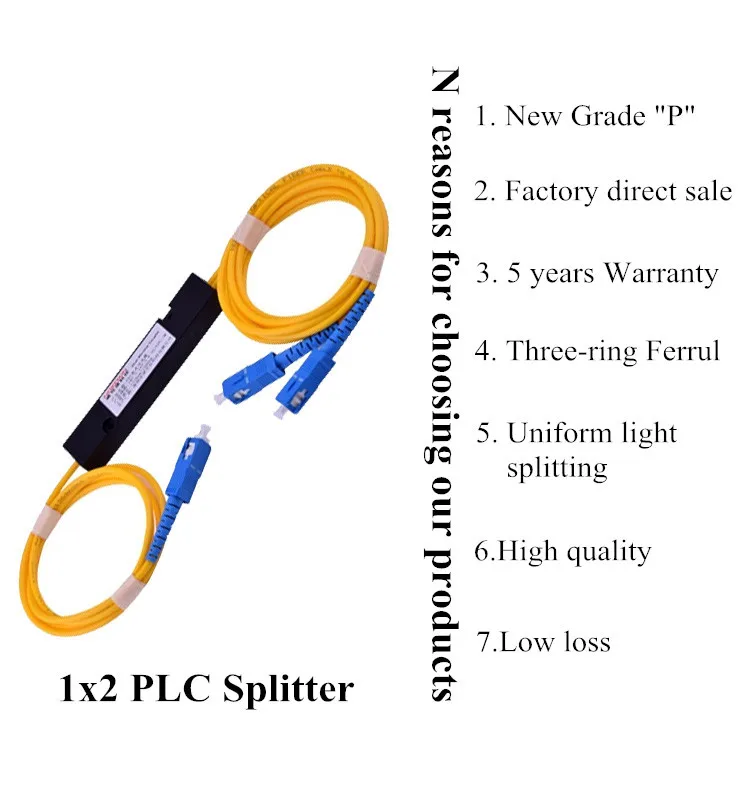

Key Features



1) Low Insertion loss



2) Low PDL



3) Compact Design



4) Good channel-to-channel uniformity



5) Wide Operating Wavelength: 1260-1650nm



6) Wide Operating Temperature: -40°C - 85°C



7) High Reliability and Stability

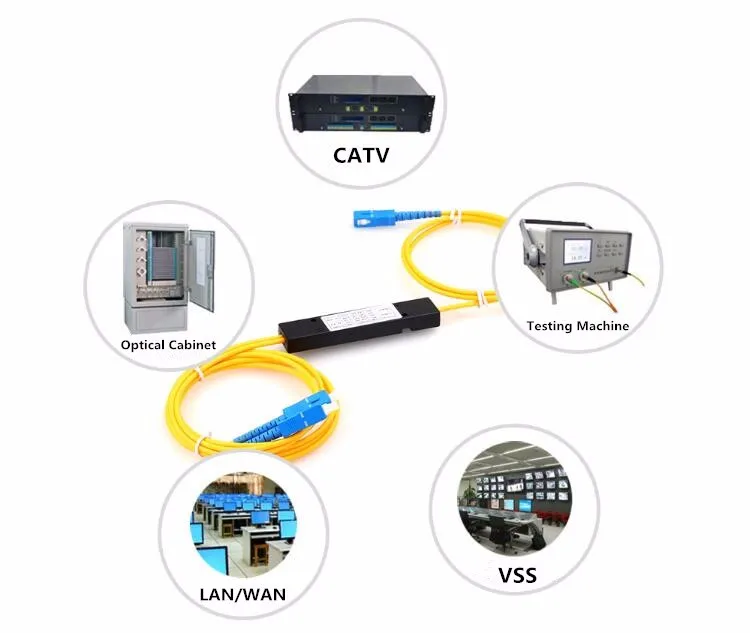

Application





1) FTTX Systems

2) PON Networks

3) CATV Links

4) Optical Signal Distribution

5) Local Areal Networks (LAN)
6) Fiber Communication Systems







Foclink is Your Best Choice - Production Flow





Foclink Communications Co., Ltd is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments. The main products of Foclink include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry .



Click the picture







Our Advantage



1.Lead time



With more than 200 employees incompany,so we can assure the lead time.



2.Research Department



With our separate research team,it is advantageous that we are able to have products made according to your requirements.



3.Qulity assurance



Every product will be tested to be of good quality.Meanwhile free samples can be supplied for your test.The guarantee period is 10 years.So if there are problems about the goods,the replacement will be available.





Contacts



1. Skype : cherryfoclink

2.Whatsapp/ Mobile : 86-157 7955 7828
