Product Overview
Description
Compact, durable and stable
Product Description

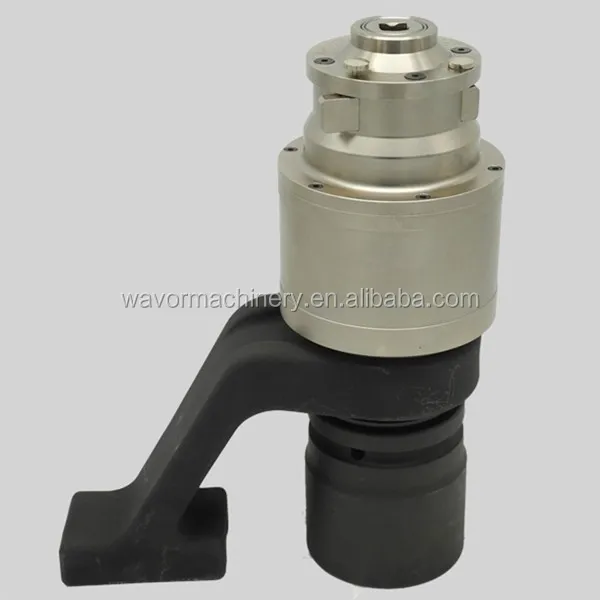

HM manual force hand torque multiplier & truck wheel wrench
- Manual type, suitable for high torque but power supply or limited space.
- Sophisticated planetary gear system for torque multplying, accuracy ±5%
- Equipped with anti-returning device, more convenience and safe
- High torque/weight ratio, fulfill the locking / unlocking job easily with the hand wrench
- Easily switch from clockwise to anti-clockwise direction by the reversing lever and buttons.
- After-sales service: 1 year guarantee period, life-long maintnance.
-
| Model | Max Torque (Nm) | Torque Ratio | Input S | Output C | D (mm) | L (mm) | Weight (kg) |
| HM-12 | 1200 | 1:4 | 1/2" | 1" | 88 | 145 | 3.0 |
| HM-20 | 2000 | 1:4 | 3/4" | 1" | 88 | 156 | 3.1 |
| HM-30 | 3000 | 1:10 | 1/2" | 1" | 88 | 200 | 5.1 |
| HM-42 | 4200 | 1:14 | 1/2" | 1-1/2" | 96 | 210 | 6.7 |
| HM-62 | 6200 | 1:20 | 1/2" | 1-1/2" | 114 | 242 | 9.2 |
| HM-120 | 12000 | 1:38 | 1/2" | 1-1/2" | 143 | 305 | 16.3 |
Remark: 1. Above weight does not include the reaction arm
2. Do not drive hand torque multipliers by impact power tools. That would destroy the gear system.
It is advised to be assisted with hand torque wrench.
