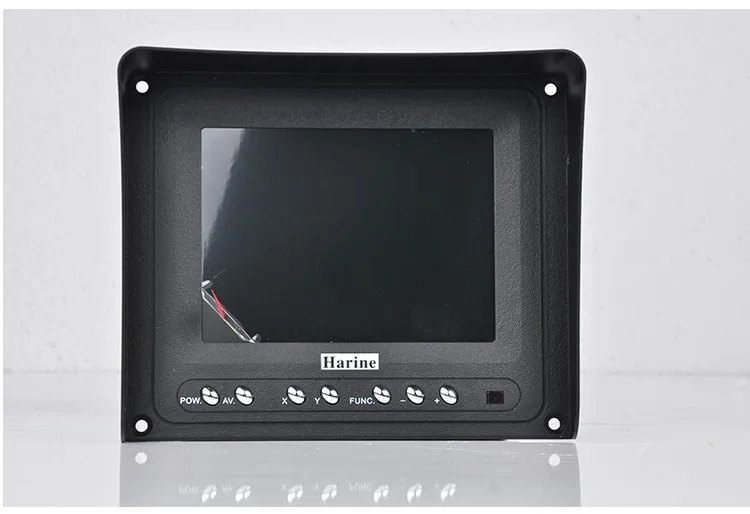

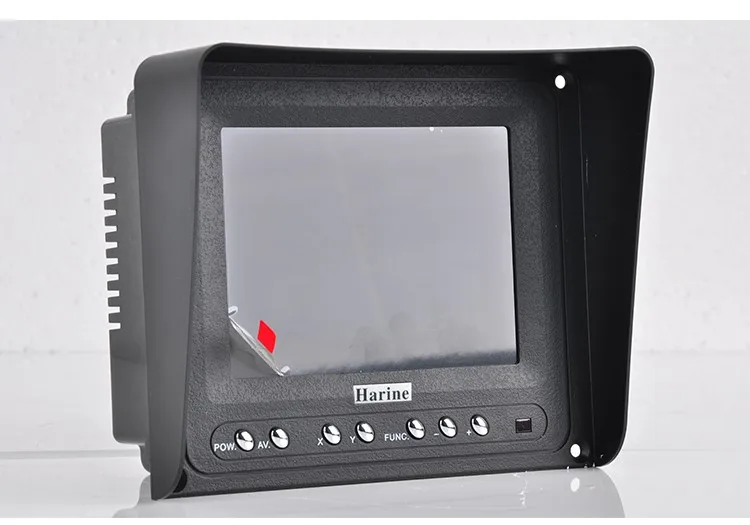

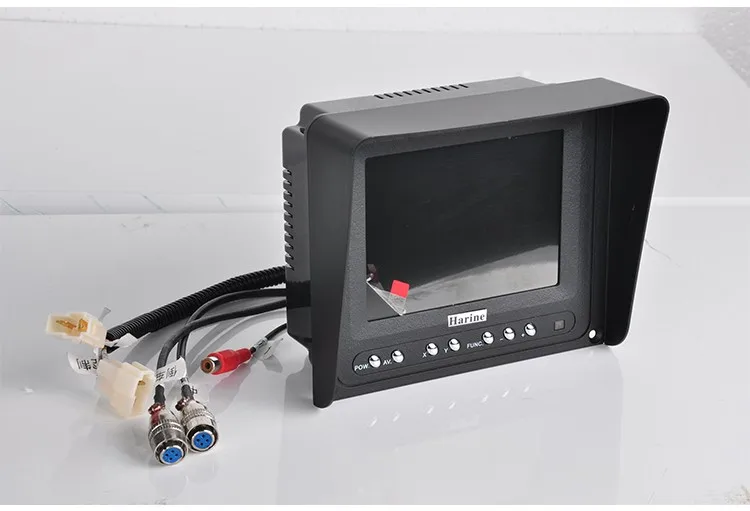

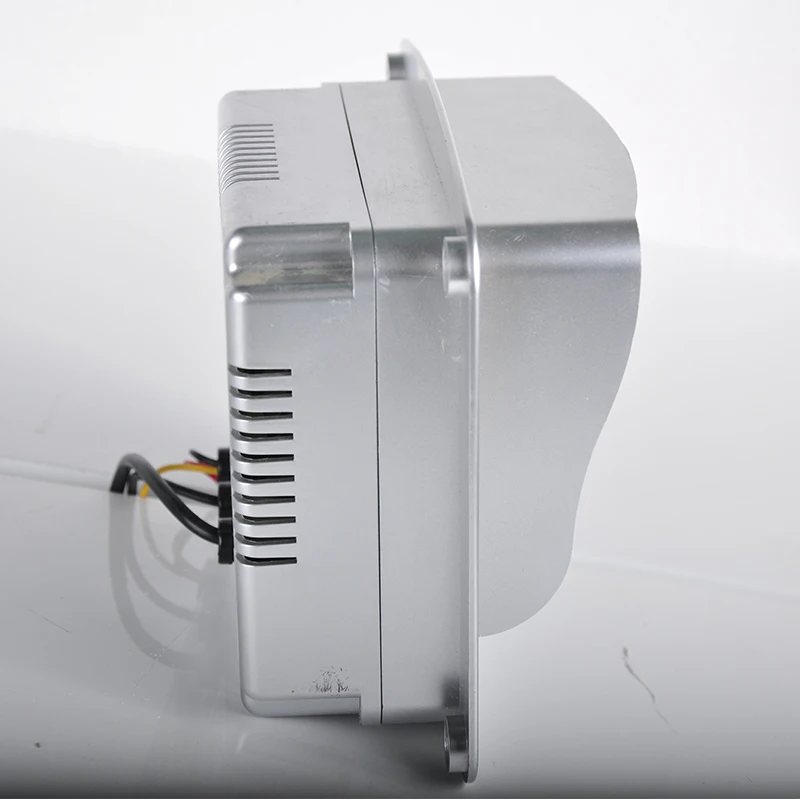

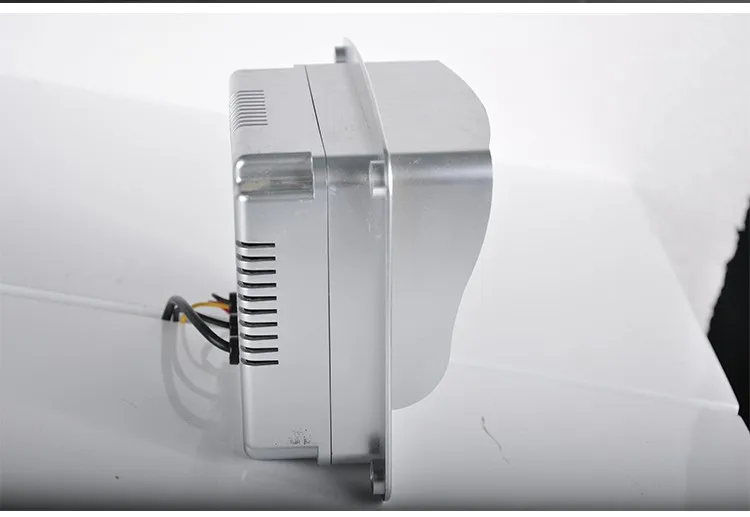

Rear view camera and 5.6 inch LCD Monitor, which is suitable for the field of reversing ,security . Technical information:
Item
Specification
Screen Size
5.6 inch
Screen
TFT LCD screen
Screen Ratio
4:3
Resolution
960(H)×234(V)
Contrast
300:1
Brightness
250cd/m
View Angle
V:100/H:120
Light Source
LED
Color System
PAL/NTSC
Video Input
1VP-P 75Ω (two way)
Image Inversion
U/D L/R;manual(optional)

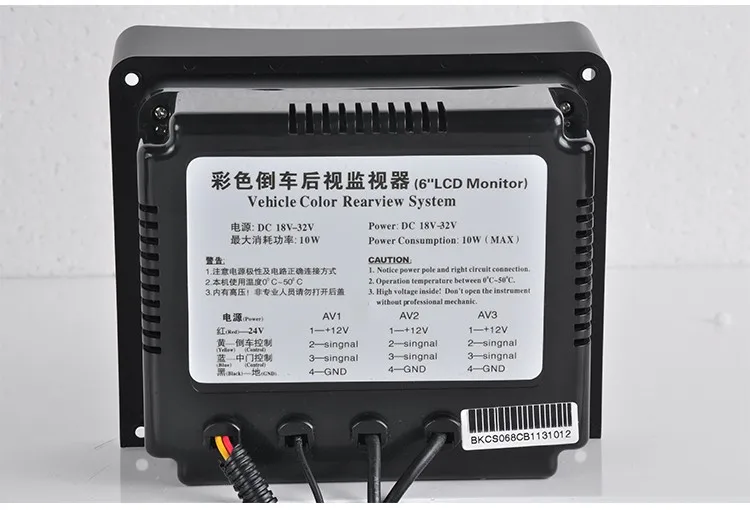

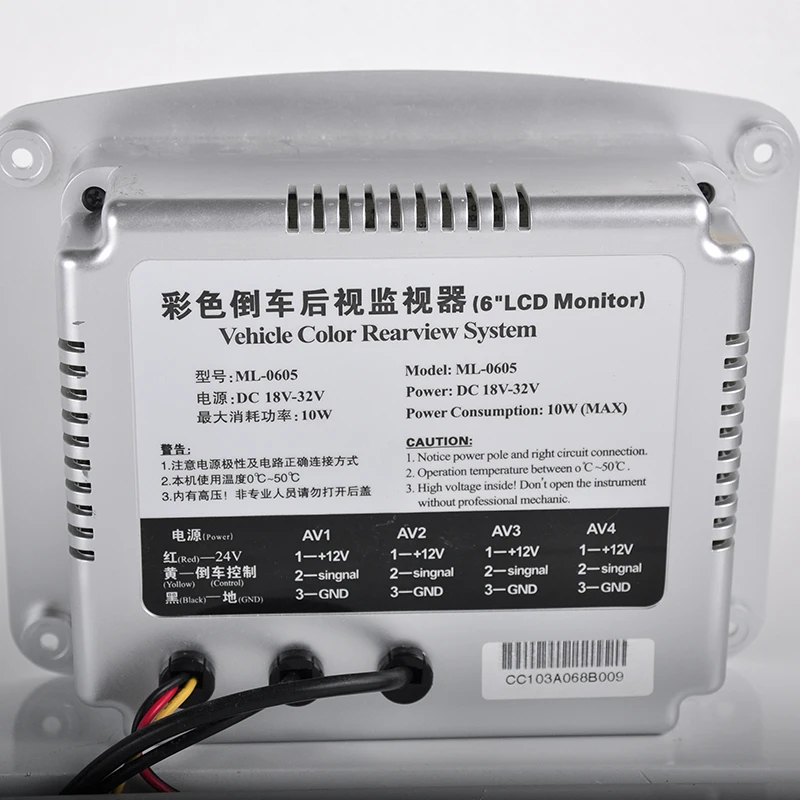

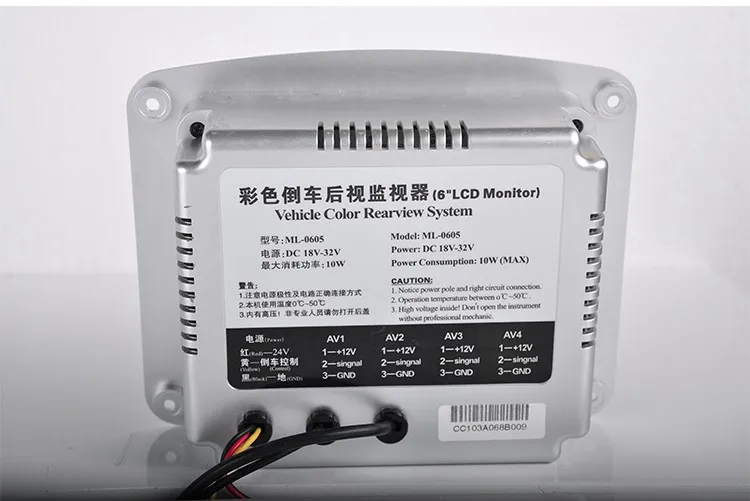

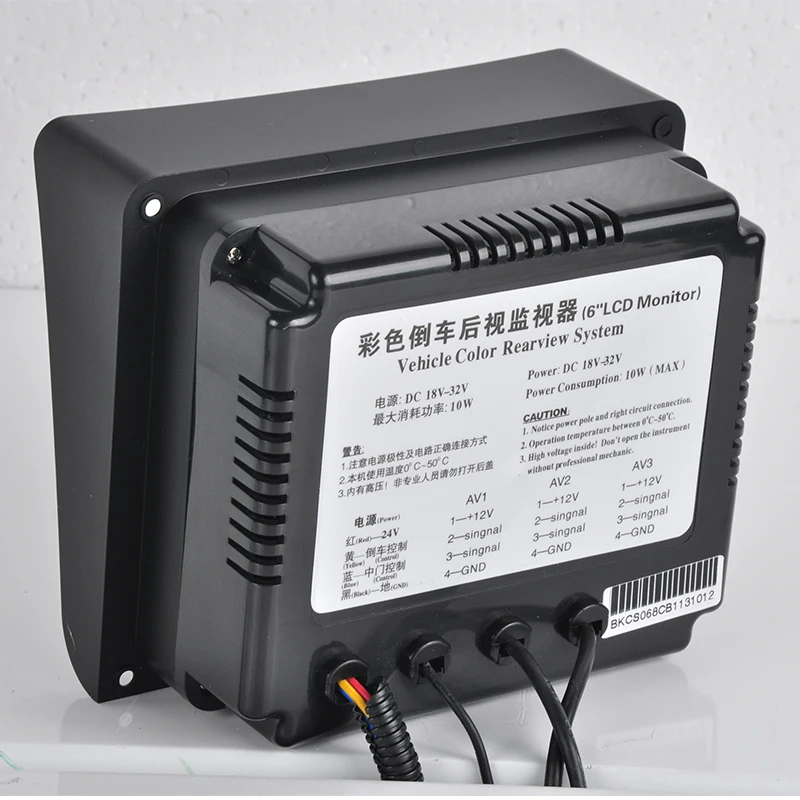

Interface
RCA, Aviation plug
Power Supply
DC 24V
Product Dimension
175mm (L)×147mm (W)×101mm (H)
Net Weight(monitor)
580g
Operating Temperature
-20~70
Storage Temperature
-30~85
Power Consumption
less than 5 W
Feature:

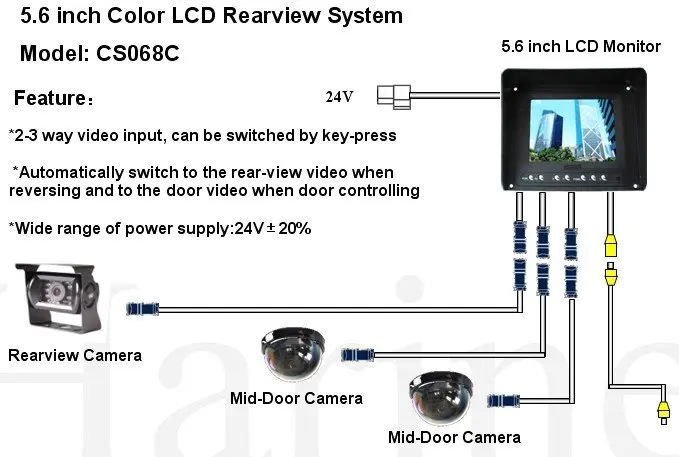

1.3-CH video input(4CH- max) 2.Automatically switch to the rear-view camera when reversing 3.Brightness, contrast and chroma can be adjusted by key-press 4.Wide range of power supply 5.Isolated power supply,hight anti-interference 6.Vehicle disturb shielding line and RS765-4plug for signal transmit
Packaging & Shipping
Trade Terms
FOB,EXW, CIF, C&F, DDU
Port
Xiamen
Shipment
Air, Sea, Express
Payment Terms
L/C, T/T, Western Union
Payment Condition
Payment before delievery
Supply Capability
5000pcs per month
Sample Availability
Samples are available after payment
Sample Time
7 working days after payment

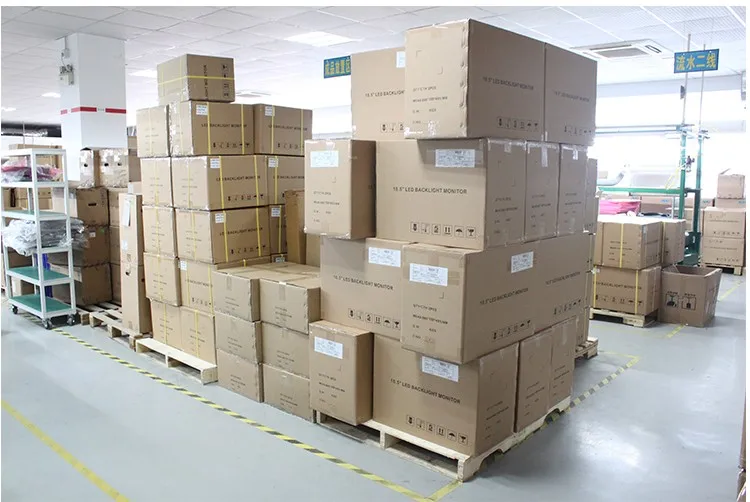

Packing
Export standard packaging (polyform+inner box+carton), or as per your request.
Shipping
According to customer's requirement.
Certifications
