95% al2o3 ceramic wear plate, rubber backed ceramic tile lining for chute

Product Overview

Description

95% al2o3 Ceramic Wear Plate, Rubber Backed Ceramic Tile Lining for Chute

Product Description



Description:

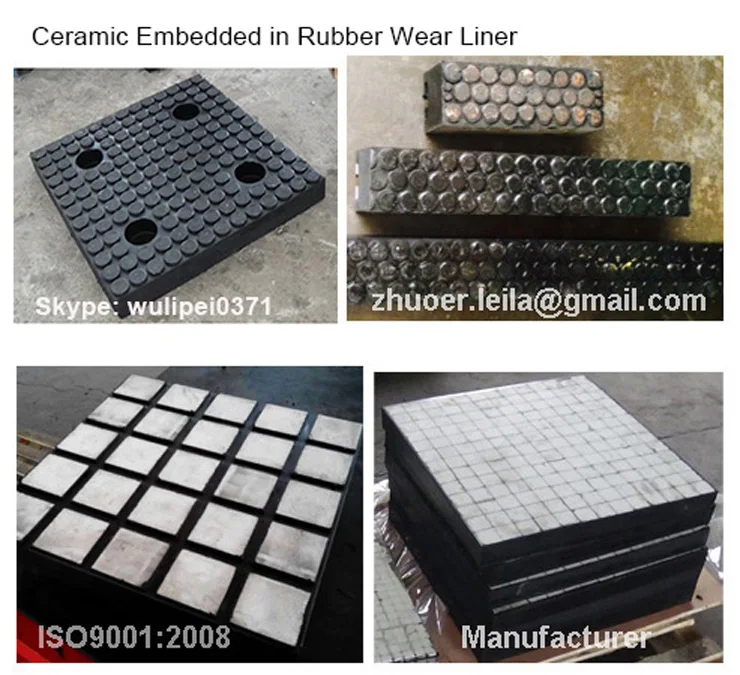

Rubber ceramic wear plate, rubber backed ceramic lining is embedding high alumina ceramic into energy absorbing rubber or polyurethane cushion, and bond both to steel backing plate via hot vulcanizing for easy installation.

Energy-absorbing rubber cushions helps reduce impact energy and prevent ceramic tiles breakage,

Steel backing plate with studs for easy installation.

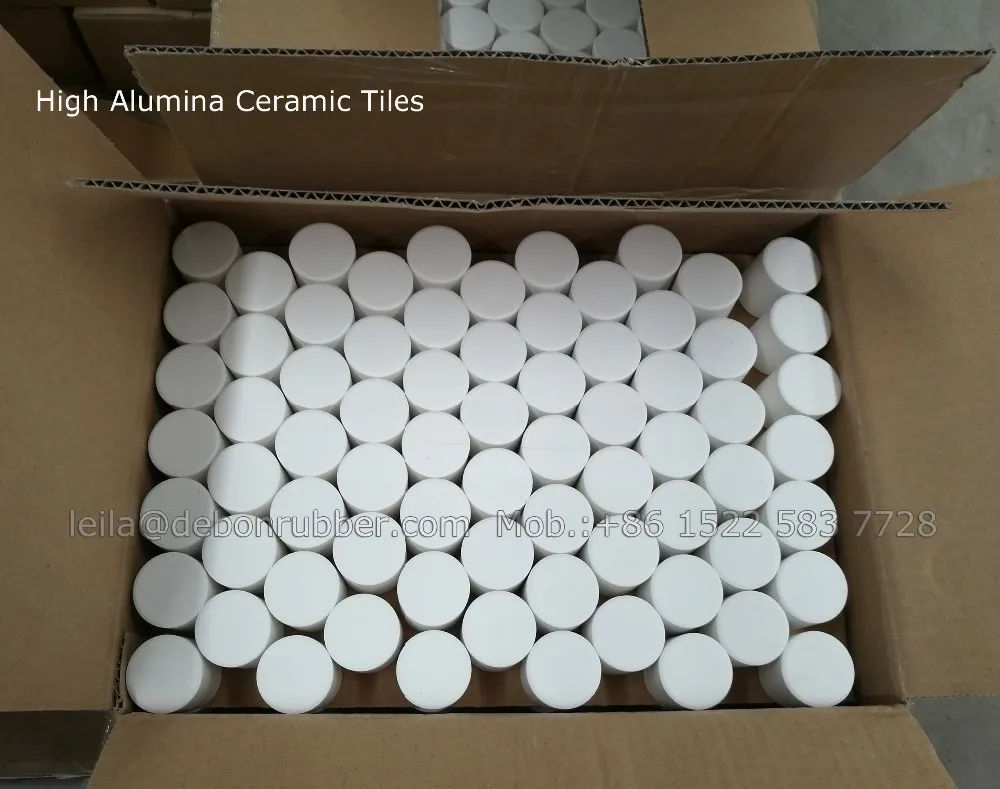

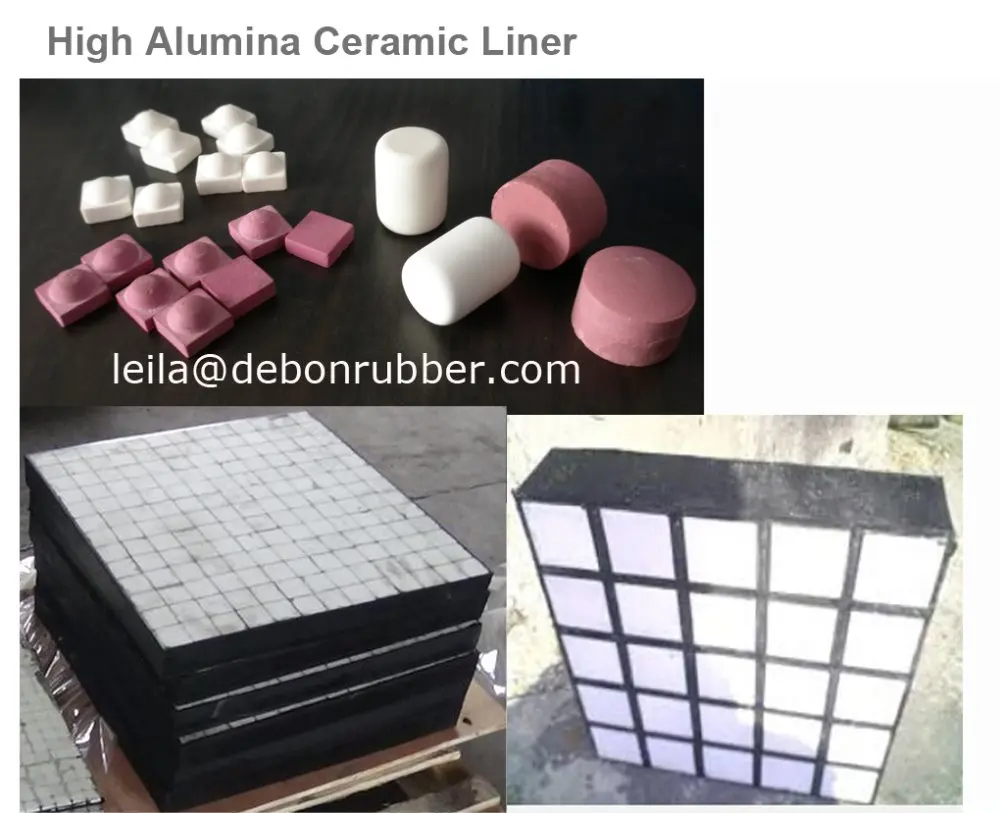

Features of alumina ceramic wear tiles:



Alumina ceramic wear tile offers high abrasion resistance, acid and alkli resistance is effectively prolong the service life of equipment and considered to be the best choice of anti-wearing and anti-corrosion material; Wear resistance of aluina ceramic is 200 times than that of special manganese, 170 times to high chrome cast iron; Hardness is much higher than that of wear-resistant steel and stainless steel.



Wear resistant rubber ceramic wear plates are used to offer higher abrasion and impact protection.











Applications:

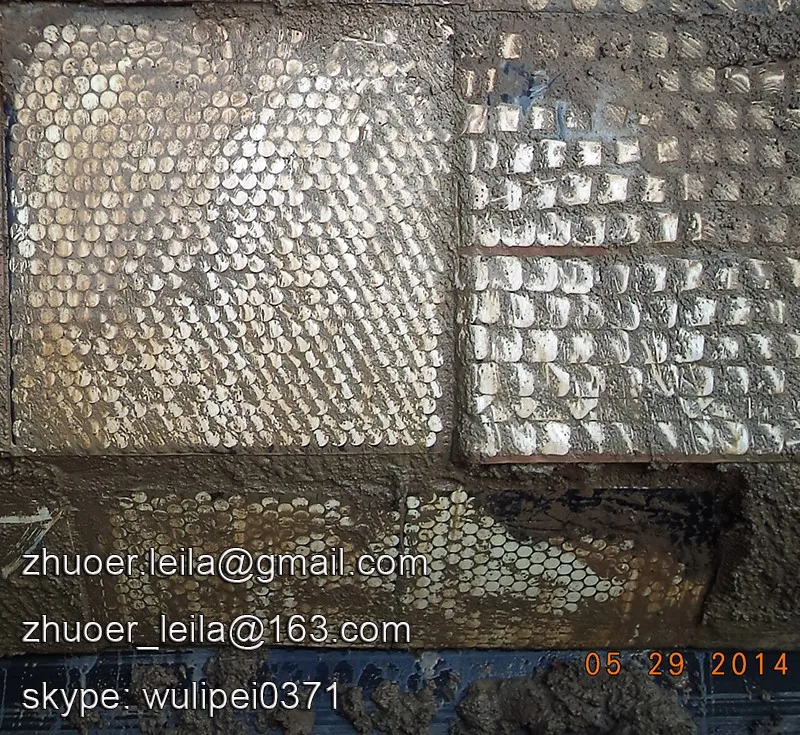

Coal mine, iron ore mine, steel plant, cement plant, etc.







Size of alumina ceramic tiles:



Length x width x height

10 x10 x5/10

20 x20 x 4/5/6/7

120 x 80 x 10/12.7/20

110x 37/34x 12

130 x50/47x12

150 x60/57 x12/10







Technical information:



1) al2o3: 92% or 95%

2) Density: 3.6g/cm³

3) Compressive strength: above 2,000MPa

4) Water absorption: <0.01

5) Crushing strength: ≥520kN

6) Hardness: 9 (Mohs)

7) Size: 40mm-75mm

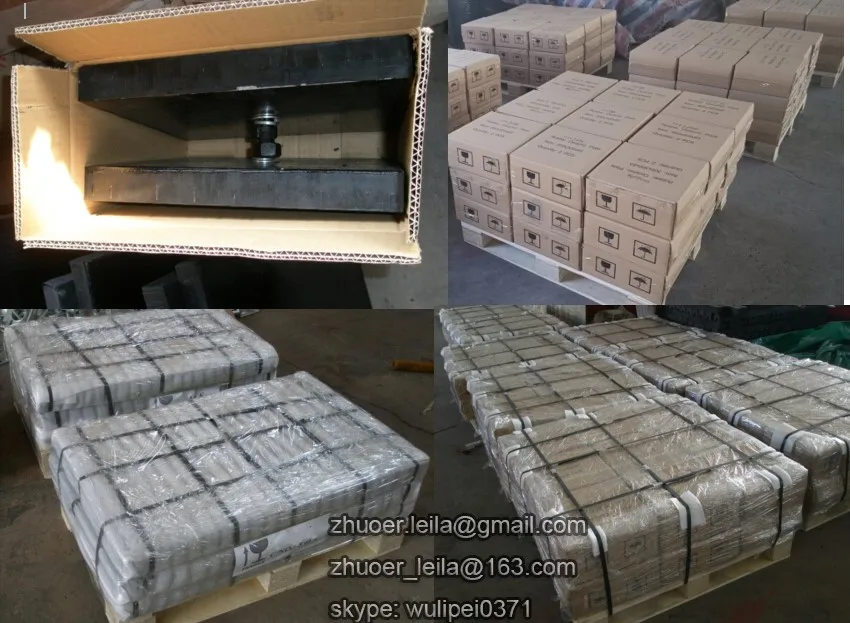

Packing: cartons





TCM chute abrasion resistant rubber ceramic liner, ceramic wear palte, ceramic rubber lining:



We specialize in manufacturing wear products, alumina ceramic wear liners, rubber lining, polyurethane liner, rich experience makes sure high quality, advanced technology, excellent bonding strength.



Our rubber alumina ceramic lining have been exported to many countries, high quality have been approved.





Abrasion resistant rubber ceramic wear plates selection chart:



Specification (mm)	Thickness of ceramic (mm)	Thickness of rubber (mm)	Thickness of steel backing plate	Total thickness (mm)
300x300x36	Φ21x21	9	6	36
300x300x50	Φ31x31	13	6	50
250x250x36	Φ21x21	9	6	36
250x250x50	Φ31x31	13	6	50
250x250x18(17.5x17.5x8)	7	5	6	18





Special Dimendions and Shapes to order.

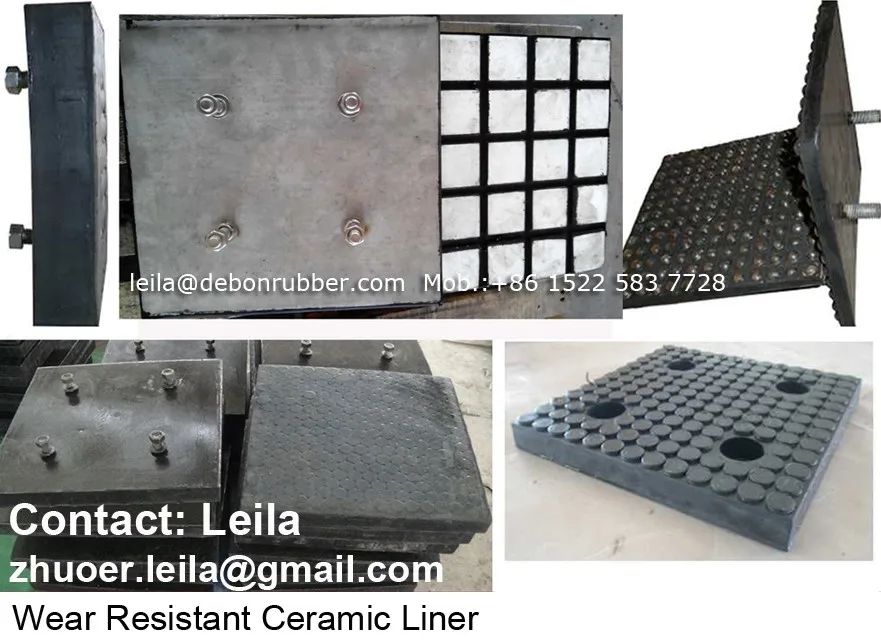

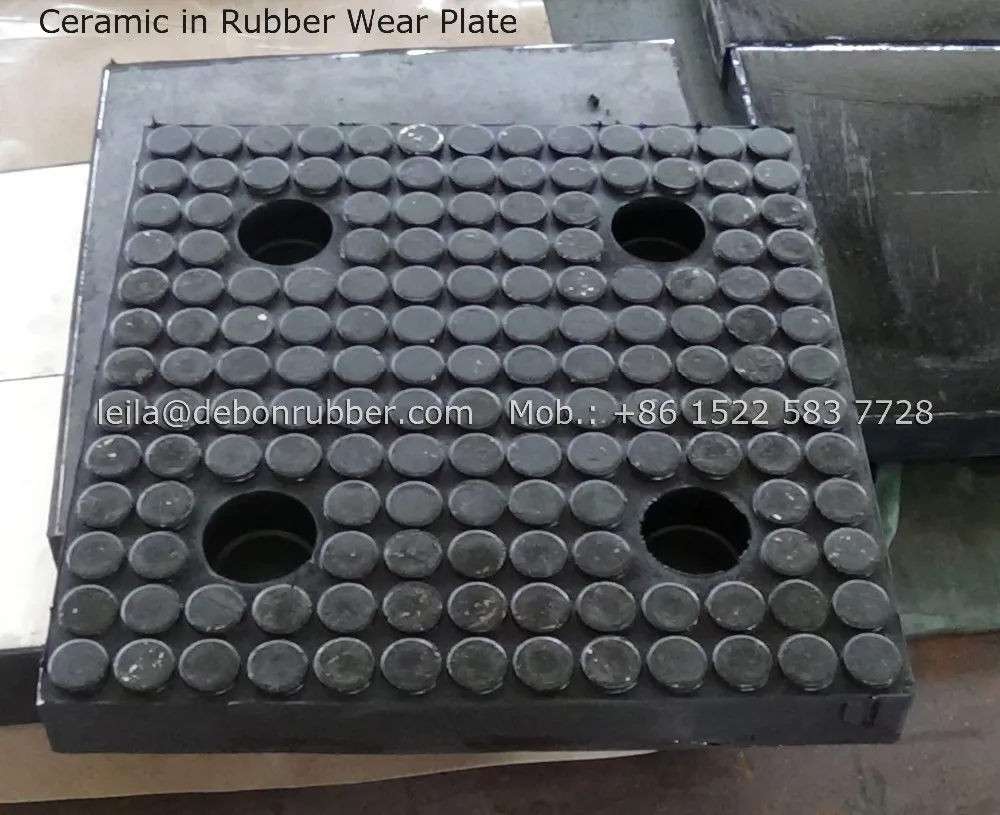

Abrasion resistant rubber alumina ceramic wear liner with ceramic cylinders, rubber ceramic wear panel









Company Introduction:



 We are a manufacturer specialized in designing and manufacturing wear products,ceramic wear liner, rubber wear lining, polyurethane liner , conveyor accessories, etc. Our products are widely used in bulk material handling industries including coal mine, steel plant, power generation, cement plant, metallurgy, chemical and other fields.





Export:

Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.



Contact Info:

Leila Wu

Mobile: 0086 15225837728

Office: 0086 391 3299600

Skype: wulipei0371

QQ: 1459706217



More information about abrasion resistant rubber alumina ceramic plates, wear pad, send us inquiry please.

We welcome you to visit our factory all the time.
