Product Overview
Description
4GE+ CATV+ Wi-Fi gpon onu wifi modem
Product Description
FD600-704 series is fiber to the home multi service access GPON ONT. It’s based on the mature, stable, high cost performance GPON technology and has gigabit Ethernet switching, WDM and HFC technology. FD600-704 series has a higher bandwidth, higher reliability, easy management and good quality of service (QoS) guarantee with technical performance of equipment meet the ITU G. 984 requirements and have good compatibility with third party manufacturers OLT.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON network provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables fiber to the home (FTTH) deployments economically resulting to accelerated growth worldwide.
It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm, uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.
FD600-704 series can integration wireless function with meet 802.11 n/b/g technical standards, It has built-in high gain directional antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.
1. Functional Features
- Support port-based rate limitation and bandwidth control;
- In compliant with ITU - T G. 984 Standard
- Wi-Fi series meet 802.11 n/b/g technical standards
- Support data encryption, group broadcasting, port Vlan separation ,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU auto-discovery/Link detection/remote upgrade of software;
- Support port mode of VLAN configuration
- Support power-off alarm function ,easy for link problem detection
- Support broadcasting storm resistance function
- Support port isolation between different ports
- Support port flow control
- Support ACL and SNMP to configure data packet filter flexibly
- Specialized design for system breakdown prevention to maintain stable system
- Support software online upgrading
- EMS network management based on SNMP ,convenient for maintenance
2. Typical Application
- Typical Solution:FTTH, FTTO
- Typical Business:INTERNET, IPTV, VOD, IP Camera, WIFI
Network Construction

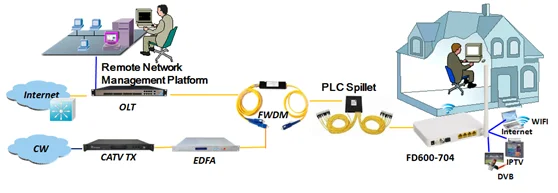

Figure: FD600-704 Application Diagram
3.Specification
Item | Parameter |
PON Interface | 1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |
User Ethernet | 4*10/100M or 4*10/100/1000M auto-negotiation Full/half duplex mode 1 RF output Female F-Type Connector |
Power Interface | 12V DC Power supply |
PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm |
Data Transmission | PON Throughput: Downstream 2.488Gbit/s s; Upstream 1.244Gbit/s |
Business | Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support loop detection |
Network | Support IEEE802.3 QAM, ONU can be remotely managed by OLT Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management |
Management | Status monitor, Configuration management, Alarm management, |
Shell | Plastic casing |
Power | Power supply: 12V DC/1A Power consumption: 4FE+CATV: <6.6W |
Physical | Item Dimension:170mm(L)*130mm(W)*30mm(H) Item weight:0.3kg |
Environmental | Operating temperature: 0 to 50ºC |
WIFI Specification (Suitable for the WIFI devices)
Item | Parameter | |
Performance parameters | Operating Mode | Router or bridge |
Throughput | IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 300Mbps | |
Frequency | 2.412 ~ 2.472 GHz | |
Channel | 13*Channel, configurable to meet the standard of USA, Canada, Japan and China | |
Modulation | DSSS , CCK and OFDM | |
Coding | BPSK, QPSK, 16QAM and 64QAM | |
RF receive sensitivity | 802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps | |
RF output lever | 802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps | |
Encryption Mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) | |
CATV
Item | Parameter |
Wavelength | 1100-1600nm |
Optical return loss | >45dB |
Input optical power | -18dBm~0dBm |
RF frequency | 47MHz~1000MHz |
RF output lever | 78dBuV (@-12~-2dBm@85MHz) |
CNR | >41dB (@-10dBm@DS22 Channel) |
CSO | >60dBc (@-10dBm@DS22 Channel) |
CTB | >60dBc (@-10dBm@DS22 Channel) |
RF output return loss | >12dB |
RF impedance | 75Ohm |
AGC function | Support |
4.Order Information
Product Name | Product Model | Descriptions |
4FE+CATV Single Fiber | FD600-704FA | 4*10/100M Ethernet interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support AGC function, Plastic casing, external power supply adapter |
4GE+CATV Single Fiber | FD600-704GA | 4*10/100/1000M Ethernet interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support AGC function, Plastic casing, external power supply adapter |
4FE+CATV+WIFI Single Fiber | FD600-704FAW | 4*10/100M Ethernet interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter |
4GE+CATV+WIFI Single Fiber | FD600-704GAW | 4*10/100/1000M Ethernet interface, 1 GPON interface, built-in FWDM, Input optical power -18dBm~0dBm, support Wi-Fi function and AGC function, Plastic casing, external power supply adapter |
