top spout flat pouches/Zipper doypack Packaging Machine
- Category: Multi-Function Packaging Machines >>>
- Supplier: Ruian Trustar Pharma And Packing Equipment Co. Ltd.
Share on (60634870670):
Product Overview
Description

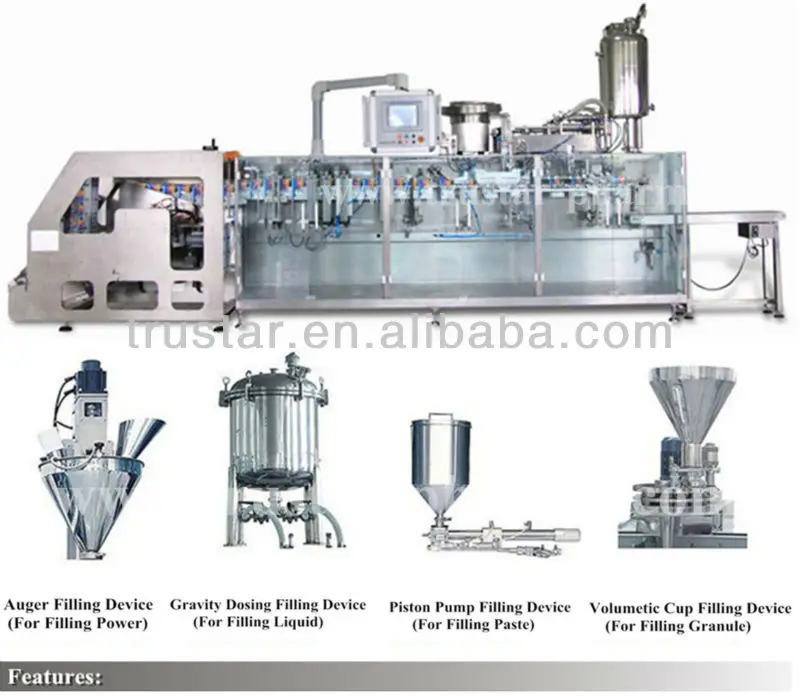

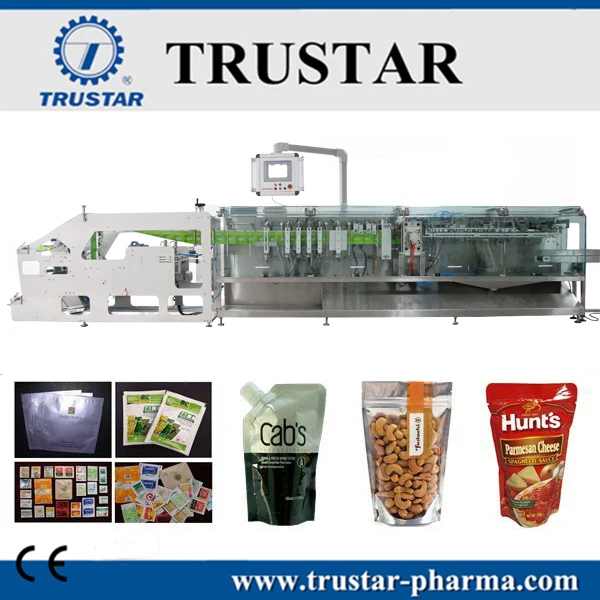

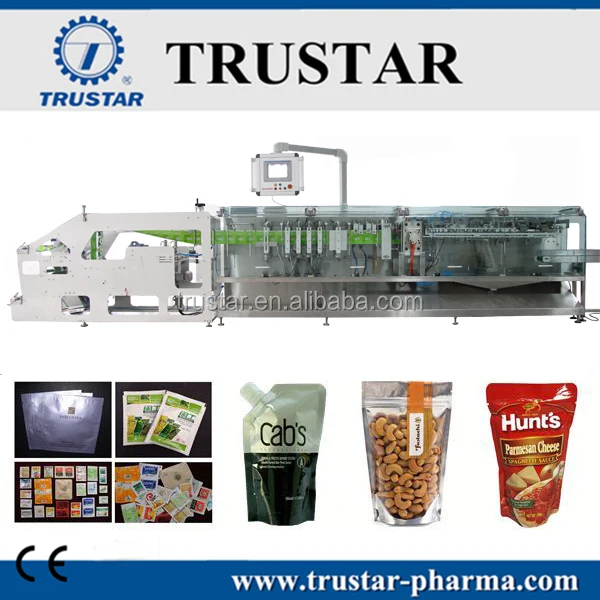

HMK-1600P horizontal packaging machine
product sample

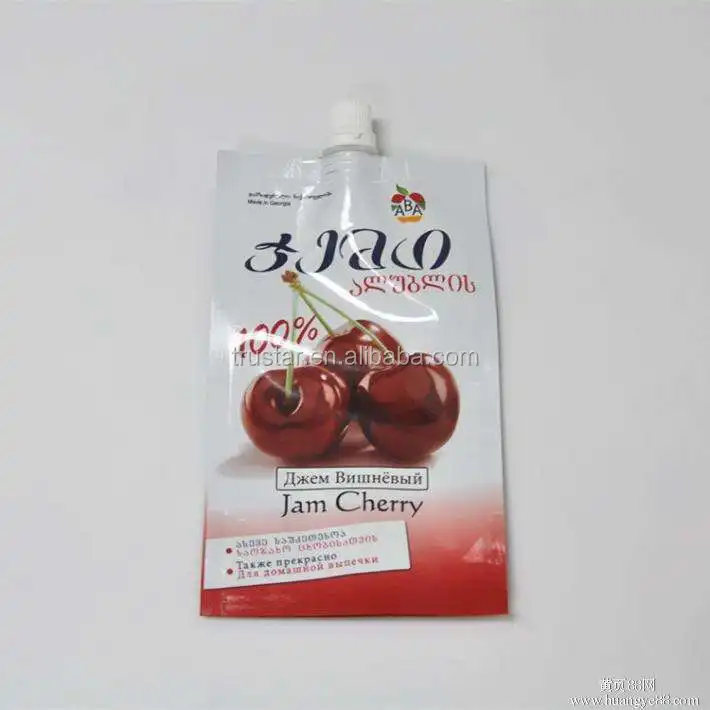

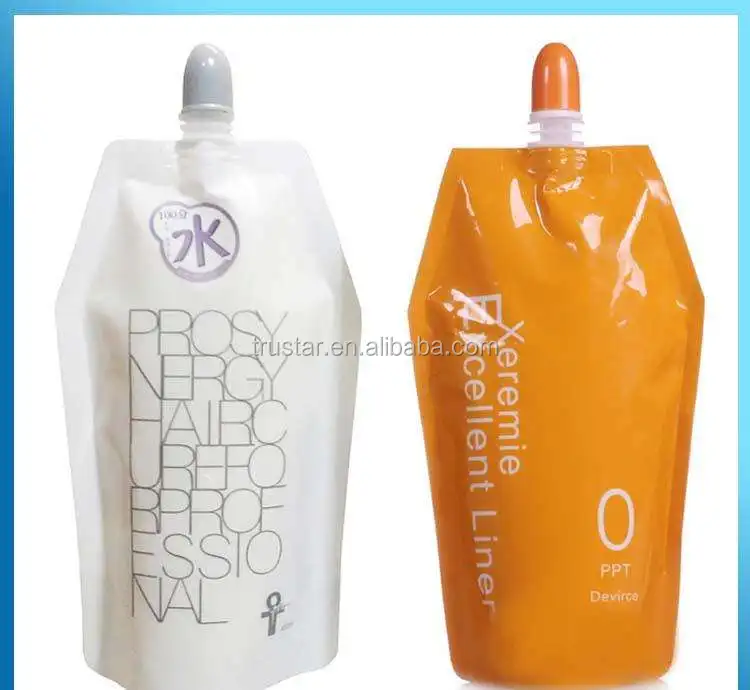

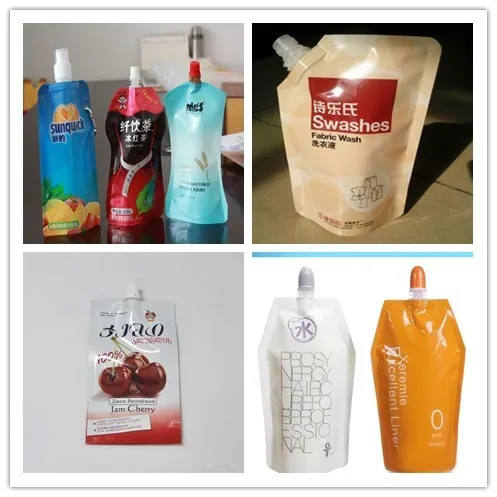

spout doypacks

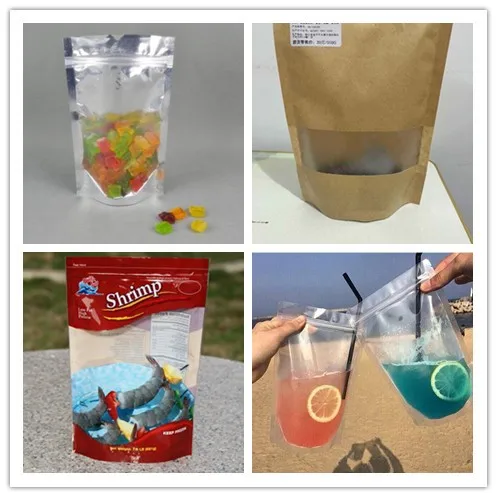

zipper doypacks pouches
Product Description
This is a versatile product specialized in producing 3 and 4 side sealed sachets, top spout flat pouches, doypacks, zipper doypacks, spout doypacks and irregular shaped pouches with small dosed.
The full-module design allow the machine to meet the versatility requirement of different shaped pouches and speed by configuring different modules. It offers a comprehensive solution to customers who need a multifunctional machine to achieve complex packages.

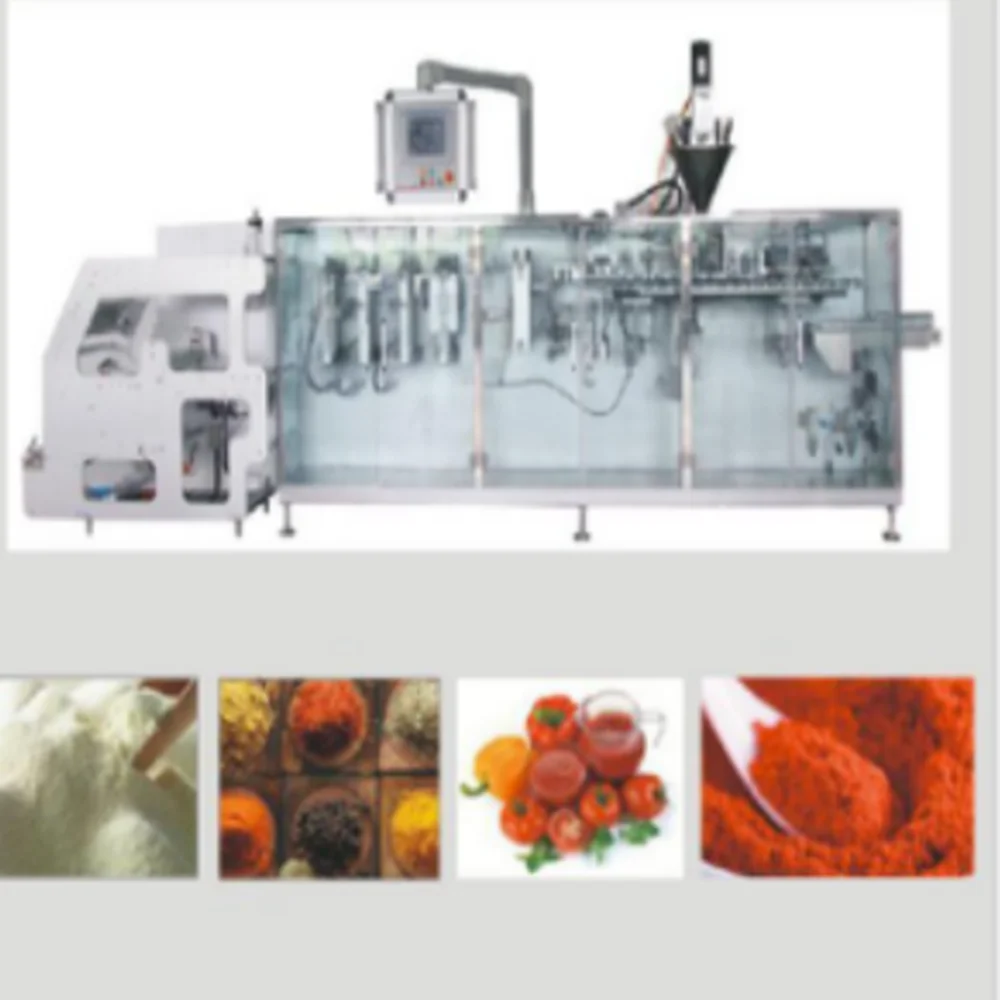

The machine can be used to package milk powders, coffee powders,coffee beans, condiments, detergent powders, macaronis, nuts,tomato sauces, jams,mayonnaise,detergent liquids ect.
Packaging & Shipping
Machine operation | HFFS | Horizontal form fill and seal |
Technology concept | Pouch origin | Form the reel |
Pouch transport system | intermittent | |
Construction | Machine frame | Stainless steel SUS304 |
Except internal mechanisms | Stainless steel SUS304 and Aluminum alloy | |
Parts in contact with product | Stainless steel SUS316L | |
Reel | Reel diameter | 500mm |
Reel Width | 720mm | |
Reel core | 76mm | |
Filling stations |
| 2 (with 2 heads) |
Product production |
| Optional gas flushing(N2) or steam injection |
Machine dimensions | Length×width×height | 5720×1100×2000mm |
Machine weight |
| 2200Kg |
Pouch dimensions | Length×width×height | Minimum Maximum |
FLT-1 70X110 210X300 | ||
FLT-2 70+70X110 105+105X300 | ||
STU-1 70X110X(22+22) 210X290X(52.5+52.5) | ||
STU-1 70+70X110X(22+22) 105+105X300X(41+41) | ||
Packaging speed (pouches per minute and pouch volume (c.c)) |
| Speed Maximum Volume Maximum |
FLT-1 90 1000 | ||
FLT-2 160 200 | ||
STU-1 70 1500 | ||
STU-2 120 600 | ||
Consumption | Electrical | 11.0kw |
Air consumption | 100L/min 0.6Mpa | |
Electrical Data |
| 200-415V/50-60Hz/N+G (According to customer requirements customization) |
Noise level |
| ≤70dB |
Safety |
| CE standards |
