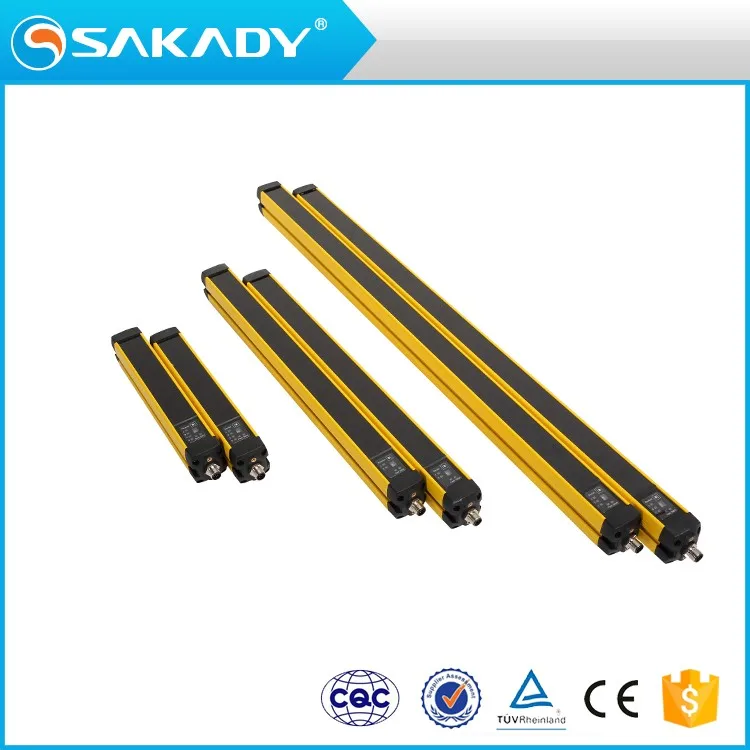

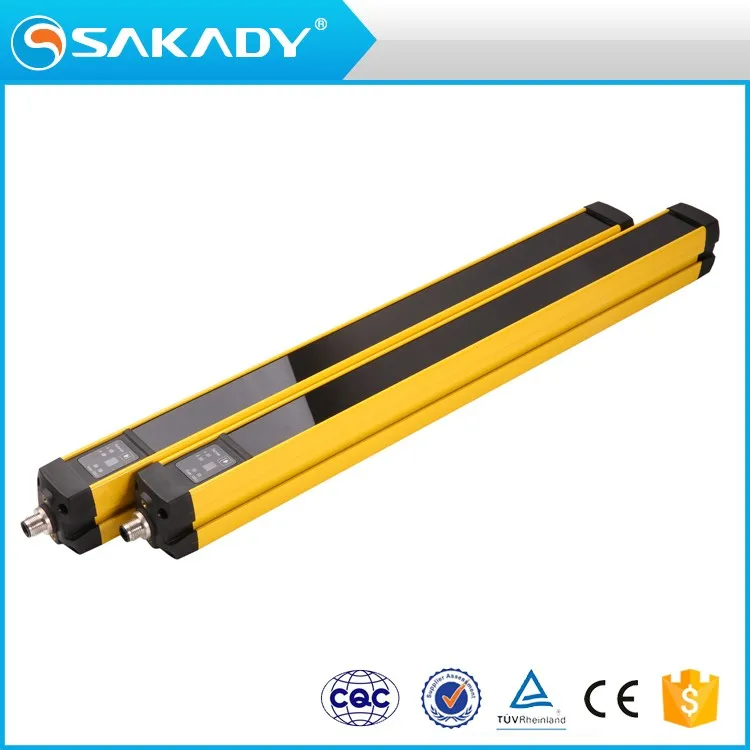

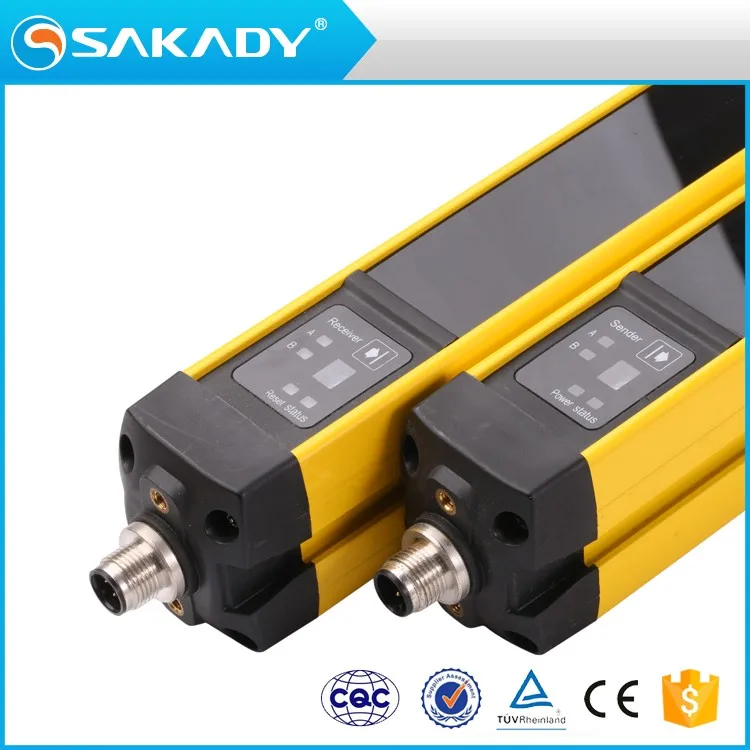

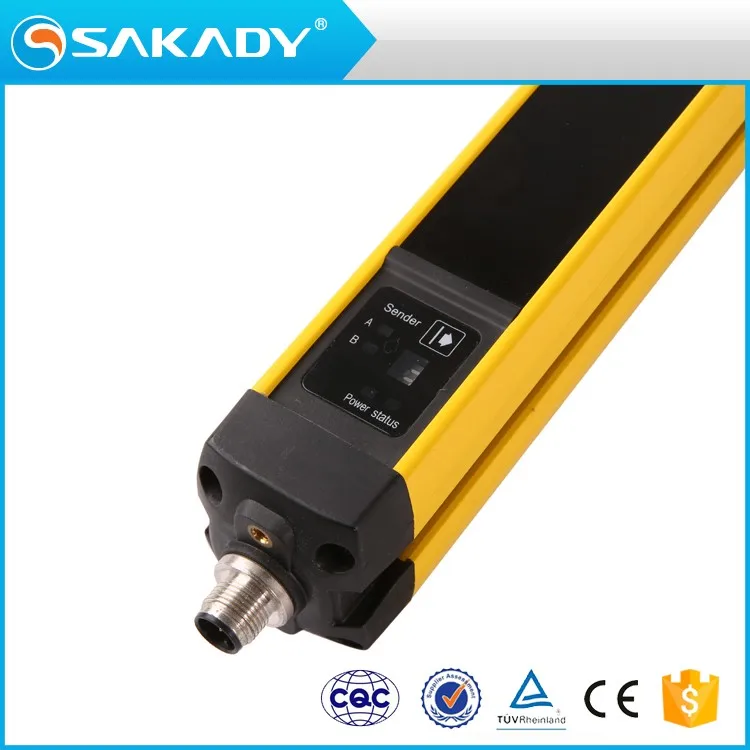

Aluminum TUV Certificate Safety Light Curtain Sensor
- Category: >>>
- Supplier: Hangzhou Sakady Sensor Co. Ltd.
Share on (60634903112):
Product Overview
Description
Aluminum TUV Certificate Safety Light Curtain Sensor
Type2 safety solution: Low Cost, International Standard Safety Design
Features
 |
|
Type
Finger type >SL2-14 series Minimum sensing object ø14 mm
Automatic reset
Type | Sensing distance (Note 1 Operating range) | Model | No. of beam | Protection height (mm) | |
NPN | PNP | ||||
Finger type 10mm beam space |
0.3-8m | SL-14ZN2C-16C | SL-14ZP2C-16C | 16 | 160mm |
SL-14ZN2C-32C | SL-14ZP2C-32C | 32 | 320mm | ||
SL-14ZN2C-48C | SL-14ZP2C-48C | 48 | 480mm | ||
SL-14ZN2C-64C | SL-14ZP2C-64C | 64 | 640mm | ||
SL-14ZN2C-80C | SL-14ZP2C-80C | 80 | 800mm | ||
SL-14ZN2C-96C | SL-14ZP2C-96C | 96 | 960mm | ||
(Note1) The "operating range" is the possible setting distance between the emitter and the receiver.
(Note 2) The model contains emitter and receiver, if you want to choose the transmitter or receiver alone, add "- E" after the model for transmitter, add "-R" for receiver.
Example: Emitter of SL-14ZP2C-16C: SL-14ZP2C-16C-E; Receiver of SL-14ZP2C-16C: SL-14ZP2C-16C-R
Manual reset
Type | Sensing distance (Note 1 Operating range) | Model | No. of beam | Protection height (mm) | |
NPN | PNP | ||||
Finger type 10mm beam space |
0.3-8m | SL-14SN2C-16C | SL-14SP2C-16C | 16 | 160mm |
SL-14SN2C-32C | SL-14SP2C-32C | 32 | 320mm | ||
SL-14SN2C-48C | SL-14SP2C-48C | 48 | 480mm | ||
SL-14SN2C-64C | SL-14SP2C-64C | 64 | 640mm | ||
SL-14SN2C-80C | SL-14SP2C-80C | 80 | 800mm | ||
SL-14SN2C-96C | SL-14SP2C-96C | 96 | 960mm | ||
(Note1) The "operating range" is the possible setting distance between the emitter and the receiver.
(Note 2) The model contains emitter and receiver, if you want to choose the transmitter or receiver alone, add "- E" after the model for transmitter, add "-R" for receiver.
Example: Emitter of SL2-14SP2C-16C: SL2-14SP2C-16C-E; Receiver of SL2-14SP2C-16C: SL2-14SP2C-16C-R
Arm/Foot type >SL2-25 series Minimum sensing object ø25 mm
Automatic reset
Type | Sensing distance (Note 1 Operating range) | Model | No. of beam | Protection height (mm) | |
NPN | PNP | ||||
Arm/Foot type 10mm beam space |
0.3-12m | SL-14ZN2C-16C | SL-14ZP2C-16C | 16 | 160mm |
SL-14ZN2C-32C | SL-14ZP2C-32C | 32 | 320mm | ||
SL-14ZN2C-48C | SL-14ZP2C-48C | 48 | 480mm | ||
SL-14ZN2C-64C | SL-14ZP2C-64C | 64 | 640mm | ||
SL-14ZN2C-80C | SL-14ZP2C-80C | 80 | 800mm | ||
SL-14ZN2C-96C | SL-14ZP2C-96C | 96 | 960mm | ||
(Note1) The "operating range" is the possible setting distance between the emitter and the receiver.
(Note 2) The model contains emitter and receiver, if you want to choose the transmitter or receiver alone, add "- E" after the model for transmitter, add "-R" for receiver
Example: Emitter of SL2-25ZP2C-16C: SL2-25ZP2C-16C-E; Receiver of SL2-25ZP2C-16C: SL2-25ZP2C-16C-R
Manual reset
Type | Sensing distance (Note 1 Operating range) | Model | No. of beam | Protection height (mm) | |
NPN | PNP | ||||
Arm/Foot type 10mm beam space |
0.3-12m | SL-14SN2C-16C | SL-14SP2C-16C | 16 | 160mm |
SL-14SN2C-32C | SL-14SP2C-32C | 32 | 320mm | ||
SL-14SN2C-48C | SL-14SP2C-48C | 48 | 480mm | ||
SL-14SN2C-64C | SL-14SP2C-64C | 64 | 640mm | ||
SL-14SN2C-80C | SL-14SP2C-80C | 80 | 800mm | ||
SL-14SN2C-96C | SL-14SP2C-96C | 96 | 960mm | ||
(Note:1) The "operating range" is the possible setting distance between the emitter and the receiver.
(Note 2) The model contains emitter and receiver, if you want to choose the transmitter or receiver alone, add "- E" after the model for transmitter, add "-R" for receiver
Example: Emitter of SL2-25SP2C-16C: SL2-25SP2C-16C-E; Receiver of SL2-25SP2C-16C: SL2-25SP2C-16C-R
Loop & Connection

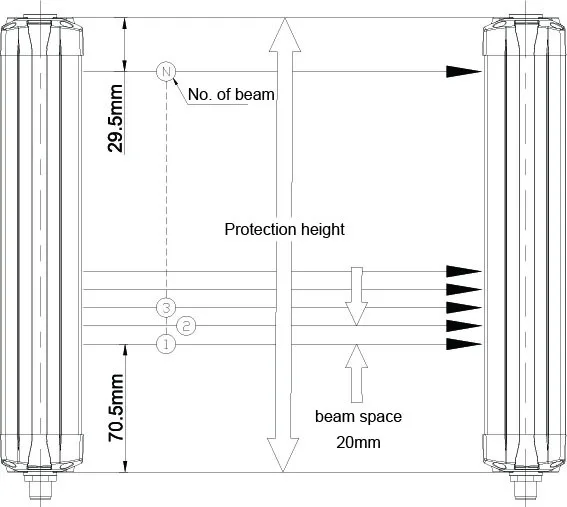

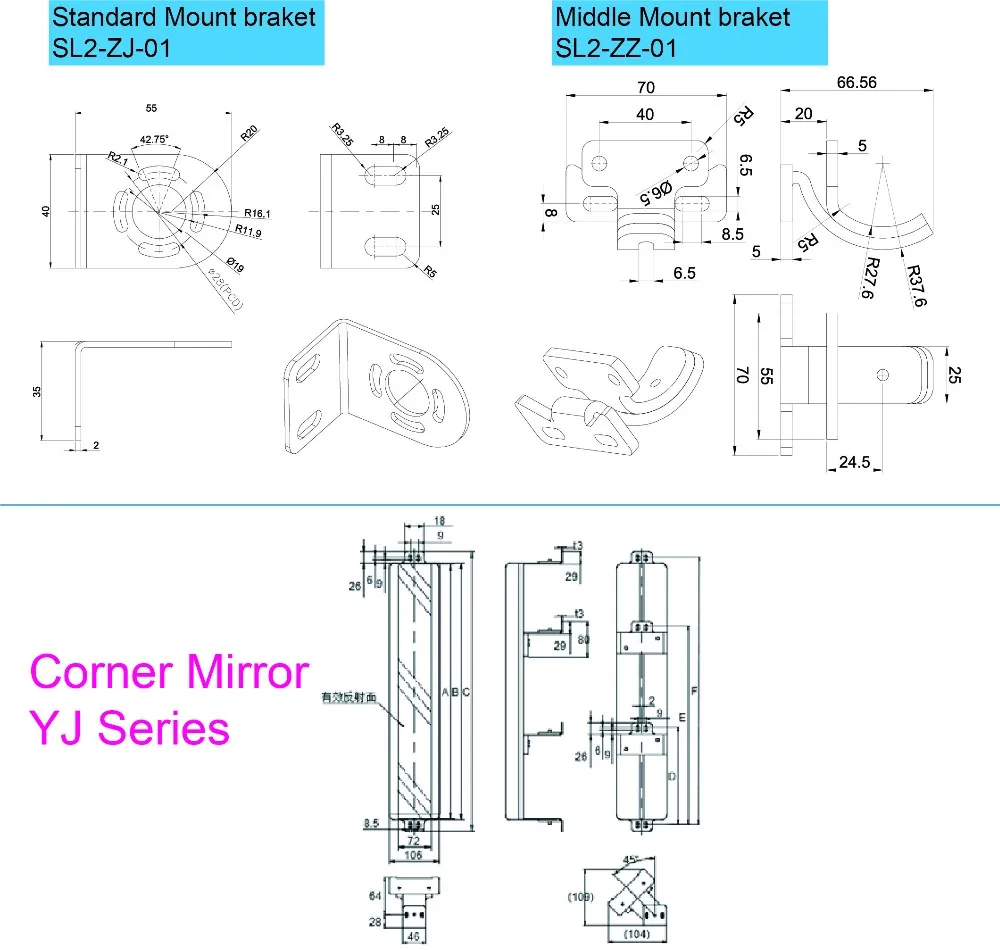

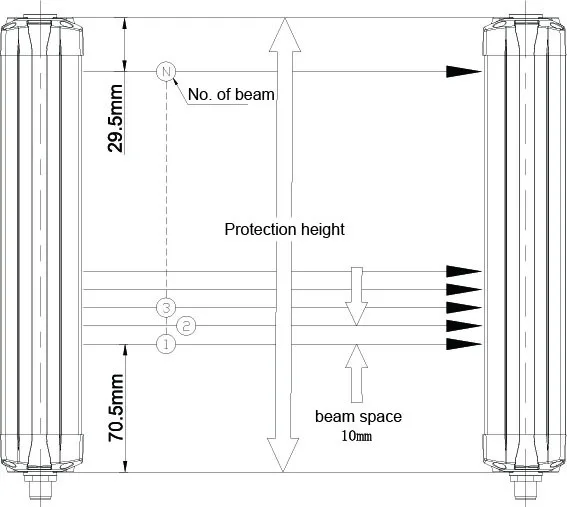

Dimensions
